Oil-Electric Hybrid Bending Machine
Hsg Laser Co., Ltd.- After-sales Service：Globally Local Agents
- Warranty：1-Year Warranty
- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
Base Info
- Model NO.：HB-G1
- Structure Type：Desktop
- Laser Classification：Gaseous Laser
- Laser Technology：Laser Vapor Cutting
- Transport Package：Higher Than International Shipping Criteria
- Specification：2600*1550*2580mm,3560*1700*2780mm,4560*1755*2900mm
- Trademark：HSG
- Origin：China
- Production Capacity：5000 Sets,Year
Description

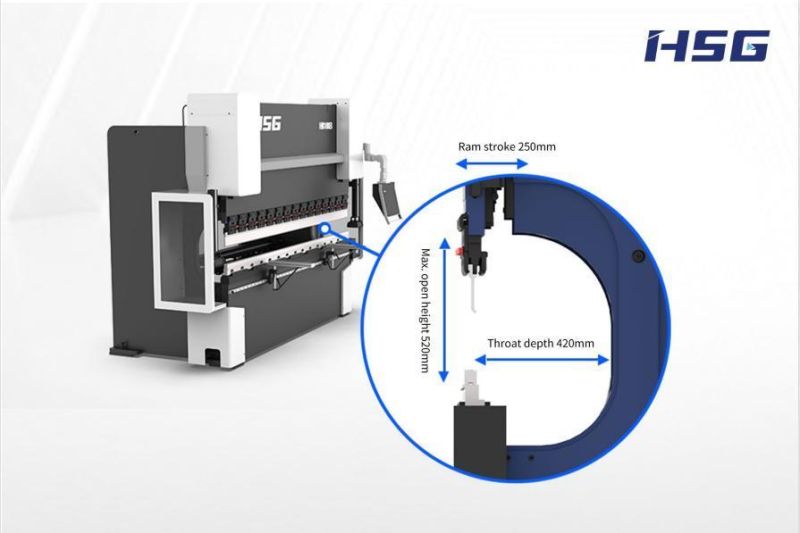

Overall Dimensions (L*W*H)

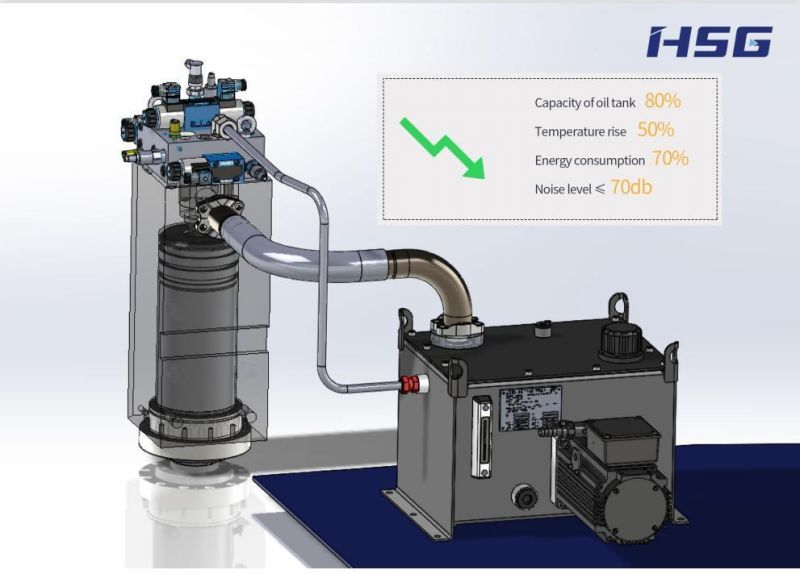

1. The Most Cutting-edge Energy-saving Technology It is servo motor that is used for controlling two-way pump to reverse liquid flow, so as to make slide blocks lift and fall.
Flow, pressure and direction of hydraulic oil are controlled by dual-driven oil pump and servo motor.
Overflow will never happen while slide block works. No electric power is needed while waiting for next procedure. The strength of electricity saving stands out if long-term use.

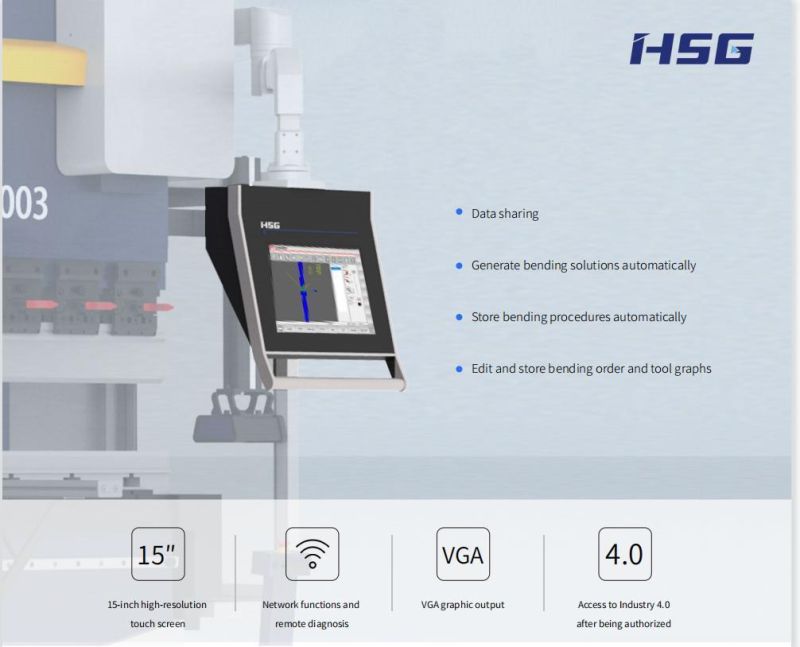

2. Italian ESA S650 Operating System
* User-friendly and straightforward screen
* Automatically calculate bending force needed according to sheet length and thickness
* Open database available for recording the correction of bending angle, with less time for that in future
* Accept sudden power failure and adapt to less desirable environment

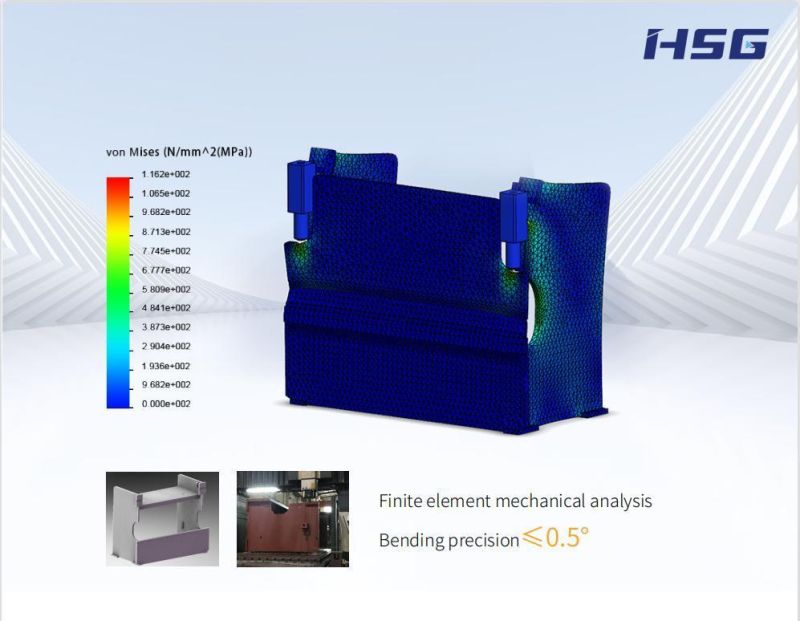

3. New Highly-rigid Frame Its slide block, lower platform, left and right column are subject to finite element mechanical analysis. With this newly upgraded frame, the overall bending precision will be kept within 0.5°.
Bending precision ≤ 0.5°

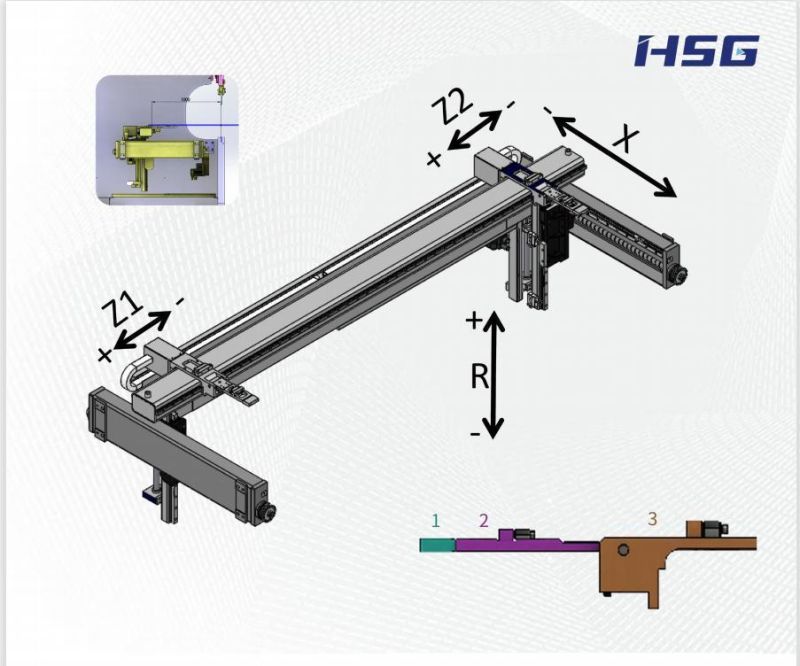

4. Efficient and Reliable Post-positioning System

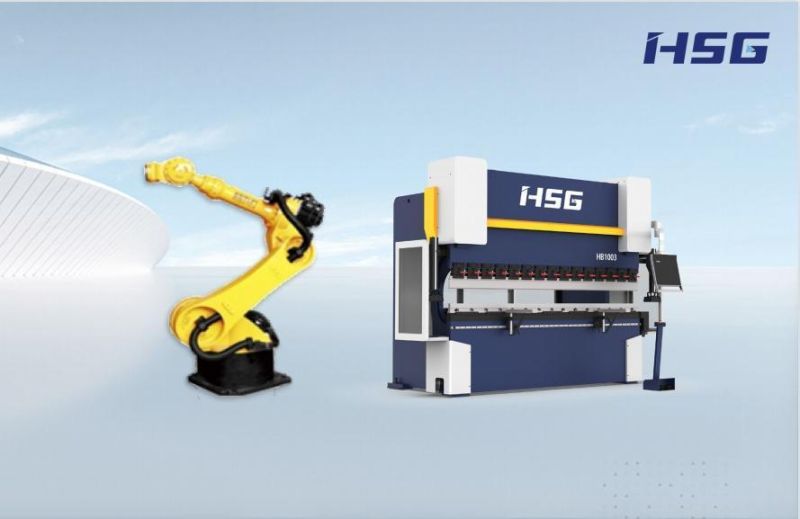

5. German COMAU Six-axis Collaborative Robot (Optional)Automation interface is provided for upgrades anytime and helps to reduce labor intensity, save labor force and make bending efficient.
* Automatic sheet separation
* Automatic sheet stacking
* Automatic loading & unloading
* Automatic sheet rolling-over
* Automatic bending order change

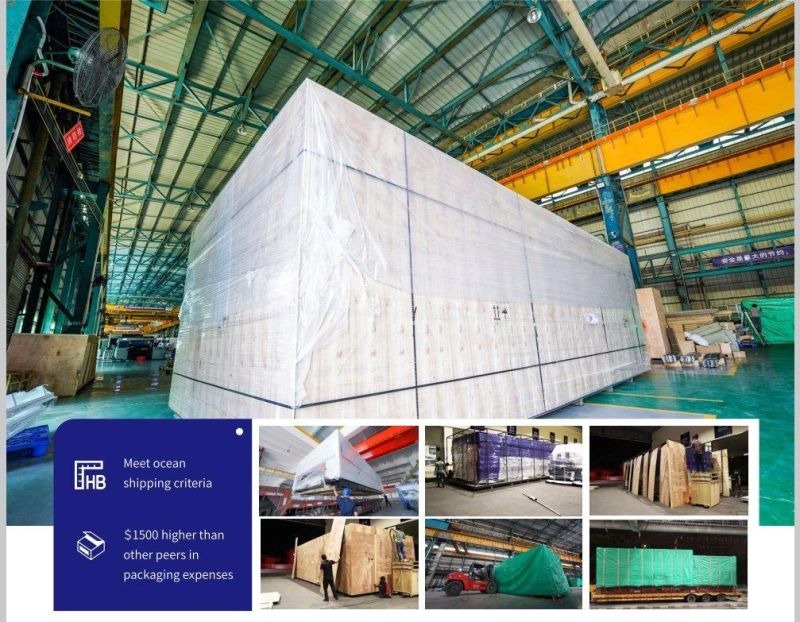

6. High-standard Package
To keep entire machine safe during long-distance sea transport, we adopt high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic film and filling foam.
