• Model NO.：XTC-1530H
• Laser Technology：Laser Cutting
• Cutting Area：1500*3000mm
• Cutting Speed：80-140 mm,S
• Cutting Thcikness：20 mm
• Control Software：Cypcut
• Laser Source：Raycus,Ipg,Nlight
• Laser Head：Raytools
• Servo Motor：Yaskawa,FUJI
• Guide Rail：Taiwan
• Transport Package：20gp Plywood
• Specification：4660x2250x1850cm
• Origin：China
• HS Code：8456100090
• Production Capacity：900

Overview Product Description

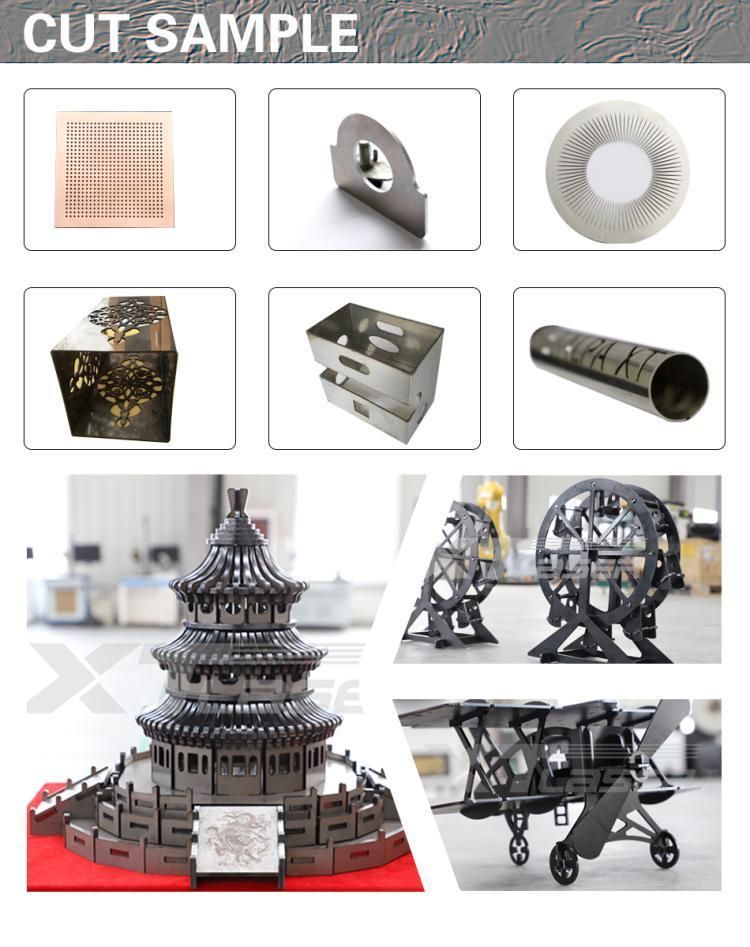

Samples

Detailed images

Technical date

Main configurations

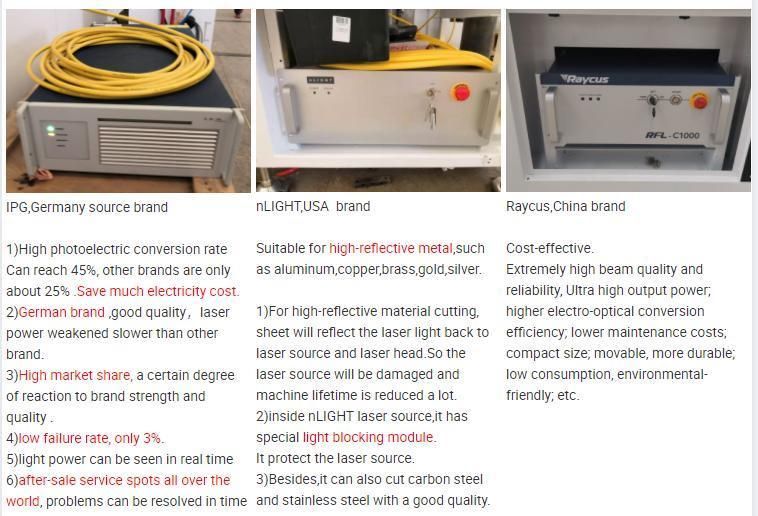

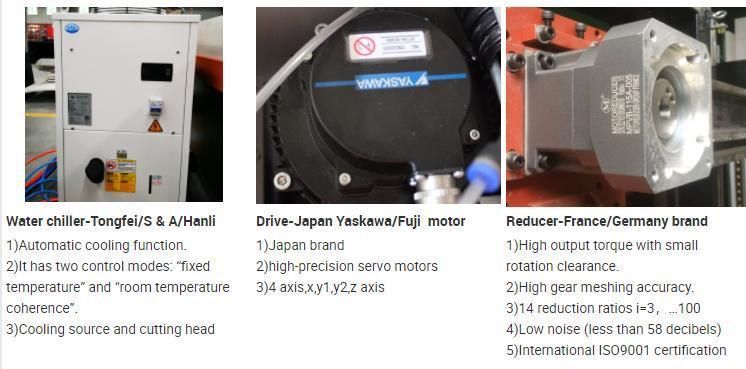

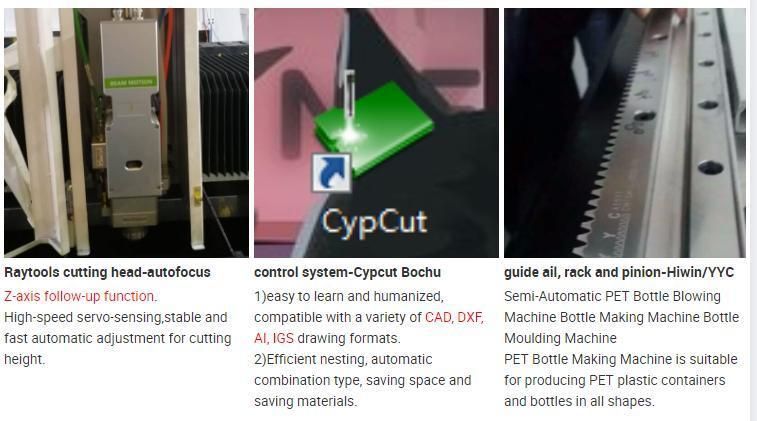

Laser SourceRaytcus/IPG/nLIGHTCutting HeadRaytoolsMachine BedXT LASER,Welded BedDrive ModeDual DriveTransmissionTaiwan  Rack and PinionGuide RailJapan/TaiwinServo Motor DriverYaskawa/Fuji From JapanReducerGermany/FranceWater ChillerHanli/Tongfei/CW SAControl SystemCypcut From Shanghai,ChinaComputerAdvantech  Industrial ComputerPower Voltage Requirement3 Phase AC 380V 50/60HZSolenoid ValveTaiwan AirtacProportional ValveJapan SMCWorking Size3000*1500 mm
Technical ParametersWorking Area3000*15000mmX axis route1510mmY axis route3050mmZ axis route100mmMaximum Running Speed140m/minAccelerated Speed1.5GCutting Speed70m/minPosition Precision±0.05mmX/Y Axis Repeated Position Precision±0.03mmOur Team and Company

Packing

1.Timely delivery. Each machine is arranged with precise assembly steps without any delay.
2.After-sales services and Guarantee.
We offer 2 years warranty, during the period, any problem happen, we are responsible to solve.
And if any part of the machine was broken, which happens rarely,
we would send you a new one by DHL, and all cost is all on us.

Exhibitions

We attend domestic and abroad exhibitions every month,
and make long-term friends in business and life with new customers from all over the world.
