• Model NO.：Lf30f
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Name：Fly Laser Printer
• Application：Plastic Pipes
• Capacity：30W
• Information Input：Touch Screen and USB
• Pulse Frequency：20 kHz - 100 kHz
• Marking Range：110 mm X 110 mm (Can Be Customized)
• Working Voltage：110-240V
• Power：800W
• Package：Wooden Case
• Transport Package：Wooden Case with Foam
• Specification：155X55X56cm
• Trademark：CYCJET
• Origin：Shanghai
• HS Code：8456110090
• Production Capacity：300units,Month

Basic Info.

Model NO. Lf30f Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Name Fly Laser Printer Application Plastic Pipes Capacity 30W Information Input Touch Screen and USB Pulse Frequency 20 kHz - 100 kHz Marking Range 110 mm X 110 mm (Can Be Customized) Working Voltage 110-240V Power 800W Package Wooden Case Transport Package Wooden Case with Foam Specification 155X55X56cm Trademark CYCJET Origin Shanghai HS Code 8456110090 Production Capacity 300units/Month

Product Description

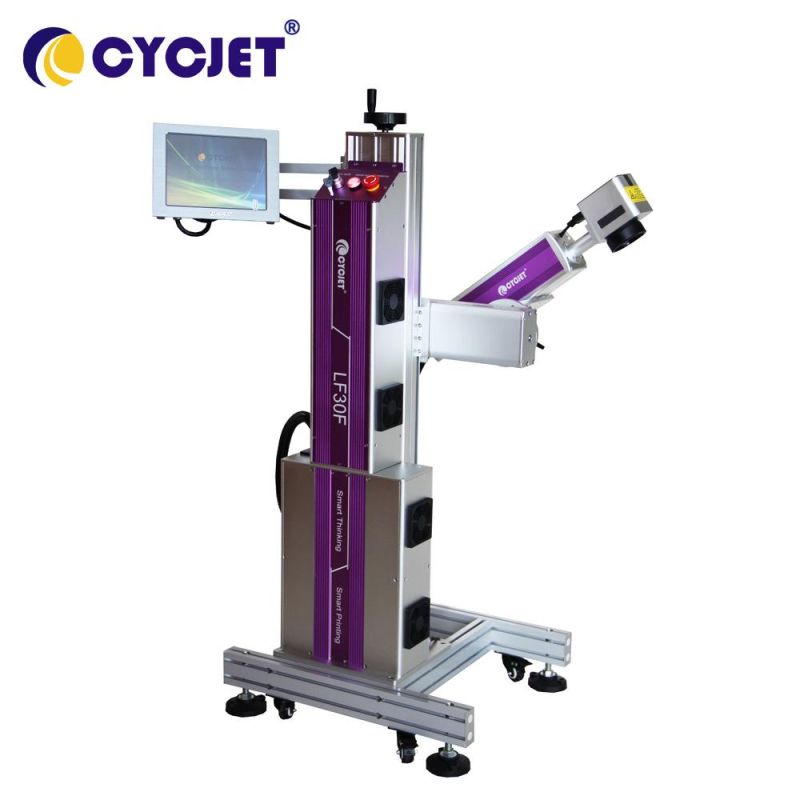

Product Picture:

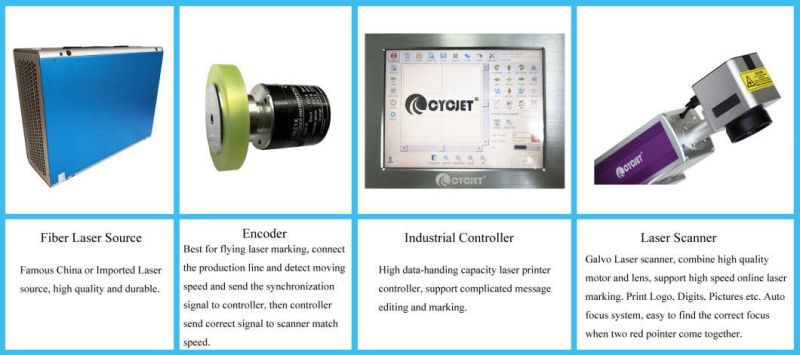

Components of Machine:



Applications:



This type laser marking machine was designed for PVC/PPR/PE/HDPE Pipe Production Line, it is a professional laser marking machine to print  brand, date and other information on the pipe surface. The pipe surface color will change after heat printing, the code can not move or earase it. No consumer goods, less production cost

Also suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.

Advantage:

1, Perfect design software, easy to learn and operation
2, Less Mechanical Faliure
3, Operation Status: Fly and Standstill
4, The PVC, PPR,PE Pipe Code will change color after mark,the demonstration of effects is better than ink priter.
5, The code can not move or erase it
6, No consumer goods, less production cost

Terms of Payment:
T/T, LC

After-sale Service
1, Warranty Valid: 12 Month
2, Online or Spot Training

Details and Specifications:

Specifications

Output Power: 30W Beam quality M2: <2 Laser wavelength: 1064 nm Air cooling Pulse frequency: 20 KHZ - 100 KHZ Marking range: 110 mm x 110 mm (can be customized) MarkingSpeed:7000mm/s Marking Depth: ≤0.3mm Marking Line Width: 0.01-0.2mm (based on difference material) Min character Size: 0.015mm. Repeat accuracy: + / - 0.003 mm Marking area locating: Red-light locating system. Power supply: AC 100-260 v 50/60 hz Power: ≤800W

Delivery&Package

Delivery Time: 3-7 days after received Advance Payment By Vessel or Air Plane Standard Package: Wood Carton, Carton Box

Company:
_{CYCJET relies on head office which has experts with more than ten years experience and high innovation spirits to ensuring the product's quality & reliability and the company's future development. On the base of enlarging product's scope, we do hope our coding system can meet the requirements of the customers all over the world, also constantly devotes to offering comprehensive high-end products of Industrial Ink-Jet & marking solution, smart & portable coding system, such latest type "A" series handheld inkjet printers, "B" series high-speed industrial inkjet printers , "C" series portable inkjet printers, and "L" series higher configuration fly laser marking machines. Monthly standard output capacity 800units of inkjet system, 300units of fly laser system. So based on well experience & professional technology, we can gave all of our full sets supply & service system, reasonable price, perfect quality to our each customer in the world !
CYCJET people consistently adhering to the concept of "Smart Thinking Smart Printing" , with professional technology, top quality, personalized service, preferential prices to meet the needs of different users, and with new and old friends to work together, common development, sharing a win-win,experience efficient ,smart and portable marking solution!}

Exhibition:
