• Model NO.：PEDB-200
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Usage：Metal, Nonmetal
• Engraving Machine Type：Laser Marking Machine
• Certification：CE, ISO 9001
• Laser Type：Fiber
• Voltage：110V-220V
• Working Size：110*110mm
• Laser Power：20W 30W 50W
• Fiber Length：1.5m
• Central Wavelength：1064nm
• Polarization：Random
• Transport Package：Wooden Case
• Specification：ISO 9001 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. PEDB-200 Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Usage Metal, Nonmetal Engraving Machine Type Laser Marking Machine Certification CE, ISO 9001 Laser Type Fiber Voltage 110V-220V Working Size 110*110mm Laser Power 20W 30W 50W Fiber Length 1.5m Central Wavelength 1064nm Polarization Random Transport Package Wooden Case Specification ISO 9001 & CE Trademark Perfect Laser Origin China HS Code 8456110090 Production Capacity 500 Sets/Month

Product Description

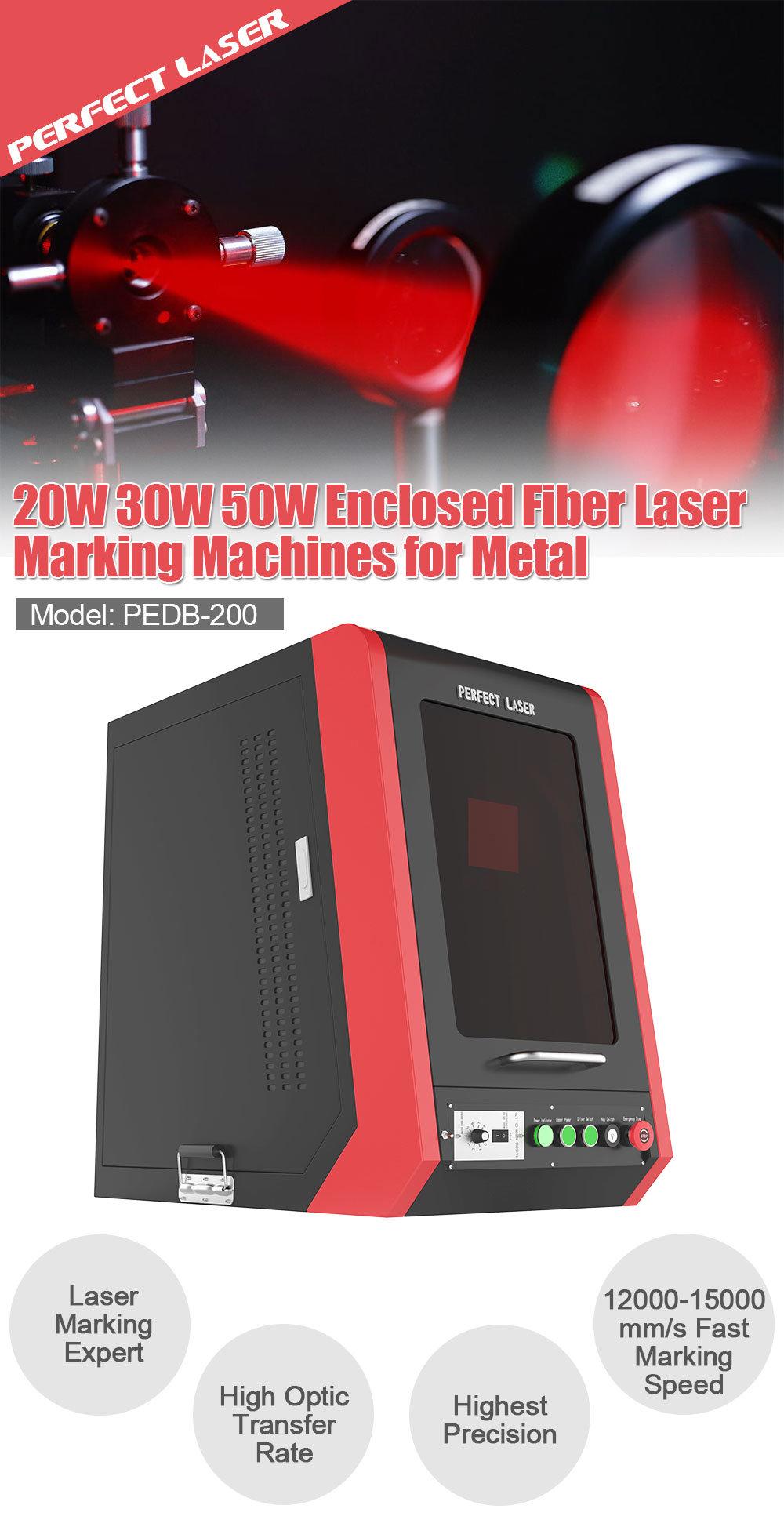

 Portable Enclosure Fiber Laser Iron Copper Marking Machine (Model:PEDB-200)

Contact:Crystal


Product Description of Laser Marking Machine:Perfect Laser has innovated out the first-class marking technology, it can work on sculptured surface without defocus. 3d laser marking machine adopts German IPG fiber laser technology, while maintaining the excellent beam quality, 3d laser marking machine using the front focus technology, dynamic focus, so that after the Introduction10w 20w fiber laser marking machines have a cover-sealed structure. During work, the enclosed fiber laser marking machine's flog will be kept in the box body without emission to outside.
Environmental, friendly and healthy. It is special designed for European market, which has high demands for working environment.




Product Application of Laser Marking Machine:
10w 20w fiber laser marking machines are of good quality output beam, high reliability.
10w 20w fiber laser marking machines can be carved both on metal materials and some non-metallic materials.

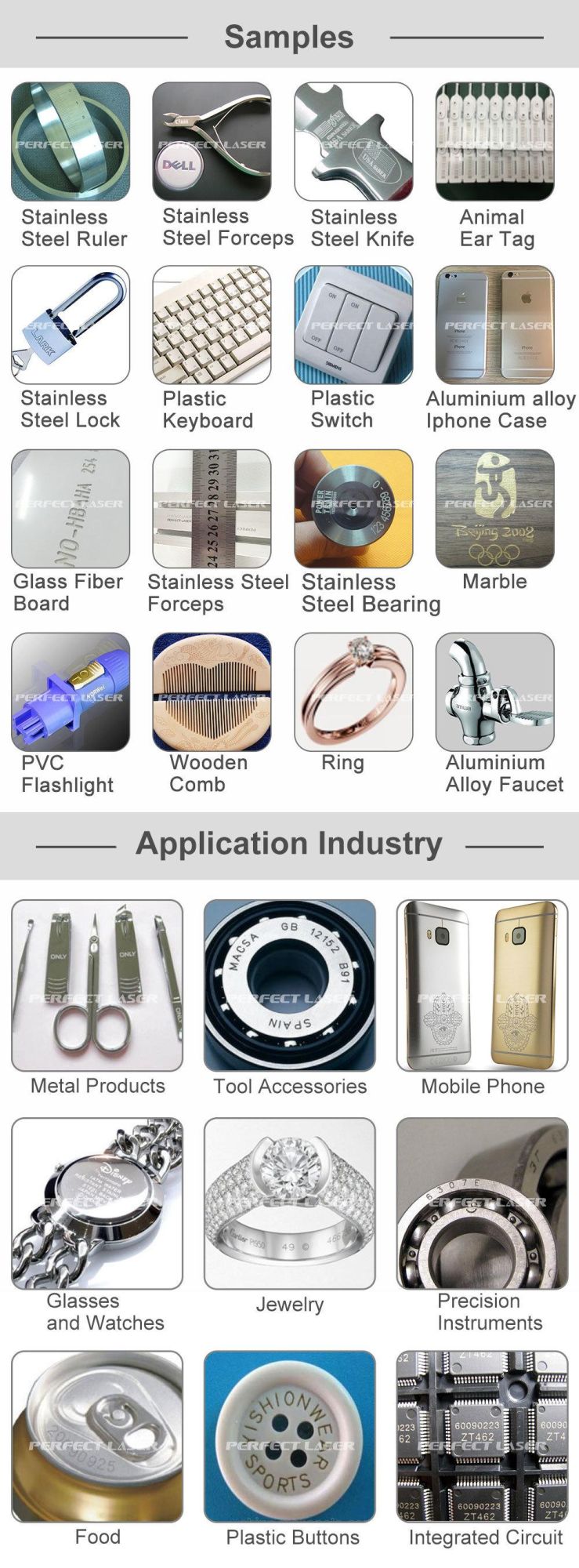

This kind of enclosed fiber laser marking machine mainly marked in areas for smoothness, finesse demanding, such as electronic products, metal ware, watches, jewelry, IC, plastic buttons and other graphic surface.
The effect of 10w 20w fiber laser marker on Bitmap marking is particularly outstanding.
It is also called:10w fiber laser marking machines,20w fiber laser marking machines,fiber laser marking machine price,10w fiber laser marker,20w fiber laser marker,10w fiber laser engraving machines.



 Main Features of Laser Marking Machine:1. Low operation cost, free maintenance for over 10 years
2. Marking speed: he enclosed 20w fiber laser marking machine uses a high-quality imported laser scanning equipment, speed up to 7000mm / s.
3. High Precision: 10w 20w fiber laser marking machines' repositioning accuracy of up to 0.002mm.
4. High-Rate of Electrical-Optical Conversion for the enclosed fiber laser marking machine: The efficiency of 10w 20w fiber laser marking machines optic-electrical converting is up to 70%.
5. High Reliability: MTBF(Mean Time Between Failures) >100,000 hours.
6. Integrated and Compact: Compact, Small, Desktop, Easy delivery
7. Easy Operating: English User Manual, VCD training video, software sending together with the 10w 20w fiber laser marking machines and 24 hours online service.
8. Air Cooling: 10w 20w fiber laser engraving machines adopts air cooling, which has excellent cooling effect than the other cooling method.


 Technical Date of Laser Marking Machine:

Item	PEDB-200
Laser power	20W / 30W / 50W / 100W
Central wavelength	1064±4nm
Polarization	Random
Single pulse power	0.8~1.0mJ
Beam quality	<1.7m<>2
Facular diameter	7~9mm
Power stability	<5%<>
Frequency adjusting range adjustable range	20~80kHz
Pulse breadth	80~140ns
Pulse adjusting range	5~100%
operating voltage	100~240VAC
Fiber Length	1.5m
Cooling mode	forced air
Operation temperature	0~35ºC
Operation humidity	10~95
Storage temperature	-10~60ºC
Marking Format	Graphics, Text, Bar Codes, QR Code, Serial Number,Serial number,etc.

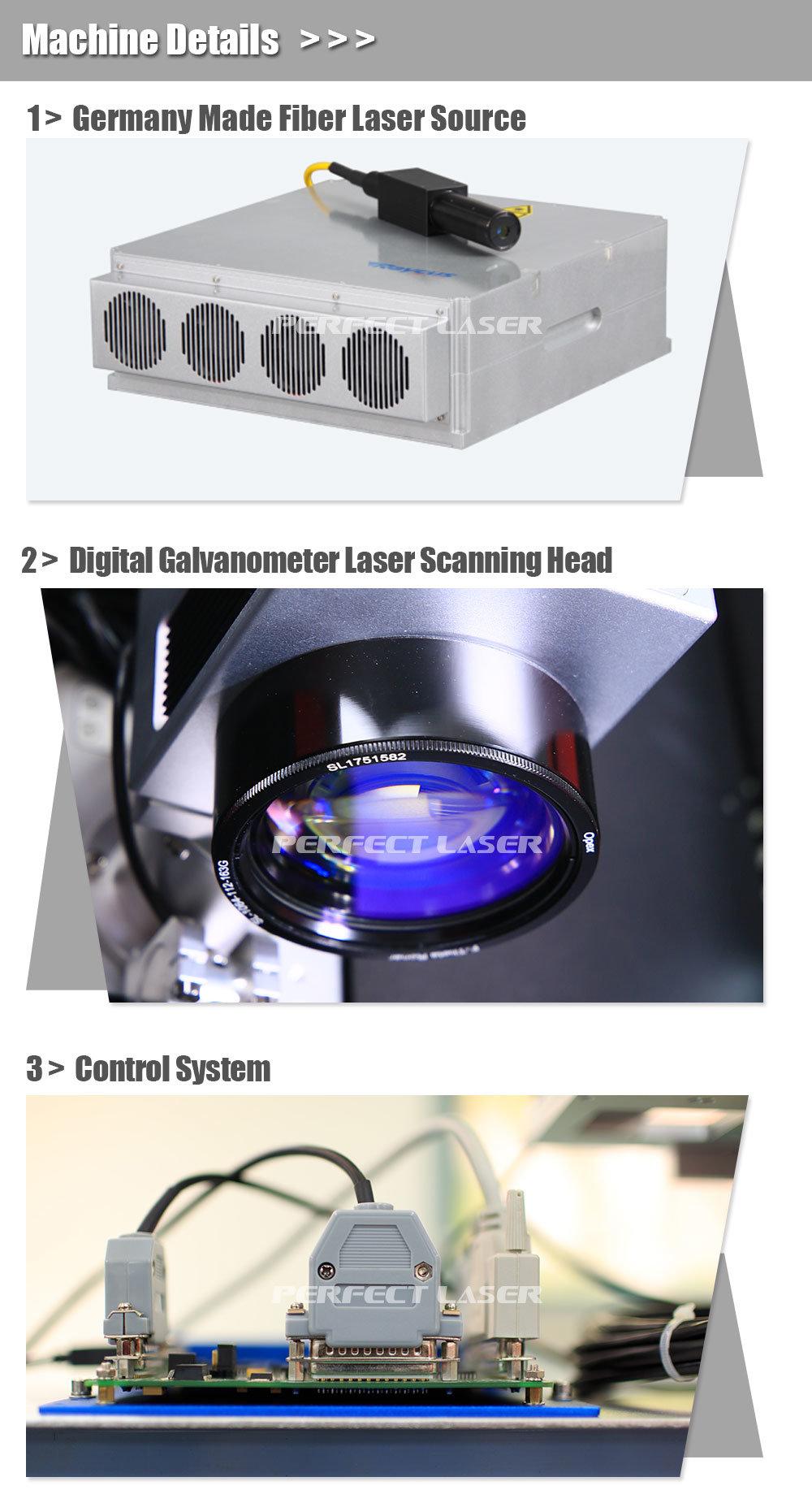

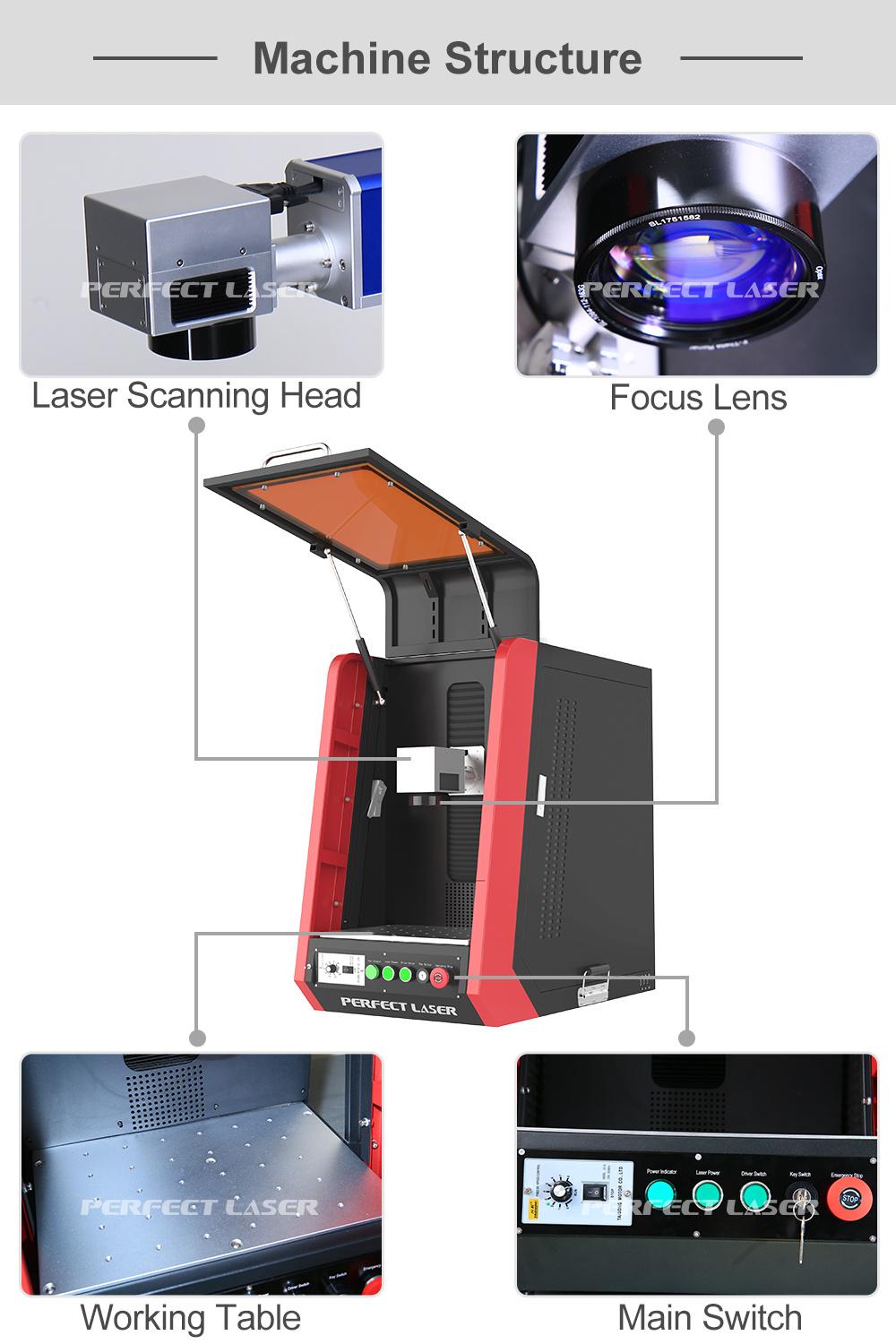

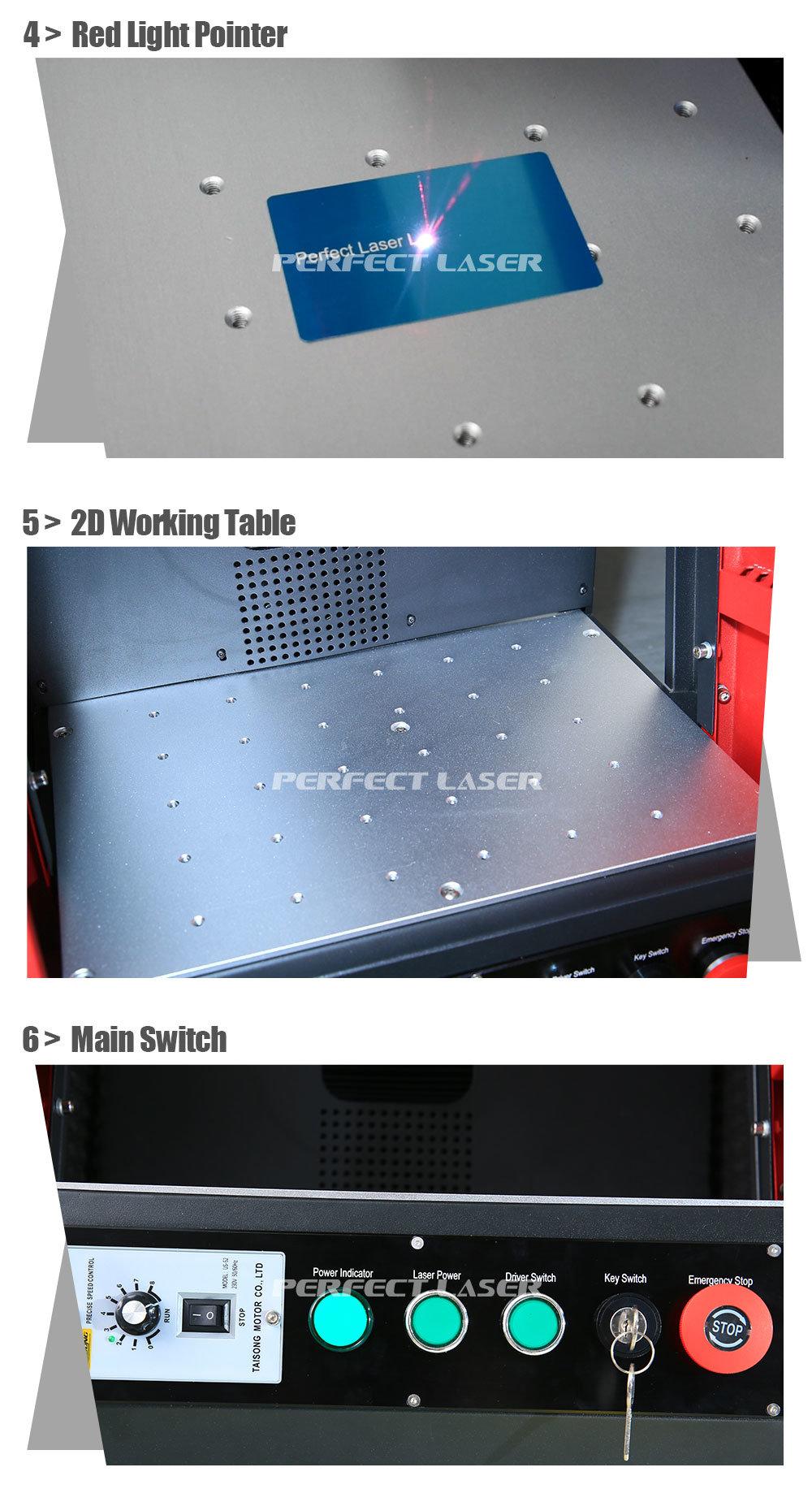

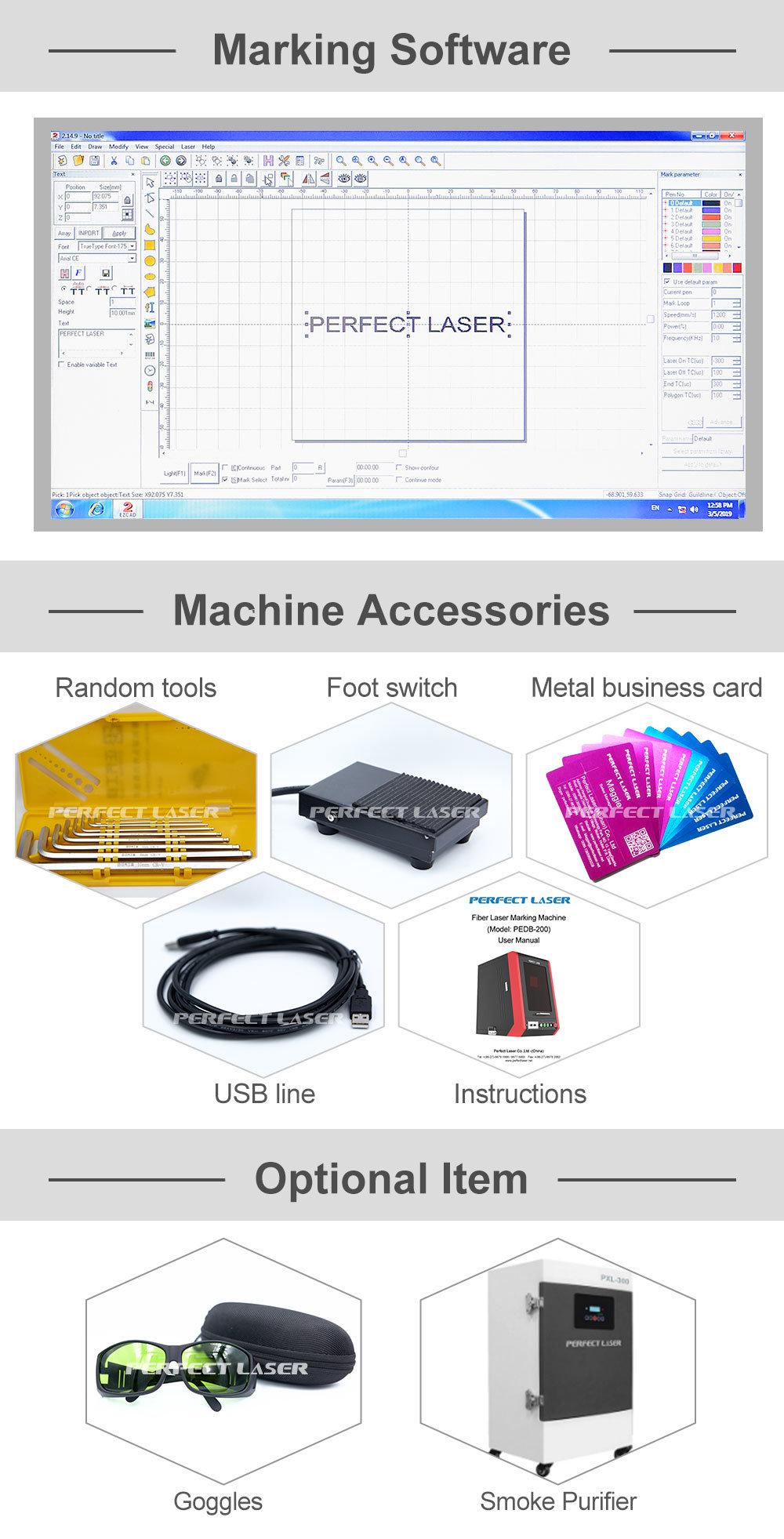

Machine Details of Laser Marking Machine:



 Company Introduction:

We, Perfect Laser, As a 21 years history industrial equipment manufacture in laser field, 10 year Golden Supplier in Alibaba, with TUV/ISO, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
