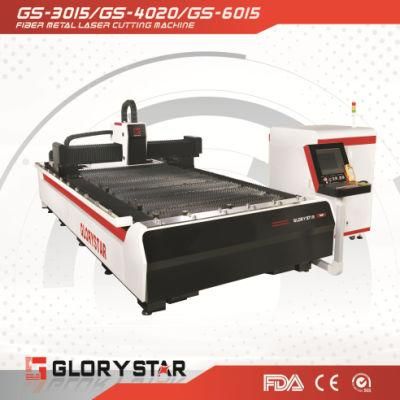

ATM Cabin Cutting Machine Fiber Laser Cutting Machine GS-3015
Dongguan Glory Star Laser Technology Co., Ltd.- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Automotive Industry, Advertising Industry, Metal Processing
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Gantry Type
- Laser Classification：Fiber Laser
Base Info
- Model NO.：GS-3015
- Laser Technology：Laser Control Fault Cutting
- Model No.：GS-3015
- Control Mode：CNC
- Cutting Mode：Fiber Laser
- Cutting Nozzle Shape：Ring Type
- Cutting Width：<3000mm
- Cutting Thickness：<12mm
- Cutting Speed：0-5000mm,Min
- Voltage：AC380V
- Gas：Oxygen, Nitrogen
- Laser Power：1000W
- Transport Package：Packed in Piaywood
- Specification：CE, SGS, FDA, Bureau, ISO
- Trademark：GLORYSTAR
- Origin：China
- HS Code：84561090
- Production Capacity：5000PCS,Years
Description
Fiber laser generator is a developed technology, which expert laser beam of high density energy and focus on the surface of work piece, to make instant melting and vaporing of the area lighted by the superfine focus spot, then the automatic laser cutting can be realized when moving the light spot position by CNC mechanical system.
1.Machine structure:600ºC heat treatment, 24 hours cooling in the oven, 8 meters gantry milling,to make sure 20 years usage without deformation.
2.Speed:Adopting imported high-speed transmission system, the fiber laser machine reaching 20m/min cutting speed and 0.5G accelerated speed in China.
3.Configurations:
(1).1000W fiber laser generator from Germany Rofin.
(2).AC servo Motor from Japan Panasonic.
(3).High precise pinion and rack,double-drive transmitting system and linear guide rail from HIWIN.
(4).Laser head from Germany Precitec.
(5).Lens from USA II-IV
(6).Professional operation system.
4.Consumable parts:
(1).Protection Lens.
(2).Nozzle.
5.Applicable Industry:
It's widely used in various industries, such as metal forming, aviation, aerospace, electronics, appliance, subway spare parts, automobile, grain machinery, textile machinery, engineering machinery, high precision accessories, vessel, metallurgy, elevator, arts and crafts, tool processing, decoration, advertising, metal processing service etc.
6.Applicable Materials
It is contact-free cutting for metal plates and tubes, especially appropriate for processing on stainless steel and iron plate, diamond saw blades, works perfectly with high hard and brittle alloy. In metal forming industry, the laser cutting can some way replace CNC punching and wire cutting. It's mainly used for laser cutting on metal plate and tube, e.g., stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, pickle plate, galvalume plate, copper, silver, gold and titanium etc.
