• Model NO.：PEC-1218P
• Structure Type：Stand Alone
• Laser Classification：CO2 Laser Tube
• Laser Technology：Laser Flame Cutting
• Cutting Speed：7-12mm,S
• Cutting Thickness：18-20mm Wooden Die Board
• Cutting Accuracy：0.1mm
• Focus Mode：Auto Focus Adjustment
• Servo Motor：Chinese Top Brand: Leadshine 1.5kw × 2PCS
• Screw Guide：Hiwin

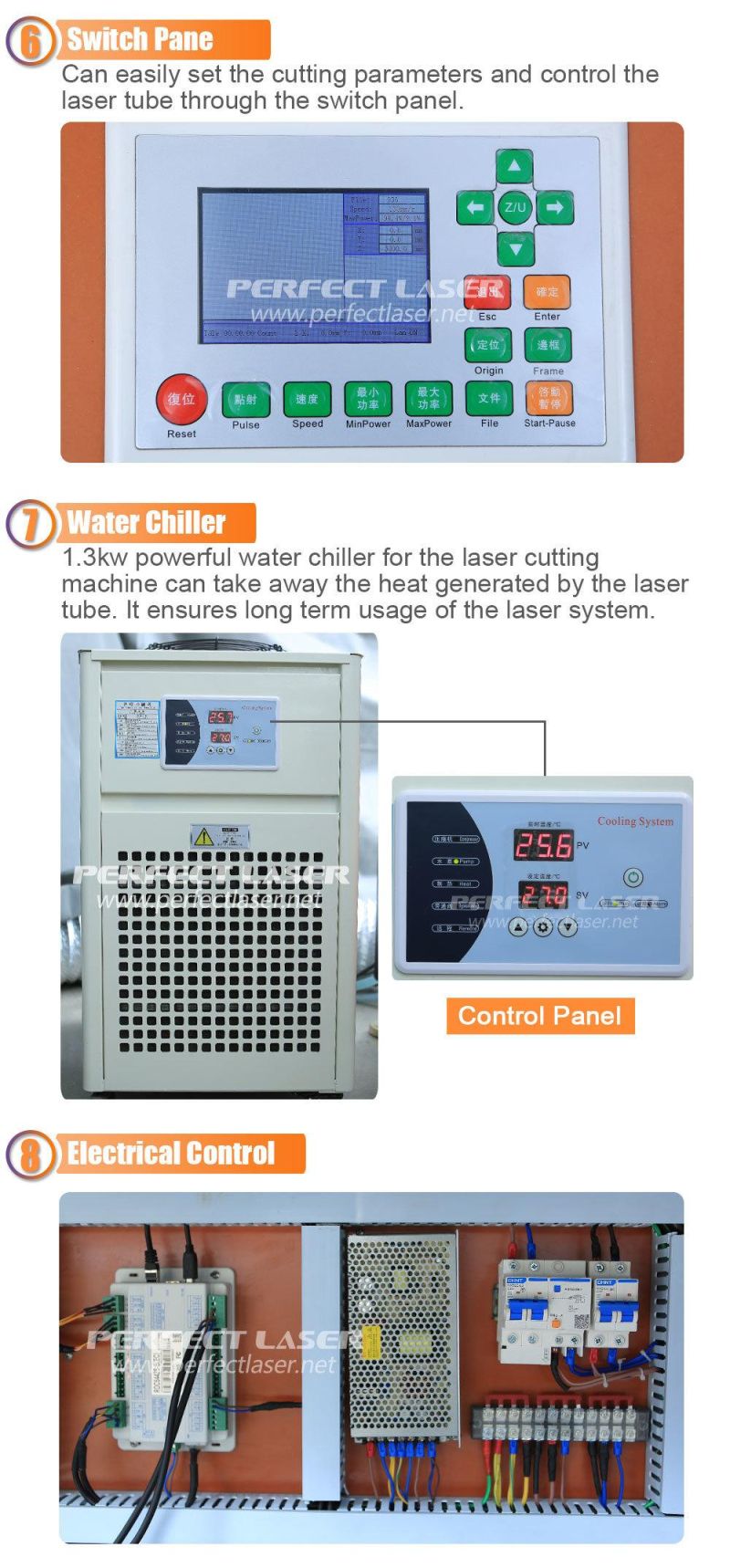

• Chill Power：1.3kw
• Exhaust Fan Power：1.1kw
• Machine Power：10kw
• Power Supply：220V
• Floor Space：4500*4500mm
• Transport Package：Export Sea-Worthy Packing or Air-Worthy Packing
• Specification：ISO 9001 & CE FDA
• Trademark：Perfect laser
• Origin：China
• HS Code：8441100000
• Production Capacity：100sets,Month

Basic Info.

Model NO. PEC-1218P Structure Type Stand Alone Laser Classification CO2 Laser Tube Laser Technology Laser Flame Cutting Cutting Speed 7-12mm/S Cutting Thickness 18-20mm Wooden Die Board Cutting Accuracy 0.1mm Focus Mode Auto Focus Adjustment Servo Motor Chinese Top Brand: Leadshine 1.5kw × 2PCS Screw Guide Hiwin Chill Power 1.3kw Exhaust Fan Power 1.1kw Machine Power 10kw Power Supply 220V Floor Space 4500*4500mm Transport Package Export Sea-Worthy Packing or Air-Worthy Packing Specification ISO 9001 & CE FDA Trademark Perfect laser Origin China HS Code 8441100000 Production Capacity 100sets/Month

Product Description

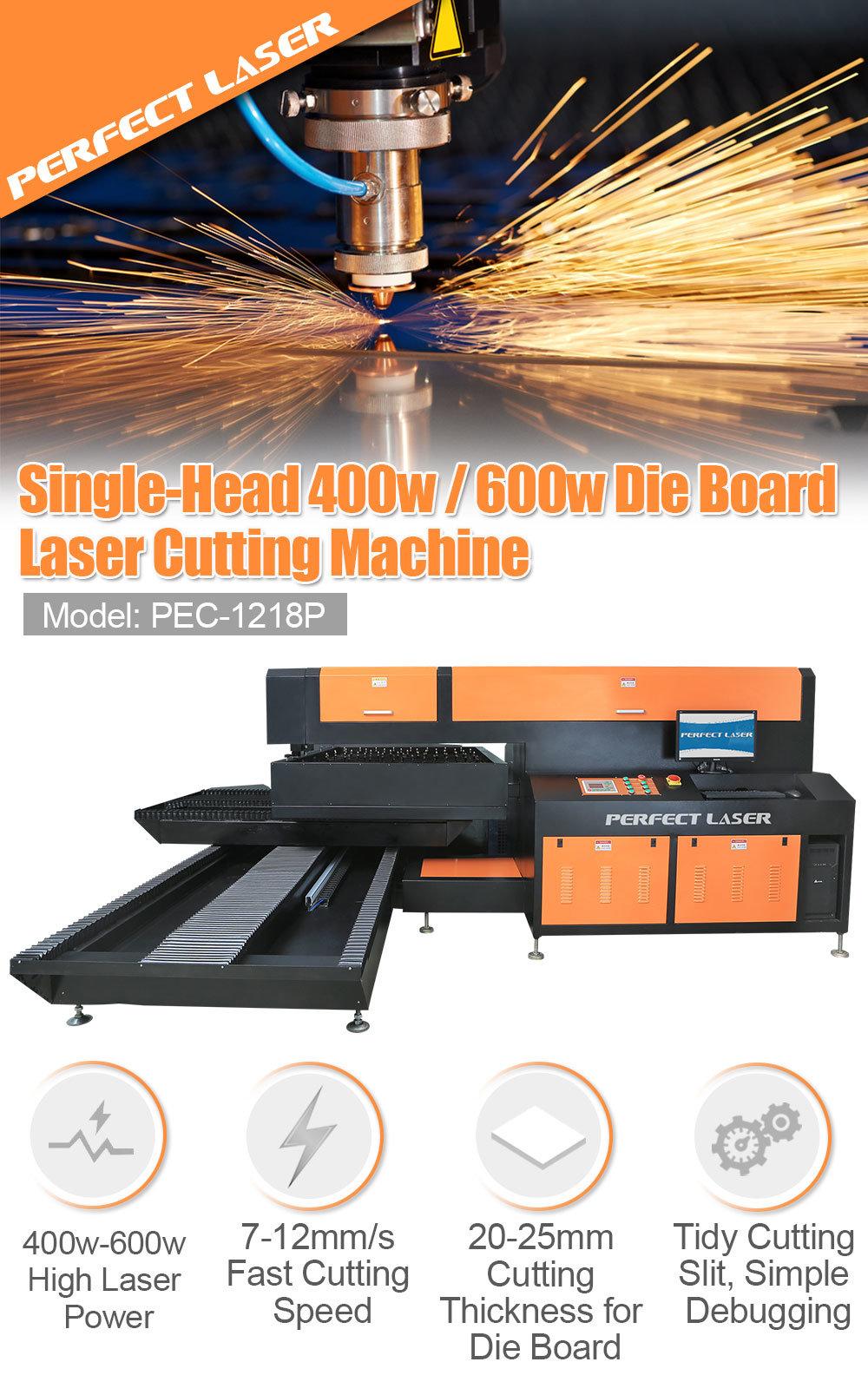

Hot Sale 300W 400W 600W Laser Cutting Machine for Die Cutting Plywood Die Board (Model:PEC-1218P)
Contact: Betty
 Introduction
Product Introduction of Die Cutting Machine:
Perfect Laser has launched a fully automatic single head laser die board cutting machine for the packaging and mold industry. It can cut 20-25mm thick wooden die board at a time with its powerful laser source.
Compared to traditional sawing machine's cutting, the advantages of this wooden laser die board cutting machine are obvious. The working area is 1200×1800mm, the speed is 7-12mm/second, the cutting thickness of this laser die board cutting machine can reach up to 25mm, which can greatly improve the production efficiency.
The wood die cut machine is easy to operate and the knife gap is even. It is an upgraded version of the double-head coaxial laser die board cutting equipment
Application
Product Application of Die Cutting Machine:
1.Applicable materials:

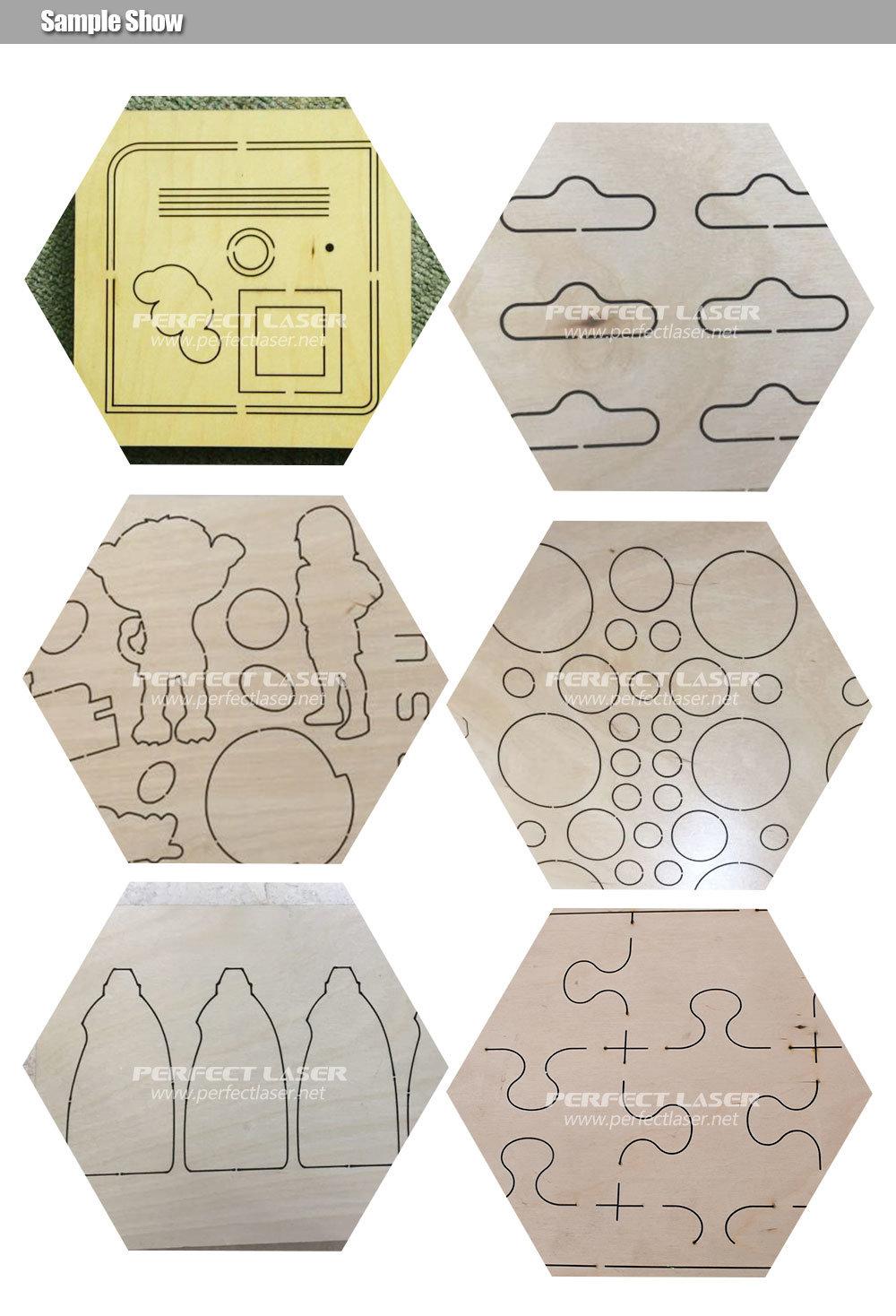

The laser die board cutting machine is mainly used in the cutting of 20-25mm thick die board, wooden plate, MDF, bamboo, 10-20mm acrylic sheet, plexiglass, 1-3mm carbon steel or iron plate.

2.Applicable industry:
The laser die board cutting machine is mainly used in the die mold and packaging industry.Features
Main Features of Die Cutting Machine:

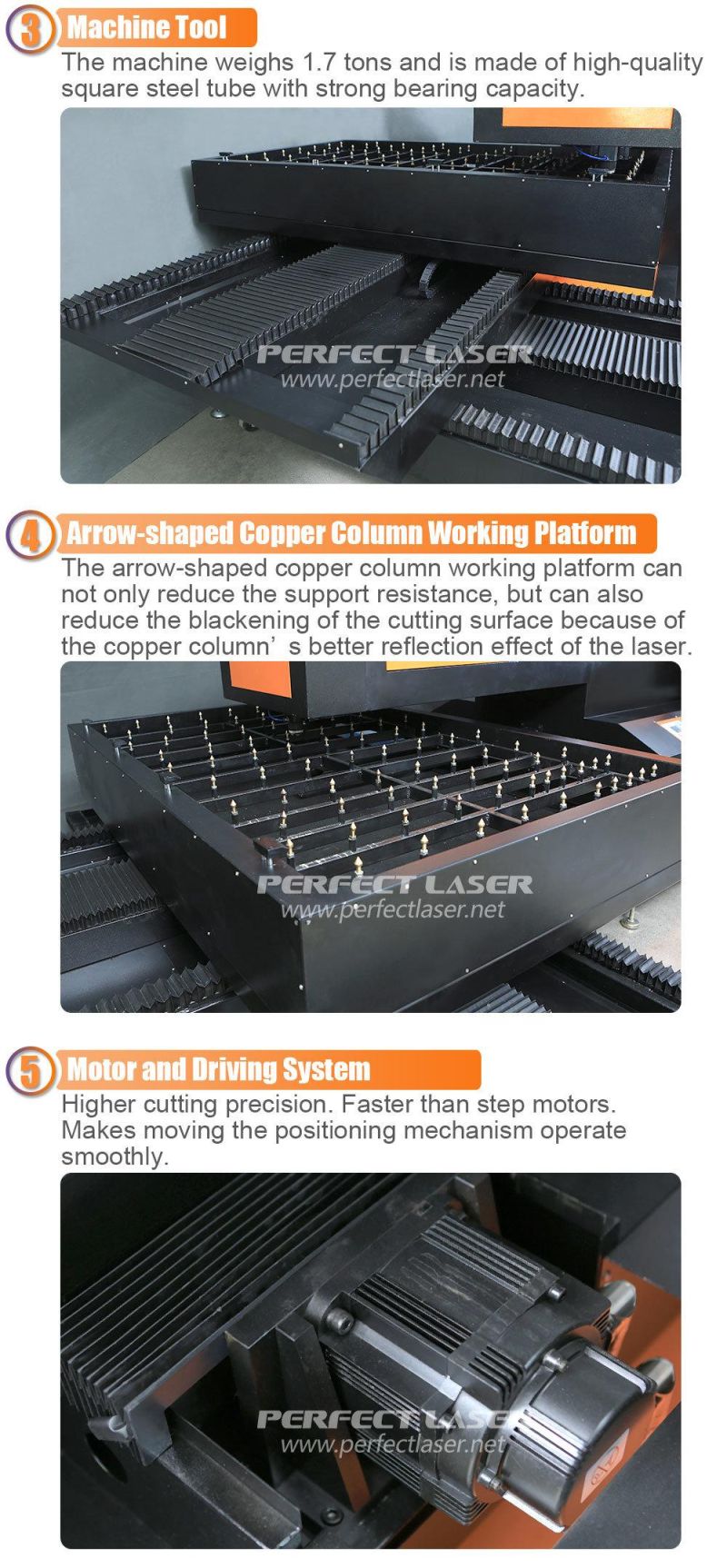

1. The body of our laser die board cutting machine is welded with square steel pipe with 1.7 tons weight, so it is durable and not easy to deform.

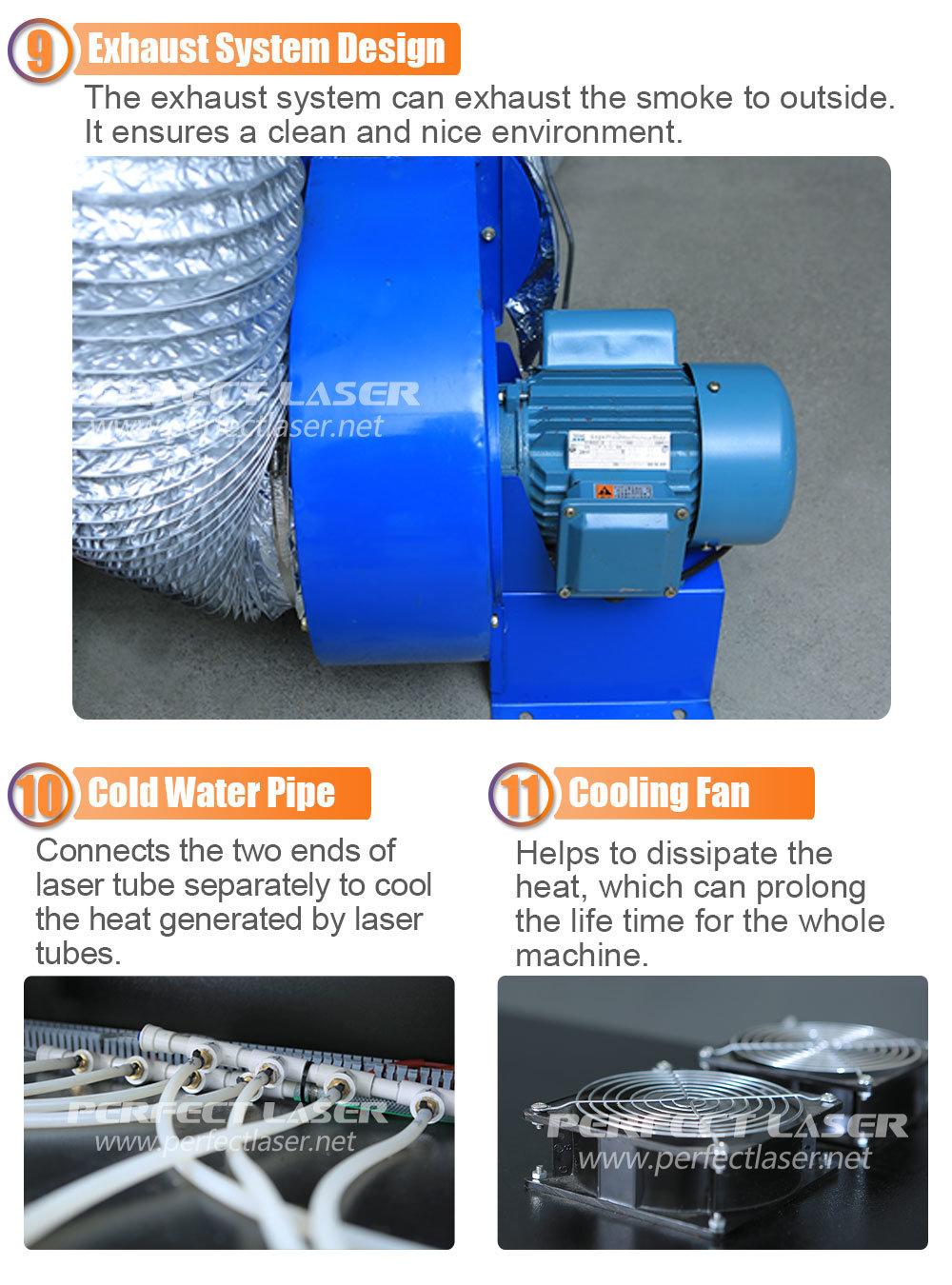

2. The spark is very small during operation and the laser die board cutting machine is configured with an exhaust fan to suck off the smoke.
3. The working precision of our laser die cutting equipment is 0.1mm, so the cutting error is small and the precision is high.
4. This laser die board cutting machine adopts arrow-shaped copper column working platform. Compared to the ordinary flat platforms, it can not only reduce the support resistance but also can reduce the blackening of the cutting surface because of the copper column's better reflection effect of the laser.

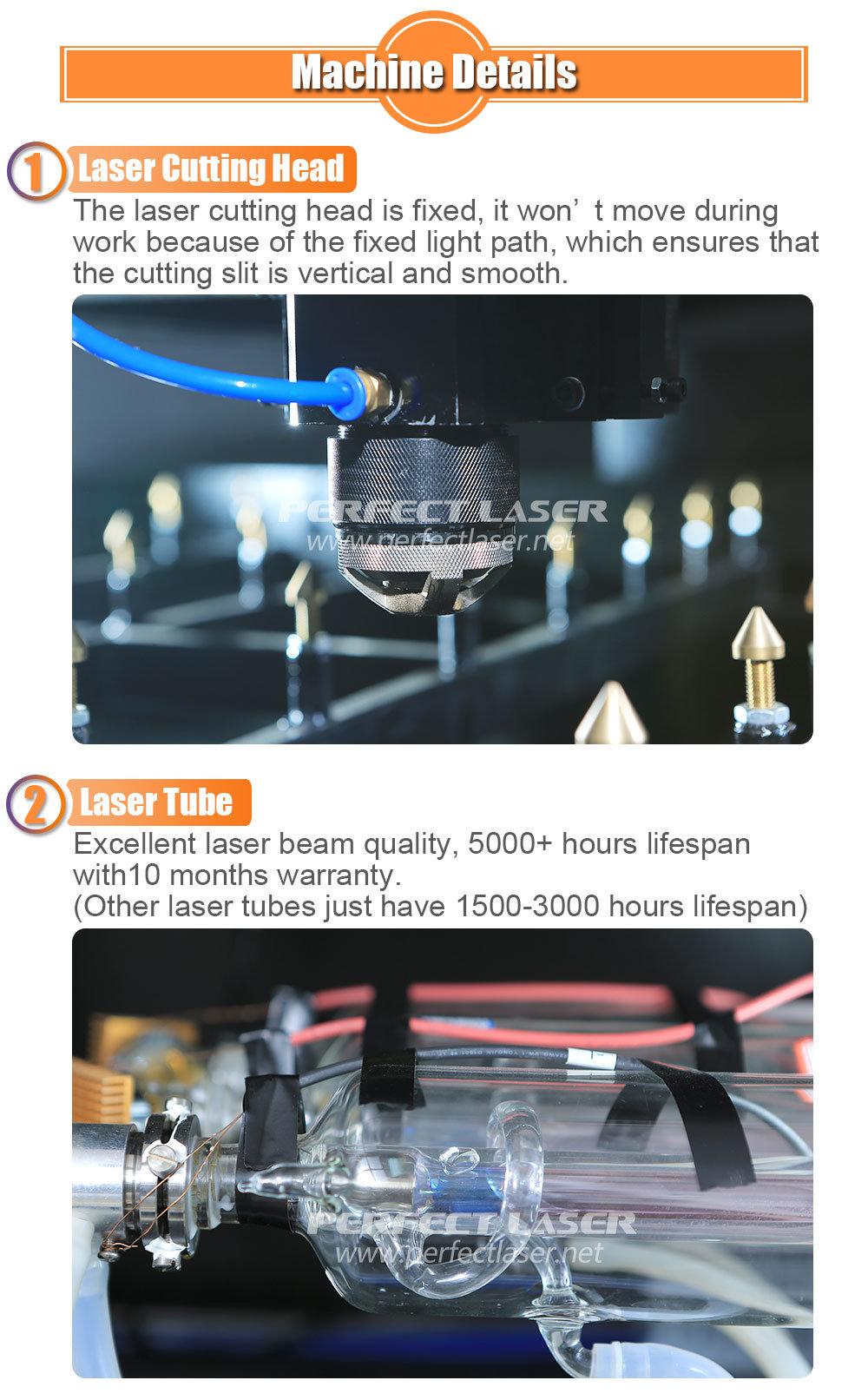

5. The laser die board cutting machine adopts fixed optical path instead of the cutting head, the X-axis and Y-axis platform can move when cutting. The laser die board cutting equipment can cut through the wooden board at a time and the cutting slit is evenly straight.

Technical Parameter

Product Name	Laser Die Board Cutting Machine
Model	PEC-1218P
Laser Tube	CO2 sealed glass tube × 3 pcs
Max. Output Power	400 Watts / 600Watts
Working Area	1200 × 1800mm
Cutting Speed	7-12mm/s
Cutting Thickness	20-23mm wooden die board 10-20mm acrylic sheet, 1-3mm carbon steel,Iron
Cutting Accuracy	0.1mm
Servo Motor	Chinese Top brand: Leadshine 1.5KW × 2pcs
Knife Slit	0.45mm/0.71mm/1.07mm(adjustable)
Cooling Method	Water cooling
Focus Mode	Auto focus adjustment
Screw Guide	Taiwan TPI
Chill Power	1.3KW
Exhaust Fan Power	1.1KW
Machine Power	10KW
Power Supply	220V
Floor Space	4500 × 4500mm
Support Image Format	DST,AI,PLT
Warranty	12 months for whole die board laser cutting machine, 10 months for laser tube
