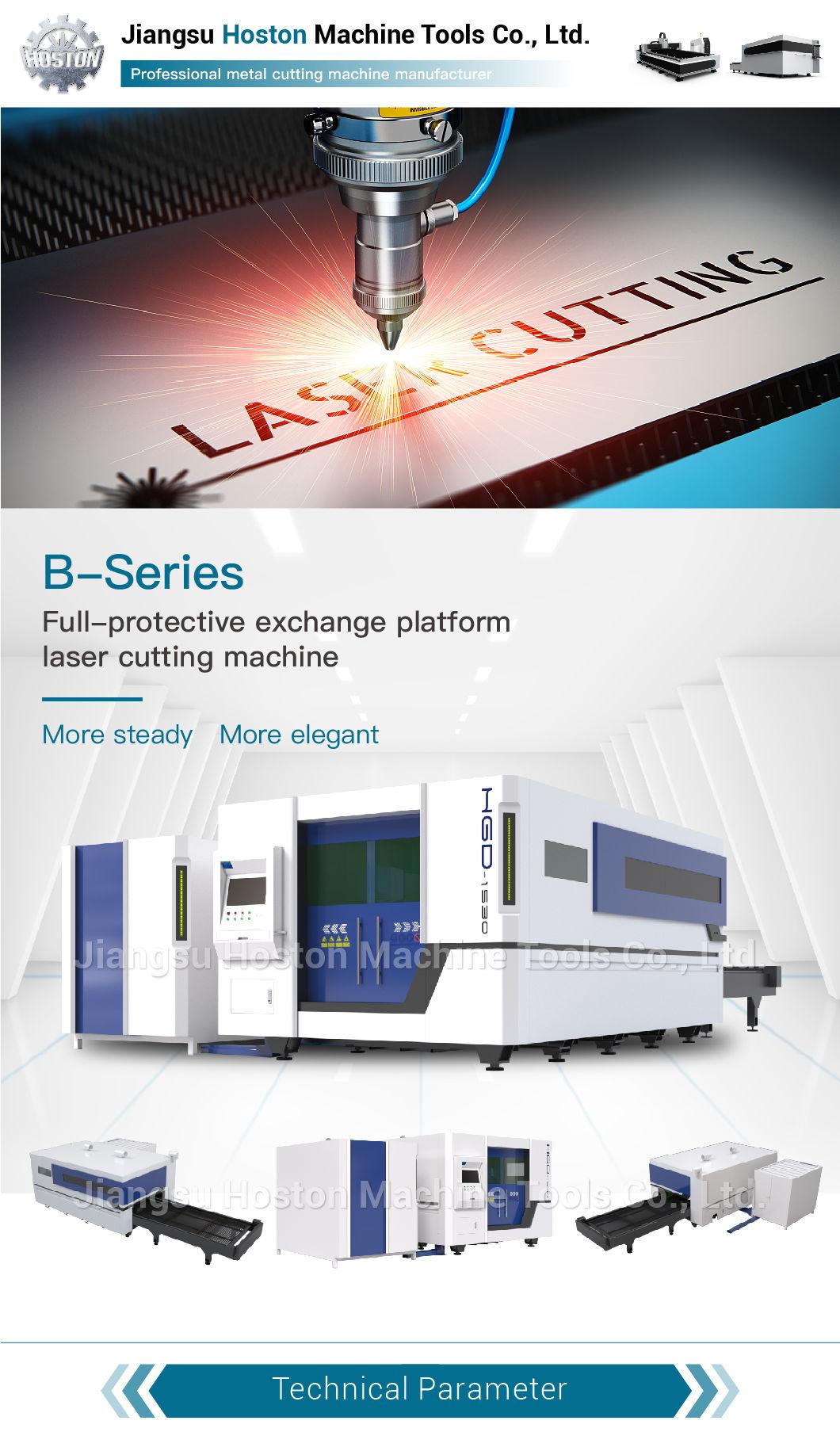

Fast Speed Whole Cover CNC Fiber Laser Cutting Machine for Alloy Metal
Jiangsu Hoston Machine Tools Co., Ltd.- After-sales Service：Online Support
- Warranty：1 Years
- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
Base Info
- Structure Type：Gantry Type
- Laser Classification：Solid Laser
- Laser Technology：Laser Flame Cutting
- Working Area：1500*4000
- Exchange Mode：Horizontal Exchange
- Laser Power：1500W-20000W
- Max. Cutting Speed：120m,Min
- Max. Acceleration：1.0g
- Positioning Accuracy：0.08mm
- Repeated Positioning Accuracy：0.02mm
- Transmission：Precise Rack and Pinion
- Application Material：Metal Sheet Iron,CS,Ss,Aluminum,Copper
- Power Consumption：8kw
- Laser Head Brand：Raytools
- Laser Source Brand：Raycus
- Servo Motor Brand：FUJI
- Guiderail Brand：PMI
- Transport Package：Wooden Package
- Specification：13000*6000*2400mm
- Trademark：Hoston
- Origin：China
Description
Basic Info.
Structure Type Gantry Type Laser Classification Solid Laser Laser Technology Laser Flame Cutting Working Area 1500*4000 Exchange Mode Horizontal Exchange Laser Power 1500W-20000W Max. Cutting Speed 120m/Min Max. Acceleration 1.0g Positioning Accuracy 0.08mm Repeated Positioning Accuracy 0.02mm Transmission Precise Rack and Pinion Application Material Metal Sheet Iron/CS/Ss/Aluminum/Copper Power Consumption 8kw Laser Head Brand Raytools Laser Source Brand Raycus Servo Motor Brand FUJI Guiderail Brand PMI Transport Package Wooden Package Specification 13000*6000*2400mm Trademark Hoston Origin ChinaProduct Description
| Model | 1530 | 1540 | 2040 | 2060 |
| Working Area (mm) | 1500×3000 | 1500×4000 | 2000×4000 | 2000×6000 |
| Machine Dimension (mm) | 12006×6000×2400 | 13000×6000×2400 | 13000×6400×2400 | 15500×6400×2400 |
| Pipe Dimension (mm) | 20~219 | 20~219 | 20~219 | 20~219 |
| Square tube length (mm) | 20~150 | 20~150 | 20~150 | 20~150 |
| The length of the pipe (mm) | 6000 | 6000 | 6000 | 6000 |
| Max. Cutting Speed (m/min) | 120 | 120 | 120 | 120 |
| Max. Acceleration (G) | 0.8 | 0.8 | 0.8 | 0.8 |
| X/Y Positioning Accuracy (mm) | ±0.08 | ±0.08 | ±0.08 | ±0.08 |
| X/Y Repeated Positioning Accuracy (mm) | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| Operating Voltage (V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 |
| Laser power (W) | 1500-4000 | 1500-4000 | 1500-4000 | 1500-4000 |
| Power consumption (kW) | 10 | 10 | 10 | 10 |
| Machine Running Temperature (ºC) | 0-40 | 0-40 | 0-40 | 0-40 |
| Machine Running Humidity | <90% | <90% | <90% | <90% |
| Transmission | Precise rack and pinion | Precise rack and pinion | Precise rack and pinion | Precise rack and pinion |
