• Model NO.：PEDK- 140100II
• Applicable Material：Nonmetal
• Type：Oscillating Mirror
• Laser Classification：Free Electron Laser
• Engraving Method：Vector Engraving
• Model：Pedk- 140100II
• Working Area：1400*1000mm
• Laser Power：60W 80W 150W Laser Head
• Engraving Speed：1-420000mm,Min
• Cutting Speed：1-10000mm,Min
• Repeat Location Accuracy：± 0.0125mm
• Voltage：220V(±10%) 50Hz
• Cooling Mode：Water Cooling and Protect System
• Cutting Platform：Thickening Strip or Honeycomb Work Ta
• Controlling Mode：CNC Professional Control System
• Transport Package：Sea-Worthy Packing or Air-Worthy Packing
• Specification：CE & ISO 9001: 2000
• Trademark：Perfect
• Origin：China
• HS Code：8456110090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. PEDK- 140100II Applicable Material Nonmetal Type Oscillating Mirror Laser Classification Free Electron Laser Engraving Method Vector Engraving Model Pedk- 140100II Working Area 1400*1000mm Laser Power 60W 80W 150W Laser Head Engraving Speed 1-420000mm/Min Cutting Speed 1-10000mm/Min Repeat Location Accuracy ± 0.0125mm Voltage 220V(±10%) 50Hz Cooling Mode Water Cooling and Protect System Cutting Platform Thickening Strip or Honeycomb Work Ta Controlling Mode CNC Professional Control System Transport Package Sea-Worthy Packing or Air-Worthy Packing Specification CE & ISO 9001: 2000 Trademark Perfect Origin China HS Code 8456110090 Production Capacity 1000 Sets/Year

Product Description

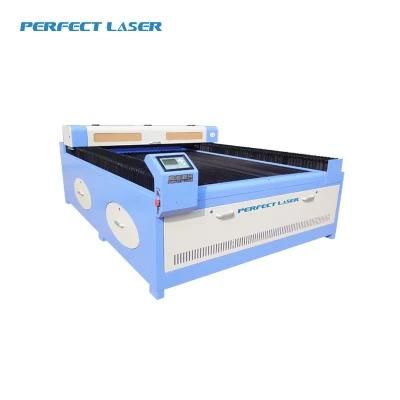

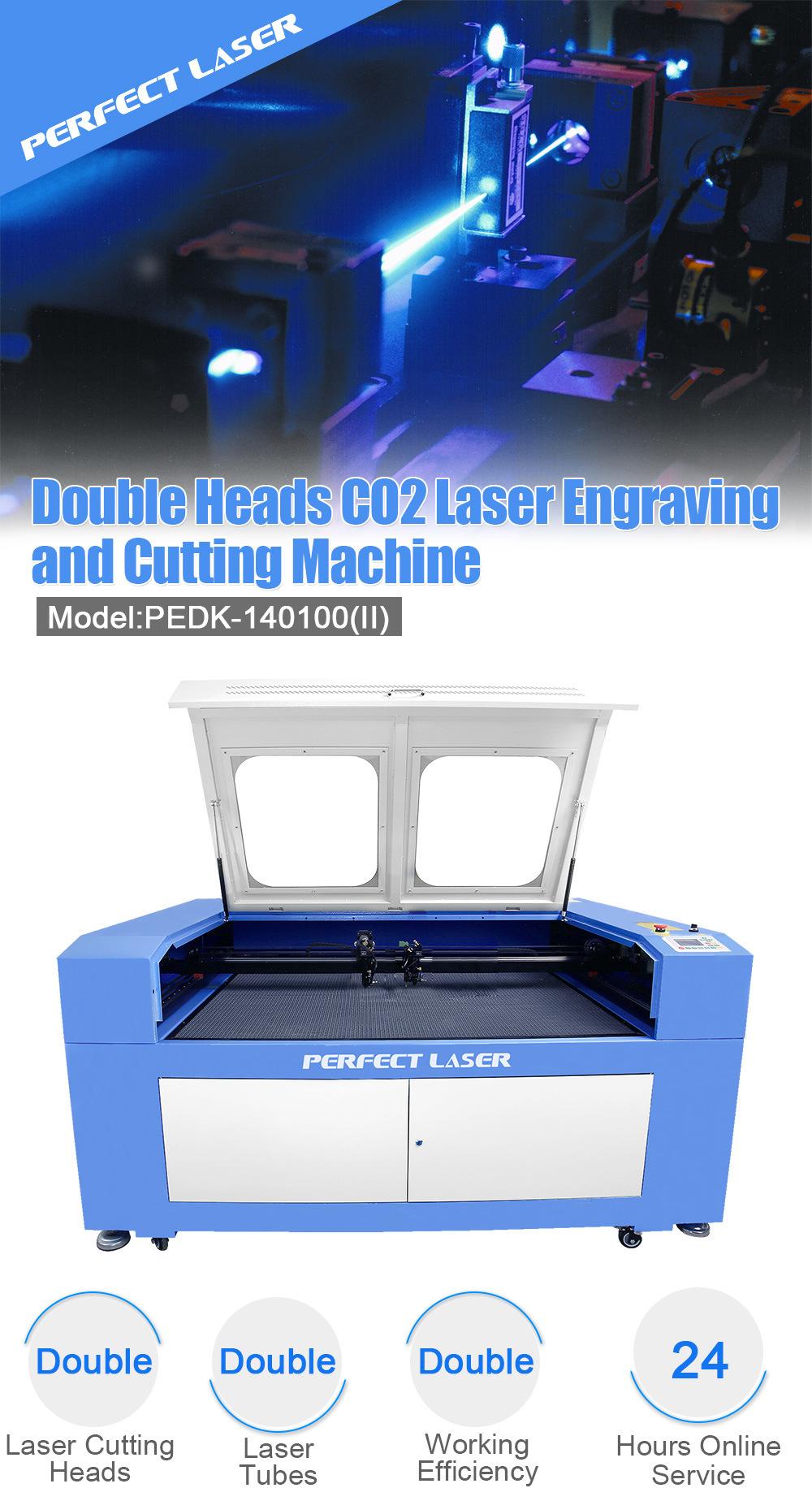

Double Heads CO2 Laser Cutting Machine For Fabric / Leather / Cloth
(Model : PEDK- 140100II)

Contact:Crystal

Product Description of Portable Laser Cutting Machine:
Perfect Laser is a world leading manufacturers of Portable Laser Cutting Machine. Portable Laser Cutting Machine is the most hot-selling model accepted by our customers. The working area of this machine is 1400*1000mm, compact nesting, conveniently storage materials. And Portable Laser Cutting Machine has double heads, which can cut or engrave in one time to improve working efficiency. It is widely used in cutting and engraving Acrylic, Wood, Fabric, Cloth, Leather, Rubber Plate, PVC Board, Paper and other kinds of nonmetal materials with complex shapes.



Product Application of Portable Laser Cutting Machine:
This CO2 laser engraver and cutter machine is widely used in cutting and engraving acrylic, wood, fabric, cloth, leather, rubber plate, PVC board, paper and other kinds of non-metal materials with complex shapes.

Material List for Cutting & Engraving:

Material	Engraving	Cutting
Acrylic	√	√
MDF	√	√
Wood	√	√
PVC	√	√
Double Color Board	√	√
Rubber	√	√
Leather, Fabric	√	√
Cloth	√	√
Paper	√	√
Stone	√	×
Marble	√	×
Granite	√	×
Stainless steel	×	×
Carbon steel	×	×

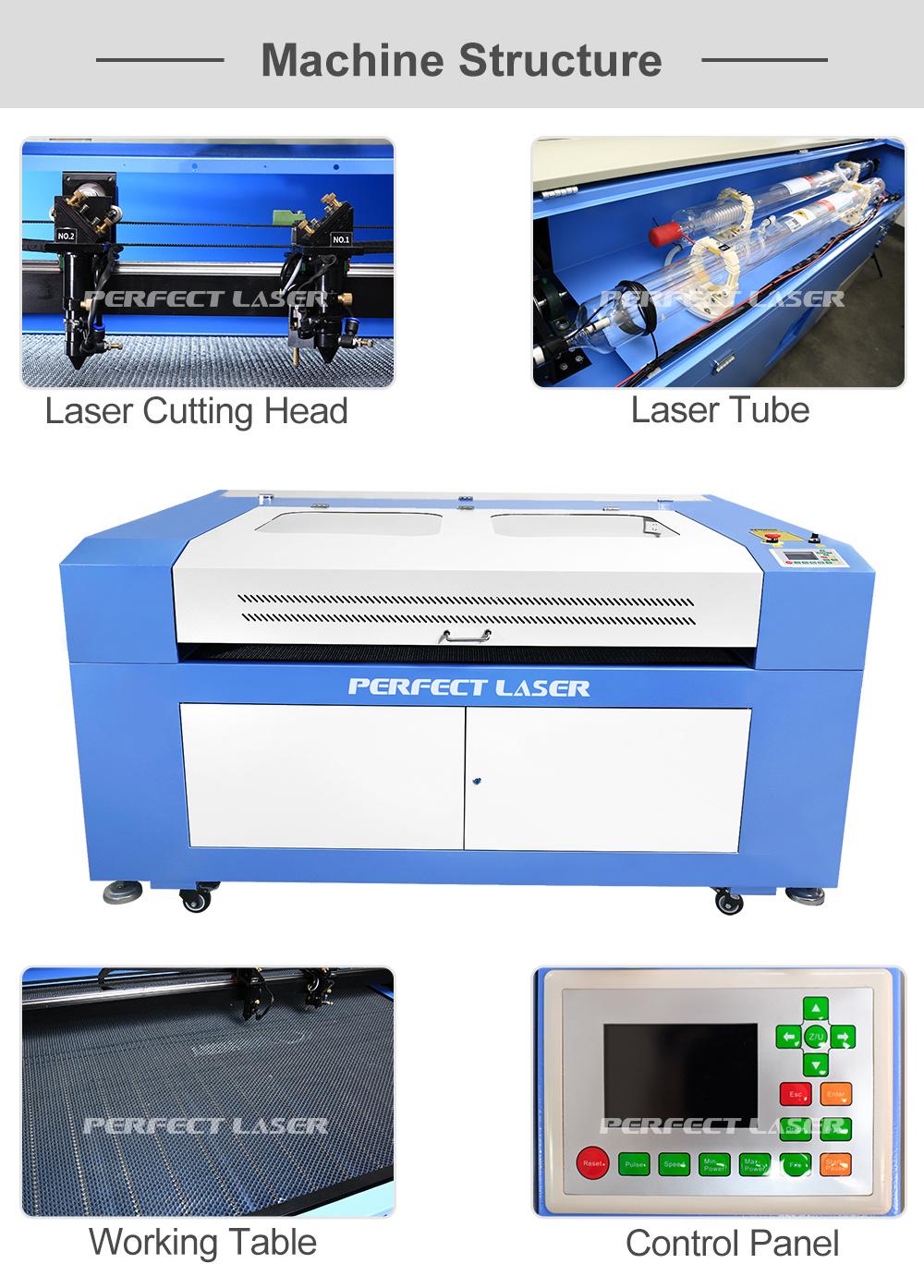

Main Features of Portable Laser Cutting Machine:
1. Double Laser Cutting Heads:Two cutting heads of this best laser cutting machine make cutting or engraving speed much faster, improve working efficiency.
2. Laser Tube:Two independent laser tubes of this laser carver also allow for redundancy against failure.
3. Professional Working Table of this best laser engraving machine:
1) Strip table for heavy and thick materials, such as wood, MDF, acylic , etc.
2) Honeycomb table for soft and thin metarials, such as fabric, etc.
3) Design for your different materials engraving and cutting requirements.
4. The body of the laser engraver and cutter is very hard and stable.
5. Front to back passing-through design (50mm height).Open for larger pieces to put into the best laser engraving machine.

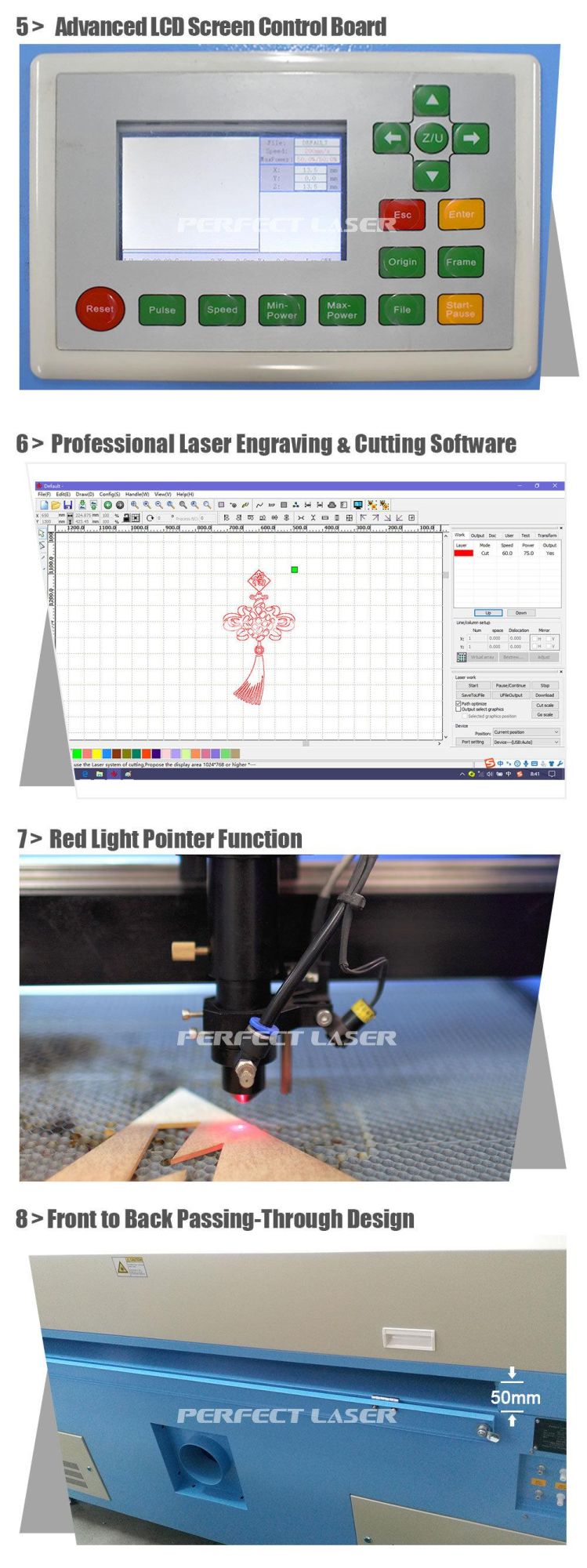

6. Advanced LCD screen control + USB offline +128M Big Store Memory: The laser engraver and cutter adopts advanced LCD screen control, you can import any file by U disk, and set parameter in the LCD screen easily.
7. Owns 128M Big Memory can store files in the best laser cutting machine such as AutoCAD, CorelDraw, Photoshop etc.
8. Observation Window: this laser carver is made of thicken visible acrylic material, high safety protection with cover.The working will be stopped immediately when operator open this cover, so it ensure the safety of operator and won't be hurt by laser working.
9. Red Light Pointer: As laser light is invisible, red light pointer can realize the exact position of laser beam.
10. Power Switches: this best laser cutting machine provided with "Over-current protection" function, make the usage more safe.
11. Pull Rod: this best laser cutting machine uses stainless steel material with rust proof.



Technical Data of Portable Laser Cutting Machine:

Model	PEDK-140100(II) Double Heads laser engraver and cutter
Working Area	1400x1000mm
Laser Power	100W(Standard) 60W/80W/130W/150W/180W(Optional)
Laser Type	Hermetic and Detached Co2 Laser Tube
Engraving Speed	0-60000mm/min
Cutting Speed	0-10000mm/min
Cutting thickness	0-25mm Acrylic (others determined by materials)
Repeat Location Accuracy	+/-0.0125mm
Driving mode:	stepper motor
Position system:	Red dot
Interface:	USB
Voltage	AC220V/50HZ or 110V/60HZ or depend on customer
Machine Power	≤1000W
Controlling System	CNC Professional Control System
Support Graphics Mode	BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc.
Cooling Mode	Circulation Water Cooling and Protection System
Auxiliary Devices	Exhaust Fan and Exhaust Pipe
Cutting Platform	Professional Thickening Strip or Honeycomb Work Table
Power Control Mode	Laser Energy Combining Movement Control System

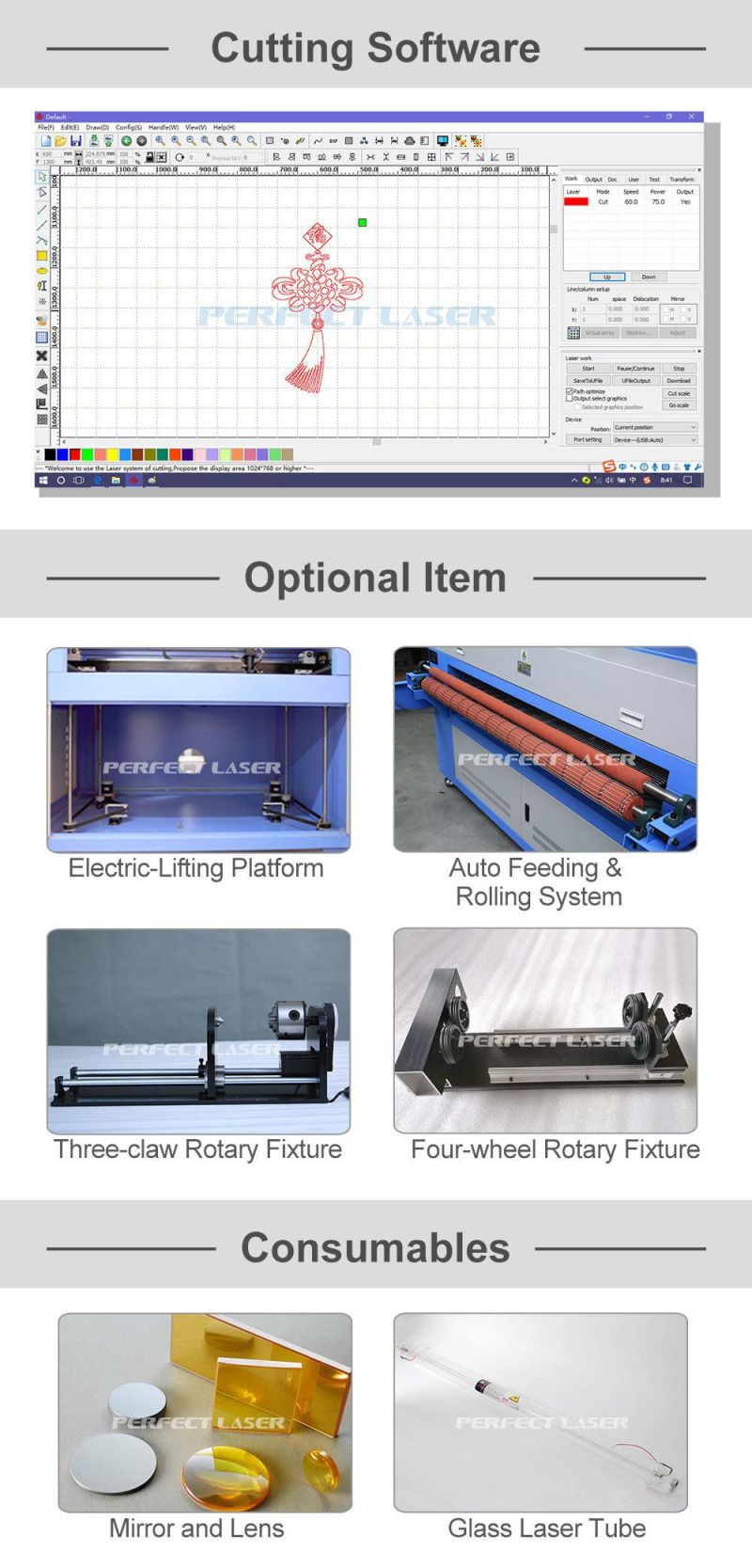

Software	Professional Laser Engraving & Cutting Software(Reader Software)
Operating temperature	0-45C
Operating humidity:	5-95%
Packing:	Standard wooden box
Operation:	Detailed Video to teach customer how to operate the machine
Packing Size	2.2*1.8*1.2m , 500 kgs

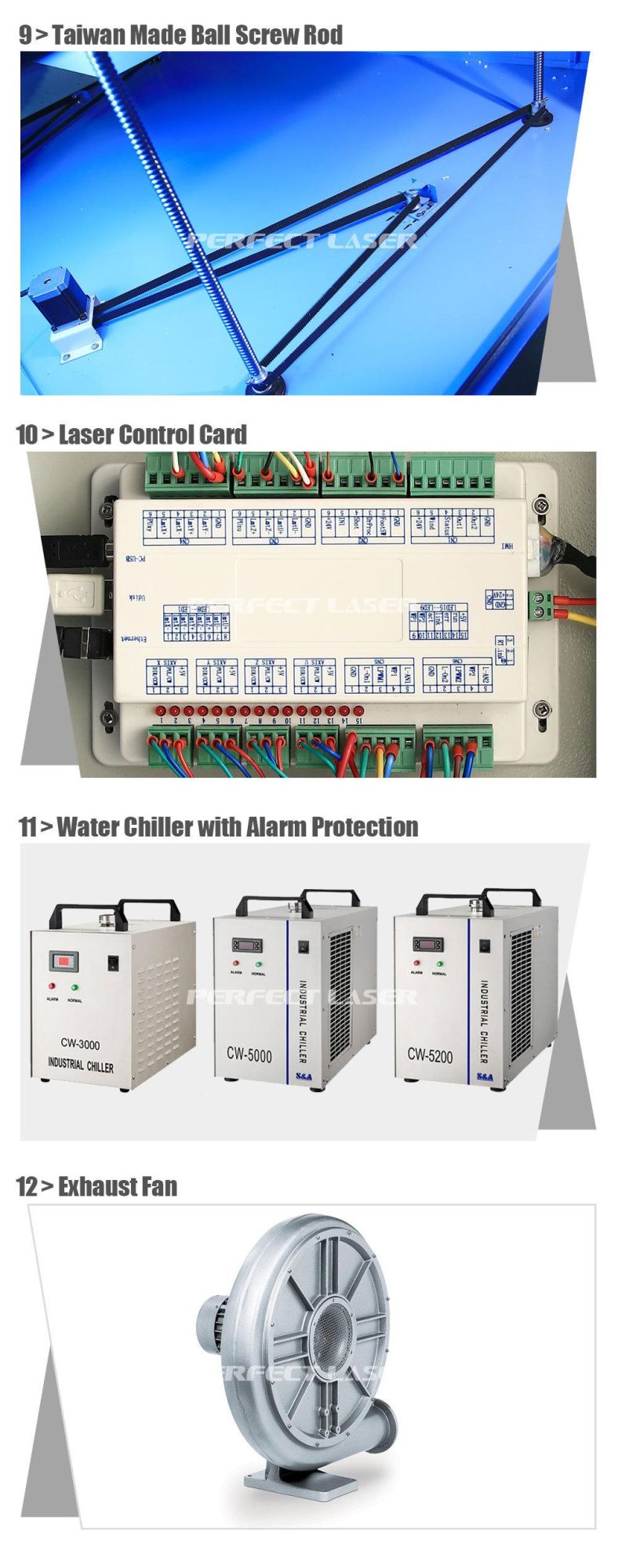

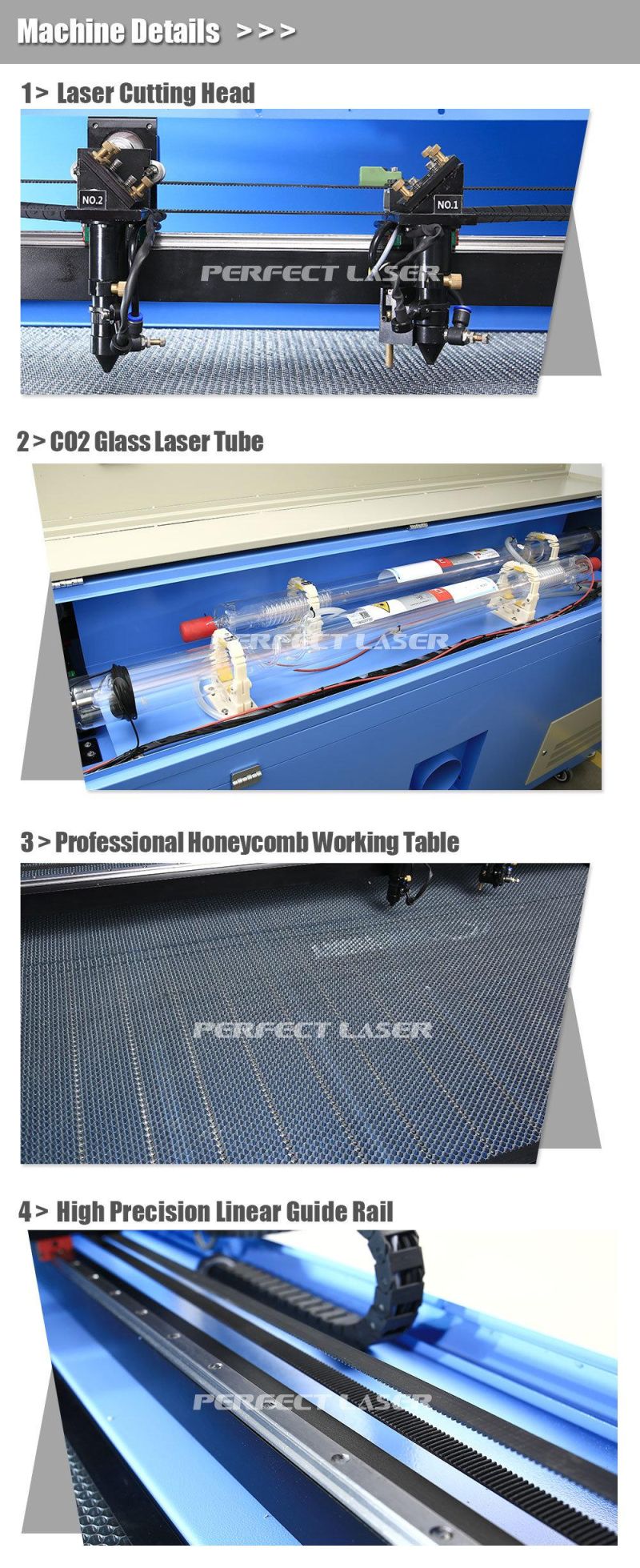

Machine Details of Portable Laser Cutting Machine:



Our Company:
We, Perfect Laser, as a 21 years history industrial manufacture in laser equipment field, 13 year Golden Supplier in Alibaba, with CE/ISO certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
