• Model NO.：DXTECH-1530
• Structure Type：Fiber Laser Cutting
• Laser Classification：Solid Laser
• Laser Technology：Laser Control Fault Cutting
• Main Selling Point：Competitive Price
• Product Name：Tube Pipe Laser Cutting Machine for Steel Carbon S
• Cutting Materials：Stainless Steel Carbon Steel etc( Metal Laser Cutt
• Color：Customizable
• Driving System：Japan Yaskawa Servo Motor
• Function：Cutting Metal Materials
• Type：1530 Fiber Laser Cutting
• Transmission：Hiwin Guide Rails
• Cast Iron Bed：Gray Cast Iron
• Motor：Motor
• Cast Aluminum Beam：Higher Machining Accuracy
• Component：Fiber Laser, Stepper Motor, Servo Motor, Bed, Lase
• Affect Facor：The Shape of The Laser Beam, The Width of The Slit
• Cutting Shape：1500*3000mm(Option)
• Advantages：High Processing Quality, Low Procurement Cost
• Transport Package：3 Layers
• Specification：5000kg
• Trademark：DXTECH
• Origin：Jinan, Shandong Province
• HS Code：8461500090

Product Description
Short brief:

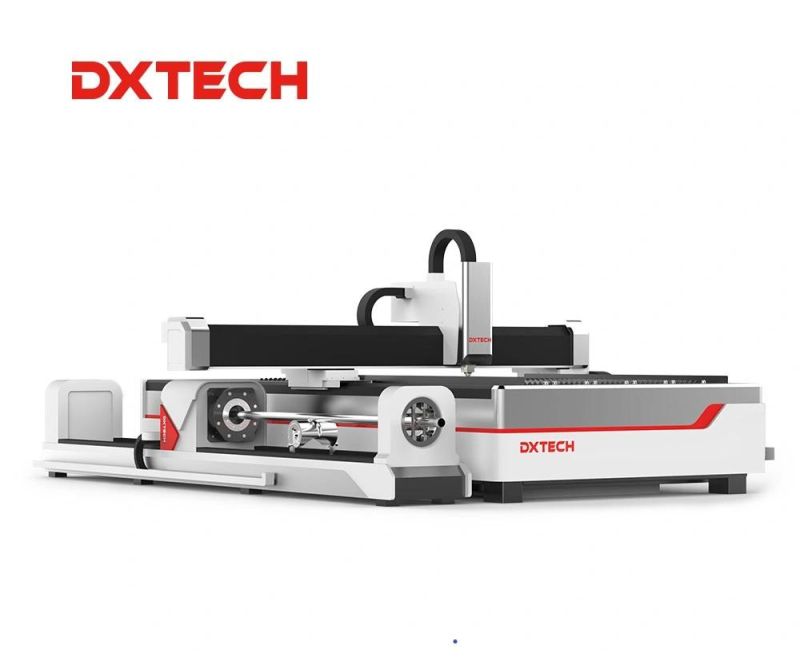

This fiber laser cutting machine is designed for pipes and sheets. The sheet and tube fiber cutting machine adopts the cast iron bed, rack drive system, professional pipe cutting CNC system, which ensure good cutting accuracy and efficiency of the CNC laser cutting machine. Over 3500 sets CNC fiber laser cutting machine have been sold to over 80 countries. It is an ideal choice to cut plates and pipes for economic users.
Technical parameter:Cutting materials and thickness:

Carbon steel 0.4-6mm 0.4-10mm 0.4-12mm 0.4-14mm 0.4-16mm 0.4-20mm Stainless steel 0.4-3mm 0.4-4mm 0.4-5mm 0.4-6mm 0.4-8mm 0.4-10mm Aluminum 0.4-2mm 0.4-3mm 0.4-3mm 0.4-4mm 0.4-6mm 0.4-8mm Brass     0.4-3mm 0.4-3mm 0.4-3mm 0.4-8mm Laser power 500w 750w 1000w 1500w 2000w 3000w

Detailed Images

The Tube Welded Bed

High strength, not easily deformed The following features ensure that the bed will not be deformed for 20 years like high strength, good stability and strong tensile strength. More stable The rectangular tube has a wall thickness of 10 mm and the entire body weighs 4,500 kg


Aviation Aluminum Gantry

--High hardness Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.
--High speed Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.


Raytools

Optimized optical configuration and smooth and efficient airflow design;
Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero;
A variety of fiber interfaces for adapting to a variety of fiber lasers;

The collimating mirror, focusing mirror and nozzle have a cooling structure.
Application


--Materials. Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.
--Various industry. The fiber laser cutting machine is widely used in automative industry, advertising industry, kitchenware industry, sheet metal industry, cabinet industry, fitness industry etc. Professional in many manufacturing and processing industries like sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal processing, kitchen processing and other industries.
Packing & Delivery
Packaging Improving:
Three layers--- -The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly. If you need a wooden box, we will make fumigation free wooden package outside the machine.

Our Company
Jinan DXTECH cnc machinery company is professional in design and manufacturing of fiber laser cutting and engraving machine, co2 laser cutting and engraving machine, and fiber or co2 laser marking machine from Jinan city of China. We have always been devoting to the research and manufacture of Laser CNC cutting and engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in woodworking industry, model industry, electric, CAD/CAM industry model, clothing industry, package printing and marking industry, laser sealing, automative industry, advertising industry, kitchenware industry, sheet metal industry, cabinet industry, fitness industry etc.
