• Model NO.：HJZ-1000-3015
• Structure Type：Gantry Type
• Laser Classification：Fiber Laser
• Laser Technology：Laser Cutting
• Terms：Technical Parameters
• Power：1000W
• Working Size：3000*1500mm
• Type of Laser：Fiber Laser
• Software：Rdcam
• Package：Standard Crate for Export
• Working Power：220V,50Hz,1.5kVA
• Process Material：Non-Metal Materials
• Marking Varieties：Characters, Graphs, Images, Trademarks
• Laser Source：Raycus Max Ipg
• Lifespan：Over 100, 000 Hours
• Chiller：Water Chiller
• Name：Fiber Laser Cutting Machine
• Table：Exchange Table Available
• Transport Package：Standard Plywood Packing for Export
• Specification：1650X1250X1050MM
• Trademark：HJZ
• Origin：Wuhan, China
• Production Capacity：100set,Month

Industrial Laser Cutting MachineModelHJZ -1000-3015HJZ -1500-3015HJZ -2000-3015Laser Power1000 Watts1500 Watts2000 WattsMax. Cutting Thickness
(mm)8-10mm carbon steel
4-5mm stainless steel14-16mm carbon steel
5-6mm stainless steel18-20mm carbon steel
7-8mm stainless steelLaser TypeFiber LaserLaser TechnologyGermany TechnologyXYZ Working area1500 x 3000 x 150 (mm)Max. Cutting Speed0-24 Meters / Min (up to materials)Transmission systemHigh Precision Gear TransmissionTable-driven systemJapanese Import Panasonic Servo Motor & Driving SystemFocus MethodDynamic Auto-Focusing SystemControl MethodDSP Handle Offline Movement ControlLocation precision≤±0.05 mmRe-location precision±0.02 mmMax. moving speed100m/minLaser wavelength1070nmMinimum line width≤0.1mmSupporting FormatPLT, DXF, BMP, AIPower demand380V / 50hzWorktable max. load1000 KgsDimension (L*W*H)4000 × 3000 × 2000mmControl software Professional Stainless Steel Laser Cutting Machine SoftwareGuarantee2 Years Guarantee for Fiber Laser Source
12 Month Guarantee for Industrial Laser Cutting MachineTrainingWE Offer VCD Training Video for Easy Learning
Engineer Overseas Installation & Training is also Available


Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.

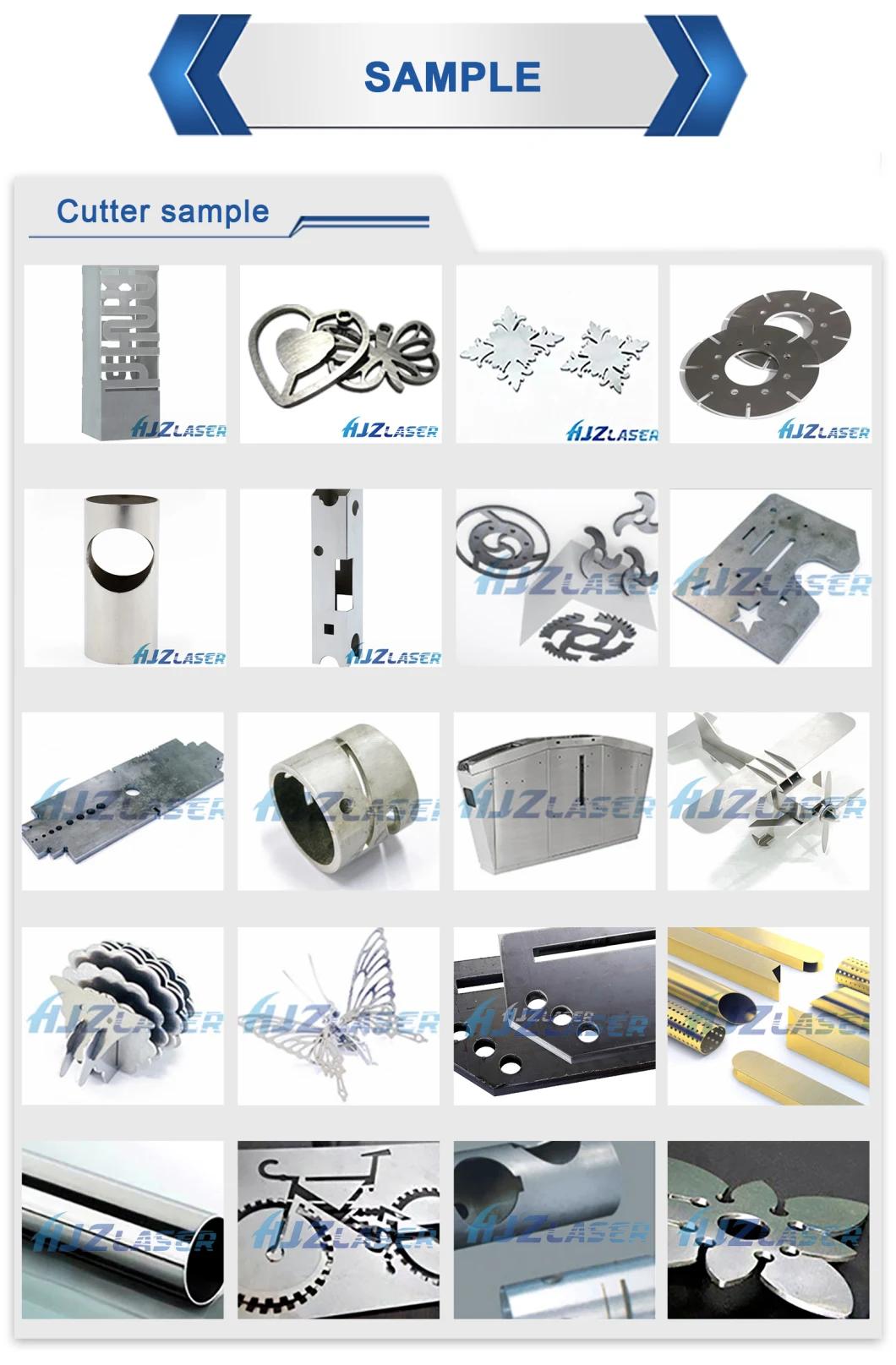

Samples:

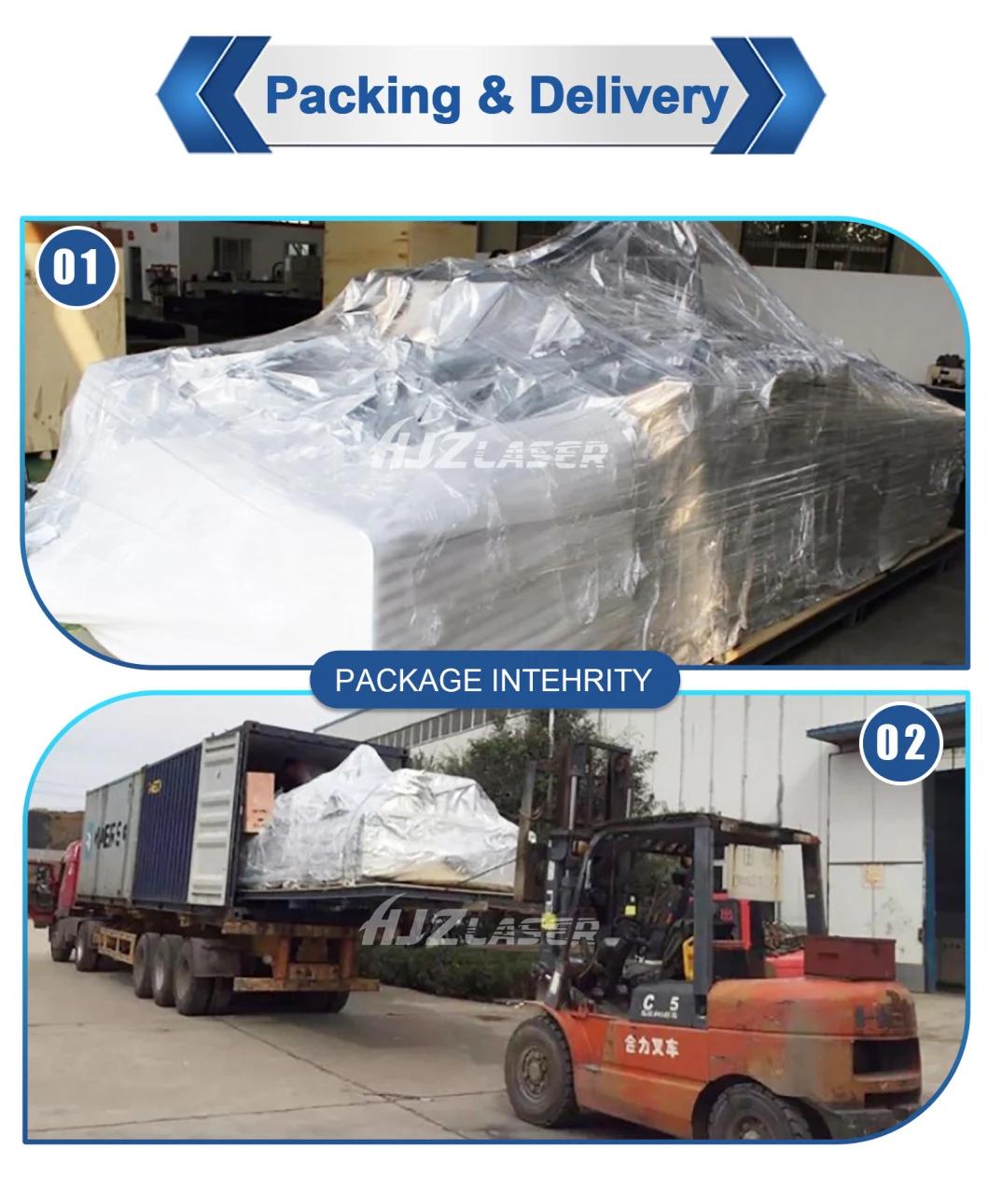

Packing:


FAQ
Q: Are you trading company or manufaurer ?
A: We are factory. And we have been in the laser field for 10 years.
Q: How long is your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
