• Model NO.：Galvno Head
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. Galvno Head Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

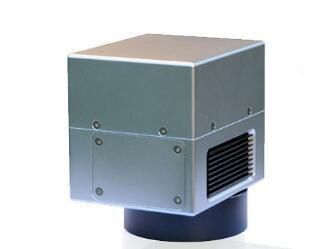

Laser Scanner Head Galvanometer Set with Power Supply Switch for Fiber laser marking machine


This galvanometer is used for high speed marking and fly marking, the standard beam diameter is 10mm.

This type of galvanometer has the characteristics of zero drift, high speed, small volume, low temperature and stable running, its comprehensive performance index has reached the international leading level, and won several national patents.


Motor Specification
Scan Motor Parameters
Working Temperature: 0ºC-45ºC
Linearity: 99.9%
Small Order Response Time: ≤0.3ms
Proportion Drift: <40PPM/ºC
Zero Drift: <15μRad./ºC
A Long Time Drift (continuous working to 8 hours) :<0.5mRad
The Average Working Current: 2.0A
Peak Current: 15A(Max)
Scanning Angle: ±15°
Storage Temperature: -10 - +60ºC
Resolution: 12μRad
Repeatability: 8μRad
Input Diameter: 10.0mm
The Beam Displacement: 13.4mm
Weight: 120g
Speed: 1-9000

Servo Drive Board Specification
Servo Drive plate parameters
The Input Voltage: ±15VDC
Interface: Digital Signal (XY2-100)
Position Signal Input Resistance: 1KΩ±1%
Position Signal Input Ration: 0.33V/°
Position Signal Output Ration: 0.33V/°
Working Temperature: 0ºC-45ºC
Driver Board Size(L*W*H): 75*55*30 mm
