Stable Working Table Heavy Use Tube and Square Pipe Fiber Laser Cutter

SHANDONG RUIJIE CNC TECHNOLOGY GROUP CO., LTD.
  • Application：Agriculture Machinery, Automotive Industry, Advertising Industry
  • Cooling System：Water Cooling
  • Technical Class：Continuous Wave Laser
  • Applicable Material：Metal
  • Structure Type：Gantry Type
  • Laser Classification：Solid Laser

Base Info

  • Laser Technology：Laser Vapor Cutting
  • Working Area：6000*Diameter220mm
  • Warranty：2 Years
  • Laser Source：Raycus
  • Laser Head：Raytools
  • Guide Rail：Taiwan Hiwin
  • Condition：New
  • Certification：Ce, SGS, ISO
  • Weight：3000kg
  • Travel Speed：80m,Min
  • Positioning Accuracy：0.03mm
  • Max Acceleration：1.0g
  • Transport Package：Standard Wooden Case or as Customer′s Request
  • Specification：6*diameter0.22*0.12M
  • Trademark：Ruijie
  • Origin：Shandong, China
  • HS Code：8456100090
  • Production Capacity：50 Set,Years

Description

Stable Working Table Heavy Use Tube and Square Pipe Fiber Laser CutterModel RJ-TS62
 working size6000*Φ220mm with Protector
 Rotary Device6m length (diameter of pipe and square ф 20-220)
 Laser Type and PowerStandard Raycus (option: IPG) 1000W/1500W
 Laser Wavelength1070±10nm
 Laser HeadRaytools
 Cutting CapacityCs: 12mm Ss: 6mm
 Max Accelerated Speed0.8 G
 Position Accuracy±0.03mm
 Minimum Line Width0.12
 Cooling SystemWater cooling
 Driving System Japanese Yaskawa Servo motor and driver
 Working Voltage3Phase 380V 50Hz/60Hz
 TransmissionX,Y axis with important square guilde rail,  Z axis with important ball screw

Stable Working Table Heavy Use Tube and Square Pipe Fiber Laser Cutter
Stable Working Table Heavy Use Tube and Square Pipe Fiber Laser Cutter
Stable Working Table Heavy Use Tube and Square Pipe Fiber Laser Cutter



Cutting samples
Stable Working Table Heavy Use Tube and Square Pipe Fiber Laser Cutter

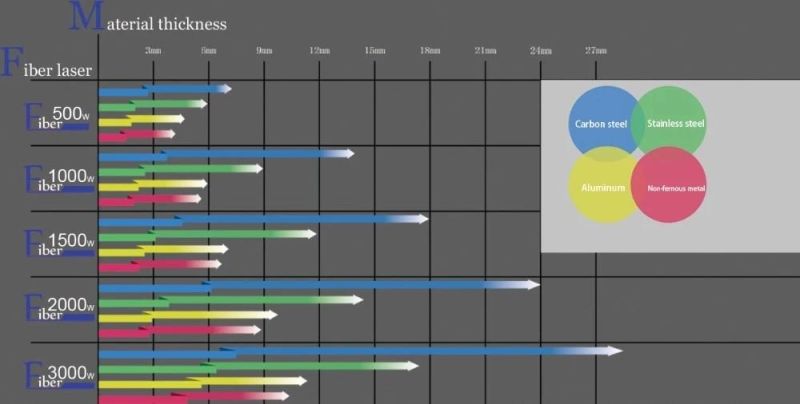

Parameter of Fiber Laser Cutter
Stable Working Table Heavy Use Tube and Square Pipe Fiber Laser Cutter

Fiber Laser Cutting Machine applicated in sheet metal processing, die-cutting,  electronic, electrical appliance, aviation, mechanical, elevator, cars, steamer, cutting  tool, subway accessories, petroleum machinery, food machinery, craft gits, tools  processing, decoration, advertisement, metal external processing and other    manufactures.

High Productivity Metal Fiber Laser Fiber Cutting Machine 1500W specially used for cutting 0.5-30mm carbon steel sheets (pipes), 0.5-15mm stainless steel sheets, galvanized steel(pipes), electrolytic zinc-coated steel sheet(pipes), silicon steel(pipes) and other kinds of thin metal sheets and pipes. Range of pipe diameters: 20-220mm.


Stable Working Table Heavy Use Tube and Square Pipe Fiber Laser Cutter


Stable Working Table Heavy Use Tube and Square Pipe Fiber Laser Cutter
Ruijie Technology CNC Group Co, Ltd C was founded in 2002, the earliest domestic enterprise which engaged in the application of large-scale production by numerical control. Now we own a dozen national patents until 2020, professional R&D team,dometic sales team, international sales team and professional after-sales service team. No matter you are in which stage, Ruijie laser will offer you the best service.
Ruijie CNC machine keeps high working efficiency to meet customers requirements and demands, good product quality and service is Ruijie keeps pursuing. We very welcome to visit and check our machines at any time..

Packing
Stable Working Table Heavy Use Tube and Square Pipe Fiber Laser CutterStable Working Table Heavy Use Tube and Square Pipe Fiber Laser Cutter

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
