3015 Full Enclosed Design Fiber Laser Cutting Machine for Safety Working
Jinan Vmade Cnc Machine Co., Ltd.- Warranty：3 Years
- Application：Petroleum Machinery Manufacturing, Textile Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Gantry Type
Base Info
- Model NO.：VLF1530GR
- Laser Classification：Fiber Laser Source
- Laser Technology：Laser Fusion Cutting
- Model No.：Vlf1530gr
- Working Area：1500*3000mm
- Laser Source Brand：Raycus,Ipg
- Laser Cutting Head：Raytool
- Servo Motor and Driver：Japanese Yaskawa Servo Motor and Driver
- Transmission：Double Driver Rack Gear
- Laser Source Power：1000W,1500W,2000W,3000W,4000W,6000W,8000W
- Application Material：Metal
- Control System：Cypcut2000
- Repeated Positioning Accuracy：+,-0.02mm
- Specified Voltage and Frequency：380V 50Hz,60Hz
- Max. Acceleration：1.5g
- Max. Running Speed：120m,Min
- Graphic Format Supported：Ai, Plt, Dxf, BMP, Dst, Iges
- Transport Package：40FT Container
- Specification：8850*2850*2310mm
- Trademark：VMADE
- Origin：Jinan, Shandong, China
- HS Code：8456110090
- Production Capacity：500 Sets,Year
Description
3 years

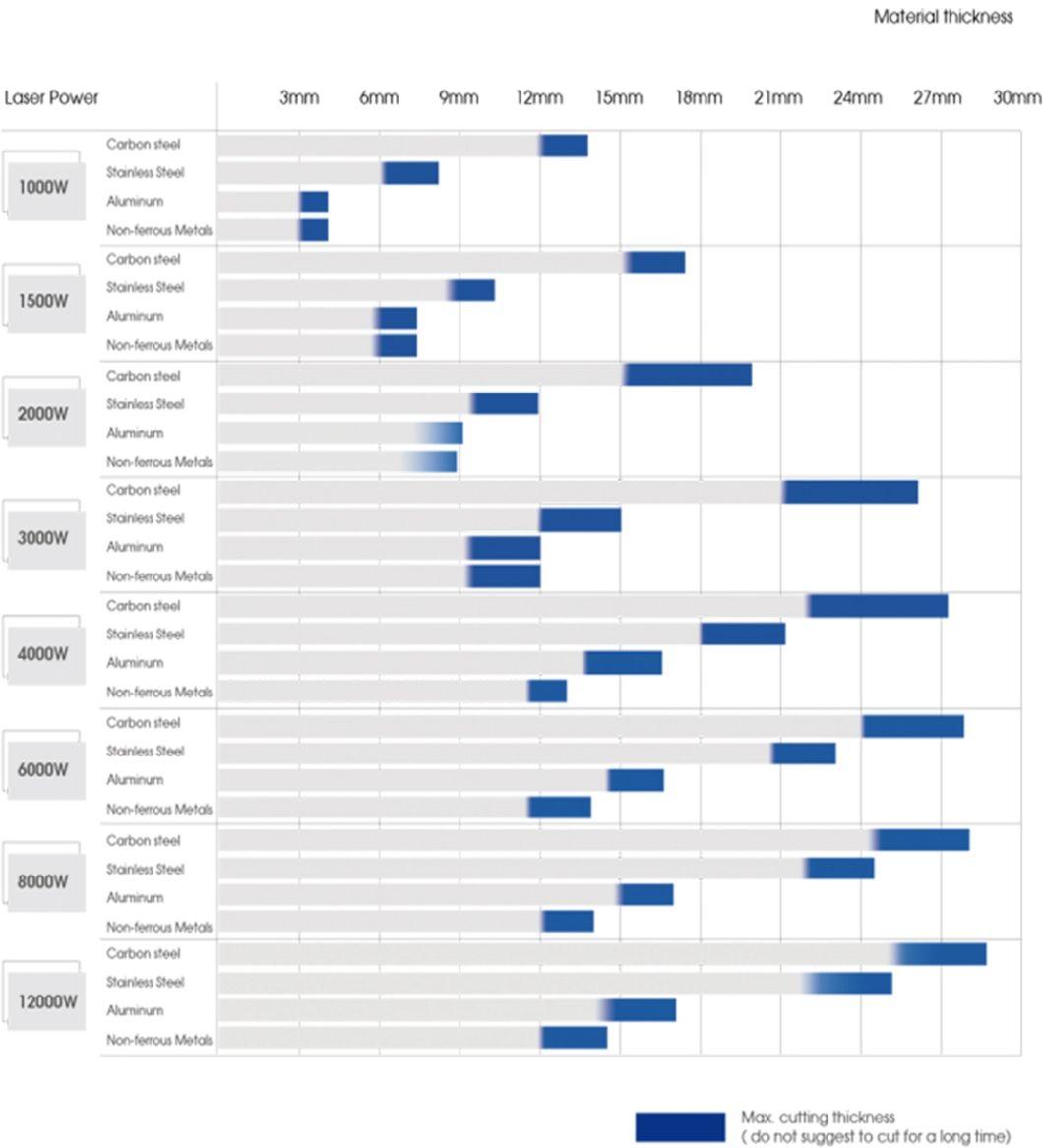

Cutting Parameter

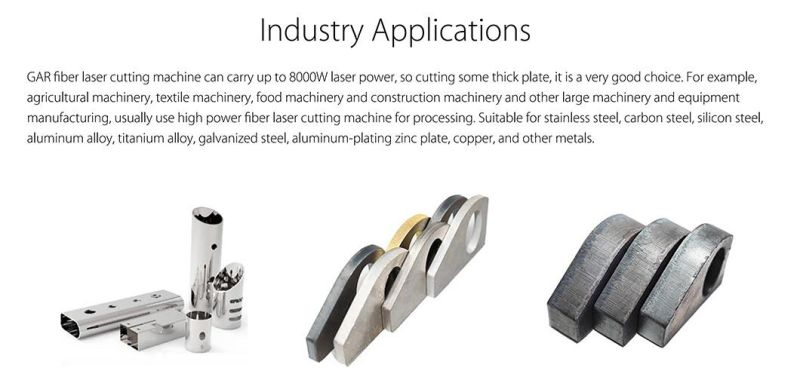

Samples
