• Model NO.：UV-3,5,7,10-D02
• Laser Classification：Semiconductor Laser
• Engraving Method：Vector Engraving
• CNC Yes or Not：Yes
• Transport Package：Wood
• Specification：68*65*145cm
• Trademark：DP
• Origin：China
• HS Code：8443393200
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. UV-3/5/7/10-D02 Laser Classification Semiconductor Laser Engraving Method Vector Engraving CNC Yes or Not Yes Transport Package Wood Specification 68*65*145cm Trademark DP Origin China HS Code 8443393200 Production Capacity 3000 Sets/Year

Product Description

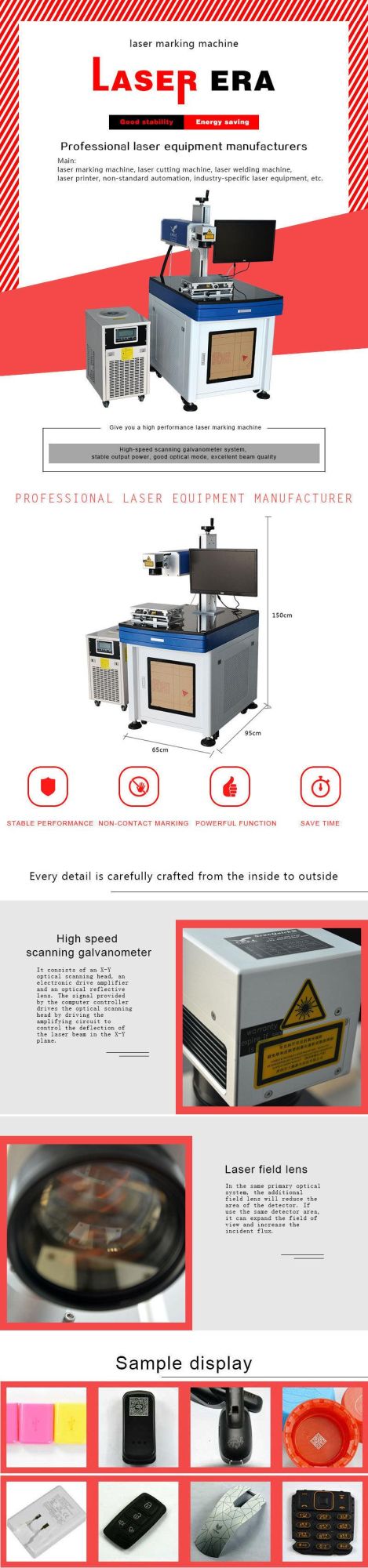

 UV laser glass bottle glass cup marker

UV laser marking machine, using the 355nm UV laser research and development and, using three order intracavity frequency doubling technology, into the international advanced technology, high energy ultraviolet photons direct damage many nonmetallic materials surface molecules, molecules from the object, in this way will not produce high quantity of heat, ultraviolet laser gathering spot minima and processing of almost no heat effect, therefore is called cold processing, so it can be used to special material ultra fine marking and engraving.



Properties:

Laser type	ultraviolet green
Laser wavelength	355nm
Laser power	3w/5w/7w/10w
Standard engraving range	100mm*100mm
Optional marking range	50mm*50mm,150mm*150mm, 180mm*180mm
Engraving speed	less than or equal to 10000mm/s
Outline dimension (W*D*H)	68*65*145cm
Weight:	120kg
Power demand	Ac220V + 10%.50Hz-60Hz.5Amp
Cooling mode	Water Cooling
Operating temperature:	10-35 DEG C
humidity:	5%-75% (non-condensing)



Product description:
Working principle and characteristics:
Dapeng laser and UV play labeling machine series products into the international advanced technology, high energy ultraviolet photons direct damage many nonmetallic materials surface molecules, molecules from the object, in this way will not produce high quantity of heat, ultraviolet laser gathering spot minima and processing almost no heat affected, therefore is called cold processing, so it can be used to special material ultra fine marking and engraving.

Product advantage:
1. Short UV laser wave length, smaller focused spot, can realize ultra fine marking;
2. is cold processing, small heat affected zone, avoid damage to materials to be processed, high rate of finished products
3. applicable materials widely, make up the deficiency of the infrared laser processing capacity;
4. using high-speed digital galvanometer marking speed, high efficiency, high precision;
5. without supplies, use cost and maintenance cost is low; the performance is stable, long-term operation.

Industry application:
UV laser light spot is very small, and there is almost no heat affected, so it is called cold processing, which is suitable for special materials, super fine marking and engraving. Mainly used for ultra precision machining of the high-end market, cosmetics, medicines, food and other polymer materials of the surface of the packing bottle marking; flexible PCB board marking, dicing; silicon wafer micro hole, blind hole processing; LCD glass two-dimensional code marking, glassware play standard, metal surface coating removal, plastic buttons, electronic components, communication equipment.

Flexible and convenient operating system:
User friendly operation, equipment operation stability is good; the special control software can be compatible with AutoCAD, CorelDRAW, Photoshop and other softwares output; can realize text symbols, graphics, bar code, two-dimensional code, serial number and so on automatic editing and modification; support PLT, PCX, DXF, BMP, JPG and other file formats can be used directly TTF font; CCD automatic identification tracking and positioning;

Working environment requirements:
1. environmental temperature requirements at 10-35 DEG C, air conditioning requirements;
2. temperature requirements for < 60%. No condensation, should install dehumidifier;
3. power supply requirements: 220V; 50HZ/60HZ;
4. power supply fluctuation: + 15%, grid wires meet international requirements. Area voltage amplitude of 15% or more, should install the electronic type automatic voltage regulator, stabilizer;
5. shall be installed near the equipment without strong electromagnetic interference. Around the installation to avoid a radio transmitter station (or trunk);
6. Foundation: less than 50Um; the amplitude of vibration acceleration: less than 0.05g. Avoid a large number of press and other equipment in the vicinity of the press;
In the equipment space requirements to ensure smokeless clean, avoid metal polishing and grinding dust serious working environment;
7. air pressure: 86-106kpa
In some environment should be installed anti-static floor, strengthen shielding;
Exergy cooling circulating water quality has strict requirements, require the use of pure water, deionized water or distilled water, can not use of water, mineral water, etc. liquid with high metal ion or other minerals.

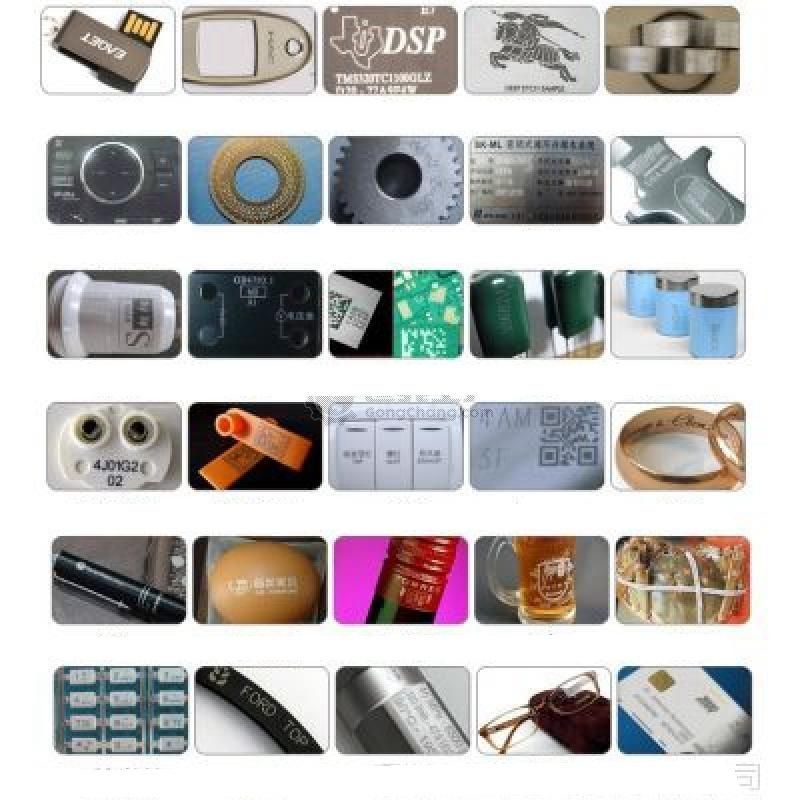

Marking samples but not limited.
