• Model NO.：LS-F
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Fiber Laser：Raycus
• Comtrol System：Jcz
• Operation System：Microsoft Windows 7. 8. 10 System
• Power Supply：220V,60Hz,8A(110V,60Hz,15A Can Choose)
• Control Software：Ezcad
• Features：Color Marking on Stainless
• Transport Package：Plywood Boxes
• Specification：780*680*510mm
• Trademark：Lansen
• Origin：China
• HS Code：8456110090

Basic Info.

Model NO. LS-F Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Fiber Laser Raycus Comtrol System Jcz Operation System Microsoft Windows 7. 8. 10 System Power Supply 220V/60Hz/8A(110V/60Hz/15A Can Choose) Control Software Ezcad Features Color Marking on Stainless Transport Package Plywood Boxes Specification 780*680*510mm Trademark Lansen Origin China HS Code 8456110090

Product Description

Raycus 50W Handheld Rubber tire Mini Fiber Laser Marking Machine
Parameters:

Laser Source	Fiber Laser
Output Power	20w/30w/50w/100w
Wavelength	1060nm
Beam Quality	<2
Repeat Frequency	10khz--- 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Resolution	18μ
Repeatablility	50μ
Marking Scope	110x 110mm/ 200x 200mm(optional)/300*300mm(optional)
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Electrical Source	220V / Single-Phase Circuit / 50/60Hz /4A

 Features:

1. Fiber laser, Basic model, high speed galvo scanner; IPG laser and Chinese Brand laser for option.
2. Maintenance Free, save equipment and worker cost;
3. Imported Galvonometer, Higher precision,faster speed;
4. Higher photoelectric conversion efficiency,  Low power consumption;
5. Red light preview, more accurate and reduce positioning time;
6. Laptop with Powerful marking software;
7. User friendly software interface, easy operation;
8. Set and deal different layers graphic separately;
9. Support PLT,PCX,AL,DXF, BMP,JPG formats file;
10. Compatible AutoCAD,CorelDraw,Photoshop etc software, Automatic serialization,date coding letter, symbol, pattern, figure, image, bar code, 2D code  auto  arrangement and amendment.

Machine details:

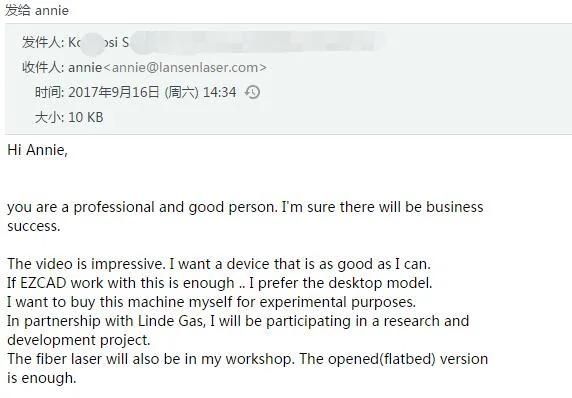

Feedbacks:




Applications:


Aplicable Industries:
1. Electrical Engineering and Electrical part and component
2. Mobile (Cover, battery, keyboard, IPhone Case)
3. Jewelry(Ring, pedeant, bracelet),eyeglass,clocks and craft
4. Building materials,PVC pipe
5. Car motor car spare part, Instrument and meters and cutting tool
6. plastic case,aviation and aerospace,
7. hardware fitting and accessory,sanitary appliance
8. food and beverage ,Medicine package and medical instrument,solar Pv industry
Applicable Materials:
1.Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
2.Alloy and metal oxides: Anodized Aluminum
3.Some non-metallic materials & Special surface treatment:
   silicon wafer, Poly,urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.



Warranty:

1. 24 Months for Machine
2.  Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material.
3.  Lifely and fast technical guide and solution within 24hours by email and web camera.

About us:


FAQ:
Q: How can I choose suitable machine?
A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2).What work you will do?

Q: What's your payment terms? Delivery time and MOQ?
A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment.
Delivery Time: 3-5 days after payment
MOQ: 1set

Q: If I bought a machine, how could you make it safe while shipping.
A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.

Q: What's your quality control system?
A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.

Q: If I don't know how to use the machine, can you teach me?
A: 1) There is a DVD disc including machine user manual and software user manual c/w machine.
2) Online (skype & phone)
3) Remote desktop software (Teamviewer)
4) Demo Video
