CE Approved Safety Closed Mini Fiber Laser Marking Machine for Logo Text Work
Jinan Lansen Laser Equipment Co., Ltd.- Laser Visibility：Invisible
- Applicable Material：Metal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
- Laser Wavelength：Fiber Laser
- Laser Classification：Solid Laser
Base Info
- Model NO.：LS30F
- Type：Optical Fiber Laser Marking Machine
- Marking Method：Scanning Marking
- Fiber Laser：Raycus
- Comtrol System：Jcz
- Operation System：Microsoft Windows 7. 8. 10 System
- Power Supply：220V,60Hz,8A(110V,60Hz,15A Can Choose)
- Transport Package：Wood Boxes
- Specification：working size: 110*110mm
- Trademark：Lansen
- Origin：China
- HS Code：8456110090
Description
Graphic format supported
BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF
AI, PLT,DXF,DST,SVG,JPC,NC,G,BOT,GBR
Working area
110mm*110 mm(Standard)

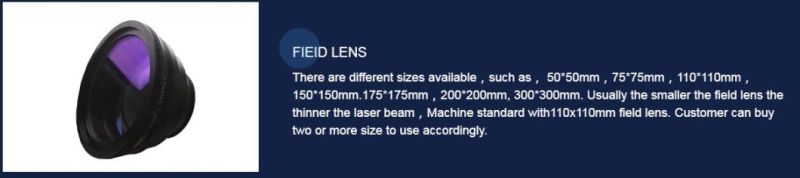

can choose 50*50 150*150 175*175 200*200 (mm)

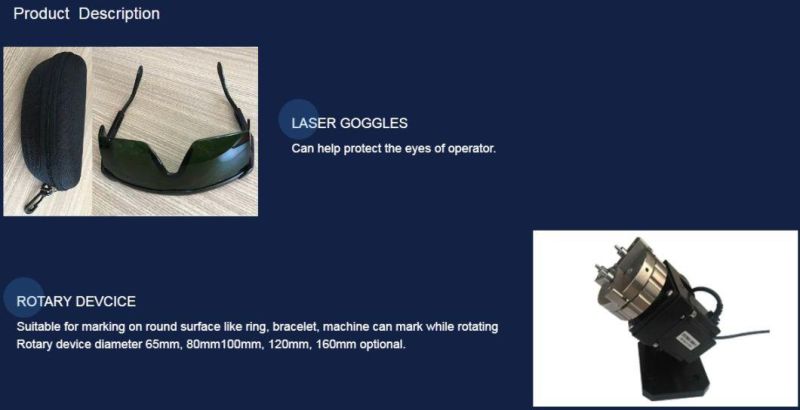

If use rotary device, the max support 150x150mm field lens.
Marking depth
<1mm
Marking speed
<5000mm/s
Min. line width
0.05mm
Repeatability accuracy
0.003mm
Power Machine
300-600W
Operation temperature
0~40°C
Operation system
Microsoft Windows system

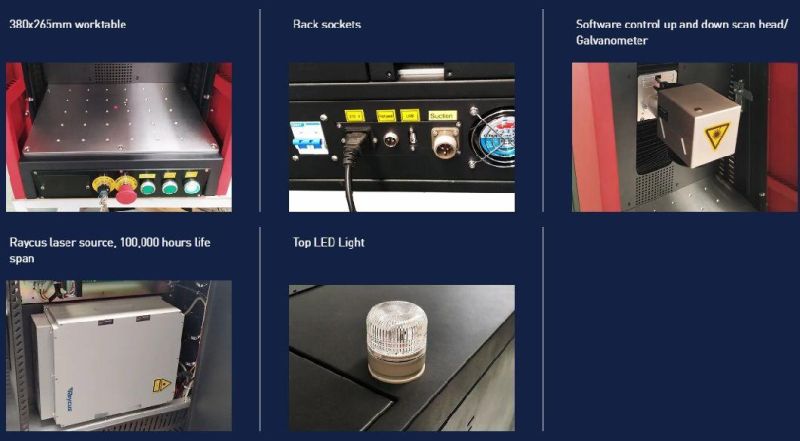

Worktable size
380x265mm
Machine size
840mm*460mm*820mm
Grosse weight
92kg
- Fiber laser, Basic model, high speed galvo scanner; IPG laser and Chinese Brand laser for option.
- Maintenance Free, save equipment and worker cost;
- Imported Galvonometer, Higher precision,faster speed;
- Higher photoelectric conversion efficiency, Low power consumption;
- Red light preview, more accurate and reduce positioning time;
- Laptop with Powerful marking software;
- User friendly software interface, easy operation;
- Set and deal different layers graphic separately;
- Support PLT,PCX,AL,DXF, BMP,JPG formats file;
- Compatible AutoCAD,CorelDraw,Photoshop etc software, Automatic serialization,date coding letter, symbol, pattern, figure, image, bar code, 2D code auto arrangement and amendment.
Applications:
Aplicable Industries:
1. Electrical Engineering and Electrical part and component
2. Mobile (Cover, battery, keyboard, IPhone Case)
3. Jewelry(Ring, pedeant, bracelet),eyeglass,clocks and craft
4. Building materials,PVC pipe
5. Car motor car spare part, Instrument and meters and cutting tool
6. plastic case,aviation and aerospace,
7. military product,hardware fitting and accessory,sanitary appliance
8. food and beverage ,Medicine package and medical instrument,solar Pv industry

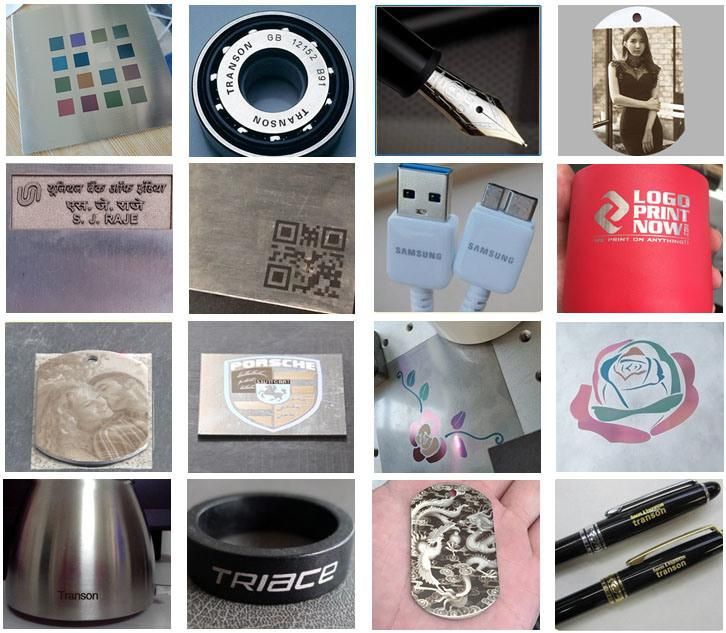

Applicable Materials:
1.Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
2.Alloy and metal oxides: Anodized Aluminum
3.Some non-metallic materials & Special surface treatment:
silicon wafer, Poly,urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.
Warranty:
- 24 Months for Machine
- Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material.
- Lifely and fast technical guide and solution within 24hours by email and web camera.
