• Model NO.：WL-FKJ
• Specification：56*42*40cm
• Trademark：Crown
• Origin：China, Jiangsu
• HS Code：8451500000
• Production Capacity：120pieces,Min

Basic Info.

Model NO. WL-FKJ Specification 56*42*40cm Trademark Crown Origin China, Jiangsu HS Code 8451500000 Production Capacity 120pieces/Min

Product Description

 WL-FKJ  Ultrasonic Metal Aluminum Copper Tube Welding and Sealing Machine

Ultrasonic metal tube sealing machine for processing copper or aluminum tubes of refrigerators and air conditioners.

1.This ultrasonic copper tube sealing machine does not need to be preheated by heating.
2.The sealing speed is fast and the efficiency is high.
3.The equipment is small in size, easy to carry and easy to operate.
4.It is safe and environmentally friendly. It uses ultrasonic high-frequency friction to instantly generate high temperatures
to melt and weld metal materials.
5.Efficient resonance frequency work, automatic tracking, large output power, stable and reliable welding.
6.Ultrasonic power is adjustable, and a number of built-in parameters can be set, such as pressure, welding time,
holding pressure cooling time, vibration fall time, cylinder down pressure rise speed, etc.
7.Welding parameters can be selected according to different welding materials and diameters.

Model	WL-FKJ
Ultrasonic generator size	L370*W420*H170mm
Ultrasonic generator net weight	10.5KG
Size	L470*W110*H220mm
Net weight	12.6KG
Working frequency	19.6-20.2KHz
Power	3000W
Working voltage	220V (AC110V/220V adapter can be added)
Welding head material	Carbide steel

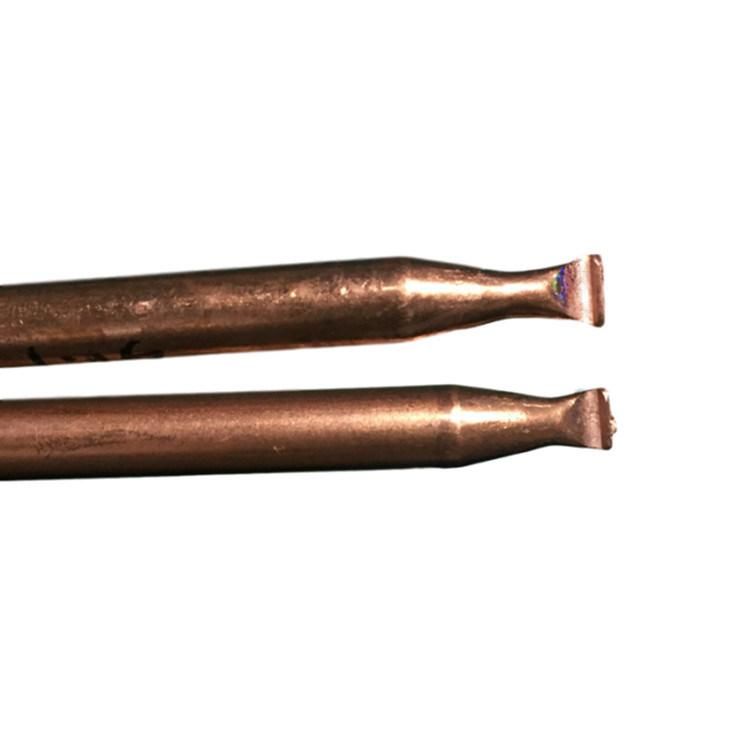

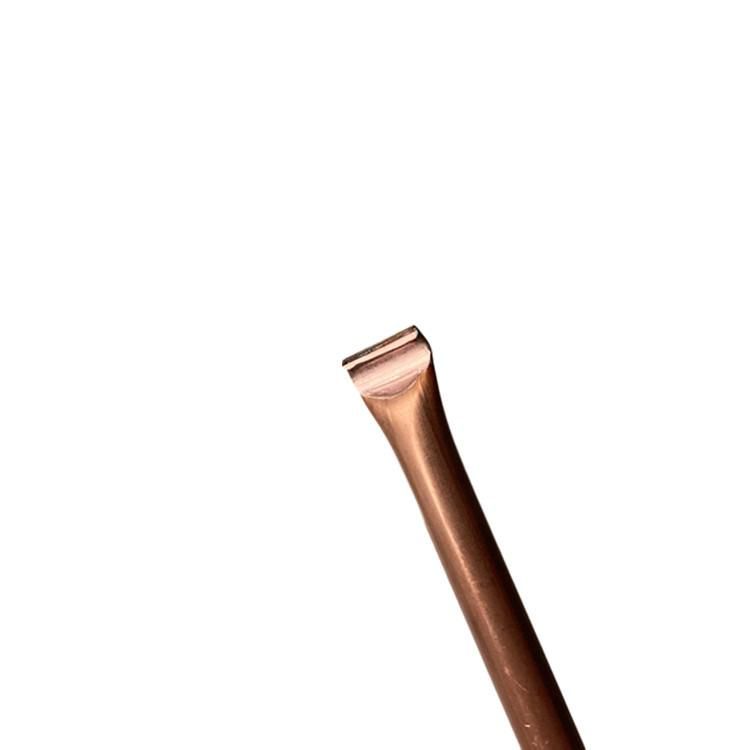

Finished sample:

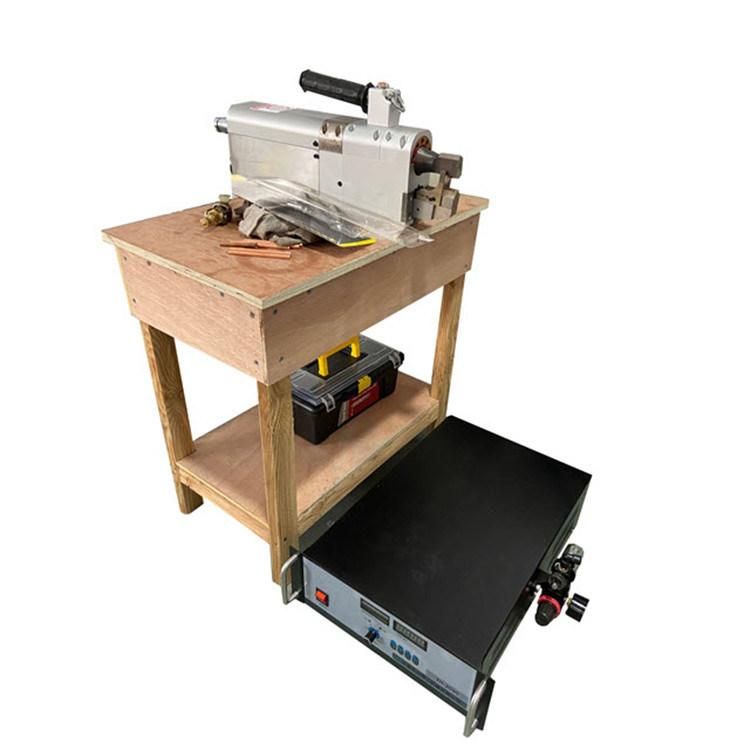

Machine details:

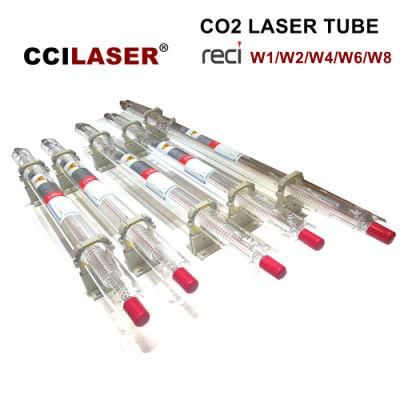

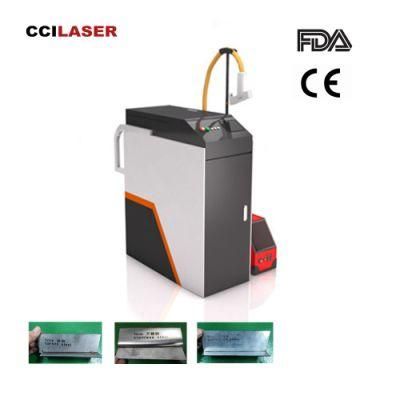

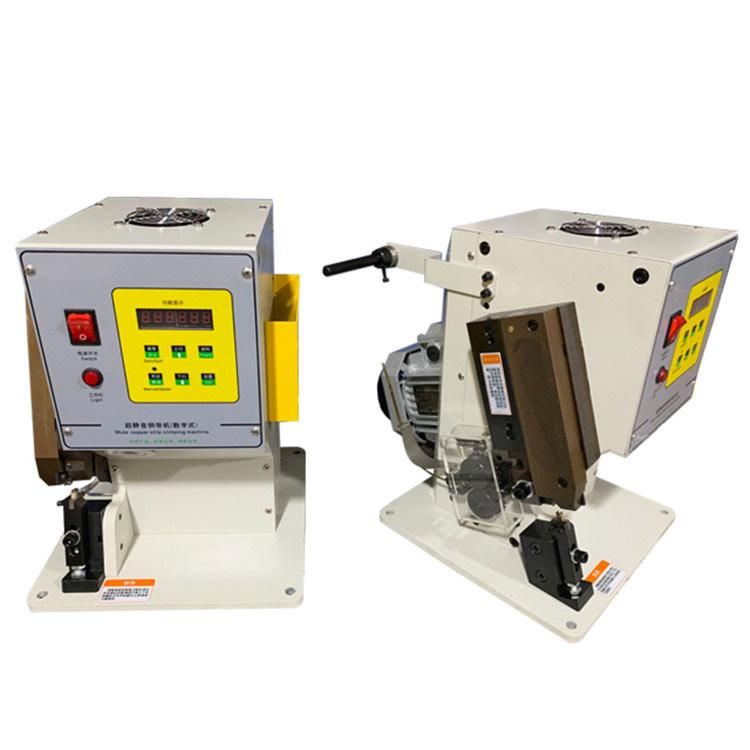

Related machine:

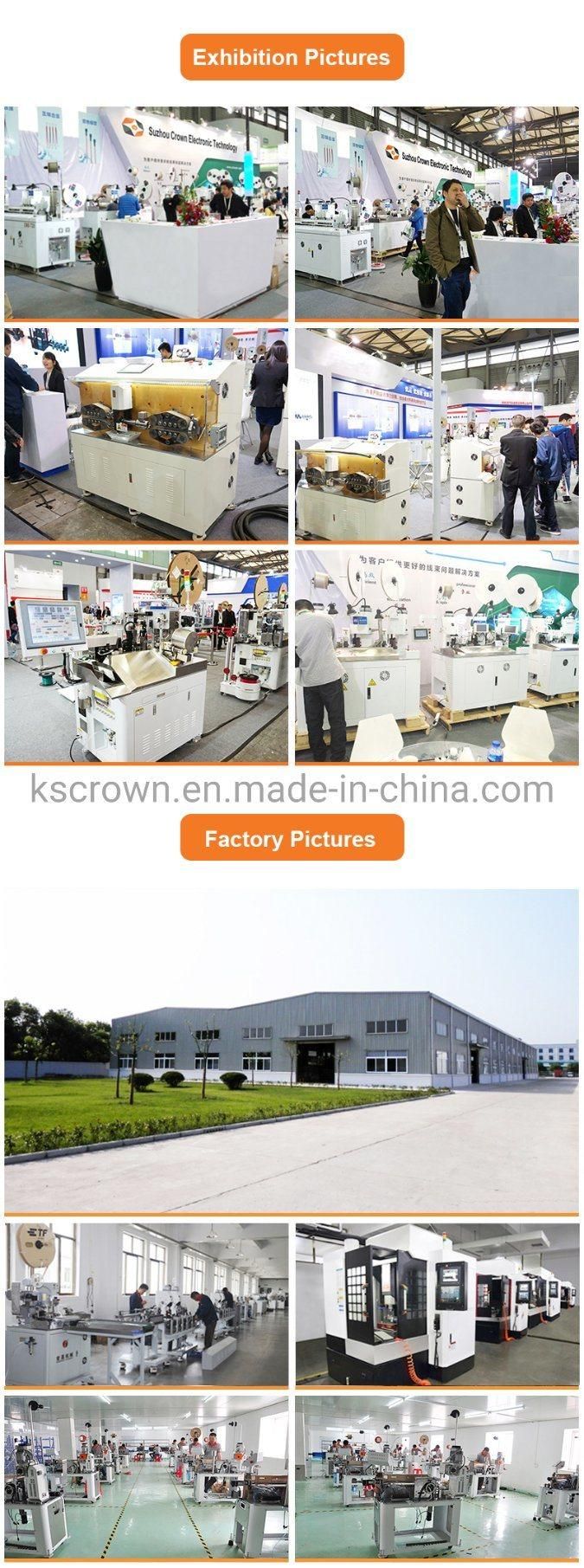

Company information:


Certificate:


Contact:

Pls contact Suzhou Crown Kitty for price inquiry or any other questions/doubt.
