• Laser Technology：Fiber
• Transport Package：Wooden Packing
• Trademark：ZPG-laser

Basic Info.

Laser Technology Fiber Transport Package Wooden Packing Trademark ZPG-laser

Product Description

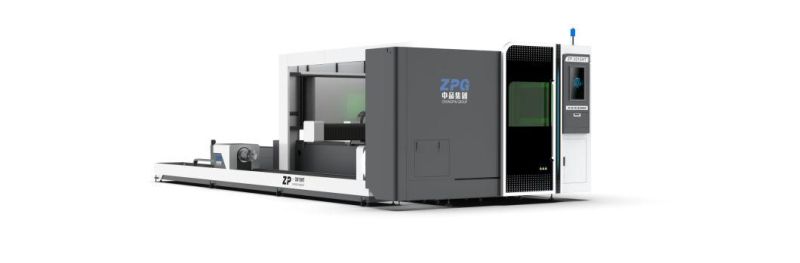

Introduction of ZPG-3015 HT 1000w/1500w/2000w/3000w/4000w



ZPG3015HT fiber laser cutting machine adopts the most advanced fiber laser in the world to output high-energy-density laser beam, and gather it on the surface of the workpiece, so that the area irradiated by the ultra-fine focus spot on the workpiece is instantly melted and vaporized. The system moves the spot irradiation position to realize automatic cutting.
ZPG3015HT fiber laser cutting machine:
Flat cutting part: adopts the gantry structure type, bilateral drive cooperates with rack and pinion, it has the characteristics of stable structure, good rigidity and high speed, and its positioning speed can reach 140m/min. The interactive workbench saves loading and unloading time and improves work efficiency. The fastest exchange speed can reach 25S.
Pipe cutting part: The pipe is fixed by double chucks, the chuck is rotated by a servo motor, and the front and back position movement is achieved by the drive of the servo motor rack and pinion. The clamping range is φ20-φ350mm, the clamping structure is stable, and the positioning accuracy is high.

The ZPG3015HT laser cutting machine body adopts plate welding to ensure that it will not be deformed after long-term use and has ultra-high stability; transmission components such as reducers, guide rails and gear racks are imported from well-known brands, and its gantry structure and gears The transmission mode of the rack ensures the high-speed positioning, fast dynamic response and good stability of the equipment, and represents the development direction of the laser cutting machine.

Technical Parameters

Model	ZPG-3015HT
Working size	3000mm*1500mm
Laser power	1000w/1500w/2000w/3000w/4000w
Machine weight	95000Kg
Max Loading Capacity	3000Kg
X-axis travel	3050mm
Y -axis travel	1530mm
Z -axis travel	350mm
Laser Wavelength	1060-1080nm
(Plate) Effective cutting range	4050×2030mm
(Pipe) Maximum cut pipe length	6100mm
(Plate) Maximum rotation speed of the card disc	100r/min
Maximum weight of pipe	600kg
Pipe section size	Φ20-φ350
X/Y Axis positioning accuracy	±0.03mm/m
X/Y Axis repeated positioning	±0.02mm
Max. Linkage Speed	140m/min
Max. Acceleration	1.4G
Continuous Working Time	24 Hours

Service Policy

Pre-sale Service
Recommend suitable production and processing solutions to customers through telephone, Whtasapp,and video call.
Sale Of Service
Equipped with professional personnel to make a detailed and comprehensive explanation of the product, free of charge for customers to provide proofing, in good faith and fair treatment of every customer.
Care - After-Sale Service
Technical Support
Warranty and Service
1.Guarantee for 2 years.
2. Maintenance free of charge for 2 years .
3.We will provide the consumable parts at an agency price.
4.24 hours multi-language online service, free technical support.
5.Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
6.We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's
Online 7*24 Technical Support
Wi-Fi Technology in conjunction with customer machine provides remote diagnostics of a machine
Global real-time feedback, response in 1 hour, solution provided within 24 hours, maximum your production
by minimum diagnostic time
Safe process to Portal and Special CRM team working 24h3 shifts in Headquarter
Life-long free of cost
Onsite Real-time Technical Support
A call-out is designated as the time necessary to repair a specific problem after Wi-Fi remote diagnostic, engineer will come from Service Center


Zhongpin Group always insist to the development concept of customer first and quality first,Provide you with the best quality service.
