• Model NO.：LS-YLP-20,30,50L
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：Ls-Ylp-20L,30L,50L,100L
• Laser Power：20W;30W;50W
• Power Consumption：<500W
• Wavelength：1064nm
• Engraving Range：Max 400*400mm(Customized)
• Engraving Depth：1.2mm
• Minimum Line Width：0.012mm
• Minimum Character：0.1mm
• Repeated Accuracy：+-0.003mm
• Life of Laser Module：100000hrs
• Transport Package：Wooden Case
• Specification：800*600*1430mm
• Trademark：Hispeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. LS-YLP-20/30/50L Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model Ls-Ylp-20L/30L/50L/100L Laser Power 20W;30W;50W Power Consumption <500W Wavelength 1064nm Engraving Range Max 400*400mm(Customized) Engraving Depth 1.2mm Minimum Line Width 0.012mm Minimum Character 0.1mm Repeated Accuracy +-0.003mm Life of Laser Module 100000hrs Transport Package Wooden Case Specification 800*600*1430mm Trademark Hispeed or Customized Origin China HS Code 8456100090 Production Capacity 100 Sets / Month

Product Description

Small Size Fiber Laser Marking Engraving Machine Desktop Model 20W 30W 50W 100W Hispeed Laser


Speaking of laser marking machine, maybe some people feel unfamiliar?

But you will find: phone shell, Logo, bottle, bar code, keyboard, TV, switch, refrigerator, washing machine,text introduction,
printing on the clothes or leather….. All these are marked by fiber laser marking equipment !

>>Applicable Sample  Materials<<

Laser engraving machine used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons,plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.

√  Electrical Engineering and Electrical part and component
√  Mobile (Cover,battery,keyboard, I Phone Case)
√  Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft
√  Building materials,PVC pipe
√  Car motor car spare part ,Insturment and meters and cutting tool
√  plastic case,aviation and aerospace,
√  Military product,hardware fitting and accessory,sanitary appliance
√  Food and beverage ,Medicine package and medical instrument,solar Pv industry

>>Technical Parameters<<

Model	LS-YLP-20L	LS-YLP-30L
Power	20W	30W
Wavelength	1064nm	1064nm
Beam Quality	M2<1.3	M2<1.3
Output Power	10%-100%(continuously to be adjusted)	10%-100%(continuously to be adjusted)
Output Frequency	20KHz-100KHz(continuously to be adjusted)	20KHz-100KHz(continuously to be adjusted)
Power Stability(8h)	<±1%rms	<±1%rms
Focus Spot Diameter	<0.01mm	<0.01mm
Engraving Range	≤400*400mm(customized)	≤400*400mm(customized)
Engraving Depth	1.2mm	1.2mm
Engraving Speed	800 standard characters/second	800 standard characters/second
Minimum Line Width	0.012mm	0.012mm
Minimum Character	0.1mm	0.1mm
Repeated Accuracy	±0.003mm	±0.003mm
System Operation	Windows XP/2000/98	Windows XP/2000/98
Cooling Mode	Air Cooling	Air Cooling
Environment Temperature	10ºC~35ºC	10ºC~35ºC
Environment Humidity	20%-80%	20%-80%
Power Requirement	220V/Singlephase/50Hz/<400W	220V/Single phase/50Hz/<400W
Life of Laser Module	100000Hrs	100000Hrs
Host Size	800mmx650mmx1435mm	800mmx650mmx1435mm



>>Company Information<<

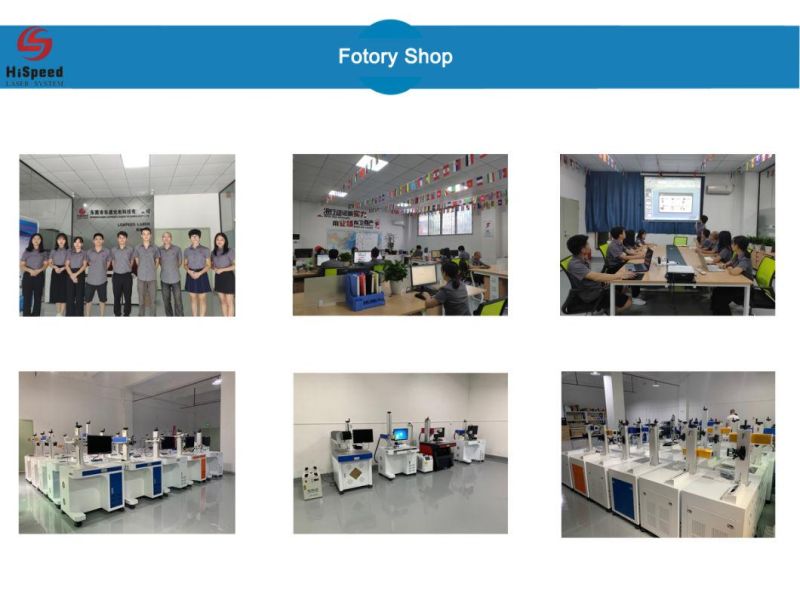

Hispeed laser company is a professional Laser Marking Machine Manufacturer, the company focuses on the development and innovation of a complete set of laser processing and application solutions for customers. The core products are "Fiber laser marking machine, UV laser marking machine and CO2 laser marking machine".
The company has formed three major products series and targeted solutions for different segments, different sizes and different applications for advertising, industrial manufacture and so on. It is a more influential equipment manufacturer in the laser application industry.

The growth of Hispeed laser company is the process of serving customers and growing up with customers.
With gratitude, we do everything in our heart and meet every challenge with confidence.

Looking forward to your inquiry :)
