• Model NO.：DPH-500,1000,1500
• Operation Type：Automatic
• Cooling Method：Air Cooling
• Operating Mode：Hand Holding
• Operating Environment Requirement：Temperature: 0-40ºC, Humidity :20%-80%
• Model Size：830mmx560mmx1050mm
• Beam Quality：M2<1.8
• Lifetime：≤10W Hrs
• Frequency：80-1000kHz
• Electricity Demand：AC220V,50Hz
• Certification：CE, SGS, ISO
• Usage：Rust Paint Remover Machine
• Gross Power：2kw
• Transport Package：Plywood Package
• Specification：830mmX560mmX1050mm
• Trademark：Dp
• Origin：Shenzhen China
• HS Code：8422200000
• Production Capacity：300

Basic Info.

Model NO. DPH-500/1000/1500 Operation Type Automatic Cooling Method Air Cooling Operating Mode Hand Holding Operating Environment Requirement Temperature: 0-40ºC, Humidity :20%-80% Model Size 830mmx560mmx1050mm Beam Quality M2<1.8 Lifetime ≤10W Hrs Frequency 80-1000kHz Electricity Demand AC220V/50Hz Certification CE, SGS, ISO Usage Rust Paint Remover Machine Gross Power 2kw Transport Package Plywood Package Specification 830mmX560mmX1050mm Trademark Dp Origin Shenzhen China HS Code 8422200000 Production Capacity 300

Product Description

Fiber Laser Cleaning Machine Raycus 1000W 1500W Rust Removal Laser Cleaner


Our core advantages (We are looking for distributor )
1) Top 3 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, ( 500 - 12000W laser cutter), usually sell 60 units/month in China.


 Technical Parameters:

Model	DPH-100SCQX-CX-HL	DPH-1500SCQX-CX-HL	DPH-2000SCQX-CX-HL
Laser Power(W)	1000W	1500W	2000W
Spot Mode	Single-mode/multi-mode	Single-mode/multi-mode	Single-mode/multi-mode
Power Adjustment Range(W)	10-100%	10-100%	10-100%
Weight of Cleaning Head(KG)	0.8KG	0.8KG	0.8KG
Scan Width(MM)	10-120mm	10-120mm	10-120mm
Working Distance(MM)	200400mm	200400mm	200400mm
Cooling Method	Water cooling	Water cooling	Water cooling
Power Supply	220V-50/60HZ	380V-50/60HZ	380V-50/60HZ
Maximum Power Consumption(W)	5000W	7000W	9000W
Operating Temperature(ºC)	5-35ºC	5-35ºC	5-35ºC
Weight(KG)	200KG	200KG	250KG
Size(mm)	830mmX560mmX1050mm	830mmX560mmX1050mm	830mmX560mmX1050mm
Cleaning Efficiency: Paint/Rust 20um	45m2/h	67.5m2/h	90m2/h
Cleaning Efficiency: Oily 20um,(m2/h)	62m2/h	90m2/h	120m2/h
Cleaning Efficiency: Titanium alloy oxide film/stainless steel weld, (m2/h)	28m2/h	40.5m2/h	55m2/h

Performance comparison of handheld laser cleaning machine and other cleaning methods:

	Chemical Cleaning	Mechanical Polishing	Dry ice Cleaning	Ultrasonic Cleaning	Laser Cleaning
Cleaning Method	Chemical cleaning agent	Mechanical/sandpaper, contact type	Dry ice, non-contact	Cleaning agent, contact type	Laser, non-contact
Workpiece Damage	Damaged	Damaged	no damage	no damage	no damage
Cleaning Efficiency	Low	Low	Middle	Middle	High
Cleaning Effect	Generally, uneven	Generally, uneven	Excellent, uneven	Excellent, small clean area	Very good and clean
Cleaning Accuracy	Uncontrollable, poor accuracy	Uncontrollable, average precision	Uncontrollable, poor accuracy	Cannot be cleaned within a specified range	Precise and controllable, high precision
Safety/Environmental Protection	Serious chemical pollution	polluted environment	No pollution	No pollution	No pollution
Manual Operation	The process is complex and requires high requirements for the operator, and protective measures are required	Strong physical strength, need safety protection measures	Simple operation, handheld or automated	Simple operation, but need to manually add consumables	Simple operation, handheld or integrated automation
Consumables	Chemical cleaning agent	Sandpaper, grinding wheel, whetstone etc.	Dry ice	Dedicated cleaning fluid	Only need power supply
Cost input	Low initial investment, high cost of consumables	High initial investment and high labor cost for consumables	Medium investment for the first time, high cost of consumables	Low initial investment, medium cost of consumables	High initial investment, no consumables, low maintenance cost

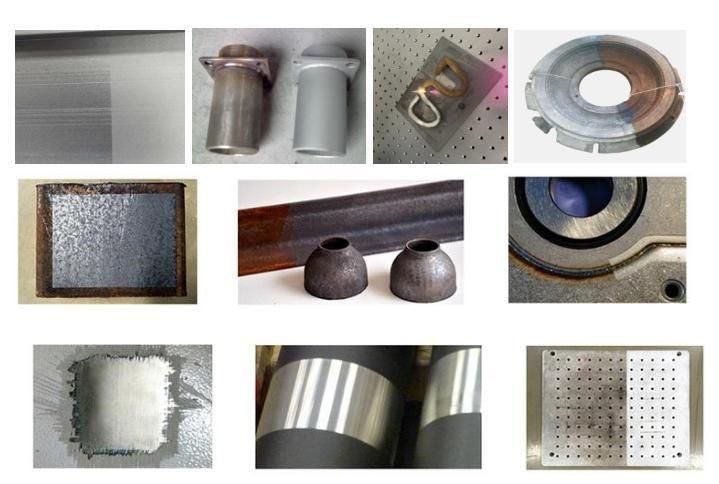

Samples:


Shenzhen Dapeng Laser Technology Co. Ltd.

    Shenzhen Dapeng Laser Technology Co., Ltd. was established in 2008, is a research and development, manufacturing, sales and service in one of the laser equipment high-tech enterprises, is committed to laser technology research and development, laser equipment design research and development, production,
technical support, services and consulting



        The company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc. Products Used in electronics, IC chips, electrical appliances, lighting, jewelery, hardware tools, sanitary ware, instrumentation, automobile and motorcycle accessories, mobile communication parts, mold, precision machinery, medical equipment, IT digital, metal shell, military aviation components , Clothing leather, craft gifts, advertising decoration, model, cookware tableware, kitchenware and other industries



       Dapeng laser product quality is stable and reliable, with professional R & D team, the pursuit of excellent quality at the same time, Dapeng laser also provides customers with timely, comfortable pre-sale, sale, after-sales service and excellent cost-effective products.
       Dapeng laser through the implementation of "to help customers succeed, create value model, to create industrial laser equipment industry services high-end brand" business philosophy, won the majority of users trust and praise. Customers located throughout the country and overseas, 2016 sales of laser equipment more than 5,000 sets .


          The company established a sound production and sales and after-sales service system, in Shenzhen, Wenzhou, Kunshan, Xiamen has a production base. In Dongguan, a large laser cutting machine production base.
And in major domestic industrial cities and regions with offices, the offices have equipment display, process proofing, sales and after-sales service, resident technical service personnel, to provide customers with timely, comfortable pre-sale, sale, after-sales support And services.


         Dapeng people know that quality and service is the fundamental survival of the company, innovation is the basis for long-term development of the company to help customers create value, and strive to build the laser equipment industry well-known brands, look around the world, win-win cooperation and create a better future


Notes:
(1) Pre-sale service
1.According to customer requirement, we provide you with the relevant professional technology information (including the specification, machine pictures, working videos, manual) and test samples by our machines.
2.Welcome to visit our company, we will let our engineer do marking or welding on samples. Seeing is believing, and it is
better for future business.
3.We offer a reasonable price for mutual win-win cooperation.
(2) Sale service
1. We will make a working video and take pictures to customers for confirmation before delivery (within 15 days after
receiving the total payment).

1. Machine will be packed into the standard wooden cartons, suitable for vessel or air transport, and marked the universal

label, shipping marks.

1. Send customers commercial invoice, packing list, BL or AWB sheet, optional CO or FF or FTA or SASO for customer

custom clearance.
(3) After-sale service
         1.Warranty and Service included:
a. Hardware: one year warranty;  b. Software: whole life on update for free.
c. Maintenance and technological support: whole life.
          2. Training:
a. 3--4 days free training for the whole system in Seller's company.
b. If customer needs our technician give the training abroad, the customer need charge for the transportation and accommodation
fees of engineer;
Including: how to set up the equipment; how to debug the light route; how to use the software and operate the equipment;
how to replace the bad material and spare parts, etc; how to maintain the equipment; how to estimate and settle the problem,
and analysis the reason.
