• Model NO.：FM-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Transport Package：Wooden Case
• Specification：69Kgs
• Trademark：CCILASER
• Origin：China
• HS Code：8456110090
• Production Capacity：300 Sets Per Month

1. Feature:
Ytterbium fiber laser marking machine includes Q-switch pulse output laser beam. It is ideal for permanently marking and engraving raw metal applications as well as industrial polymers.
The improved beam quality coupled with 10x more focused beam diameter (compared to CO2) makes this fiber marking machine ideal for applications that demand extreme precision.
This machine includes EZCAD software functions like a printer, enabling you to operate the laser marking machine from your own graphics software and send jobs directly to the software making high speed laser marking as easy as printing.

2. Advantage:
2.1. Permanent: The mark will not fade due to environmental factors (touch, acid and reduced gas, high temperature, low temperature, etc.).
2.2. Anti-counterfeiting: The engraved mark is not easy to be imitated and changed, and it has strong anti-counterfeiting to a certain extent.
2.3. Non-contact: Laser marking is processed by a non-mechanical "light knife", which can print marks on any regular or irregular surface, and the work piece will not produce internal stress after marking, ensuring the original accuracy of the work piece. No corrosion to the working surface, no "tool" wear, no poison, no pollution.
2.4. Wide applicability: It can process variety of metal and some of non-metal materials (aluminum, copper, iron, hard plastic and black cover material, etc.).
2.5. High engraving accuracy: the engraved objects have fine patterns, and the minimum line width can reach 0.04mm. The marking work is clear, durable and beautiful. Laser marking can meet the needs of printing large amounts of data on small plastic parts extremely. For example, it can print two-dimensional bar codes that require more precision and higher definition. Compared with imprinting or jet marking, it has stronger market competitiveness.
2.6. Low operating cost
2.7. High processing efficiency: The laser beam can move at high speed (speed up to 5-7 m/s), and the marking process can be completed in a few seconds.
2.8  Fiber Laser does not require any special maintenance or consumables, easy to use, compact and sturdy, with low power consumption, it is perfect laser marker for your shop or factory.

Benefits of the Fiber Laser Marking MachineLower cost per mark
The laser marking machine is ideal for marking large quantities of small-to medium sized parts such as pen, electronic components, integrated circuits, electrical appliances, communication products, sanitary ware, tools, accessories, knives, glasses, clocks, jewelry, auto parts, luggage buckles, kitchen utensils, stainless steel products and other industry products, etc.
It is artistic, clear and permanent identification mark.
High speed processing, ease of use and minimal maintenance help you lower cost per mark.




 Easy to be operated

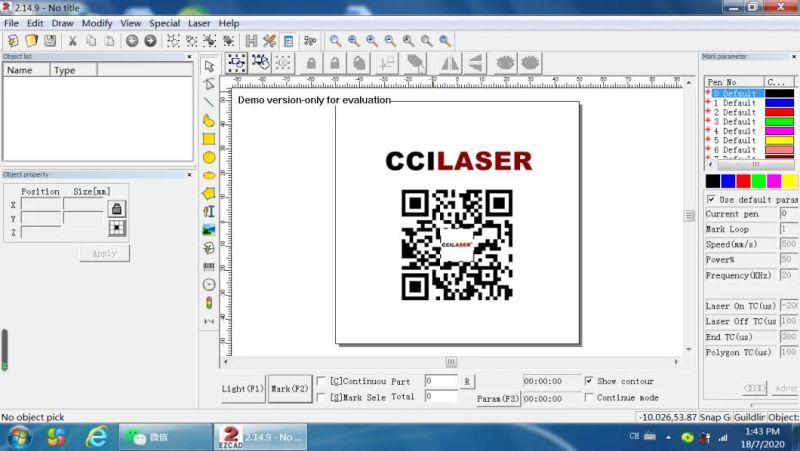

The original laser marking machine software EZCAD acts like a printer software. Users can design their graphics freely.
Common types of images and vector images are supported. (BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT.)
It support the computer environment 32 bits and 64 bits.

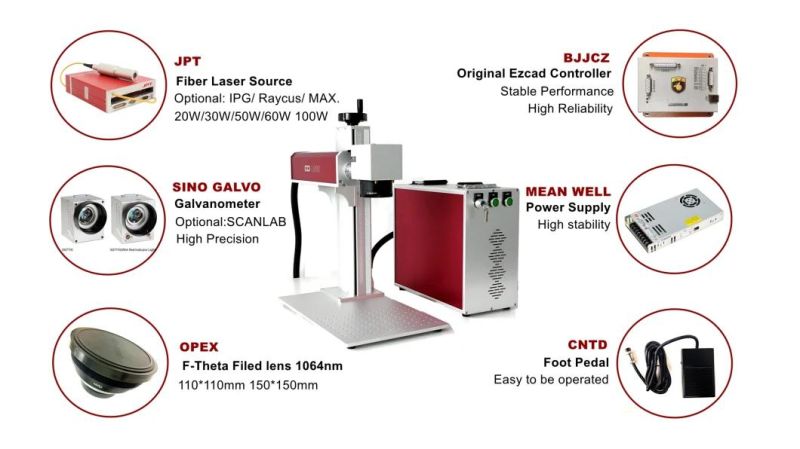

3. Main Structure

4. Case:

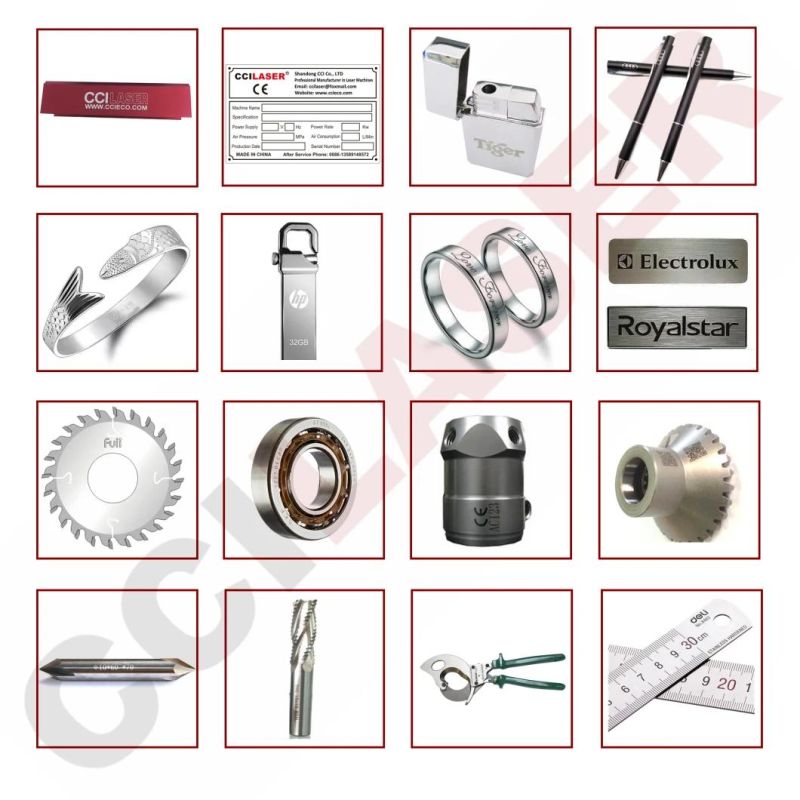

Fiber laser marking machine is used to mark on both metal and nonmetallic materials. The specific applicable materials are as follows:

A. Metal materials: Stainless steel, carbon steel copper, aluminum alloy,etc.

Case: hardware tools, medical equipment, plumbing equipment, hard alloy, measuring tools, machine parts, instruments, kitchen appliances, gear bearings, valve, vehicle accessories, pens, thermos cups, auto and motorcycle accessories, etc.

B. Nonmetallic materials: synthetic materials, rubber, leather, hard plastic, the material with black film,etc.

Case: Concrete, Capacitors, inductors, printed circuit boards, integrated circuits, computer keyboards, electrical plug-in cards, electrical appliances, upvc profile, etc.

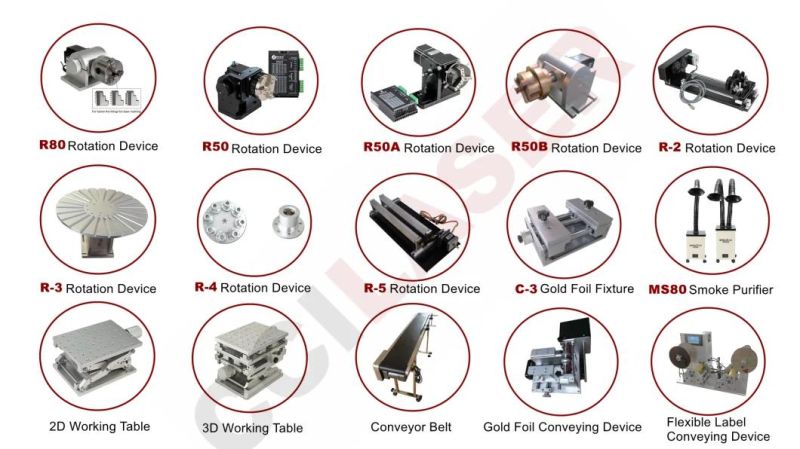

5. Techncial ParametersNo.Technical ItemTechnical Parameters No.Technical ItemTechnical Parameters1Power Rate20/30/50/60/100W 7Marking Line Speed< 7000mm/s2Wavelength1060-1064nm 8Laser Lifetime>100000hours3Beam QualityM2 less than 1.5 9Cooling MethodAir Cooling4Min. Character0.05mm 10Machine PowerLess than 600W5Min. Line Width0.01mm 11Power Supply220V 50Hz/ 110V 60Hz6Repeatability±0.001mm 12Package Weight69Kgs6. Optional Components


7. Company Introduction

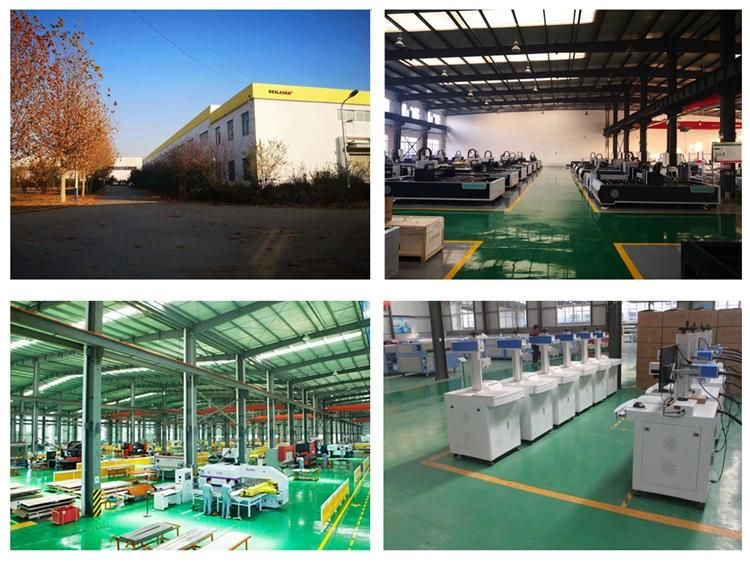

CCILASER is headquartered in Jinan City, China. It is a world-renowned laser equipment company and a high tech enterprises integrating R&D, production and sales.

We are adhering to the tenet of "Quality first, customer first" and continues to grow. Main products include fiber laser cutting machine, plasma cutting machine, laser marking machine, laser engraving machine, laser welding machine and laser cleaning machine and etc.

Our company has passed ISO and CE international quality management system certificates, and has obtained FDA certification for the US market. We have our independent export rights.Machines are exported to more than 50 countries and regions.

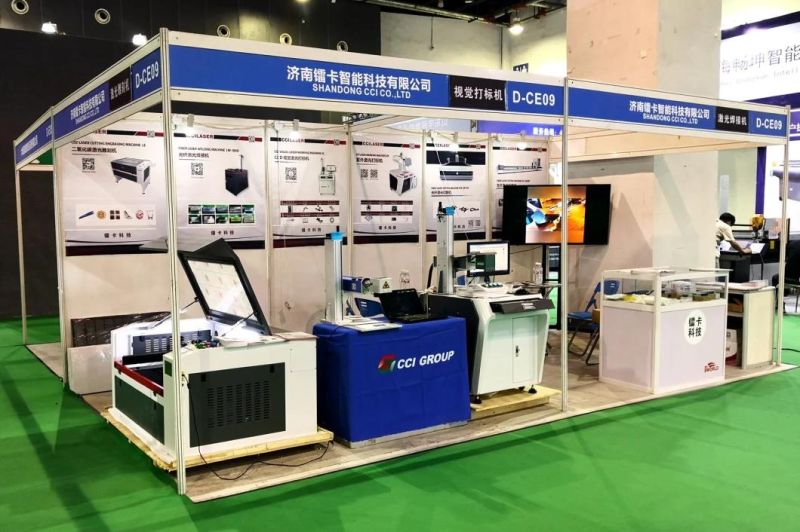

Wish cooperating with you to create a better future!8. Exhibition Show9. FAQ

A. Question: What kind of our company is CCILASER?

Re: CCI is laser marking machines, laser welding machines, laser marking machines manufacturing expert since year 2002.

B. Question: How is  fiber laser marking machine guarantee?

Re: b1. fiber laser marking machine warrenty period is 24 months after BL time;

b2.12 hours technical support feedback;

b3. Own machining factory, which can control the spare parts quality at high quality;

b4.  Own accessories warehouse and user can enjoy the agent price.

C.Question: How is delivery time?

Re: We can delivery the machines within 7 days if we have the machines in stock.

The common machine fabricating time is 15-25 days and CNC machine fabricating time is about 25-50 days.If you have customized products, the delivery time will be given after confirmation.

D. Question: How is payment?

Re: 50% of amount as deposit and the balance should be paid by T/T or LC at sight before seller delivery the machines to loading port.

E.Question: How is our package?

Re: Wooden Pallet/ Wooden Case. In order to ensure high quality products precision, the perfect package is necessary.

F. Question: Why is price higher than other supplier?

Re: f1. We have our own machining factory and the high quality technical quality is our aim;

f2. All the electric parts and pneumatic parts are high quality. Most of them are imported from european and american market;

f3. Most of fabricating worker has more than 10 years working time. Their fabricating work is professional and salary is higher;

f4. Our warrenty period is 24 months after BL time. It can support the new comer client going well in the beginning time.

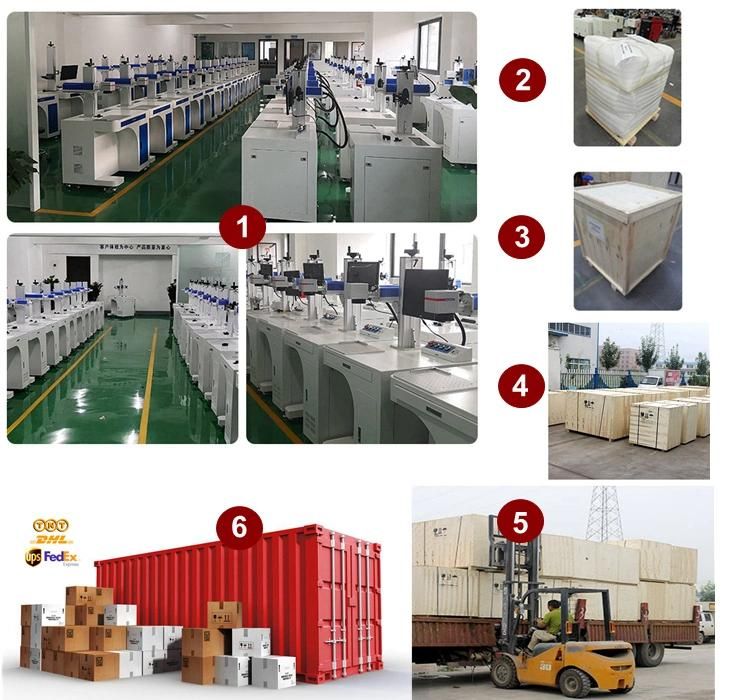

10. Delivery Procedure
11. Client  Care  To be continued..
