• Laser Classification：Semiconductor Laser
• Engraving Method：Vector Engraving
• CNC Yes or Not：Yes
• Power Adjustment Range：10-100%
• Repetition Frequency：20-80kHz
• Output Beam Quality：M2:1.2~1.8
• Marking Linear Depth：0.01-0.2mm
• Min. Spot Diameter：0.01mm
• Min. Character Size：0.1mm
• Repetition Accuracy：±0.002mm
• Max. Liner Marking Speed：7000mm,S
• Standard Marking Area：100*100mm, 150*150mm or 180*180mm
• Power Consumed：500W
• Electrical Demand：AC220V±10%.50Hz.10AMP
• Computer (Desktop)：Memory: Kingston 4GB; Hard Disk: 1000GB
• Cooling Mode：Air-Cooling
• Operational Temp Range：10-40ºC
• Transport Package：Wood
• Specification：68*65*145cm
• Trademark：DP
• Origin：China
• HS Code：8443393200
• Production Capacity：3000 Sets,Year

Basic Info.

Laser Classification Semiconductor Laser Engraving Method Vector Engraving CNC Yes or Not Yes Power Adjustment Range 10-100% Repetition Frequency 20-80kHz Output Beam Quality M2:1.2~1.8 Marking Linear Depth 0.01-0.2mm Min. Spot Diameter 0.01mm Min. Character Size 0.1mm Repetition Accuracy ±0.002mm Max. Liner Marking Speed 7000mm/S Standard Marking Area 100*100mm, 150*150mm or 180*180mm Power Consumed 500W Electrical Demand AC220V±10%.50Hz.10AMP Computer (Desktop) Memory: Kingston 4GB; Hard Disk: 1000GB Cooling Mode Air-Cooling Operational Temp Range 10-40ºC Transport Package Wood Specification 68*65*145cm Trademark DP Origin China HS Code 8443393200 Production Capacity 3000 Sets/Year

Product Description

What are the advantages of UV laser marking machine
UV laser marking machine belongs to a laser marking machine series products, laser processing technology is a newly invented, because the traditional laser marking machine is used in laser heat processing technology, in the fine degree promotion space has restricted the development of the UV laser the marking machine is a kind of cold working, so the fine degree of thermal effects on down to the minimum, is a big leap in laser technology.

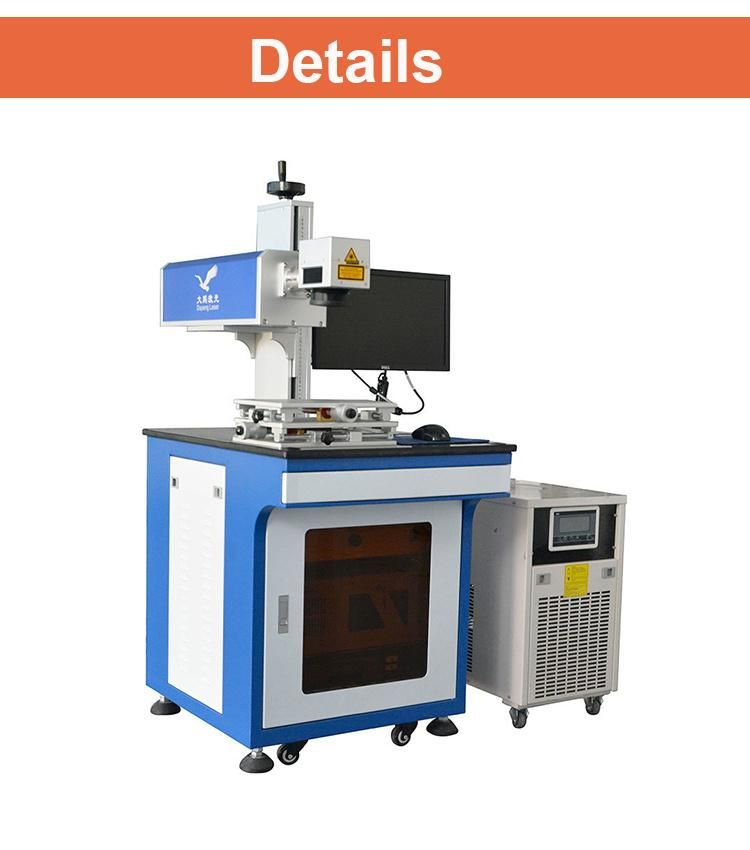

UV Type engraver CNC Laser machine  for charger cover encloser


UV laser marking machine, using the 355nm UV laser research and development and, using three order intracavity frequency doubling technology, into the international advanced technology, high energy ultraviolet photons direct damage many nonmetallic materials surface molecules, molecules from the object, in this way will not produce high quantity of heat, ultraviolet laser gathering spot minima and processing of almost no heat effect, therefore is called cold processing, so it can be used to special material ultra fine marking and engraving.


Properties:

Laser type	ultraviolet green
Laser wavelength	355nm
Laser power	3w/5w/7w/10w
Standard engraving range	100mm*100mm
Optional marking range	50mm*50mm,150mm*150mm, 180mm*180mm
Engraving speed	less than or equal to 10000mm/s
Outline dimension (W*D*H)	68*65*145cm
Weight:	120kg
Power demand	Ac220V + 10%.50Hz-60Hz.5Amp
Cooling mode	Water Cooling
Operating temperature:	10-35 DEG C
humidity:	5%-75% (non-condensing)



Product description:
Working principle and characteristics:
Dapeng laser and UV play labeling machine series products into the international advanced technology, high energy ultraviolet photons direct damage many nonmetallic materials surface molecules, molecules from the object, in this way will not produce high quantity of heat, ultraviolet laser gathering spot minima and processing almost no heat affected, therefore is called cold processing, so it can be used to special material ultra fine marking and engraving.


Industry application:
UV laser light spot is very small, and there is almost no heat affected, so it is called cold processing, which is suitable for special materials, super fine marking and engraving. Mainly used for ultra precision machining of the high-end market, cosmetics, medicines, food and other polymer materials of the surface of the packing bottle marking; flexible PCB board marking, dicing; silicon wafer micro hole, blind hole processing; LCD glass two-dimensional code marking, glassware play standard, metal surface coating removal, plastic buttons, electronic components, communication equipment.

Flexible and convenient operating system:
User friendly operation, equipment operation stability is good; the special control software can be compatible with AutoCAD, CorelDRAW, Photoshop and other softwares output; can realize text symbols, graphics, bar code, two-dimensional code, serial number and so on automatic editing and modification; support PLT, PCX, DXF, BMP, JPG and other file formats can be used directly TTF font; CCD automatic identification tracking and positioning;

Working environment requirements:
1. environmental temperature requirements at 10-35 DEG C, air conditioning requirements;
2. temperature requirements for < 60%. No condensation, should install dehumidifier;
3. power supply requirements: 220V; 50HZ/60HZ;
4. power supply fluctuation: + 15%, grid wires meet international requirements. Area voltage amplitude of 15% or more, should install the electronic type automatic voltage regulator, stabilizer;
5. shall be installed near the equipment without strong electromagnetic interference. Around the installation to avoid a radio transmitter station (or trunk);
6. Foundation: less than 50Um; the amplitude of vibration acceleration: less than 0.05g. Avoid a large number of press and other equipment in the vicinity of the press;
In the equipment space requirements to ensure smokeless clean, avoid metal polishing and grinding dust serious working environment;
7. air pressure: 86-106kpa
In some environment should be installed anti-static floor, strengthen shielding;
Exergy cooling circulating water quality has strict requirements, require the use of pure water, deionized water or distilled water, can not use of water, mineral water, etc. liquid with high metal ion or other minerals.

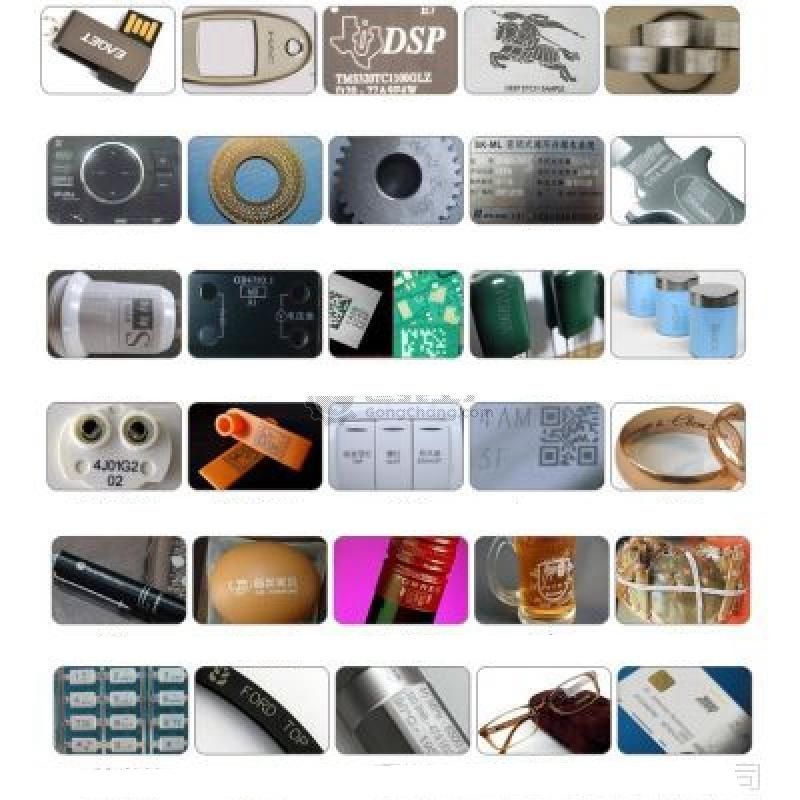

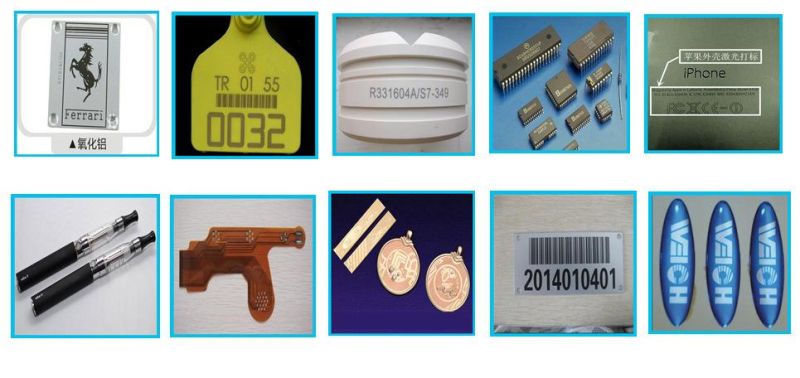

Marking samples but not limited.

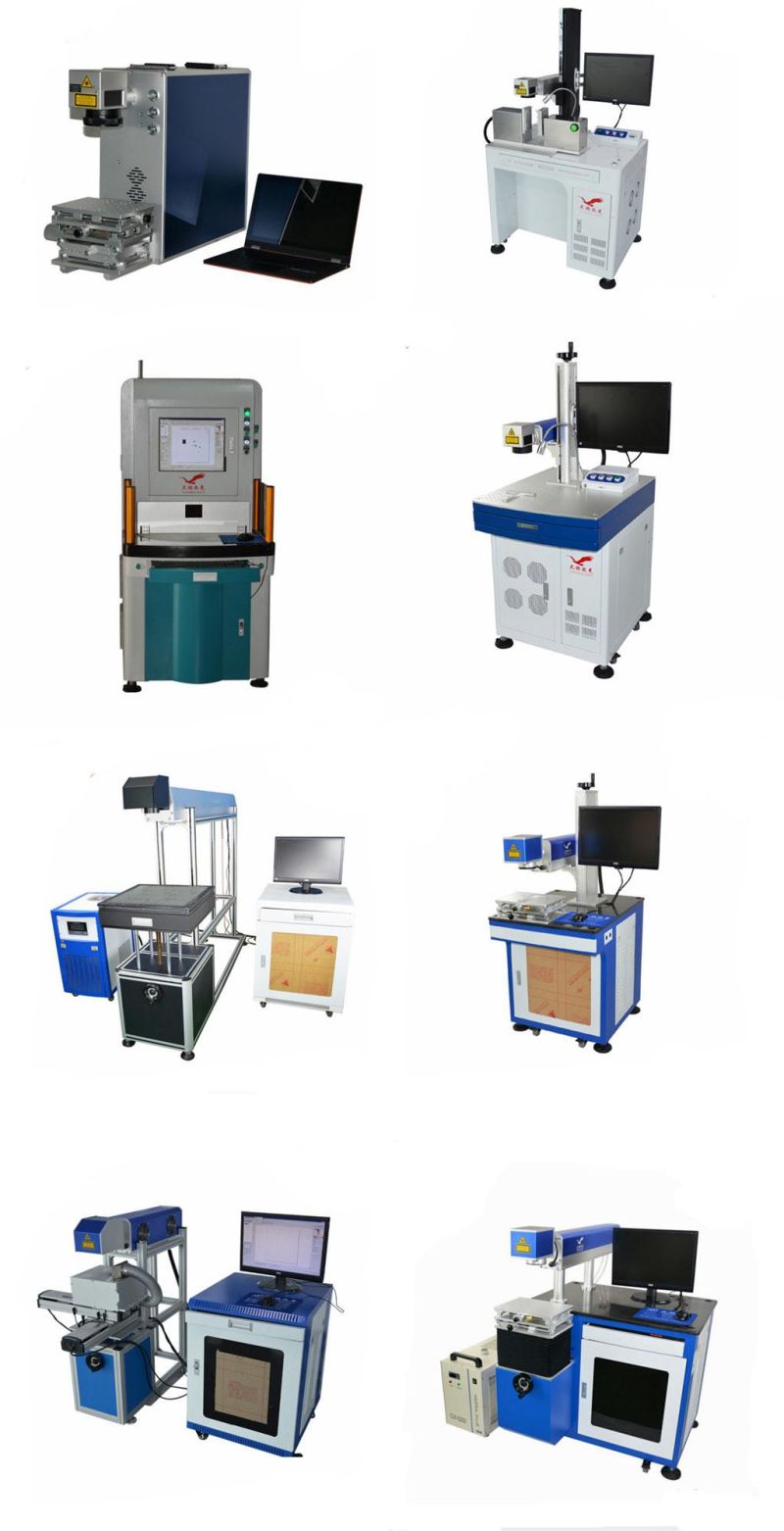

More products
