Laser Equipment

Safety Enclosed 2.5D Jpt Mopa M7 60W Fiber Laser Marking Machine for 3D Relief Engraver Metal with Ezcad3.0 and Electric Z

Shandong CCI Co., Ltd.
  • Warranty:24 Months
  • Laser Visibility:Visible

Base Info

  • Model NO.:FM-30
  • Applicable Material:Metal
  • Cooling System:Air Cooling
  • Technical Class:Pulse Laser
  • Laser Wavelength:Fiber Laser
  • Laser Classification:Semiconductor Laser
  • Type:Optical Fiber Laser Marking Machine
  • Marking Method:Scanning Marking
  • Transport Package:Wooden Case
  • Specification:50Kgs
  • Trademark:CCILASER
  • Origin:China
  • HS Code:8456110090
  • Production Capacity:300 Sets Per Month
  • Package size per unit product:50.00cm * 51.00cm * 55.00cm
  • Gross weight per unit product:69.000kg
  • Lead Time:15 days (1 - 10 Sets) To be negotiated ( > 10 Sets)

Description

 No.Technical ItemTechnical Parameters1Power Rate20/30/50/60/100W7Marking Line Speed< 7000mm/s2Wavelength1060-1064nm8Laser Lifetime>100000hours3Beam QualityM2 less than 1.59Cooling MethodAir Cooling4Min. Character0.05mm10Machine PowerLess than 600W5Min. Line Width0.01mm11Power Supply220V 50Hz/ 110V 60Hz6Repeatability±0.001mm12Package Weight69Kgs6. Main Components

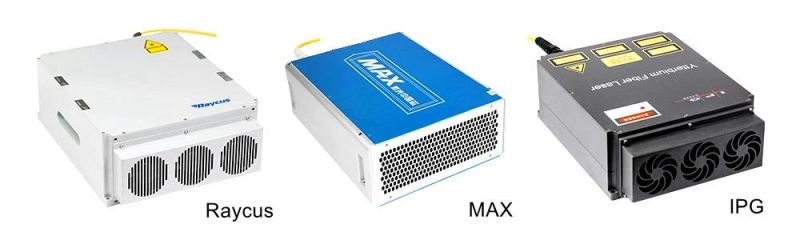

6.1 Laser Source: Raycus/ MAX/ IPG
Safety Enclosed 2.5D Jpt Mopa M7 60W Fiber Laser Marking Machine for 3D Relief Engraver Metal with Ezcad3.0 and Electric Z

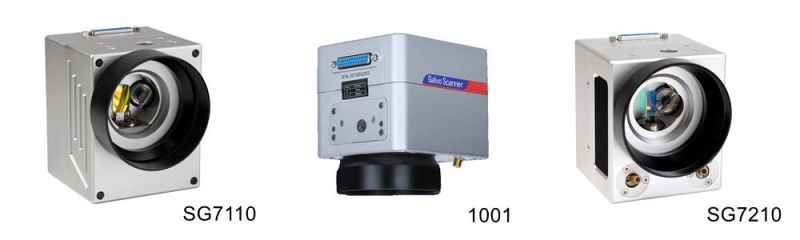

6.2 Galvanometer
Scanner: SINO-GALVO
Safety Enclosed 2.5D Jpt Mopa M7 60W Fiber Laser Marking Machine for 3D Relief Engraver Metal with Ezcad3.0 and Electric Z

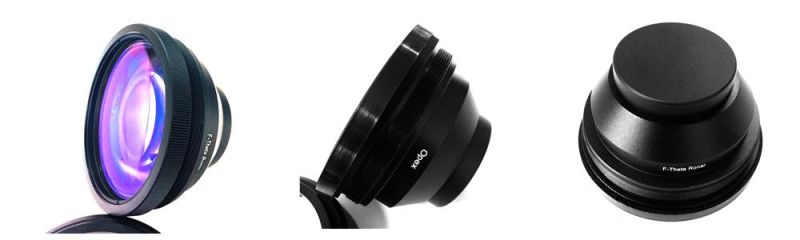

6.3 Field Lens:
WAVELENTH
Safety Enclosed 2.5D Jpt Mopa M7 60W Fiber Laser Marking Machine for 3D Relief Engraver Metal with Ezcad3.0 and Electric Z

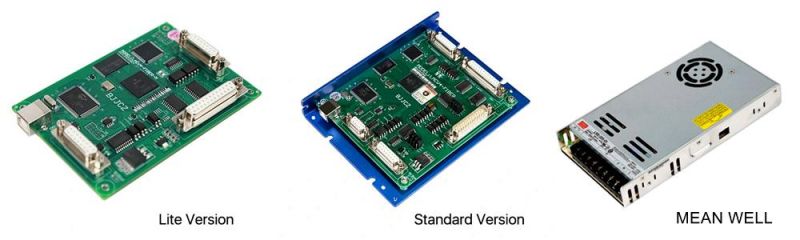

6.4 Marking Card/ Power Supply:
BJJCZ/ MEAN WELL
Safety Enclosed 2.5D Jpt Mopa M7 60W Fiber Laser Marking Machine for 3D Relief Engraver Metal with Ezcad3.0 and Electric Z
6.5 Rotary Device (If need)

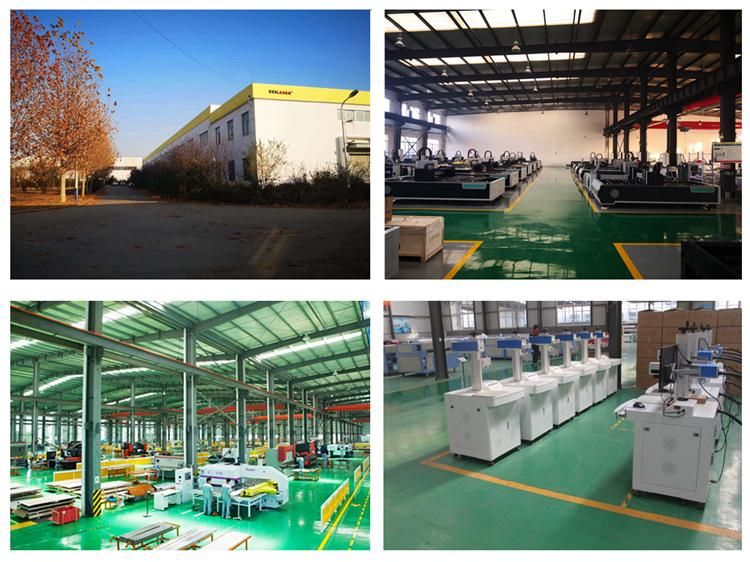

7. Company Introduction
CCILASER is headquartered in Jinan City, China. It is a world-renowned laser equipment company and a high tech enterprises integrating R&D, production and sales.

We are adhering to the tenet of "Quality first, customer first" and continues to grow. Main products include fiber laser cutting machine, plasma cutting machine, laser marking machine, laser engraving machine, laser welding machine and laser cleaning machine and etc.

Our company has passed ISO and CE international quality management system certificates, and has obtained FDA certification for the US market. We have our independent export rights.Machines are exported to more than 50 countries and regions.


Wish cooperating with you to create a better future!
Safety Enclosed 2.5D Jpt Mopa M7 60W Fiber Laser Marking Machine for 3D Relief Engraver Metal with Ezcad3.0 and Electric Z
