• Model NO.：LS-UV3,5,8,10
• Type：YAG Laser Marking Machine
• Marking Method：Scanning Marking
• Model：Ls-UV3,5,8,10
• Laser Power：3W;5W;8W;10W
• Power Consumption：<500W
• Wavelength：355nm
• Engraving Range：Max 400*400mm(Customized)
• Engraving Depth：1.2mm
• Minimum Line Width：0.012mm
• Minimum Character：0.1mm
• Repeated Accuracy：+-0.003mm
• Life of Laser Module：100000hrs
• Transport Package：Wooden Case
• Specification：800*650*1430mm
• Trademark：Lospeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. LS-UV3/5/8/10 Type YAG Laser Marking Machine Marking Method Scanning Marking Model Ls-UV3/5/8/10 Laser Power 3W;5W;8W;10W Power Consumption <500W Wavelength 355nm Engraving Range Max 400*400mm(Customized) Engraving Depth 1.2mm Minimum Line Width 0.012mm Minimum Character 0.1mm Repeated Accuracy +-0.003mm Life of Laser Module 100000hrs Transport Package Wooden Case Specification 800*650*1430mm Trademark Lospeed or Customized Origin China HS Code 8456100090 Production Capacity 100 Sets / Month

Product Description

3W 5W 10W CE high speed plastic flying UV laser printing marking machine for bottle cap

UV Laser Marking Machine can mark for metal and nonmetal materials

75*75mm, 110*110mm,175*175mm ,200*200mm, 300*300mm Marking Area Optional

3W,5W,8W,10W laser power

Portable type, Standard type, Desktop type model Optional

Distributors/Agents wanted !



>>>What is a UV Laser Marking Machine<<<<
Lospeed UV lasers are cold light sources.Ultraviolet laser wavelength is short, focusing, smaller spot, are cold processing, heat effect is small, good beam quality, can achieve ultra-fine mark.

Most materials can absorb ultraviolet laser, so the application of a wide range of heat affected area is minimal, does not produce thermal effects, will not produce scorching problem, no pollution, non-toxic, marking
speed, high efficiency, low power consumption

>>>Application of laser marking machine<<<

It is mainly applied to the higher marking precision such as mobile phones buttons, plastic,translucent keys, electronic components, integrated circuits (IC), electrical appliances,
communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products, etc.

• Electrical Engineering and Electrical part and component
• Mobile (Cover,battery,keyboard, I Phone Case)
• Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft
• Building materials,PVC pipe
• Car motor car spare part ,Insturment and meters and cutting tool
• plastic case,aviation and aerospace,
• military product,hardware fitting and accessory,sanitary appliance
• food and beverage ,Medicine package and medical instrument,solar Pv industry

>>>Features of UV laser marking machine<<<

· Compact design, easy to move equipment, air-cooling, compact machine, good output beam quality,

   high reliability, no consumables, maintenance-free.

· Long life Working time over100,000 hours long life span. Import Germany IPG fiber laser,

   the international latest, most reliable structure, small size, power consumption is small,

   no high-voltage without large water-cooled system.

· Close to the ideal beam, USB interface, output control, optical scanning system,

   laser repetition rate high,high-speed without distortion.

>>>Technical Parameters<<<

Model	UV-3/UV-5/UV-8
Power	3W,5W,8W
Wavelength	355nm
Beam Quality	M2<1.3
Output Power	10%-100%
Output Frequency	15KHz-100KHz
Power Stability(8h)	<±2%rm
Pulse to pulse instabilit	<±3%rms
Spatial Mode	TEMoo(M2<1.3)
Beam Divergence	<2 mrad (full angle)
Beam Diameter	0.6±0.1mm
Beam Roundness	>90%
Pointing stability	<50urad
Polarization Direction	Horizontal
Polarization Ratio	100:1
Cooling	Air-cooling/Water-cooling(8W)

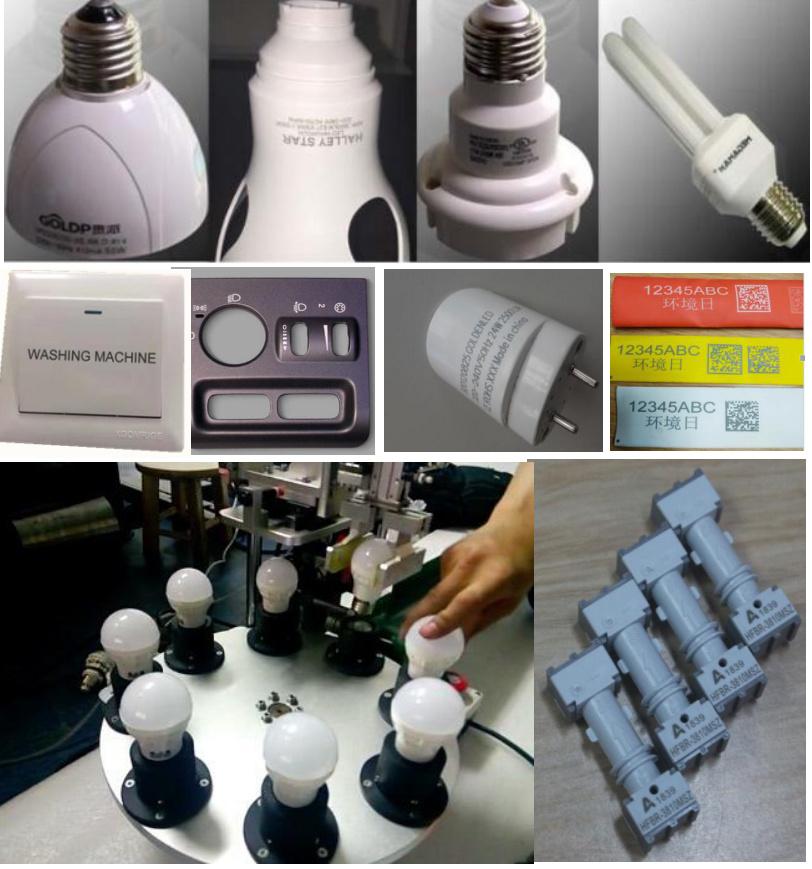

>>>Sample Show<<<

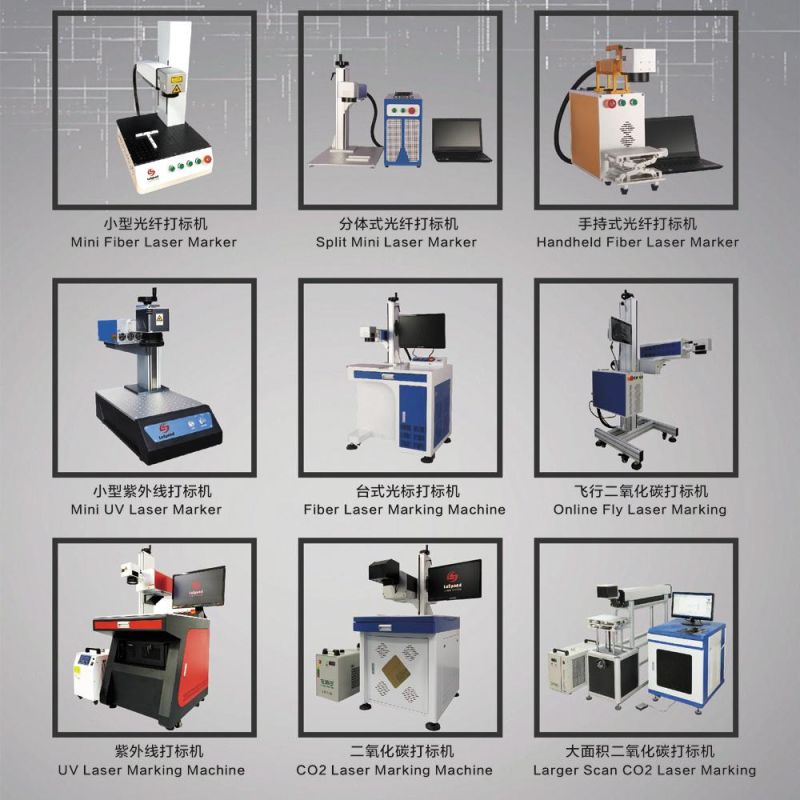

>>>LOSPEED Laser machine models<<<


>>>About LOSPEED laser company<<<


>>>Customer Feedback<<<




Please advise us following inforamtion to recommend you most suitable machine:

1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 200*200mm, 300*300mm, or customized as your demand.

Looking forward to your inquiry!!!
