Fiber Laser Cleaning Machine Laser Cleaning System Laser Equipment
Wuhan Label Laser Science & Technology Co., Ltd.- After-sales Service：Yes
- Warranty：Yes
- Application：Aerospace, Agricultural Machinery, Heavy-Duty Machinery, Petroleum Metallurgy, Automotive Industry
- Automatic Grade：Automatic
- Style：Portable
- Technical Class：Pulse Laser
Base Info
- Model NO.：LBQX-600
- Q-Switch：with Q-Switch
- Laser Classification：Fiber Laser: 1064nm
- Type：Laser Hardening
- Model No.：L-600
- Wave Length：1064nm
- Cooling Type：Water Cooling
- Voltage：220V-50,60Hz
- Transport Package：Plywood Case
- Specification：100W, 200W, 500W, 1000W
- Trademark：Label Laser
- Origin：China
- HS Code：8456100090
- Production Capacity：100PCS Per Month
Description
Working Condition
| Item | Parameter |
| Voltage | 220V ( ±10%) 50/60HZ( ±5%) |
| Total Power | <=2000W |
| Settlement Environment | Flat place without vibration and impact |
| Working Temperature | 0ºC~40ºC |
| Working Environment Humidity | <=80% |
Mechanical Parameter
| Item | Parameter |
| Size | 670mm×1100mm×1150mm |
| Weight | 150KG |
| Fiber Length | 5m(or 10m for custmized) |
| Weight of cleann head | 2KG |
| Movable Mode | Hands Pushing |
| Scan width | 10-80mm |
Optical Parameter
| Item | Parameter |
| Average output power | ≥200 W |
| Non-stable Degree of Output Power | <3% |
| Power Adjustment(%) | 10-100(gradualness) |
| Focus Facula Diameter | 0.1 |
| Central Wavelength | 1064 |
| Modulation Frequency | 10K-50K Hz(gradualness) |
| Cooling Type | Water Cooling |
| Working Temperature | 5ºC~40ºC |
Scanning Parameter
| Item | Parameter |
| Working Temperature | 0ºC~45ºC |
| Linearity | 99.9% |
| Small step response time | ≤0.3ms |
| Proportional Drift | <40PPM/ºC |
| Zero drift | <15μRad./ºC |
| Long time drift (8 hours of continuous working) | <0.5mRad |
| Average Working Current | 2.0A |
| Peak current | 15A(max) |
| Maximum Scanning Angle | ±15° |
| Storage Temperature | -10ºC-60ºC |
| Resolution | 12μRad. |
| Repeated Precision | 8μRad. |
| Input Aperture | 9.0mm |
| Beam Displacement | 12.4mm |
| Motor Weight | 45g |
| Frequency | ≤1200Hz |

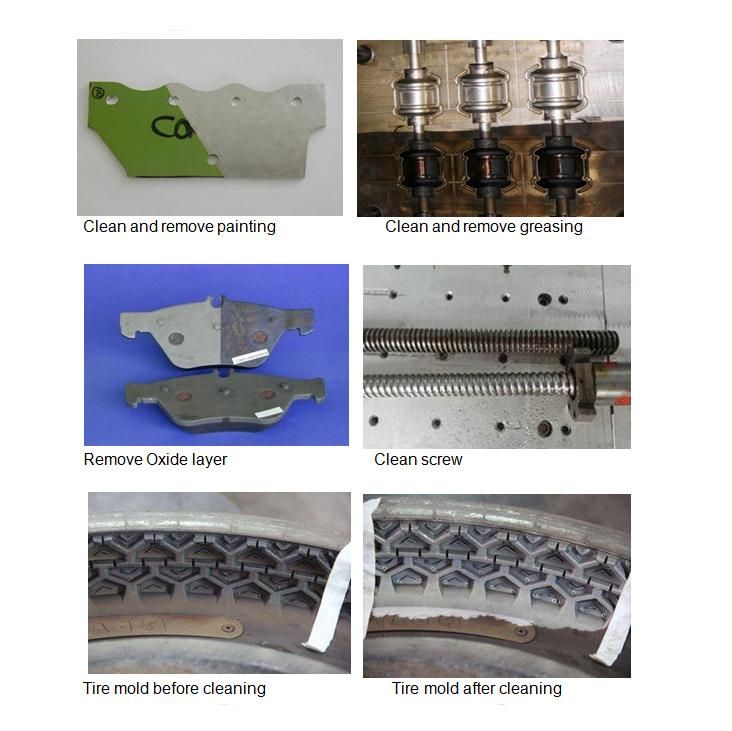

Processed Samples:
Packing detail
Company Profile
Wuhan Label Laser Science & Technology Co.,Ltd. has been specialized in researching and manufacturing industrial laser marking equipments, laser processing equipments and supplying marking solutions for customers since 2006.
Why choose us
A. More than 16 years laser marking, processing, manufacturing, research and design rich experience.
B. Professional technical group for customized industrial laser marking system.
C. More than 3000+marking solution cases accumulated in domestic and oversea markets.
D. 100% strict QC for both raw materials and finished products.
E. Utility Model Patent Certificates,involved 3M Flexible label paper marking,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.
F. ISO,CE,SGS certified and complete aftersales service team.
FAQ
Q1: What type of the machine suitable for us?
Please tell us what material will be processed. Sample with cleaning pictures and videos will be sent to you for checking. Or we can send the sample to you for quality and marking effect checking.
Q2: If we do not know how to use the machine,can you teach us?
Yes, we will. Our user manuals are together with goods shipment. We can also send operation video to you for study.
If you come to our factory in China, our technicians will offer you free training until you can use machine freely.
Our professional engineer can come to your country for trainning, installation, adjusting, ect.
Q3: How about the delivery time?
For standard machine, lead time is 10-15 days.
Regarding customized machine, we need to check with technicians.
