Large Scale Laser Cutting CNC Wood Carving Machine 15*3m
Shandong Ruby CNC Equipment Co., Ltd.- After-sales Service：Whole Life
- Warranty：2 Years
- Application：Textile Machinery, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal and Non-Metals
Base Info
- Model NO.：FX15030
- Structure Type：Gantry Type
- Laser Classification：Gaseous Laser
- Laser Technology：Laser Control Fault Cutting
- Working Area：15*3m
- Spindle：9kw Hsd and Real 4 Axis
- Laser Power：180W
- CNC Controller：Taiwan Syntec
- Laser Contoller：Rd6442
- Transport Package：Plywood
- Specification：15030
- Trademark：RUBY
- Origin：China
- HS Code：8456110090
- Production Capacity：100PC,Year
Description
Basic Info.
Model NO. FX15030 Structure Type Gantry Type Laser Classification Gaseous Laser Laser Technology Laser Control Fault Cutting Working Area 15*3m Spindle 9kw Hsd and Real 4 Axis Laser Power 180W CNC Controller Taiwan Syntec Laser Contoller Rd6442 Transport Package Plywood Specification 15030 Trademark RUBY Origin China HS Code 8456110090 Production Capacity 100PC/YearProduct Description

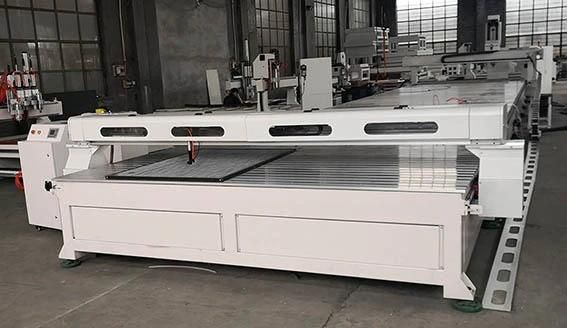

Large scale laser cutting cnc wood carving machine 15*3m
Features:
15*3m working area, can meet up demands of large working area. laser cutter and cnc engraver all-in-one, with one machine body, but double usage, double function, can save big space.
Specifications:
| Laser Part: |
| RECI W8 laser tube, 150-180w |
| RD6442 controller |
| Red dot pointer |
| 15*3m honeycomb working table |
| Air compressor |
| Oxygen assistance device for metal cutting |
| WIFI transmission support |
| Exhaust fan |
| CW-5000 chiller |
| RD work Software/Driver for Autocad, Coreldraw |
| Router Part: |
| Taiwan Syntec controlling system |
| 4 axis/4.5kw spindle/Z axis 50cm height |
| Yaskawa Servo motors |
| Delta Inverter |
| vacuum and T-slot |
| Automatic oil lubrication system |
| Rack and pinion for X/Y axis |
| Germany imported ballscrew for Z axis |
| Taiwan Hiwin rail linear bearing |
| Dust Collector(double bags) |
