• Model NO.：DW-L1325F
• Laser Power：300W,500W,1000W,2000W,
• Certification：Ce, ISO, FDA
• Machine Warranty：3 Years
• Working Area：1300*2500mm or Customized
• Transport Package：Plywood Box, Free From Fumigation
• Specification：Machine can be customized
• Trademark：Dwin
• Origin：Jinan City, China
• HS Code：8459100009
• Production Capacity：500 Sets Every Year

Basic Info.

Model NO. DW-L1325F Laser Power 300W/500W/1000W/2000W/ Certification Ce, ISO, FDA Machine Warranty 3 Years Working Area 1300*2500mm or Customized Transport Package Plywood Box, Free From Fumigation Specification Machine can be customized Trademark Dwin Origin Jinan City, China HS Code 8459100009 Production Capacity 500 Sets Every Year

Product Description

1200W Fiber Metal Tube Laser Cutting Machine 10mm Steel Pipe Laser Cutter

Advantages of the Fiber laser cutter:
1.High Efficiency--The rapid cutting speed is two times higher than ordinary laser cutting machine.
2.Environment friendly--Laser cutting will not creates any gases for the special cutting technology for steel sheet.
3.Lower Consumption--The power consumption of our fiber laser cutter was reduced by 20%-30% compared wtih ordinary laser cutting machine.
4.Maintenance-free--For the fiber laser cutter, the reflect lens are no needed. It will help to save a lot of time when optical path is adjusted. The laser generator with longer lifetime which no need maintaince during usage
Working principle of the Fiber laser cutting machine:
Metal fiber laser cutting machine is adopted metal laser which is using xenon lamp as excitation source and focused the laser on the workpiece surface, the workpieces are there areas of partial melting and moment , move the light irradiation by CNC machine computer control system and automatic punch.
Fiber Laser cutting Machine Application:

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries. Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
Machine Technical parameters

No.	Description	Parameter
1	Model	Fiber laser metal cutting machine
2	Work table	saw tooth work table
3	Working area (mm)	1300x2500 mm
4	Laser power (walts)	Cyrus 500w ( 1000w/ 2000w optional)
5	Laser type	AC220 50HZ
6	Position speed	2000mm/min
7	Locating precision	<0.01mm
8	Resolution ratio	≤ 4500dpi
9	Control configuration	Cypcut control system
10	Data transfer interface	USB(offline)
11	Cooling way	Water cooling CW 6100
12	Compatible Software	CorelDraw, Photoshop, AutoCAD
13	Machine packing	Veneer case
14	Machine warranty	2 years and free maintance for whole life

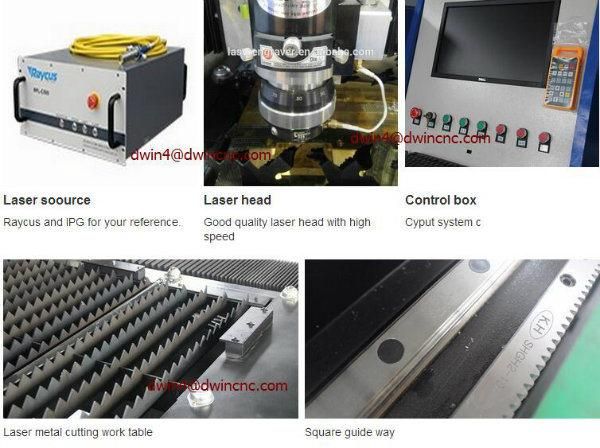

Machine Parts

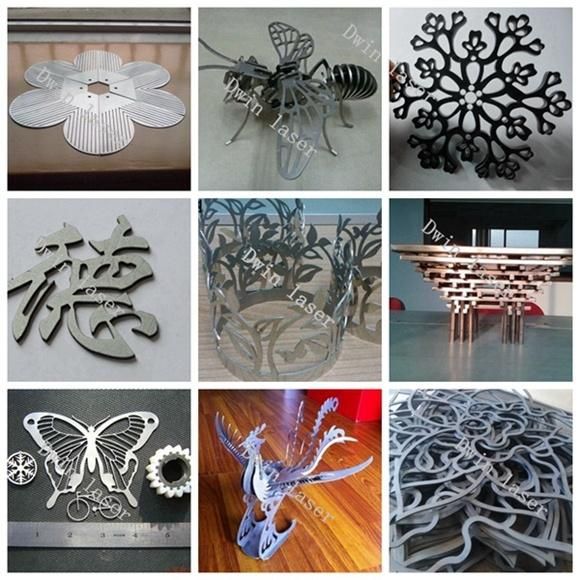

Machine Samples

CE certificate

Dwin Clients
