• Model NO.：LP-FC4060
• Applicable Material：Nonmetal
• Type：Oscillating Mirror
• Laser Classification：Gaseous Laser
• Engraving Method：Vector Engraving
• Engraving Speed：0-70000mm,Min
• Cutting Speed：0-40000mm,Min
• Driving System：Stepper Motor or China Servo Motor
• Control System：High Speed DSP Control System Brand Ruida or Leetr
• Fiber Laser：30W
• CO2 Laser：100W
• Working Size：400*600mm
• Transport Package：International Standard Plywood Box
• Specification：working area: customized
• Trademark：Lansen
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：300sets,Month

Basic Info.

Model NO. LP-FC4060 Applicable Material Nonmetal Type Oscillating Mirror Laser Classification Gaseous Laser Engraving Method Vector Engraving Engraving Speed 0-70000mm/Min Cutting Speed 0-40000mm/Min Driving System Stepper Motor or China Servo Motor Control System High Speed DSP Control System Brand Ruida or Leetr Fiber Laser 30W CO2 Laser 100W Working Size 400*600mm Transport Package International Standard Plywood Box Specification working area: customized Trademark Lansen Origin Shandong HS Code 8456110090 Production Capacity 300sets/Month

Product Description

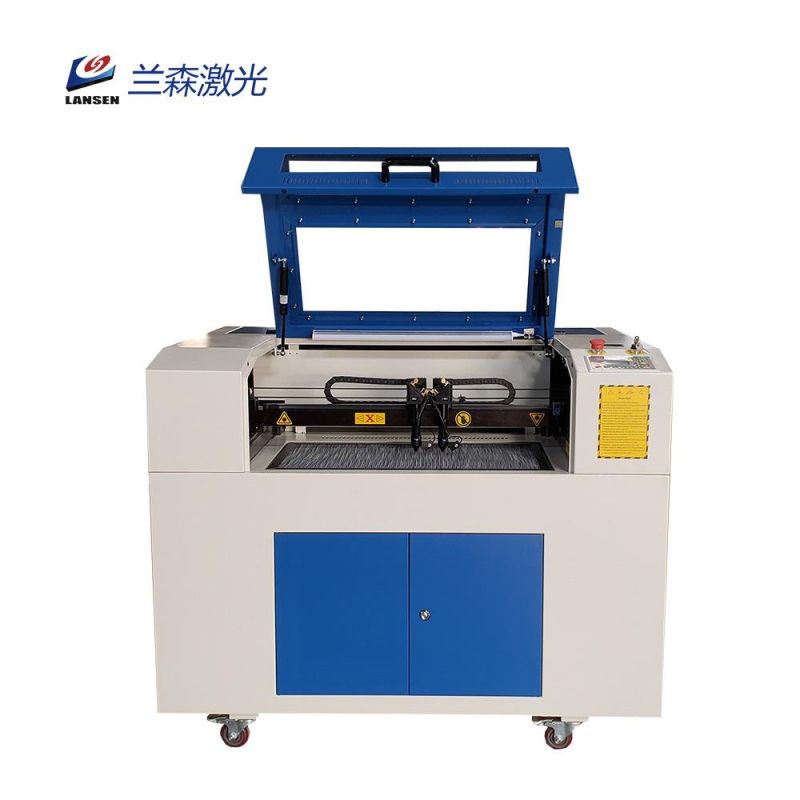

Metal and Nonmetal Laser Engraver acrylic engraving cutting SS marking Co2 Fiber machine
Features:
1.Laser engraving, cutting and marking all in one;

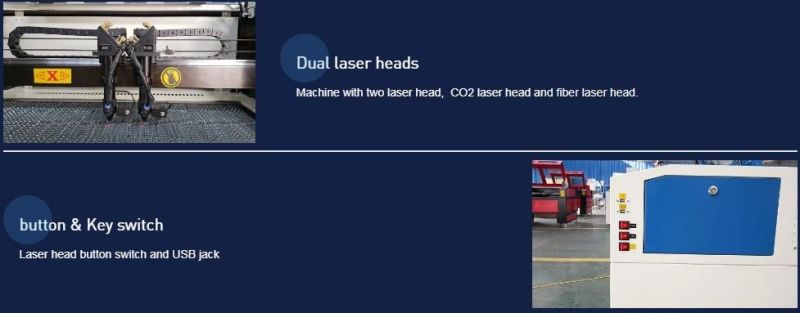

2.Double headed;
3.CO2 laser head for engrave and cut nonmetal;
4.Fiber laser head for engrave and marking on metal
Parameters:

Model	LN4060/ LN6090/LN1290 / LN1390 / LN1490 /LN1610
Working area	400*600/ 600*900/ 900*1200/ 900*1300/ 900*1400/ 1600*100mm
CO2 head laser power	40W/60W/80W/90W/100W/150W/180W, CO2 sealed laser tube, water-cooled / air cooling optional
Fiber head laser pwoer	30W/50W/100W
Worktable	Standard with Metal slat worktable
Engraving speed	0-70000mm/min
Cutting speed	0-40000mm/min
Highest scanning precision	4000DPI
Power supply	220v/50Hz , 110v/60Hz
Min. shaping character	English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Graphic.format.supported	BMP, PLT, DST, DXF, AI
Software supported	CorelDraw, PhotoShop, AutoCAD,TAJIMA
Control system	High speed DSP control system brand Ruida or Leetro
Machine work software	RDWorks V8 (Ruida)
Laser output control	1-100% by setting in the software
Interface	USB 2.0
Driving system	Stepper motor or China Servo motor
Color separation	Yes

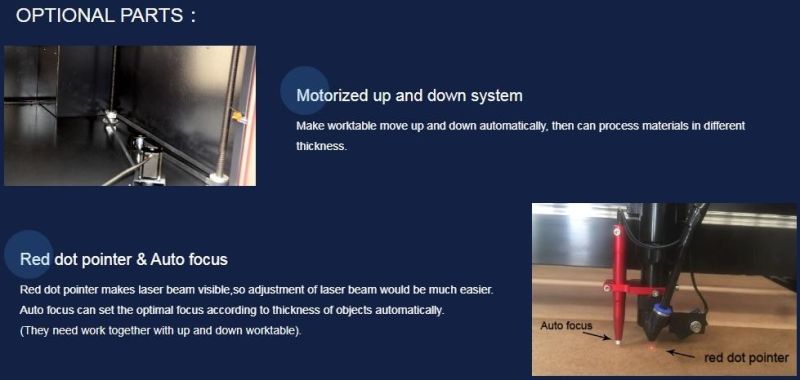

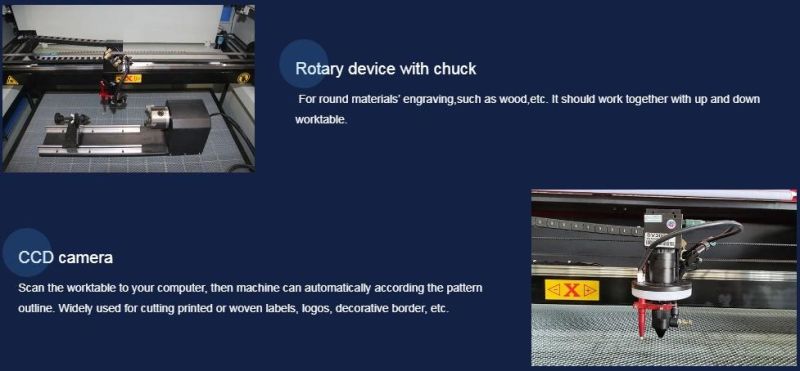

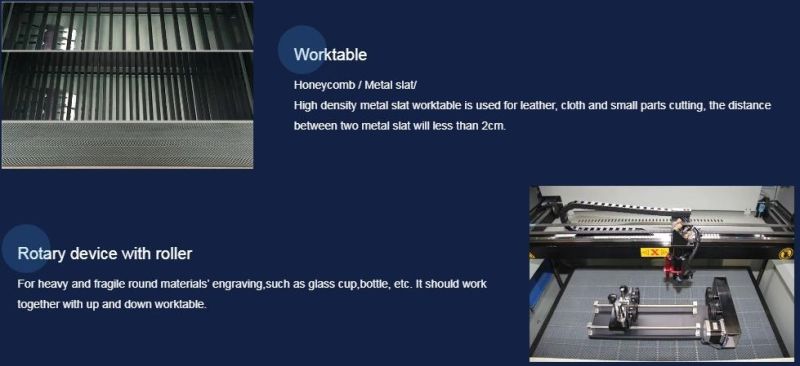

Optional part	Up and down worktable/ Honeycomb worktable/ Red dot pointer/ Auto focus/ Rotary attachment with rollor/Rotary attachment with clip/ Water chiller
Spare parts suggested	Extra laser tube/Extra 1 lens and 3 mirrors

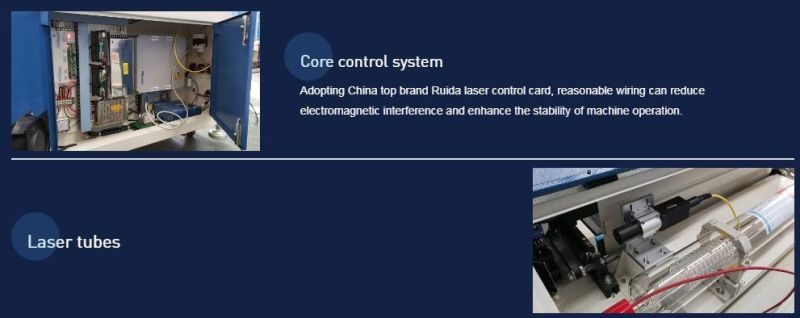

Machine details:

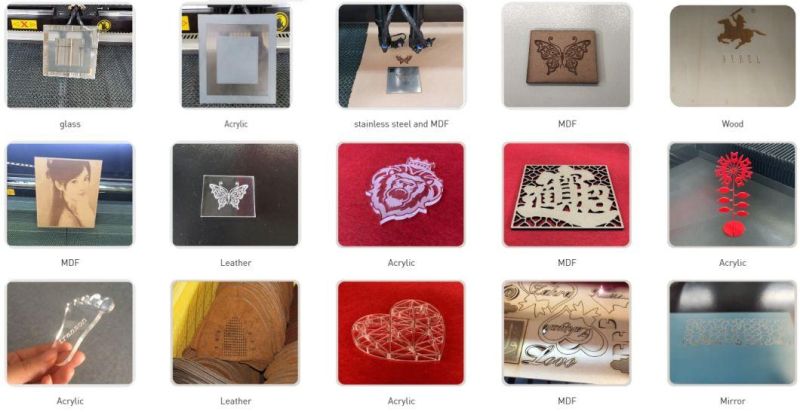

Applications:

1. CO2 laser head applicable materials:
Fabrics, Clothing, label, paper boards, leather, embroidery, acrylic, wooden plates and paper ware.

CO2 laser head applicable industries:
Garments, shoe making, label processing, art crafts, etc

2. Fiber laser head applicable materials:

Metal like stainless steel, carbon steel, copper, aluminum, etc.

Fiber laser head applicable industries:

Decoration, advertising industry, art crafts,etc.

Warranty:

1. 24 Months for Machine
2. 18 Months for laser tube, lens and mirror
3. 6 Months for equipment outside, such as water pump, fan, air pump, etc.
4.  Detailed manual and video to guide the user how to use the machine and maintenance, also supply the specs settings for the speed and power to engrave or cut on various material.
5.  Lifely and fast technical guide and solution within 24hours by email and web camera.
