• Warranty：12 Months
• Consumable Items：No
• Working Life：100, 000hours
• Protection Cover：Customized
• N.W.：160kg
• Power Supply：220V
• Interface：Power Adapter, USB, Computer Network Port, VGA, Et
• Transport Package：Wrapping Film & Export Standard Wooden Cases
• Specification：160*100*92cm H
• Trademark：Label
• Origin：China
• HS Code：8456110090
• Production Capacity：200 Units,Month

Basic Info.

Warranty 12 Months Consumable Items No Working Life 100, 000hours Protection Cover Customized N.W. 160kg Power Supply 220V Interface Power Adapter, USB, Computer Network Port, VGA, Et Transport Package Wrapping Film & Export Standard Wooden Cases Specification 160*100*92cm H Trademark Label Origin China HS Code 8456110090 Production Capacity 200 Units/Month

Product Description

Metal Alloy CNC Laser Welding Machine Automatic Laser Welding Machine Price
 Model LBYAG-400B handheld laser welding machine from Label Laser adopts the latest generation of fiber lasers and is equipped with self-developed wobble welding head to fill the blank of hand-held welding in laser equipment industry. It's widely used in welding thin metal plates such as stainless steel plates, iron plates and galvanized plates with its advantages of simple operation, good-looking welding line, fast welding speed and no consumables. It can perfectly replace traditional argon arc welding and electric welding.

 Product show:




Performance Featur

• The welding line is smooth and beautiful. The welded workpiece has no deformation, no welding scar, and the welding is firm, which reduces the subsequent polishing, grinding process, and saves time and cost.
•  Easy to operate after training
• Independently developed swing welding mode with wobble welding head, adjustable spot width, strong welding fault tolerance, make up for the small disadvantage of laser welding spot, expand the tolerance range of machining parts and weld width, and obtain better weld formation.
• Fast welding speed, 2-10 times faster than traditional welding. One machine can save at least 2 welders a year.
• Less consumables, long life, safer and more environmentally friendly.


 Parameters:

Specification Detail	Parameters
Device Name	Handheld fiber laser welding machine
Laser Power (w)	500, 800, 1000, 2000, 3000
Laser Wavelength	1070 NM
Fiber Length	Standard length: 10M   Longest length(support): 15M
Working Mode	Continuous / Modulation
Welding Speed Range	0~120 mm/s
Water Chiller	Industrial thermostatic water tank
Working Environment Temperature	15~35 ºC
Working Environment Humidity	< 70%   No condensation
Welding Thickness Recommendations	0.5-3mm
Welding gap requirements	≤0.5mm
Operating Voltage	AC 220V

   Depth of fusion of different material (with Wobble welding head):

	Stainless Steel	Carbon Steel	Galvanized Sheet
500W	0.5-0.8mm	0.5-0.8mm	0.5-0.8mm
800W	0.5-1.2mm	0.5-1.2mm	0.5-1.0mm
1000W	0.5-1.5mm	0.5-1.5mm	0.5-1.2mm
2000W	0.5-3mm	0.5-3mm	0.5-2.5mm

Application Fields:

The hand-held laser welding machine can be widely used in complex and irregular welding processes in cabinet kitchens, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel homes and other industries.

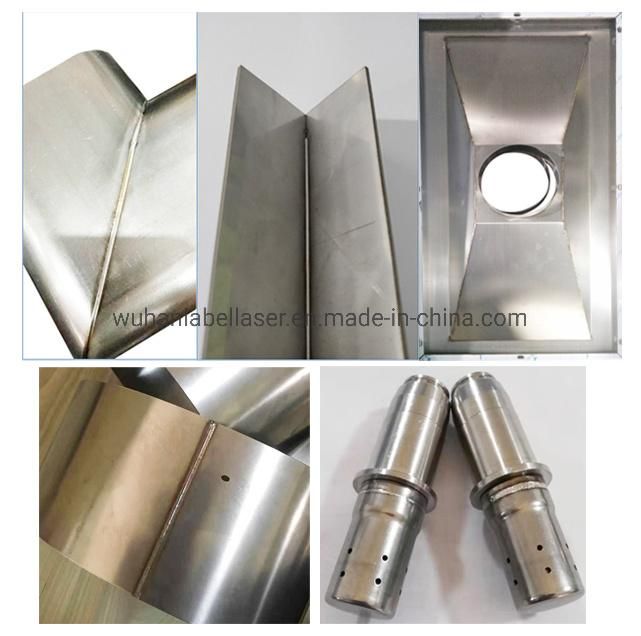

Samples show:



Advantages and disadvantages of traditional welding and laser welding system:



Comparison process	Tradition Welding	Fiber Laser Welding	Our Label Laser Welding
Heat input to the workpiece	Very High	Low	Low
Deformation of the workpiece, undercut	Big	Small	Small
Bond strength to base metal	General	Good	Very Good
Follow-up	Polish	No polish, or rarely polish	No polish, or rarely polish
Weld Speed	General	More than 2 times argon arc welding	More than 2 times argon arc welding
Applicable Material	Stainless steel, Carbon steel, Galvanized sheet	Stainless steel, Carbon steel, Galvanized sheet	Stainless steel, Carbon steel, Galvanized sheet
Consumables	Need more consumables	Seldom need  consumables	Seldom need consumables
Operation	complex	Normal	Simple
Operator safety	Unsafe	Safe	Safe
Environment protection	Not environmentally friendly	Environmentally friendly	Environmentally friendly
Welding fault tolerance	Excellence	Not good	Excellence
Wobble welding	No	No	Yes
Spot width adjustable	No	No	Yes
Welding quality comparison	Worse	Normal	Very Good

About us:
    Wuhan Label Laser Science and Technology Co., Ltd is a hi-tech corporation located in China Optics Valley in Wuhan City. It has been specialized in researching and manufacturing industrial Laser marking equipment and supplying marking solutions for customers all over the world since established in 2000.
Why choose us Label Laser ??

• 20 years of R&D and manufacturing experience.
•  Location:  located in China Valley in Wuhan city, one of the four major laser industry belts in China.
• Production line:

           Fiber laser marking machine, CO2 laser marking machine, UV laser marking machine, End-pumped marking machine;
           Dot Peen Marking Machine;
          Laser Cleaning Machine (for rust/oil/dirt removal).
          Customized laser processing machine.

• Application industry:  Automotive hub industry, Automation, Pressure casting industry, Cylinder block cylinder head industry, Shipbuilding industry, Railway transportation, Petroleum, Petrochemical, Aviation, Electronic tools, Instrumentation, etc.
• More than 4000+ successful cases of marking solution accumulated in domestic and oversea markets.
• IPG/Raycus's long-term strategic partner. Our own brand LABEL is supplied by Raycus accroding to our technical index.
• Representative strategic partners: BYD Auto, Geely Auto, FAW, TOYOTA, SANY, ABB, CSIC, Continental, etc.
• Our Marking Machine accounts for 80% of the share in the domestic automobile industry.
• 100% QC .
• Strong ability to supply marking solution with experienced technology backup team.
• Utility Model Patent Certificates:

           Involved 3M Flexible label paper marking, Nameplate Auto marking,
          Engine cylinder block and head pass-type auto marking,
          Automobile forged wheel hubs pass-type auto marking, Copyright of computer software, etc.

• ISO, CE, SGS certified.

 Working Flow:



Packing & Shipping:
      - Packing :
          Anti-collision foam + wrapping film+ Export standard wooden case.

      - Shipping:

• Main transportation method: by sea.
• Other Option: by air or railway transportation.


FAQ:

Q: What's laser marking? And how laser marking machine works?
A: Laser marking is typically a delicate process of creating depth by removing the surface material, especially with the purpose of modifying its reflectivity and contrast. The laser marking systems at Label Laser is designed for non-contact processes. They offer better and more reliable solutions in terms of stability and deformity.

Q: How to operate the machine? Is training necessary?
A: The machine is mainly controlled by software and not complicated. Operation manual with pictures will be provided.
Generally speaking, an operator, who is not familiar with fiber laser marking machine can still operate it very well.

Q: In case machine exists the problem, how to do after sales service?
A: One-year warranty of the whole machine. We will help to solve any problems in this period.

Q: Is it possible to add customized protection cover?
A: Yes, customized protection cover is acceptable.

Q: Any consumables for fiber laser marking machine?
A: No consumables. It's very economical and cost-efficient.
