• Model NO.：MT-RF
• Wavelength：10640nm
• Repetition Precision：0.01mm
• Marking Depth：≤5mm
• Marking Speed：<8000mm,S
• Operating Temperature：10ºC-30ºC
• Warranty：1 Year
• Beam Quality：<2m2
• Laser Pulse Frequency：20-200kHz
• Gross Power：<1250W
• Power Source：AC110V,220V± 10%, 50,60Hz
• Transport Package：Standard Export Wooden Box
• Trademark：MACTRON
• Origin：Guangdong, China
• Production Capacity：200sets,Month

Basic Info.

Model NO. MT-RF Wavelength 10640nm Repetition Precision 0.01mm Marking Depth ≤5mm Marking Speed <8000mm/S Operating Temperature 10ºC-30ºC Warranty 1 Year Beam Quality <2m2 Laser Pulse Frequency 20-200kHz Gross Power <1250W Power Source AC110V/220V± 10%, 50/60Hz Transport Package Standard Export Wooden Box Trademark MACTRON Origin Guangdong, China Production Capacity 200sets/Month

Product Description

Product Description

The Meta RF Tube CO2 laser marking machine is a new generation of laser marking machine.

The laser system adopts the industrial standardization module design . RF series are fitted with full set of imported metal sealed radiation frequency CO2 laser , and equipped with high speed scanning galvanometer and extending focusing system .

The machine also has high stability and anti-intervention industrial computer system as well as high precise lifting platform . It can work on a continuous 24 working hours in high stability , high precision , and high speed .

Model	MT-RF
Peak Laser Power	10W/30W/60W
Wavelength	10600nm
Repetition Precision	0.01mm
Marking Depth	≤5mm
Marking Speed	<8000mm/s
Cooling Mode	Air Cooling or Water Cooling
Graphic Formats Supported	PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Operating temperature	10ºC-30ºC
Warranty	1 Year
Humidity	5% to 85%
Gross Power	<1250W
Power source	AC110V/220V ± 10%, 50/60HZ
Processing Area	110*110mm-175*175mm

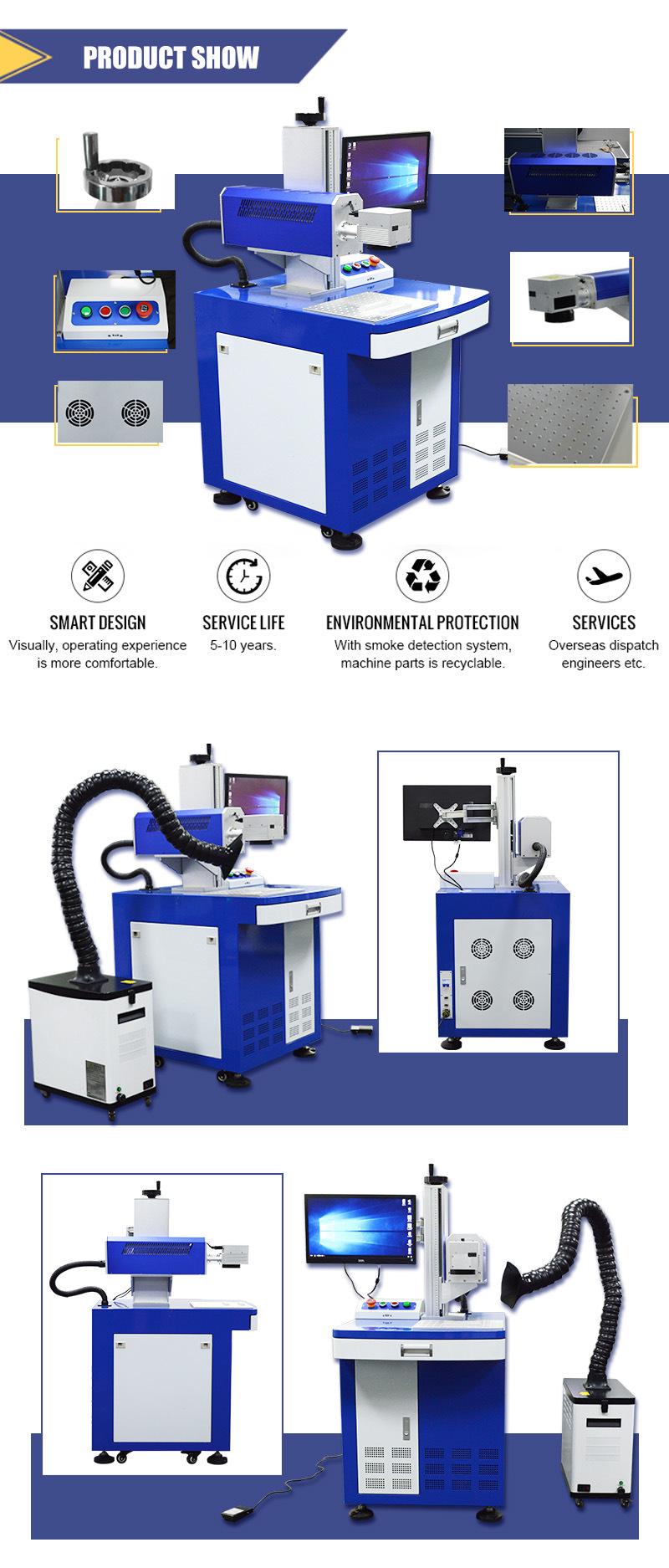

Product Show


Product details



Product Sample Display

Production Process


Packaging & Shipping


Company Information
Dongguan Mactron Technology CO.,Ltd is a new & hi-tech enterprise ,located in international famous manufacturing city--Dongguan,integrated the laser,precision machinery,CNC and modern management,specializing in developing ,manufacturing and selling of industrial laser equipment and customized automation device.

Mactron's mainly product is including:
Laser Cutting Machine, Laser Engraving Machine, Laser Marking Machine, Mini Laser Engraver, CNC Laser Cutter, YAG Laser System, Diode Pump Laser Equipment, Co2 Laser Tube, Laser Focusing Lens, Laser Reflector Mirror, Laser Power Supply, Laser Cooler Unit, Laser Scanner Head, Laser Control System, Laser Cutting Head, Beam Expander, Red Pointer, Krypton Lamp and accessories etc.

Mactron Technology's business tenet is "Do Honest Business ".
Mactron Technology's managerial spirit: "Solidarity, Exertion, Truthfulness, Innovation"


Certifications


FAQ
Q1: How can I get the best co2 laser marking machine for me?
You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.

Q2: This is the first time I use this kind of co2 laser marking machine, is it easy to operate?
We can teach on the Internet. In addition, We can also arrange our technician to customers' factory for machine training or customers can come to our factory for machine training.

Q3:What's the guarantee, in case the co2 laser marking machine breaks down?
The machine has one year guarantee. During the warranty, any problem occurs during warranty, you can connect us, we provide 24 hour on-line service, professional engineers are available at your service.In addition we will provide parts required with free of charge by express, but as for the parts damaged by artificially, it does not fall within our warranty list. After the warranty, we still provide lifetime service.

Q4:How long is the delivery time of co2 laser marking machine?
For standard machines, it would be 7-10 working days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 working days.

Q5: How is your packing?
We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag.

Q6: Which countries are your laser machinery sold to?
Our laser machines sell all over the world, such as United States, Mexico, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, UK, Germany, Poland, Spain, Romania and many other countries.
