CO2 Laser Metal Wood Cutting Machine with High Precision
Shandong Ruby CNC Equipment Co., Ltd.- Application：Home Appliance, Textile Machinery, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Nonmetal
- Structure Type：Gantry Type
- Laser Classification：Gaseous Laser
Base Info
- Model NO.：FLC1325
- Laser Technology：Laser Control Fault Cutting
- Working Area：1300*2500mm
- Laser Power：130W-280W
- Transport Package：Plywood
- Trademark：CE
- Origin：China
- HS Code：8456110090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. FLC1325 Laser Technology Laser Control Fault Cutting Working Area 1300*2500mm Laser Power 130W-280W Transport Package Plywood Trademark CE Origin China HS Code 8456110090 Production Capacity 100PCS/MonthProduct Description
Co2 laser metal wood cutting machine with high precisionFeatures: This machine is the newest design with the 130W-280W CO2 laser tube, can cut the metal materials,such as the stainless steel,carbon steel, also used for cutting the non-metal materials, such as acrylic,wood,leather,etc. It is equipped with special laser head system, if the metal sheet is not flat, the system can sense the distance from the nozzle to the metal surface and follow the surface up and down to automatically adjust the certain focus distance to keep the highest precision cutting quality.
Application materials:
Stainless steel, carbon steel, Wood, bamboo, jade, ceramic, textile, garments, crystal, plastic, Color plates, Plexiglas, glass, acrylic, wood, paper, leather, cloth, rubber, marble, granite, tiles, shells and other non-metallic materials.
Application industries:
Mainly used for advertising industries ( stainless metal and carbon steel ), sheet metal industry (carbon steel ), packaging industry (die board )and so on .
steel industries,Plastic and rubber industry, ads/crafts/presents industry. Strumpet/machine components, leather cloth industry. Advertising logo signs, gifts, crystal ornaments, paper cutting techniques, relief, wood carving Jane. Printing plate, leather clothing, embroidery, decoration, frame making and other industries
Specifications:
| Model | FLC1325 |
| Working size | 1300mm*2500mm |
| Laser power | 130w-280w |
| Cutting speed | 0 - 50 mm/s |
| Reposition accuracy | ±0.05mm |
| Working voltage | AC110- 220V±10%,50-60Hz |
| Consuming power | less than 1,000W |
| Working temperature | 0 - 45°C |
| Working humidity | 8 - 95% |
| Minimum letter size | English :1 x 1mm Chinese:2 x 2mm |
| Supported file format | BMP, HPGL, PLT, DST, DXP, and AI |
| Driving system | Stepper |
| Cooling system | CW-5200 chiller |
| Other auxiliary equipment | Exhaust-fans and air-exhaust pipe |
| Laser control software | DSP control system Leetro |
| Compatible software | CorelDraw, AutoCAD, Photoshop |

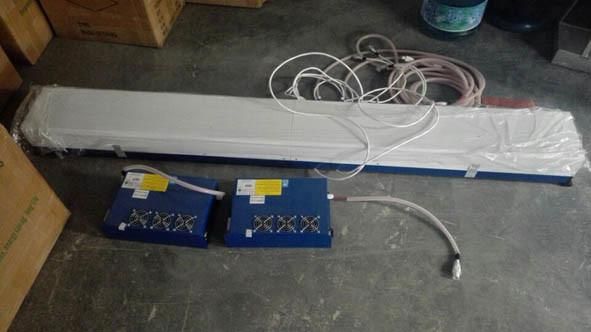

| Laser tube type | Sealed CO2 glass laser tube |

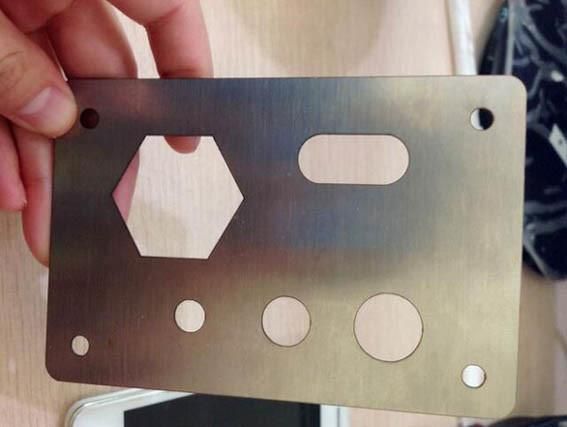

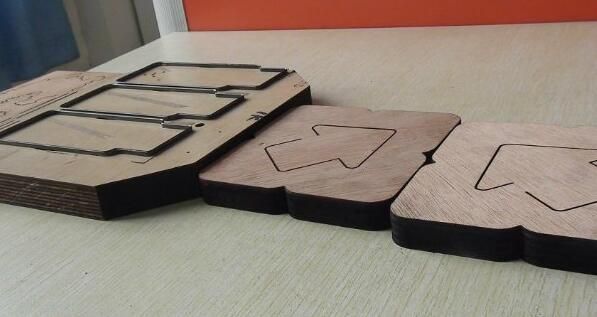

Samples Show:
