• Model NO.：TE-DB1010

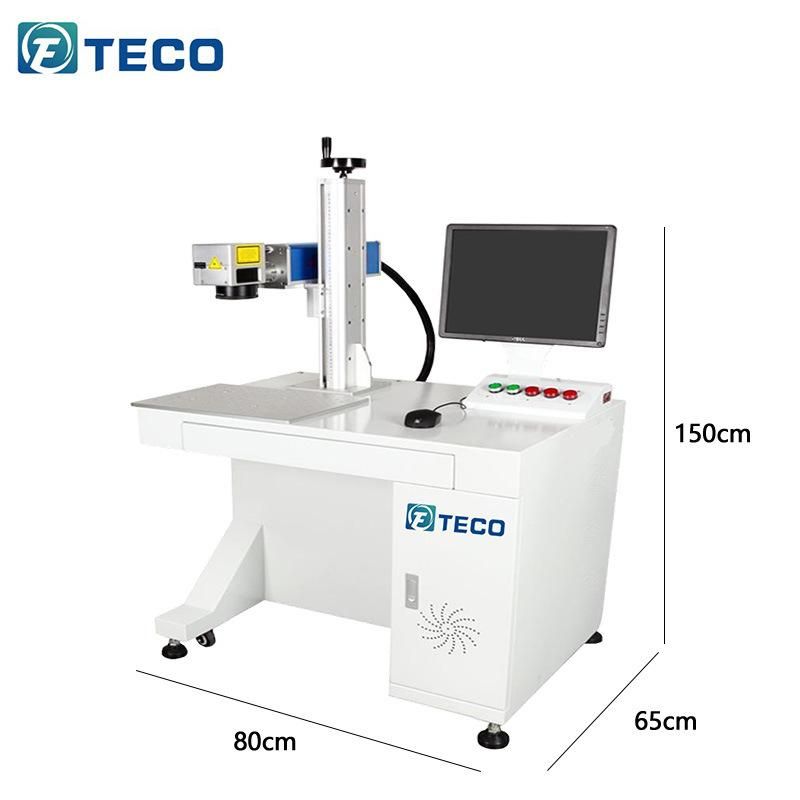

• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Package Size：600*740*1400mm
• Laser Power：20W,30W
• Repeat Frequency：20-100 kHz
• Speed of Light Quality：M2<1.2
• Marking Area (mm)：110mm*110mm
• Minimum Character：0.15mm
• Repetition Precision：0.02mm
• Marking Speed：≤15000mm,S
• Power Supply：220V±10%, 50Hz
• Machine Power：Max 500W
• Type of Cooling：Air Cooling
• Service Life：100,000 Hours
• Image Format：BMP, Plt, Dst, Dxf, Ai,etc
• Net Weight：150kg
• Transport Package：Wooden Package
• Origin：China
• HS Code：848620490
• Production Capacity：500PCS,Month

Basic Info.

Model NO. TE-DB1010 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Package Size 600*740*1400mm Laser Power 20W/30W Repeat Frequency 20-100 kHz Speed of Light Quality M2<1.2 Marking Area (mm) 110mm*110mm Minimum Character 0.15mm Repetition Precision 0.02mm Marking Speed ≤15000mm/S Power Supply 220V±10%, 50Hz Machine Power Max 500W Type of Cooling Air Cooling Service Life 100,000 Hours Image Format BMP, Plt, Dst, Dxf, Ai,etc Net Weight 150kg Transport Package Wooden Package Origin China HS Code 848620490 Production Capacity 500PCS/Month

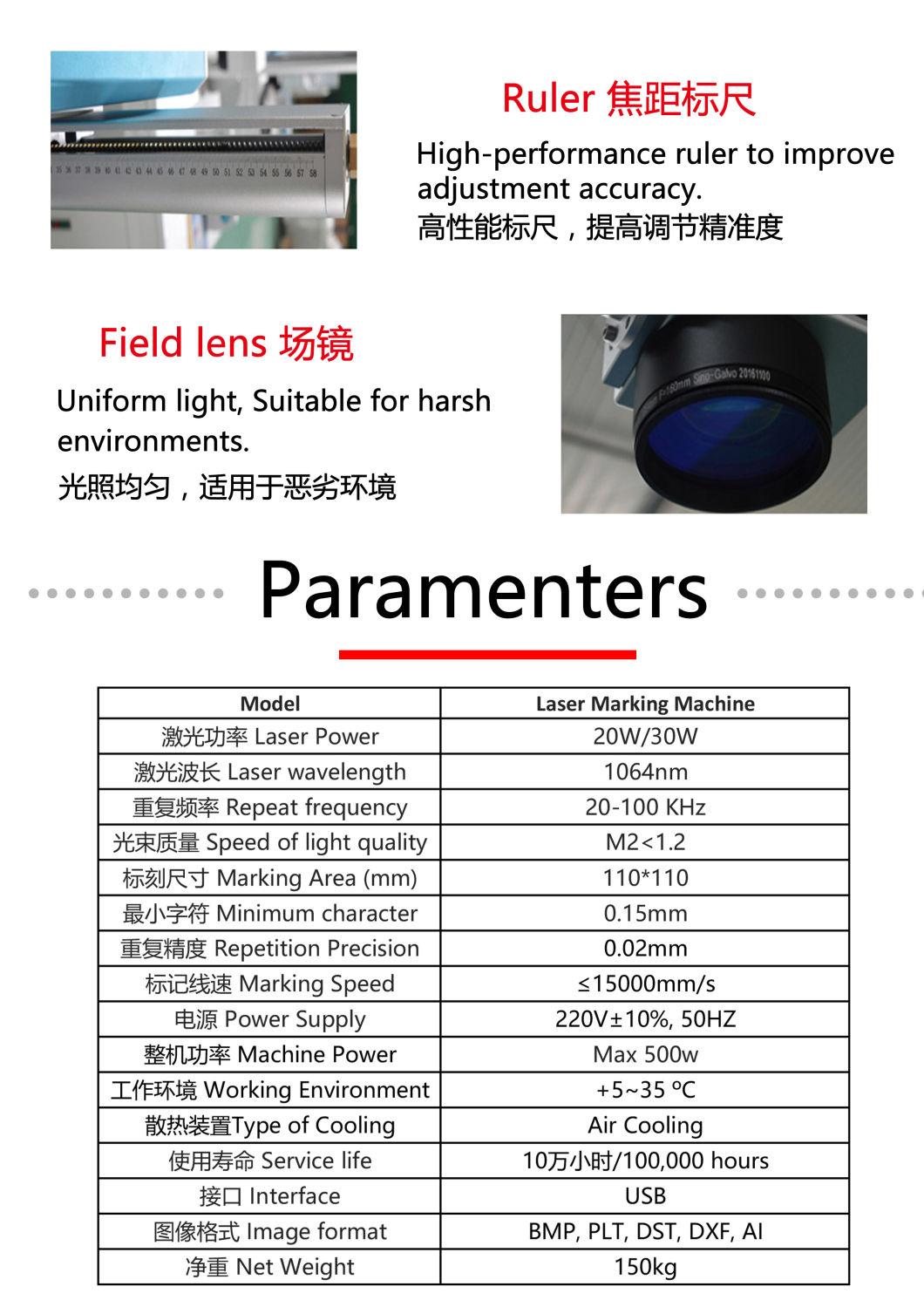

Product Description

Model	Laser Marking Machine
Laser Power	20W/30W
Laser wavelength	1064nm
Repeat frequency	20-100 KHz
Speed of light quality	M2<1.2
Marking Area (mm)	110*110
Minimum character	0.15mm
Repetition Precision	0.02mm
Marking Speed	≤15000mm/s
Power Supply	220V±10%, 50HZ
Machine Power	Max 500w
Working Environment	+5~35 ºC
Type of Cooling	Air Cooling
Service life	100,000 hours
Interface	USB
Image format	BMP, PLT, DST, DXF, AI
Net Weight	150kg

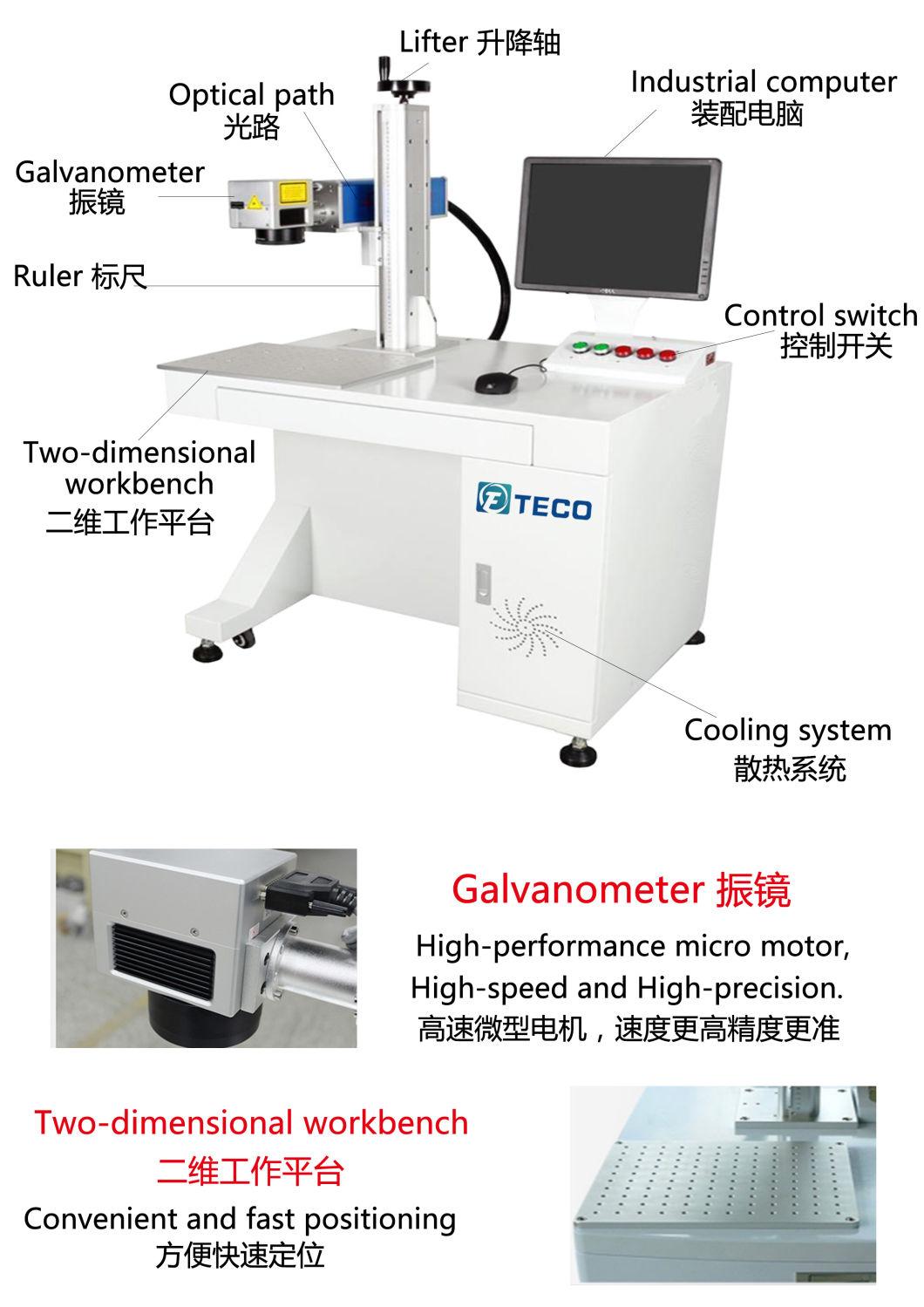

Machine Fetures:
1. Marking / engraving text, logo, serial number, image, photo, bar code and QR code etc
2. All kind of metal, alloy marking,such as Stainless Steel, Brass, Aluminium, Steel, Iron etc.
3. Mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon, (plastic ,keyboard, auto mobile components, IT components etc.).
4. Coating removal for glass, plastic, silicon.
5. Control software running on the WINDOWS operating system, easy to operate.
6. Compatible with AutoCAD, Coreldraw, Photoshop and other software formats, such as PLT, AI, DXF, BMP, JPG.
7. For serial number, bar code and other online flight marking, with automatic jump function.








AFQ
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.

Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q3: If some problems happen to this machine, what should I do?
We provide one years machine warranty. During the year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.

Q4: What's consumables of laser marking machine?
A: It does not have consumable. It's very economical and cost effective.

Q5: What's package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.

Q6: What's delivery time?
A: Commonly, the lead time is within 5 working days after receiving the payment.

Q7: What payment terms can you accept?
A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.

Q8: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
