• Model NO.：FLC1610D
• Laser Technology：Laser Control Fault Cutting
• Laser Power：Double 60W-Double 150W
• Certification：Ce
• Laser Type：CO2
• Working Area：1600*1000mm
• Transport Package：Plywood
• Specification：CE
• Trademark：FLYING
• Origin：China
• HS Code：8456100090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. FLC1610D Laser Technology Laser Control Fault Cutting Laser Power Double 60W-Double 150W Certification Ce Laser Type CO2 Working Area 1600*1000mm Transport Package Plywood Specification CE Trademark FLYING Origin China HS Code 8456100090 Production Capacity 100PCS/Month

Product Description

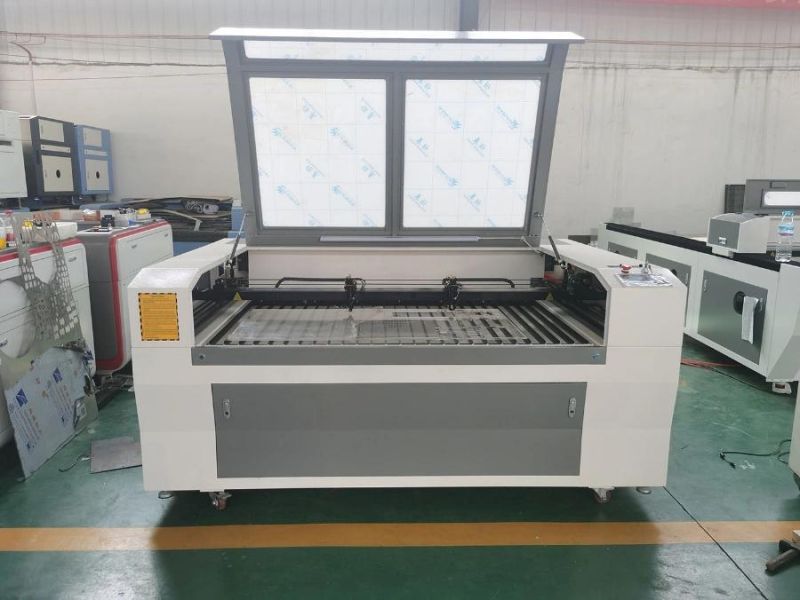

CNC Laser cutting/engraving machine with Dual Heads (FLC1610D), China leading manufacturer for cnc laser machine, cnc router, cnc plasma cutting machine


Features:
    This cnc laser engraving cutting machine has the high-efficiency and low-cost laser equipment which was researched and manufactured by our company according to the features of large processing working loads and urgent processing working time in manufacture enterprise. The working feature of this machine is that the laser head can realize engraving and cutting at the same time each of which can be controlled respectively.

  The multi-head laser machine has the features of large area processing with single head and high efficiency cutting of small area with two laser heads, making the flexibility arisen and the suitable area more abroad. It can solve the problem of mass production, which cannot be achieved by single laser head and make volume production by laser machine possible.

Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.

Applicable Materials:
Non-metal materials such as double color boards, acrylic, glass, wood planks, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...

Extra Features:
1) Materials can extend through the front and rear doors to allow for a larger work product.
2) Following Work light to help see products during laser processing.
3) Red-Dot pointer to help you see the expected laser beam position.
4) AutoFocus touch sensor to easily set the right height for best engraving and cutting.
5) Parts tray for removing small parts or scrap from under the workbed.
6) Fully enclosed laser case yields a class I (user friendly) laser product.

Specifications:

Model	FLC1610D
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	90W*2,100W*2 or 130W*2
Working area	1600*1000mm
Max Engraving speed:	0-64, 000mm/min
Max cutting speed	0-30, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, JPEG, BMP, PLT, DST, DXF, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, water pump
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power
