Full Automatic High Efficient High Cost Performance Professional Metal Tubes Laser Cutting Machine
Ningbo Zhen Yue Machinery Co., Ltd.- After-sales Service：Online Sales After Service
- Warranty：1 Year
- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Pulse Laser
- Applicable Material：Metal
Base Info
- Model NO.：HRC0622-PT
- Structure Type：Gantry Type
- Laser Classification：Solid Laser
- Laser Technology：Laser Control Fault Cutting
- Laser Power：1500W
- Total Power：15kw
- Cooling：Water Cooling
- Processing Area:(Length) × (Width)：6,000mm×φ10-120mm
- Rated Voltage of Power Supply：380V
- Frequency50Hz：50Hz
- X-Axis Area：280mm
- Y-Axis Area：6000mm
- Z-Axis Area：120mm
- X,Y-Axis Positioning Accuracy：±0.05mm,M
- X,Y-Axis Repeated Positioning Accuracy：±0.02mm
- Maximum Positioning Speed of Y-Axis：105m,M
- Maximum Acceleration of X,Y-Axis：1.5 G
- Laser Device：Raycus
- Transport Package：Standard Export Plywood Cases
- Specification：sheet metal + precision accessories
- Trademark：HAIRONG
- Origin：China
- HS Code：8461500090
- Production Capacity：500units,Month
Description
Basic Info.
Model NO. HRC0622-PT Structure Type Gantry Type Laser Classification Solid Laser Laser Technology Laser Control Fault Cutting Laser Power 1500W Total Power 15kw Cooling Water Cooling Processing Area:(Length) × (Width) 6,000mm×φ10-120mm Rated Voltage of Power Supply 380V Frequency50Hz 50Hz X-Axis Area 280mm Y-Axis Area 6000mm Z-Axis Area 120mm X,Y-Axis Positioning Accuracy ±0.05mm/M X,Y-Axis Repeated Positioning Accuracy ±0.02mm Maximum Positioning Speed of Y-Axis 105m/M Maximum Acceleration of X,Y-Axis 1.5 G Laser Device Raycus Transport Package Standard Export Plywood Cases Specification sheet metal + precision accessories Trademark HAIRONG Origin China HS Code 8461500090 Production Capacity 500units/MonthProduct Description
1.Product DescriptionThis Laser Cutting Machine has high cutting precision and fast speed.It is also easy to achieve automatic cutting and improve processing efficiency. It has the advantage of non-contact cutting ,small thermal deformation,low-carbon and environmentally-friendly .The processing cost is 50% less than that of machining.
2.Technical Data| Model | HRC-6012-PT | HRC-6022-PT |
| Laser Power | 1500W | 1500W |
| Processing Area:(length) × (width) | 6,000mm×φ10-120mm | 6,000mm×φ10-220mm |
| X-axis Area | 280mm | 280mm |
| Y-axis Area | 6000mm | 6000mm |
| Z-axis Area | 120mm | 220mm |
| X,Y-axis positioning accuracy | ±0.05mm/m | ±0.05mm/m |
| X,Y-axis repeated positioning accuracy | ±0.02mm | ±0.02mm |
| Maximum positioning speed of y-axis | 105m/min | 105m/min |
| Maximum acceleration of X,Y-axis | 1.5 G | 1.5 G |
| Rated voltage of power supply | 380V | 380V |
| Frequency50Hz | 50Hz | 50Hz |
| Total power protection grade | IP54 | IP54 |
| Total power | 15KW | 15KW |
| Cooling | Water Cooling | Water Cooling |
| Laser Device | Raycus | Raycus |
3.Product Superiority
1). Non-contact cutting and small thermal deformation
2). High cutting precision and fast speed
3). Low-carbon and environmentally-friendly
4). Easy to achieve automatic cutting and improve processing efficiency
5). The processing cost is 50% less than that of machining
4.Application Fields
Can cut round tube, square tube, channel steel, i-steel: used for cutting square tube, round tube, rectangular tube, elliptical tube, waist tube, d-shaped tube, hexagonal tube
5.Sample
6.Our Company

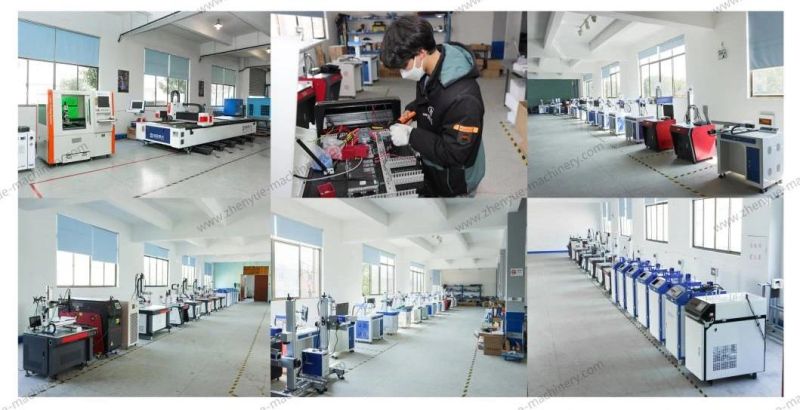

7.Our Factory
8.Exhibition
