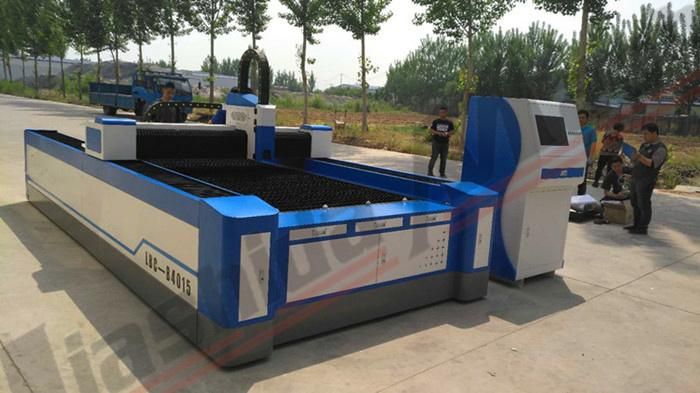

Closed CNC 1530 Fiber Laser 6kw Power

LZK CNC Machine Tool (Anhui) Manufacturing Co., Ltd.
  • Cooling System：Water Cooling
  • Technical Class：Pulse Laser

Base Info

  • Model NO.：LZK 1530
  • Applicable Material：Metal
  • Structure Type：Desktop
  • Laser Classification：Solid Laser
  • Laser Technology：Laser Flame Cutting
  • Max Cutting Size：3000X1500 (mm)
  • The Workpiece Maximum Height：120 (mm)
  • Max Cutting Speed：65(mm)
  • Laser Power：1000(W)
  • Maximum Cutting Thickness：12ms (mm), 4ss(mm)
  • Fiber Laser：Max-1000W, China
  • Laser Cutting Head：Raytools, China
  • CNC System：Cypcut, China
  • Servo Motor：Panasonic, Japan
  • Precision Reducer：Neugar, German
  • Transport Package：FCL with Plastic Film Covered
  • Specification：3700x2400x1100mm
  • Trademark：Jiashida Machine
  • Origin：China
  • HS Code：8456110090
  • Production Capacity：50

Description

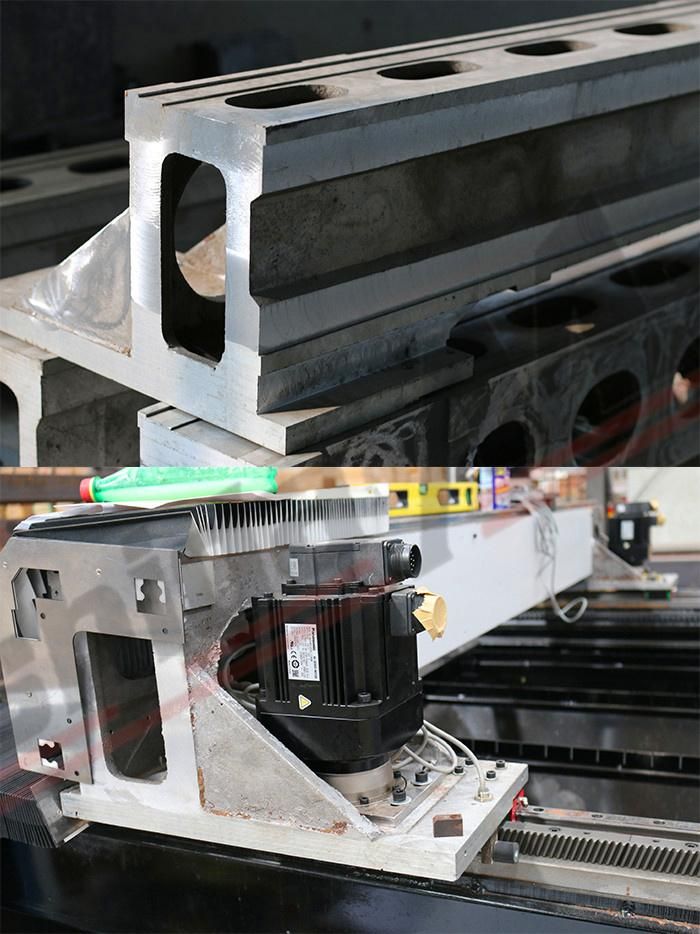

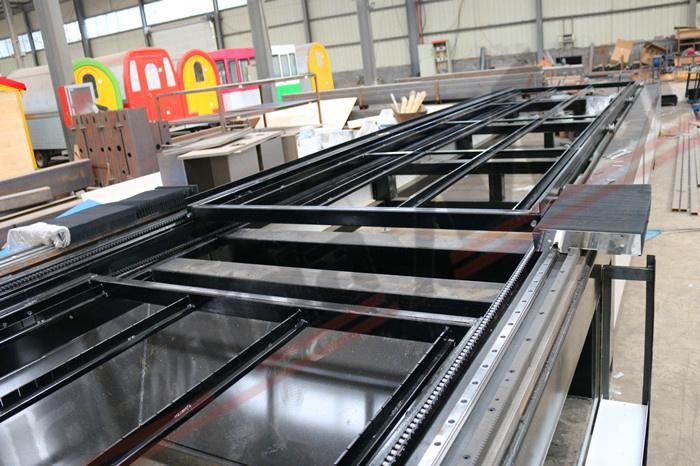

JSD CNC Fiber Laser Cutting Machine Features:High strength, high rigidity box type welding machine frame, high precision linear guide and rack driving and bilateral drive system to strengthen the accuracy and stability of the machine running;Photoelectric conversion efficiency can reach 30%, two times that of CO2;Gantry double drive structure, smooth and reliable movement;Precision gear rack drive, with high response and high precision servo motorHigh precision laser cutting head, imported optical lenses, is focused on the fine, the  adjustment is convenient, cutting perfect;The international first-class quality of fiber laser, industrial application for many years, long service life, maintenance free, stable and reliable.Closed CNC 1530 Fiber Laser 6kw PowerMachine Main BodyMain body is divided into two cabinet, cabinet whole welding, ensure the stability of the machine body;The machine body with the casting structure, after stress relief annealing process, the technological process for welding to annealing to stress to rough machining.Closed CNC 1530 Fiber Laser 6kw PowerTransverse BeamBeam body with the method of integral aluminum casting, annealing processed after stress reliefThe beam is installed on the body of precision linear guide in pairsBeam is equipped with automatic lubricating deviceAbove the beam and both sides with retractable organ type shield, ensure that the rack and linear guide in fully enclosed environment, not affected by the external environment.Closed CNC 1530 Fiber Laser 6kw PowerThe Z Axis Lifting EquipmentThe Z axis device is to let the cutting head movement up and down;Z axis servo is controlled by the CNC system, so the follow-up is with high accuracy, good stability, ensuring the quality of the cutting;Z axis unit of capacitance sensor to detect the cutting nozzle, the distance to the plate surface feedback signals to the control system, and then controlled by Z axis motor drive control system of the cutting head movement.Fiber Laser Max 1000WMain features:
The beam quality of excellence
All constant power range
Use of long focal length can still get a small spot
Photoelectric conversion efficiency 30%
Maintenance free operation
Modular design, "plug and play"
Small, easy to install
100000 hours of free maintenanceClosed CNC 1530 Fiber Laser 6kw Power
