• Model NO.：HSGQ-3015 800W
• Laser Technology：Laser Vapor Cutting
• Working Area：1500*4000mm
• Cutting Thickness：0.15-5mm Carbon Steel
• Maximum Output：500W,800W,1000W,2000W
• Laser Type：YAG
• Wave Length：1080mm
• Min Line Width：0.15mm
• Power Configuration：380V,50Hz
• Location Accuracy：≤±0.05mm
• Cooling：Water Cooling
• Max Cutting Speed：1500mm,Min
• Transport Package：Wooden Case
• Specification：3000mm*1500mm
• Trademark：holy laser
• Origin：Zhejiang, China
• HS Code：8456110090
• Production Capacity：1000sets, Year

Basic Info.

Model NO. HSGQ-3015 800W Laser Technology Laser Vapor Cutting Working Area 1500*4000mm Cutting Thickness 0.15-5mm Carbon Steel Maximum Output 500W/800W/1000W/2000W Laser Type YAG Wave Length 1080mm Min Line Width 0.15mm Power Configuration 380V/50Hz Location Accuracy ≤±0.05mm Cooling Water Cooling Max Cutting Speed 1500mm/Min Transport Package Wooden Case Specification 3000mm*1500mm Trademark holy laser Origin Zhejiang, China HS Code 8456110090 Production Capacity 1000sets/ Year

Product Description

Product Description
 Large Power Laser Metal Cutting Machine-Holy Laser:


Features of Holy laser's Fiber Laser Cutting Machine:
• Meet the Europe CE standard
• Excellent beam quality, the focus diameter is small making higher precision
• Stable running, adopting the top world import fiber lasers, stable performance, and key parts can reach 100,000 hours
• Low cost, Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
• Easy operations, fiber line transmission, no adjustment of optical path
• Dual drive, be different from the traditional one drive machine, dual drive power is larger, speed is faster and procession is higher

Application Industry of Our Metal Laser Cutting Machine:
Our Fiber Laser Cutting Machine is suitable to be used in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances
Application Material:
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and  many kinds of metal materials cutting and so on





Sample Show:



Technical Data:

model no	HSGQ-3015	HSGQ-4015
laser power	500W / 800W	1000W / 2000W
optical maser wavelength	1080nm	1080nm
laser medium	YVO4	YVO4
beam quality	<0.373 mrad	<0.373 mrad
min linewidth	≤0.15mm	≤0.15mm
max idle speed	120m/min	120m/min
X axle stroke	1500mm	1500mm
Y axle stroke	3000mm	4000mm
Z axle stroke	120mm	120mm
max working size	1500x3000mm	1500x4000mm
positioning accuracy of X,Yand Z axis	≤ 0.05mm/m	≤ 0.05mm/m
max cutting thickness (stainless steel)	0.5-6mm	0.5-16mm
max cutting thickness (carbon steel)	0.5-5mm	0.5-12mm
power supply	380V/50HZ	380V/50HZ

 Packing and delivery:

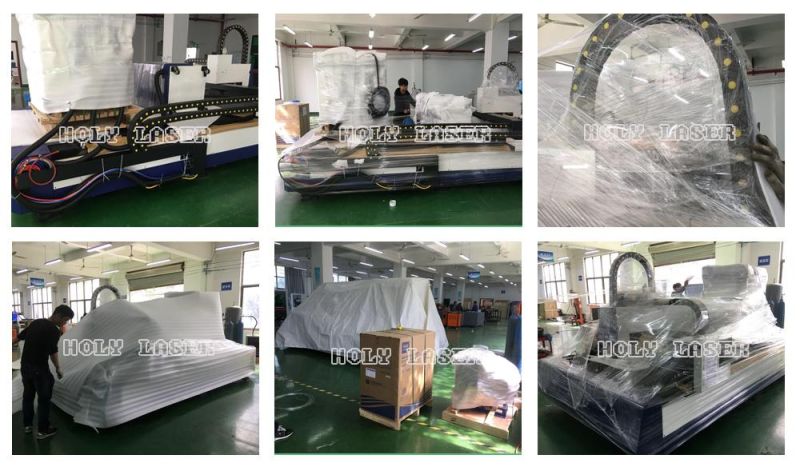

Packing: Packed in wooden case with waterproof felt inside, keeping machine safe
Delivery: 3-5 days upon receipt of your payment


After-sale service:
• One year warranty for product quality
• Free training for machines installation and operation
• Free design of machine as you required
• Lifelong maintenance and spare parts supply
• Free marking samples as you required

Factory Profile:
• We are the manufacturer with 13 years' history on researching and producing all kinds of Lasers
• Cooperated with the Zhejiang University and update new technology in-time
• Key enterprise supported by the government of Yiwu City
