1kw Handheld Welder Fiber Laser Welding Machine for Metal
Jinan Lansen Laser Equipment Co., Ltd.- After-sales Service：Free Parts
- Warranty：2 Years
- Application：Electronic Industry, Automotive Industry, Manufacturing Industry
- Technical Class：Continuous Wave Laser
- Control：Manual
- Power Density：Heat Conduct Welding
Base Info
- Model NO.：LS1LW
- Laser Classification：Optical Fiber Laser
- Type：Portable Welding Machine
- Machine Model：Fiber Laser Welding Machine
- Max Laser Power：1kw 1.5kw 2kw
- Laser Source：Raycus Max Jpt
- Laser Wavelength：1064nm
- Max Power of Single Impulse：200j
- Pulse Width：0.1-25ms
- Laser Welding Method：Continuous
- Transport Package：Plywood Box
- Specification：146*77*130cm
- Trademark：Lansen
- Origin：Jinan
- HS Code：8456110090
- Production Capacity：300 Sets,Month
Description
Basic Info.
Model NO. LS1LW Laser Classification Optical Fiber Laser Type Portable Welding Machine Machine Model Fiber Laser Welding Machine Max Laser Power 1kw 1.5kw 2kw Laser Source Raycus Max Jpt Laser Wavelength 1064nm Max Power of Single Impulse 200j Pulse Width 0.1-25ms Laser Welding Method Continuous Transport Package Plywood Box Specification 146*77*130cm Trademark Lansen Origin Jinan HS Code 8456110090 Production Capacity 300 Sets/MonthProduct Description
1KW Handheld Fiber Laser Welding machine for metalEquipment description:Mainly used for plastic mold of S136, SKD-11, NAK80, 8407, 718, 738, H13, P20, W302, 2344 mold steel, carbon steel, common alloy steel, stainless steel, beryllium copper, copper and extremely hard alloy material, Casting mold, forging die, stamping die, die casting molds. Widely used in mobile phones, digital products, automobiles and motorcycles and other mold manufacturing and molding industry.
Parameters:
| Machine model | LS-W1000 |
| Max laser power | 1000 watt |
| Laser source | Raycus |
| Laser wavelength | 1064nm |
| Max power of single impulse | 200J |
| Pulse width | 0.1-25ms |
| Laser welding method | continuous |
| Instability of energy | <2% |
| Beam Divergence | ≤8mrad |
| minimal beam diameter | 0.1mm |
| Adjustable scope of laser spot | 0.1~1mm |
| Welding depth | 3~4mm |
| Continue working time | 16hours |
| Noise | ≤30db |
| Transmission system | Fiber optical transmission system (FOTS) |
| Fiber optical length | 10m standard |
| Power Consumption | ≤7.2KW |
| Cooling system dimensions | Water cooling |
| Power required | 380V±10%/50Hz |
| Consumable | Xenon lamp,Filter element,Protective lens,Argon |
| Working temperature | 55°F(13°C)-82°F(28°C) |
| Working Humidity | 5%-75% |
| Oil mist | ≤15mg/m³ |

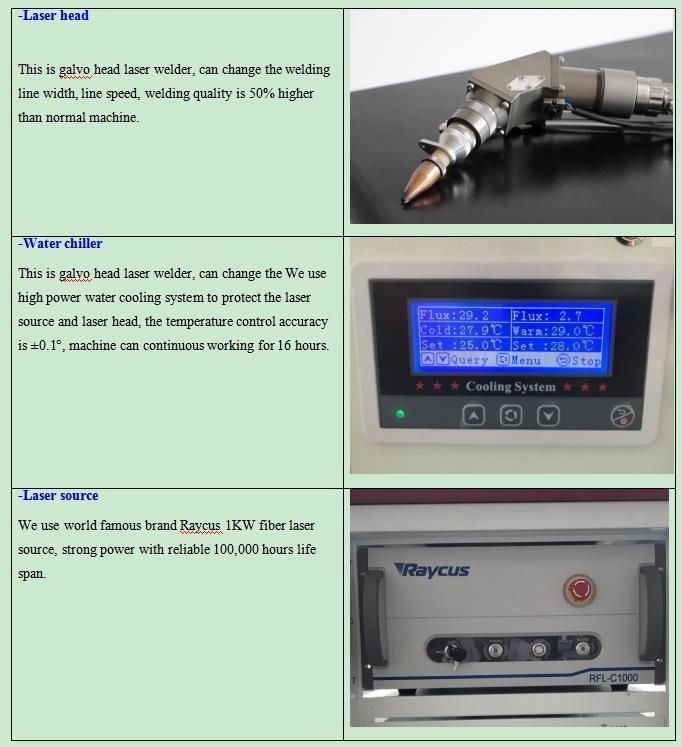

Parts:
