• Model NO.：UG-1390L
• Laser Technology：Laser Control Fault Cutting
• Working Area：1300*900mm
• Laser Type：CO2 Sealed-off Laser Tube
• Rated Laser Power：Efr F2 80W
• Working Table：Knife Strip
• Driver and Motor Type：Yako Three Phases Stepper Motor and Driver
• Guide Rail：Linear Square Guide Rail
• Transmission Type：Belt Transmission
• Cutting Speed：0-10000mm,Min
• Control System：Ruida 6442s
• Software：Rdworks V8
• Transport Package：Plywood Case
• Specification：1940*1540*1250mm, 400kgs
• Trademark：UPGOAL
• Origin：China
• HS Code：8456110090
• Production Capacity：250set Per Month

Basic Info.

Model NO. UG-1390L Laser Technology Laser Control Fault Cutting Working Area 1300*900mm Laser Type CO2 Sealed-off Laser Tube Rated Laser Power Efr F2 80W Working Table Knife Strip Driver and Motor Type Yako Three Phases Stepper Motor and Driver Guide Rail Linear Square Guide Rail Transmission Type Belt Transmission Cutting Speed 0-10000mm/Min Control System Ruida 6442s Software Rdworks V8 Transport Package Plywood Case Specification 1940*1540*1250mm, 400kgs Trademark UPGOAL Origin China HS Code 8456110090 Production Capacity 250set Per Month

Product Description

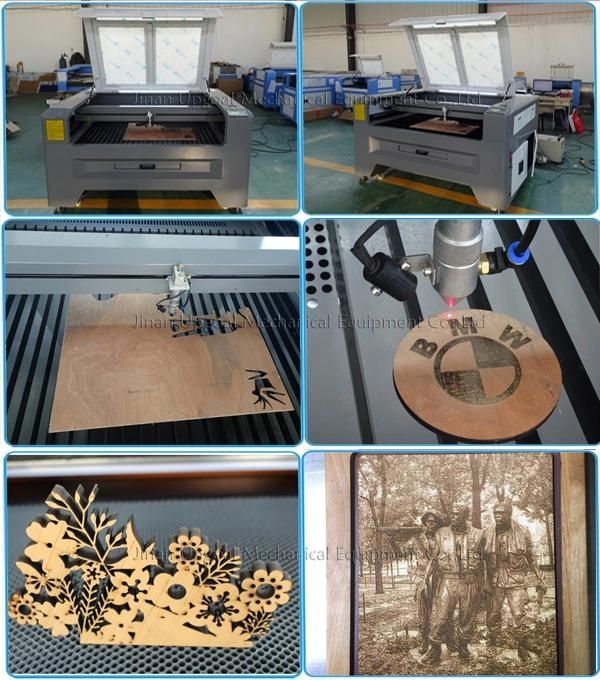

80W Wood Co2 Laser Engraving Cutting Machine 1300*900mm





Features

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

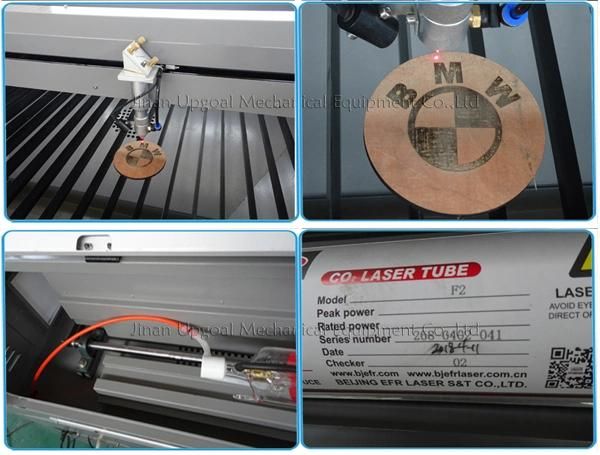

Laser Tube

Adopted high quality EFR F2 80W Co2 laser tube,  long working time time and stable

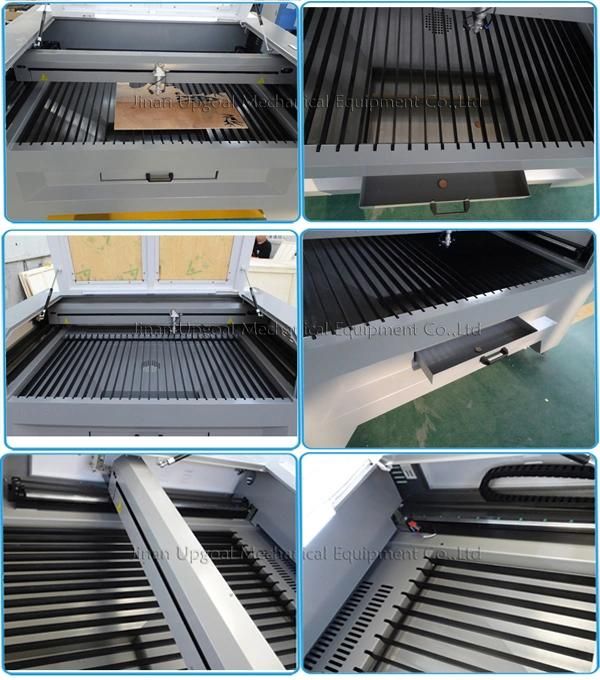

Working Table

Knife Strip Table:  With oxidation treatment and low reflection ratio Ensured cutting quality



Motion System

Imported High precision, low friction force and stand wear and PMI Taiwan linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise




Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

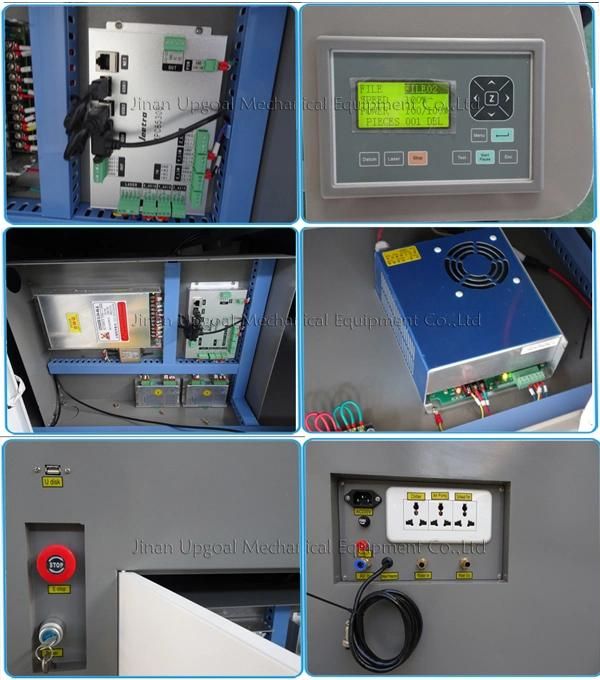

Operation System

Advanced USB port Leetro latest MPC 8530DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.



Cooling System

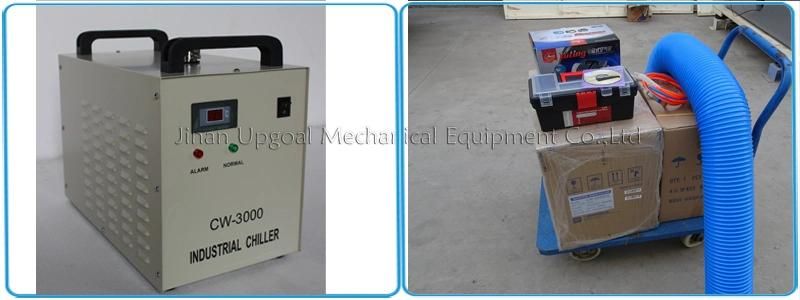

Industrial chiller CW-3000, ensuring the laser tube long time continuous working.



Technical Parameters


Effective working area	1300*900mm
Laser Type	Co2 sealed-off laser tube
Laser tube power	EFR F2 80W
Working table	Knife strip working table
Driver mode	3 phases stepper motor and Driver, Yako brand
Guide rail	Linear square guide rail ( Hiwin,Taiwan)
Transmission	Belt transmission
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	Leetro MPC8530
Control software	LaserCut 6.1
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller CW-3000 cooling
Water protection system	Yes
Focusing	Manual focus
Blow-off system	Air pump for the laser head Air blower for the machine
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage	AC 110V±10% 50/60Hz, single phase or AC 220V±10% 50/60Hz, single phase
Certificate	CE/FDA



Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

Materials Can work With: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
