China No. 1 Ss400/SPHC/Q235B/Q355b Metal Coil Cut to Length Line

Shandong Zetian CNC Machine Tool Co., Ltd.
  • After-sales Service:Lifelong
  • Warranty:12 Mouths
  • Application:Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Automotive Industry, Auto, Steel Industry
  • Cooling System:Natural Cooling
  • Technical Class:Linear Production Cutter
  • Applicable Material:Metal

Base Info

  • Model NO.:ZCL-20x2500
  • Structure Type:Desktop
  • Laser Classification:as Customer′s Requirements
  • Laser Technology:as Customer′s Requirements
  • Material Width:800mm-2500mm
  • Material Thickness:6-20mm
  • Finished Length:15000mm
  • Length Accuracy:1mm
  • Diagonal Accuracy:1.5mm
  • Line Speed:30m,Min
  • Coil Weight:30, 35 Tons
  • Leveling Accuracy:1.5mm,M2
  • Coil Material:PPGI Gi Cr Hr
  • Transport Package:Seaworthy
  • Specification:50 m L X 12 m W
  • Trademark:ZeYe
  • Origin:China
  • HS Code:84623120
  • Production Capacity:60

Description

Basic Info.

Model NO. ZCL-20x2500 Structure Type Desktop Laser Classification as Customer′s Requirements Laser Technology as Customer′s Requirements Material Width 800mm-2500mm Material Thickness 6-20mm Finished Length 15000mm Length Accuracy 1mm Diagonal Accuracy 1.5mm Line Speed 30m/Min Coil Weight 30, 35 Tons Leveling Accuracy 1.5mm/M2 Coil Material PPGI Gi Cr Hr Transport Package Seaworthy Specification 50 m L X 12 m W Trademark ZeYe Origin China HS Code 84623120 Production Capacity 60

Product Description

Cut to length line ZCL series
Cut to length line is mainly used for jobs like uncoiling, leveling, measuring the length, cutting  and stacking of kinds of materials, such as cold rolled or hot rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.

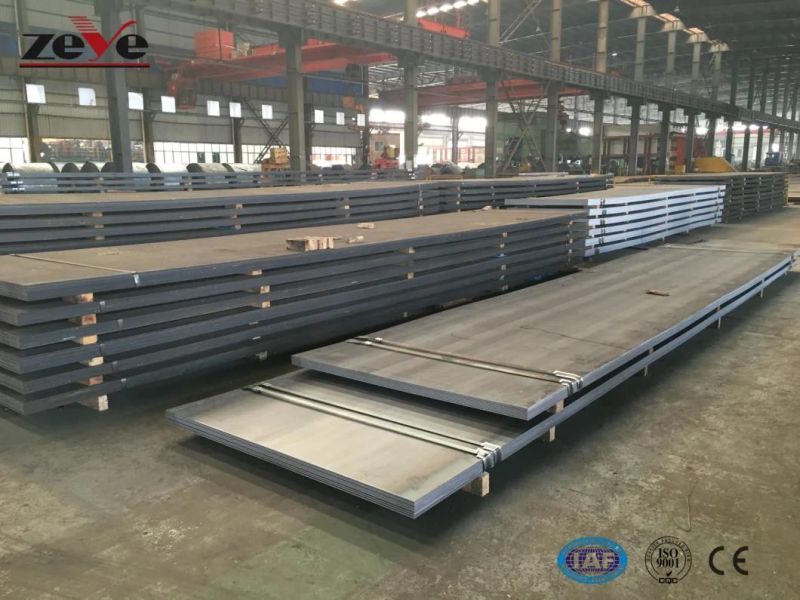

China No. 1 Ss400/SPHC/Q235B/Q355b Metal Coil Cut to Length LineChina No. 1 Ss400/SPHC/Q235B/Q355b Metal Coil Cut to Length Line
Main Units
1Entry coil car1 set
2Uncoiler1 set
3Feeding device1 set
4Pre- leveler2 set
5Looper1 set
6Side guide2 sets
7Precision Leveler1 set
8Shear Machine 1 set
9Conveyor1 set
10Stacker 1 set

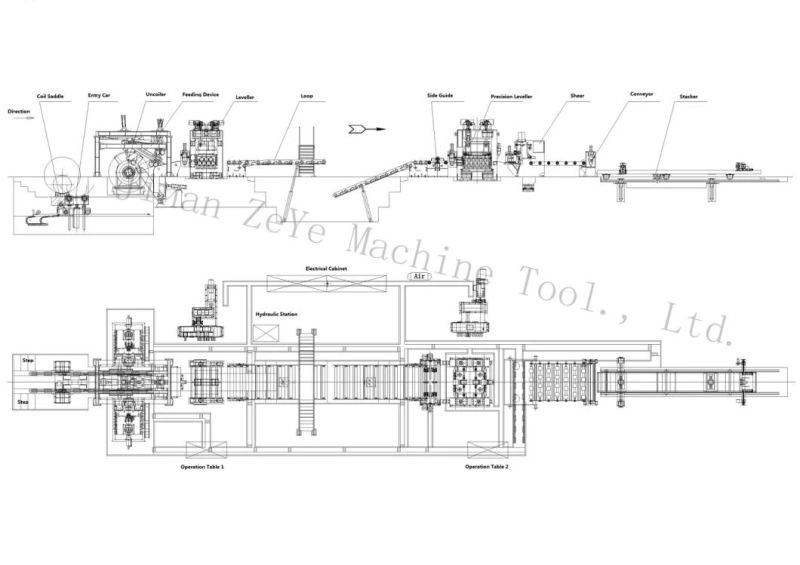

Layout of Cut to Length Line
China No. 1 Ss400/SPHC/Q235B/Q355b Metal Coil Cut to Length Line

Main Technical Parameters
ModelZCL-6ZCL-8ZCL-12ZCL-16ZCL-20/25
Material thickness1.5-6.0mm2-8 mm3-12 mm4-16 mm6-20/25 mm
Material width800-2000 mm800-2000 mm800-2000 mm800-2200 mm800-2500 mm
Finished length1000-6000 mm1000-8000 mm100-12000 mm2000-14000 mm2000-14000 mm
Length accuracy±1.0 mm±1.0 mm±1.0 mm±1.0 mm±1.0 mm
Diagonal accuracy±1.0 mm±1.0 mm±1.5 mm±1.5 mm±1.5 mm
Leveling accuracy<1 mm/m2<1 mm/m2<1.5 mm/m2<1.5 mm/m2<1.5 mm/m2
Line speed50 m/min40 m/min40 m/min40 m/min30 m/min
Coil weight20,30 t20,30 t20,35 t20,35 t20,35 t


Our advantages

1.Reasonable structure, convenient to adjust, high precision and high efficiency.

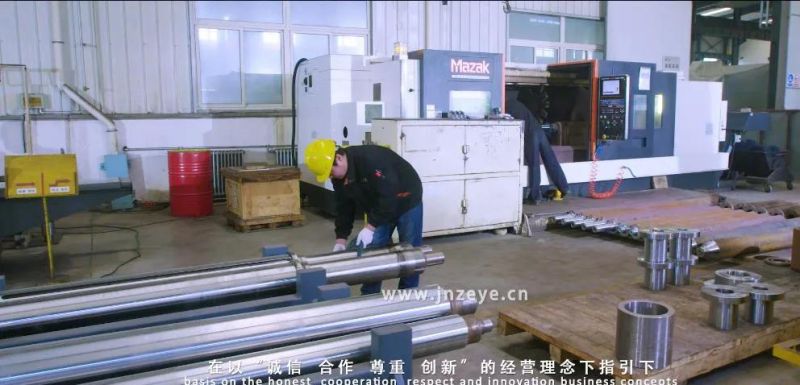

2.Japan MAZAK, Spain CORREA CNC etc.the world most advanced high precision processing equipment to ensure to produce out the high precision parts.

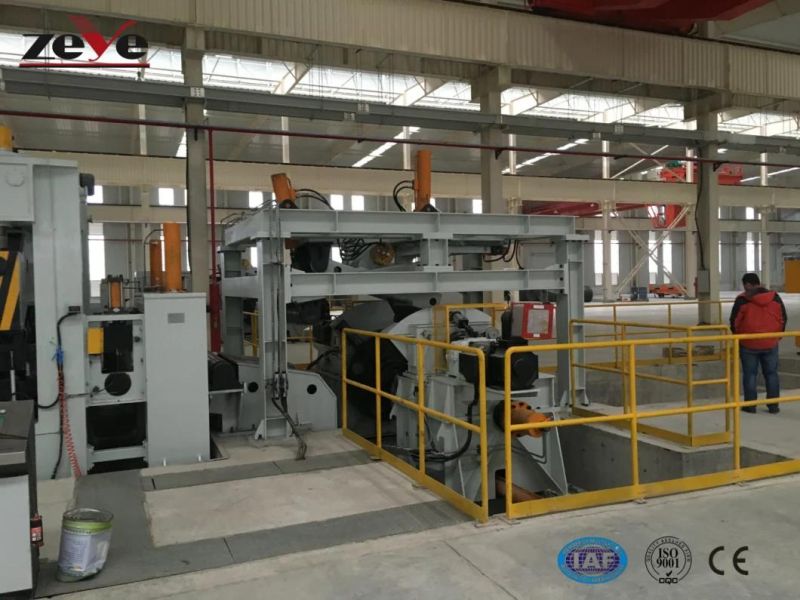

China No. 1 Ss400/SPHC/Q235B/Q355b Metal Coil Cut to Length Line
China No. 1 Ss400/SPHC/Q235B/Q355b Metal Coil Cut to Length Line

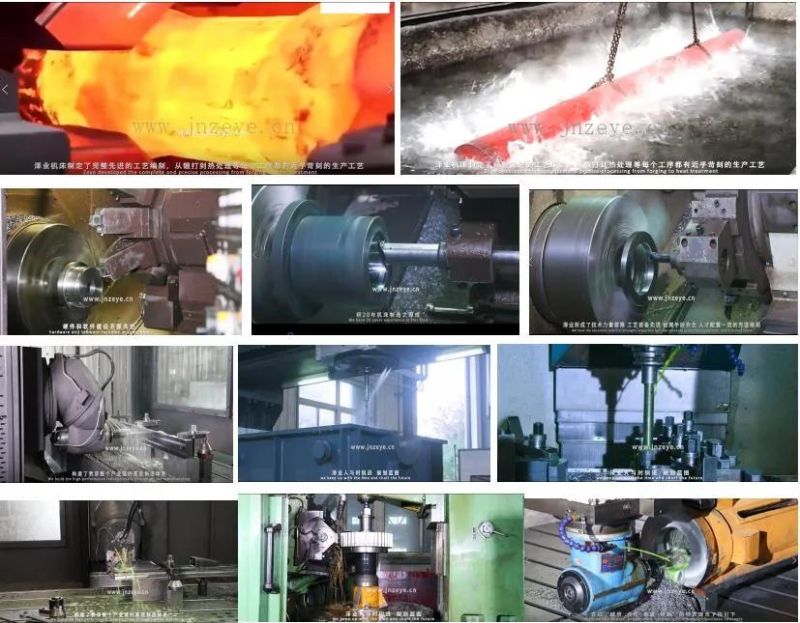

3. Every part has been done it's own complete technology process, such as forge, rough machined,  heat treatment, cooling, burring, tempering,  finish turning , milling, drill, thread tapping, match pin, surface quenching,coat the anti-rust oil, fine grinding, test ,entry warehouse, which ensure every part meets it's the best performance
China No. 1 Ss400/SPHC/Q235B/Q355b Metal Coil Cut to Length Line

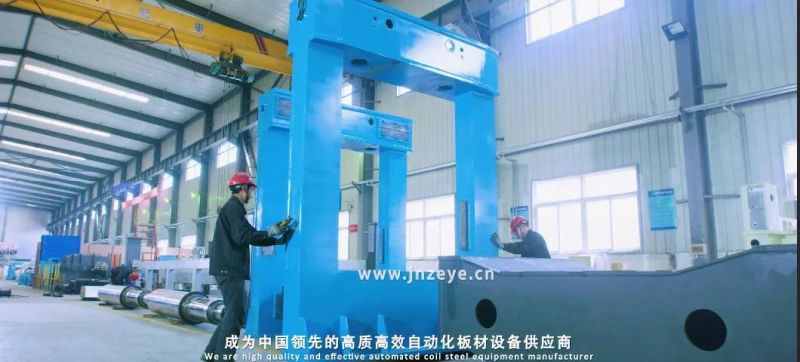

4. Strictly inspection during production and assembly, which in order to ensure every parts to be used is qualified.China No. 1 Ss400/SPHC/Q235B/Q355b Metal Coil Cut to Length Line


Part of our customers

Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.


China No. 1 Ss400/SPHC/Q235B/Q355b Metal Coil Cut to Length Line

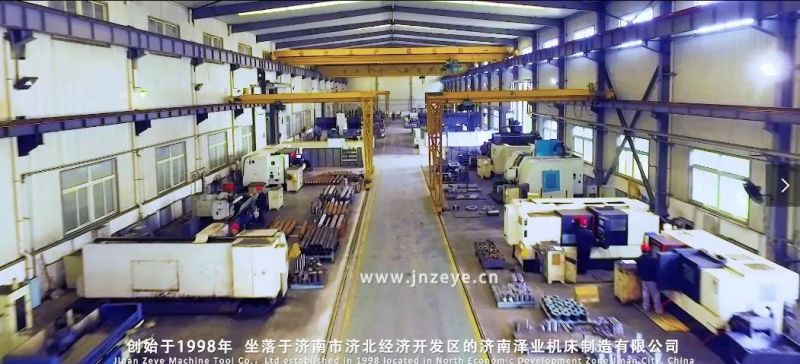

Company introduction

China No. 1 Ss400/SPHC/Q235B/Q355b Metal Coil Cut to Length Line

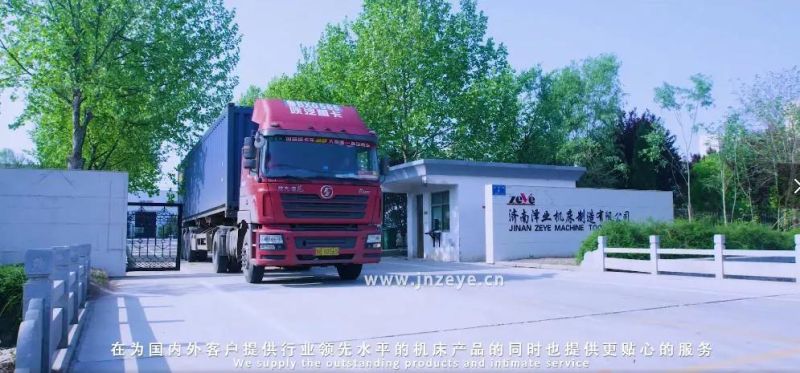

Shandong Zetian CNC Machine Tool Co., Ltd (short for Zetian )and Jinan ZeYe Machine Tool Co., Ltd (short for ZeYe) are brother enterprises. Zetian  is for import and export business,  ZeYe  is one professional manufactory, was founded in 1997 in Jinan city, Shandong Province, China. ZeYe is mainly engaged in developing ,manufacturing and sales of Cut to Length Line, Slitting Line, Rotary Shear, Moving Shear, Slitting and Cut to Length Combined Line, Leveling Machine. Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel,
aluminum, copper and other metals.

We have one professional technical team and after sales service team, we are ready to serve you at all the time.

China No. 1 Ss400/SPHC/Q235B/Q355b Metal Coil Cut to Length Line
China No. 1 Ss400/SPHC/Q235B/Q355b Metal Coil Cut to Length LineChina No. 1 Ss400/SPHC/Q235B/Q355b Metal Coil Cut to Length Line
Welcome to visit our factory.




FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line

for 23 years, we have a strong design & technical team,  we can design and manufacture as your requirements.

Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, shearing length, processing precision etc.

Q: What's the shipping cost from China to our country ?
A: We can ship equipment to your port by sea, shipping cost depends on shipping agend and season, FOB,  C&F as well as CIF are all acceptable.

Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.

Warranty: 12 months when the equipment run normally .
We offer online service 24 hours per day, Skype, Wechat, Email etc, you could contact us at your available time.
