• Model NO.：FLC1610D
• Automatic Grade：Automatic
• Applicable Material：Nonmetal
• Type：Flat-Plate
• Laser Classification：Gaseous Laser
• Engraving Method：Vector Engraving
• Engraving Machine Type：Laser Engraving Machine
• Control：CNC
• Current：AC
• Laser Type：CO2
• Working Area：1600*1000mm
• Laser Power：100W*2, 130W*2
• Transport Package：Plywood
• Specification：CE
• Trademark：FLYING
• Origin：China
• HS Code：8456100090
• Production Capacity：100PC,Month
• Package size per unit product：2230.00cm * 1530.00cm * 1320.00cm
• Gross weight per unit product：480.000kg

Basic Info.

Model NO. FLC1610D Automatic Grade Automatic Applicable Material Nonmetal Type Flat-Plate Laser Classification Gaseous Laser Engraving Method Vector Engraving Engraving Machine Type Laser Engraving Machine Control CNC Current AC Laser Type CO2 Working Area 1600*1000mm Laser Power 100W*2, 130W*2 Transport Package Plywood Specification CE Trademark FLYING Origin China HS Code 8456100090 Production Capacity 100PC/Month

Packaging & Delivery

Package size per unit product 2230.00cm * 1530.00cm * 1320.00cm Gross weight per unit product 480.000kg

Product Description

Co2 80w 100w 300w 500w cnc laser engraver cutter FLC1610D






Features:
   FLC1610D double-head laser cutting machine has the high-efficiency and low-cost laser cutting equipment which was researched and manufactured by our company according to the features of large processing working loads and urgent processing working time in manufacture enterprise. The working feature of this machine is that the laser head can realize engraving and cutting at the same time each of which can be controlled respectively.

The multi-head laser cutting machine has the features of large area processing with single head and high efficiency cutting of small area with two laser heads, making the flexibility arisen and the suitable area more abroad. It can solve the problem of mass production, which cannot be achieved by single laser head and make volume production by laser machine possible.


 Extra Features:1) Materials can extend through the front and rear doors to allow for a larger work product.2) Work light to help see products during laser processing.3) Red-Dot pointer to help you see the expected laser beam position.4) AutoFocus touch sensor to easily set the right height for best engraving and cutting.5) Parts tray for removing small parts or scrap from under the workbed.6) Fully enclosed laser case yields a class I (user friendly) laser product.

Specifications:

Model	FLC1610D
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	100W*2 or 130W*2
Working area	1600*1000mm
Max Engraving speed:	0-60, 000mm/min
Max cutting speed	0-36, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, BMP, PLT, DST, DXF, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, water pump
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power

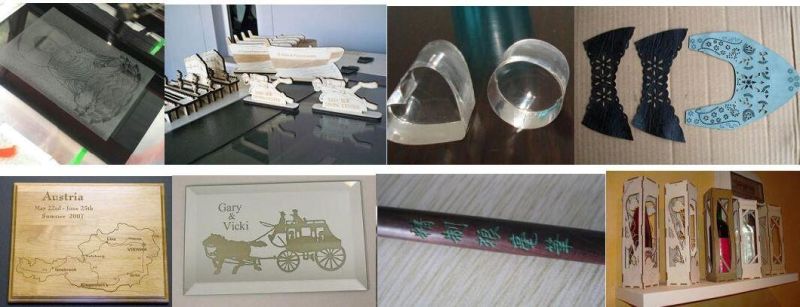

Samples Shown:




Some other models:
