• Model NO.：Fiber Laser Marking Machine
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：20W;30W;50W
• Wavelength：1064nm
• Engraving Depth：1.2mm
• Minimum Charac：0.1mm
• Life of Laser Module：70000~10000hrs
• Power Consumption：<500W
• Engraving Range：Max 400*400mm(Customized)
• Minimum Line Width：0.012mm
• Repeated Accuracy：+-0.003mm
• Suitable Material：Aluminum Metal
• Transport Package：Wooden Case
• Specification：800*650*1430mm
• Trademark：Hispeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：50 Sets , Month

Basic Info.

Model NO. Fiber Laser Marking Machine Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Laser Power 20W;30W;50W Wavelength 1064nm Engraving Depth 1.2mm Minimum Charac 0.1mm Life of Laser Module 70000~10000hrs Power Consumption <500W Engraving Range Max 400*400mm(Customized) Minimum Line Width 0.012mm Repeated Accuracy +-0.003mm Suitable Material Aluminum Metal Transport Package Wooden Case Specification 800*650*1430mm Trademark Hispeed or Customized Origin China HS Code 8456100090 Production Capacity 50 Sets / Month

Product Description

20W New Model Mini Fiber Laser Marking Machine marking on all Metal



>>>>>Equipment Description<<<<<<

HiSpeed Fiber Laser Marking Machine adopts advanced digital high speed scan galvanometer and module design that separate laser generator and lifter, which is not only small volume, quick speed, but easily marks on big objects surface. Fiber Laser Marking Machine 20W 1000W Widely used in food and beverage,leather, packaging, cosmetics, electronics and other industries, low consumption, non-toxic, no pollution.

>>>>>>Machine Features<<<<<<


• Minimal Maintenance
• Diodes have a lifetime of more than 70,000hrs
• High quality permanent marking
• Environment friendly and safe Machinery
• Works both on Metal and Non-metal

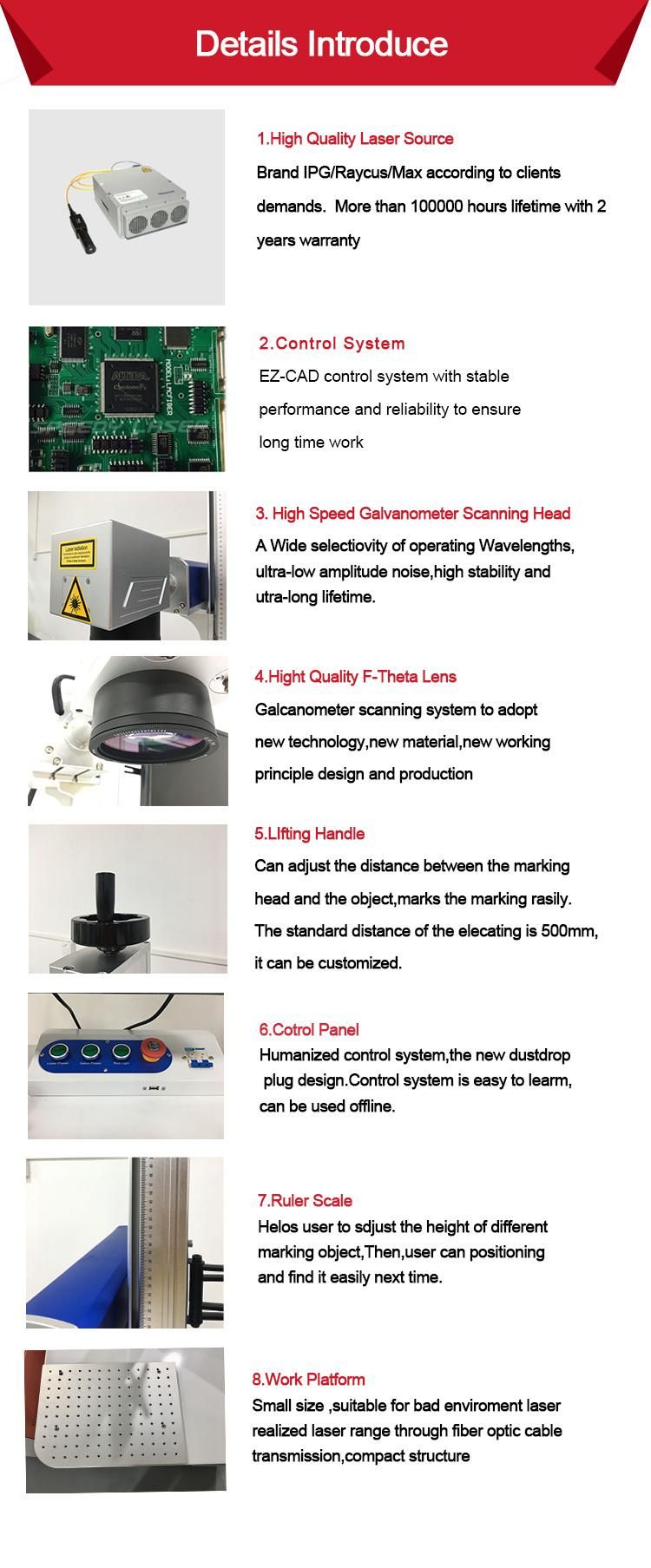

>>>>>>Machine Details Show<<<<<<




>>>>>>Technical Parameters<<<<<<



Model	YLP-20L	YLP-30L
Power	20W	30W
Wavelength	1064nm	1064nm
Beam Quality	M2<1.3	M2<1.3
Output Power	10%-100%(continuously to be adjusted)	10%-100%(continuously to be adjusted)
Output Frequency	20KHz-100KHz(continuously to be adjusted)	20KHz-100KHz(continuously to be adjusted)
Power Stability(8h)	<±1%rms	<±1%rms
Focus Spot Diameter	<0.01mm	<0.01mm
Engraving Range	≤400*400mm(customized)	≤400*400mm(customized)
Engraving Depth	1.2mm	1.2mm
Engraving Speed	800 standard characters/second	800 standard characters/second
Minimum Line Width	0.012mm	0.012mm
Minimum Character	0.1mm	0.1mm
Repeated Accuracy	±0.003mm	±0.003mm
System Operation	Windows 7/10	Windows 7/10
Cooling Mode	Air Cooling	Air Cooling
Environment Temperature	10ºC~35ºC	10ºC~35ºC
Environment Humidity	20%-80%	20%-80%
Power Requirement	220V/Singlephase/50Hz/<400W	220V/Single phase/50Hz/<400W
Life of Laser Module	70000~100000Hrs	70000~100000Hrs
Host Size	800mmx650mmx1435mm	800mmx650mmx1435mm

Applicable Materials:



Electronic Components :	Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus And Meter:	Panel signs, precision equipment ,etc.,
Instrument:	Panel signs nameplates, precision equipment ,etc.,
Hardware Tools :	Knives, tools, measuring tool, cutting tool, etc.,
Automobile Parts :	Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.,
Mechanical Parts :	Bearings, gears, standard parts, motors, etc.,
Daily Necessities :	Handicrafts, zipper, key holder, sanitary ware, etc.,
Jewelry Rings:	Jewelry, gold, silver,etc.
Food, drinking packing:	Plastic packings,etc.

Please advise us following inforamtion to recommend you most suitable machine:

1.What kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 200*200mm, 300*300mm, or customized as your demand.

Looking forward to your inquiry!!!
