Hand Hled Type for Fiber Laser Welding Machine with 1000W
Shenzhen Dapeng Laser Technology Co., Ltd.- Application：Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
- Technical Class：Continuous Wave Laser
- Control：Automatic
- Power Density：Deep Fusion Welding
- Laser Classification：Optical Fiber Laser
- Type：Optical Fiber Transmission Laser Welding Machine
Base Info
- Model NO.：DPH-1000SC-CW-CX-W
- Power：500W,1000W,1500W,2000W
- Brand：Dp
- Transport Package：Wooden Package
- Specification：600*1040*1200mm
- Trademark：DP
- Origin：Shenzhen China
- HS Code：8515809090
- Production Capacity：300units ,Month
Description
Continuous/modulationCentral radiation wave nm 1070-1090 Standard output power W 1000 Beam quality M2 1.3(20μ-QBH)/2.8(50μ-QBH) Modulation speed KHz 50 Pulse Width ms 0.1-50 Output power stability (long term) % <3% Power supply VAC 220V±10%,Single phase three line Power consumption kW 4 Maximum cooling water consumption M3/h 0.3 Size(W*D*H) mm 600*1040*1200 Weight kg 230
Main specification:
Welder head part:
The welder head is ergonomically designed for ease of use.

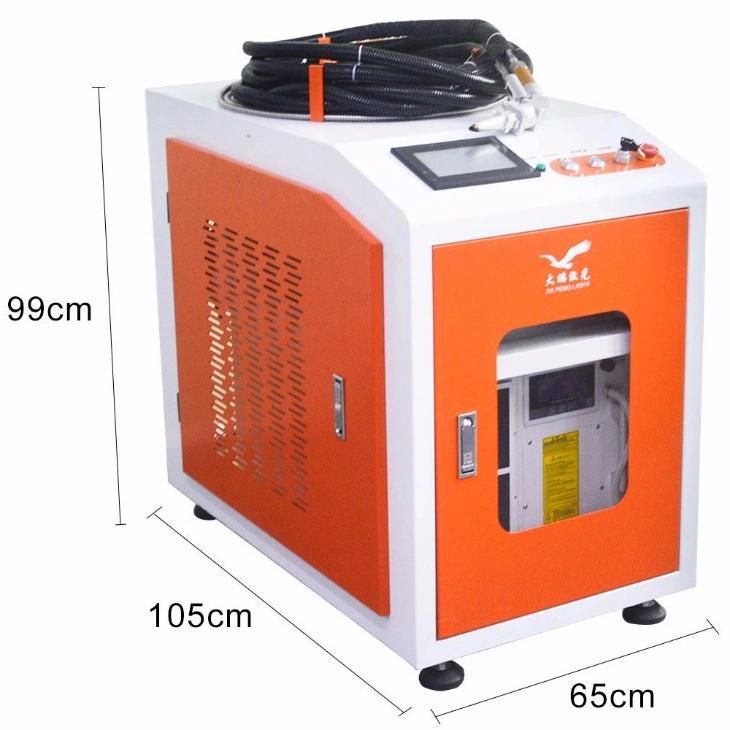

Fiber laser welding machine main body
Basic welding thickness and laser power comparison parameters (for reference only)
Main specification:
- Excellent beam quality(BPP)
- Constant over the full power range BPP
- A small spot can still be obtained with a long focal length
- Electro-optical conversion efficiency>25%
- Maintenance free operation
- Small design, easy installation
- Pump source life >100 Thousand hours
Welder head part:
The welder head is ergonomically designed for ease of use.
Fiber laser welding machine main body
Basic welding thickness and laser power comparison parameters (for reference only)
