• Model NO.：PEDB-100A
• Laser Wavelength：1064 Nm
• Laser Classification：Max Raycus
• Type：Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：20W
• Carving Line Speed：0-8000 mm,S
• Marking Speed：600-1000 Character,Min
• Marking Area：110X110mm(Standard) , 70X70mm(Optional)
• Working Desk Size：270X210 mm
• Wavelength of Laser：1064 Nm
• Beam Quality：M2<1.4
• Minimum Line Width：0.02mm
• Minimum Character：0.15mm
• Repeatability：0.002mm
• Transport Package：Wooden Case with Exporting Standard
• Specification：25KG
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. PEDB-100A Laser Wavelength 1064 Nm Laser Classification Max Raycus Type Fiber Laser Marking Machine Marking Method Scanning Marking Laser Power 20W Carving Line Speed 0-8000 mm/S Marking Speed 600-1000 Character/Min Marking Area 110X110mm(Standard) / 70X70mm(Optional) Working Desk Size 270X210 mm Wavelength of Laser 1064 Nm Beam Quality M2<1.4 Minimum Line Width 0.02mm Minimum Character 0.15mm Repeatability 0.002mm Transport Package Wooden Case with Exporting Standard Specification 25KG Trademark Perfect Laser Origin China HS Code 8456110090 Production Capacity 1000 Sets/ Month

Product Description

Portable Mini Fiber Laser Marking Machine For Metal Hard Plastics

                                                                                      (Model:PEDB-100A)



Contact:Crystal


Product Description of Laser Machine:

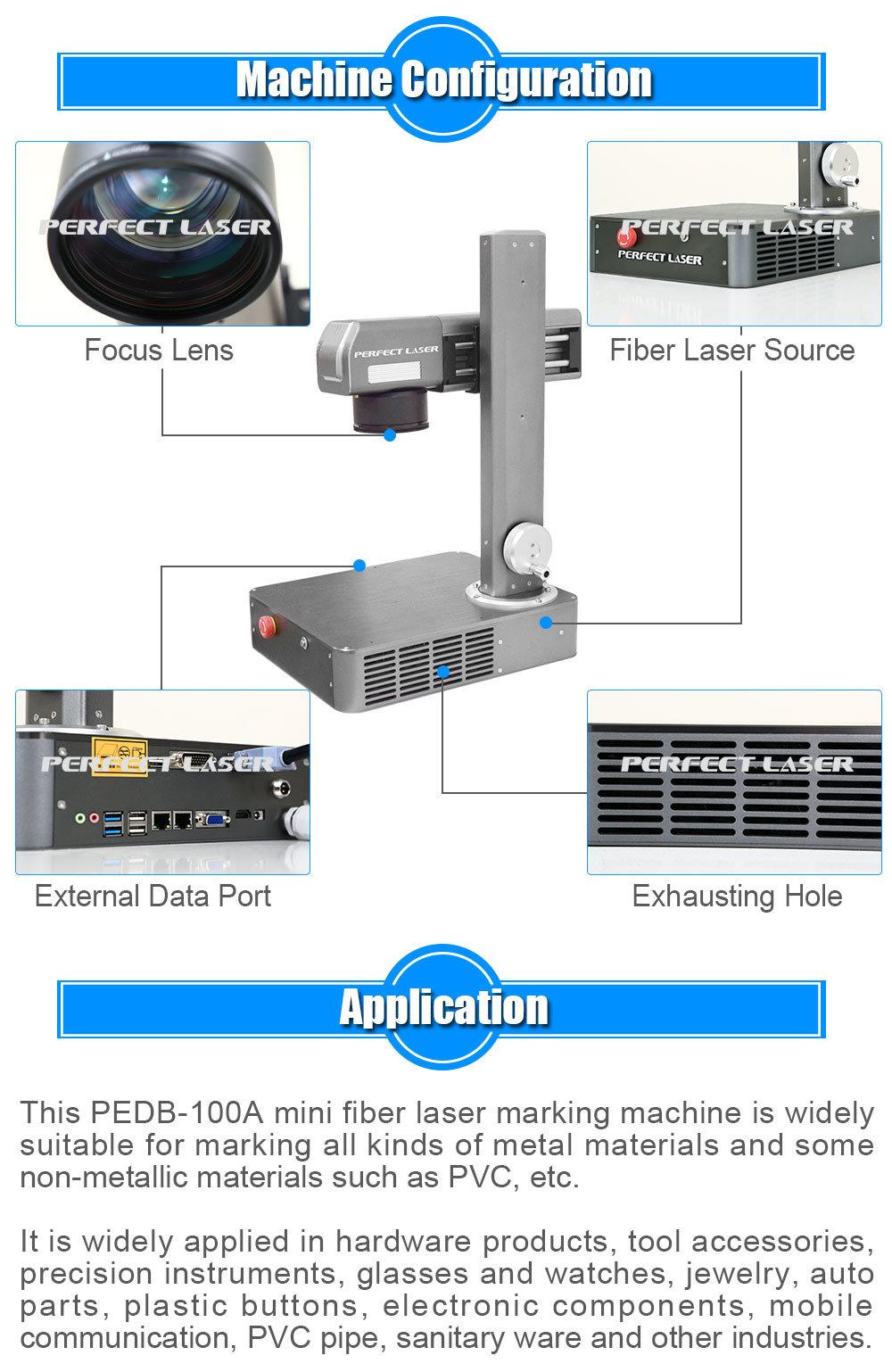

The PEDB-100A intelligent mini laser marking machine integrates four core components such as fiber laser, 8mm high-speed galvanometer, power supply and genuine marking system.This mini laser marking machine realizes the integration of multi-card into one card and card and multi-source power supply into a single source power supply.It is a small-volume, lightweight, fast-speed, high-flexibility, cost-effective mini laser marking machine.

Main Features of Laser Machine:1. This mini laser marking machine has beautiful appearance, compact structure and small floor space.
2. The laser light pulse of the small laser engraving machine is narrow, the peak power is high, and the repetition frequency range is wide.
3.This tabletop laser engraving machine has low power consumption and high usability.
4. This mini laser marking machine is easy to operate with high reliability and long service life.
5. There is no consumables or wearing parts of this tabletop laser engraving machine.
6. The small laser engraving machine will not cause shadows and virtual breaks when processing special materials.

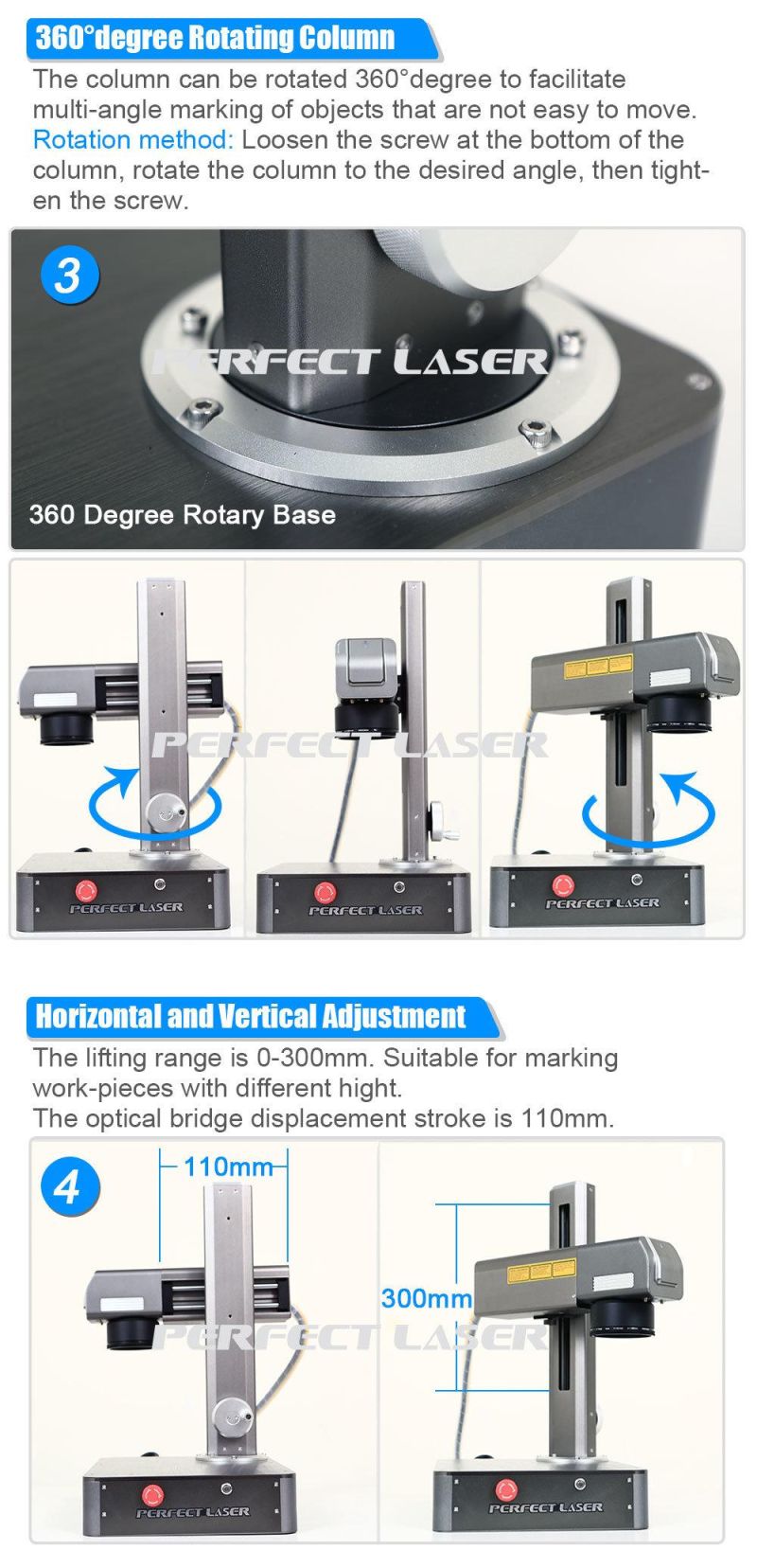

7. The column of the mini laser marking machine can be rotated 360° to facilitate multi-angle marking of objects that are not easy to move.

Product Application of Laser Machine:

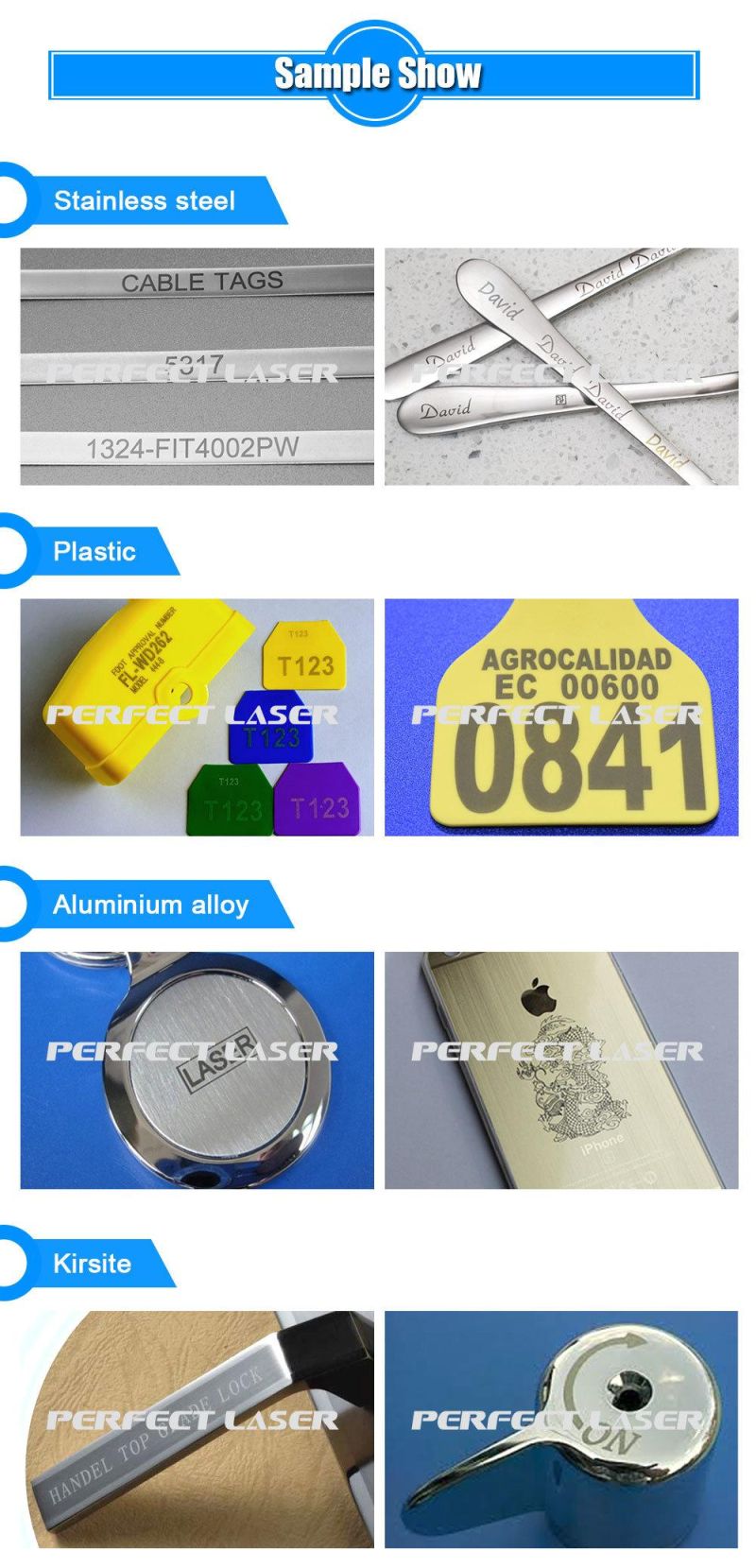

1.Applicable materials: this mini laser marking machine is widely suitable for most metal materials, PVC, etc.
2.Applicable industries: the small laser engraving machine is widely applied in hardware products, tool accessories, precision instruments, glasses and watches, jewelry, auto parts, plastic buttons, components, mobile communication, PVC pipe, sanitary ware and other industries.



Technical Data of Laser Machine:

Model	PEDB-100A Mini Laser Marking Machine
Laser Type	Fiber Laser (Brand:Max)
Laser Power	20w
Laser Wavelength	1064 nm
Beam Quality	M2<1.4
Modulation Frequency	30-60 khz
Carving Line Speed	0-8000 mm/s
Marking Speed	600-1000 Character / min
Focus mode	Manual / Auto
Minimum Line Width	0.02 mm
Minimum Character	0.15 mm
Marking Size	110mm×110mm (Standard) 70mm×70mm (Optional)
Repeatability	±0.002 mm
Cooling Method	Air Cooling
Use environment	Clean or less dust
Working Temperature	10-35 ºC
Machine Power	≤ 160 W
Voltage	AC220V±10%,50 HZ
Working Desk Size	270mm×210mm
Lifting Range	0-300mm
Column Rotation Angle	360°
Light Bridge Displacement Stroke	110mm
Operating Temperature	0ºC-60ºC
Storage Temperature	-40ºC-85ºC
Humidity	5% -95% relative humidity, no condensation

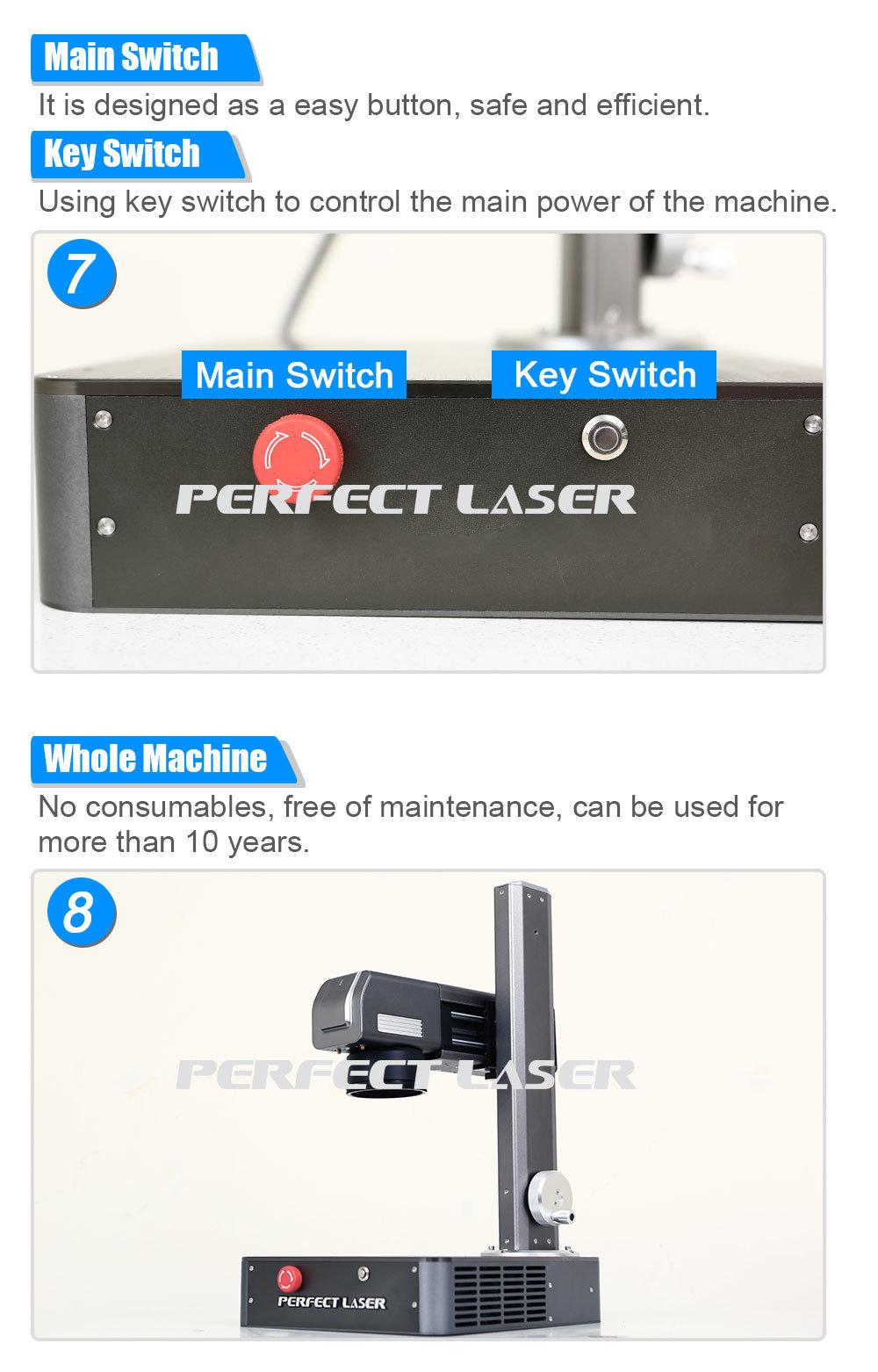

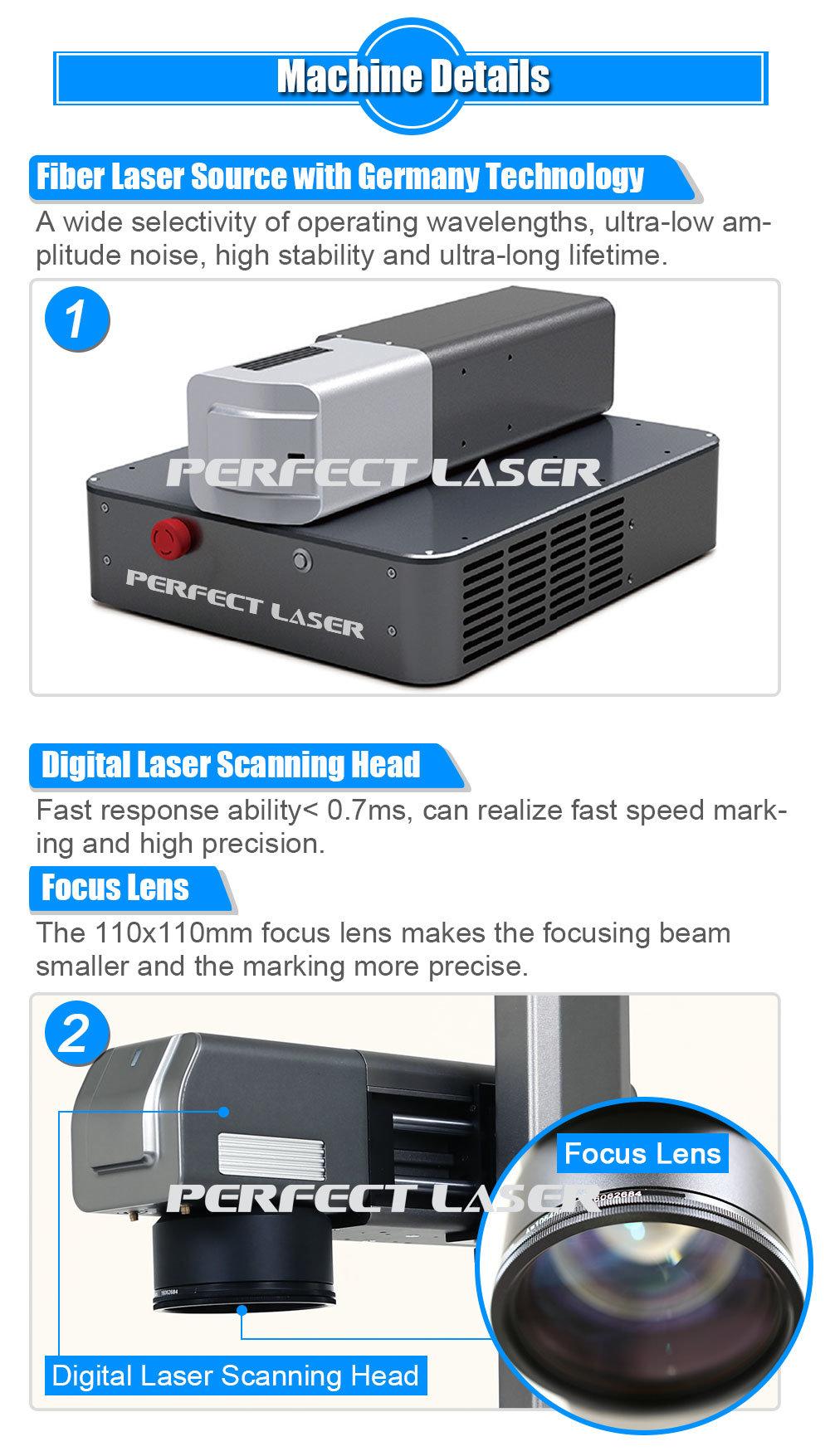

Machine Details of Laser Machine:


Our Company:
We, Perfect Laser, as a 21 years history industrial equipment manufacture in laser field, 13 year Golden Supplier in Alibaba, with CE/ISO certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
