• Model NO.：SIGN-1390
• Laser Classification：Free Electron Laser
• Engraving Method：Vector Engraving
• Laser Type：CO2
• Working Area：1300*900mm
• Cooling：Water Chiller
• Laser Tube：Reci
• Graphic Format：Ai, BMP, Dst, Dxf, Plt
• Engraving Speed：0-70000mm,Min
• Certification：CE, FDA
• Power Supply：220V or 110V
• Control System：Ruida
• Cutting Speed：0-40000mm,Min
• Transport Package：Standard Export Wooden Box
• Specification：1 set
• Trademark：SIGN CNC
• Origin：Chine
• HS Code：8456110090
• Production Capacity：300,Month

Basic Info.

Model NO. SIGN-1390 Laser Classification Free Electron Laser Engraving Method Vector Engraving Laser Type CO2 Working Area 1300*900mm Cooling Water Chiller Laser Tube Reci Graphic Format Ai, BMP, Dst, Dxf, Plt Engraving Speed 0-70000mm/Min Certification CE, FDA Power Supply 220V or 110V Control System Ruida Cutting Speed 0-40000mm/Min Transport Package Standard Export Wooden Box Specification 1 set Trademark SIGN CNC Origin Chine HS Code 8456110090 Production Capacity 300/Month

Product Description

Co2 cnc laser machine / laser engraving cutting machine price / laser cutting machine
Product Description:

Adopt international linear rail HIWIN, more precision.
USB offline control system.
The front and back of the machine have channel which is possible for longer material, break through the limit of the work piece length
Famous Leadshine driver
High quality water cooler, protect stable radiation and prolong the life time of laser.

Standard machine parts:


Machine frame and parts	1 set
Co2 Beijing Reci laser tube	1 pc
Laser power	1 pc
Laser head	1 set
Lens	3 pc
Mirror	1 pc
Ruida control card RD6445	1 set
Software RDworks	1 set
Stepper motor	2 pc
Stepper diver	2 pc
Blade working table	1 set
Water chiller	1 pc
Air pump	1 pc
Exhaust fan	1 pc
Pipe of exhaust	1 pc
Tool box	1 set
Cable of power on the machine	1 set
Wood box	1 set

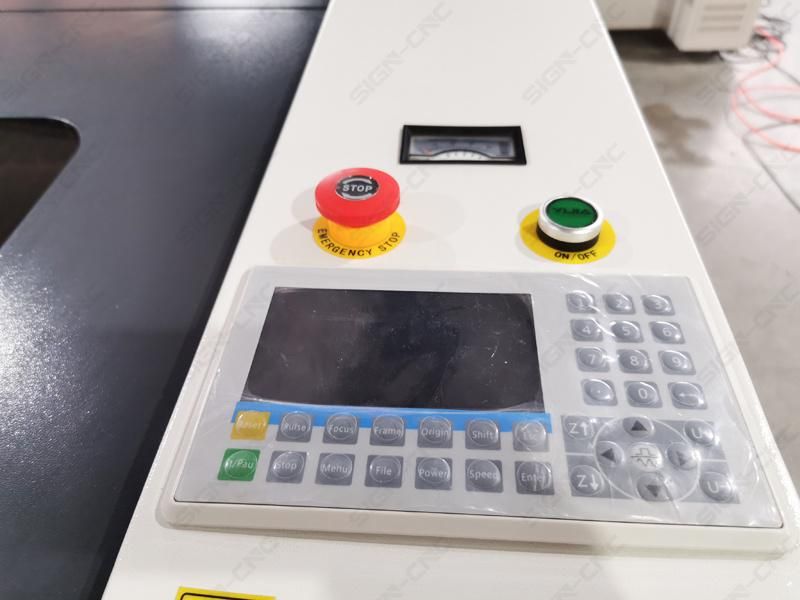

Pictures of machine:





Applicable Industries:

Advertisement, arts and crafts, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry.

Applicable Materials:

Non-metal materials such as label, rubber, marble, granite glass, tiles, paper boards, leather, fur, embroidery, PVC, acrylic, plastic, MDF, wooden plates, garment and paper ware etc.

Technical Parameters:


Model	SIGN-1390
Cutting area	1300*900mm
Laser power	Beijing Reci laser tube
Laser type	Co2 sealed laser tube, water-cooled
Control system	Ruida
Engraving speed	0-60000mm/min
Cutting speed	0-40000mm/min
Laser output	1-100% software setting
Resetting positioning accuracy	≤±0.01mm
Power supply	220v, 50hz/60hz
Operating temperature	0 degree-45 degree
Operating humidity	5-95%
Min shaping character	English 1.0*1.0mm
Graphic format support	BMP, PLT,DST,DXF,AL
Software supported	TAJIMA, CoreIDraw, Photoshop, AutoCAD
Driving system	Stepper motor
Cooling mode	Water Chiller
Recommended spare parts	Laser tube and lens
Warranty	Two years

Optional items:

1. Rotary axis: to engrave cylindrical shape materials, such as pens, bottles and so on.
2. Up/down table: to adjust the height of table, for putting 300mm depth materials.
3. Red dot: The laser is invisible. Red dot shows the position of the laser on the material,, quickly find the position.
4. Honeycomb platform: Engraving and cutting soft materials like paper, leather and so on.
5. Auto-focus: working together with up/down table to adjust the focus distance automatically.
