• Model NO.：LK-LWF
• Power Density：Deep Fusion Welding
• Laser Classification：Optical Fiber Laser
• Type：Automatic Laser Welding Machine
• Laser Wavelength：1064um
• Laser Welding Depth：0.1-0.5mm
• Adjustment Range of Light Spot：1.8mm
• Warranty：1 Year
• Certificate：CE, ISO9001, FDA
• Length of Optical Fiber Wire：5m 10m 15m Selectable
• Transport Package：Wooden Case
• Specification：850*950*1350mm
• Trademark：LK
• Origin：China
• HS Code：8515809010
• Production Capacity：500sets , Month
• Package size per unit product：165.00cm * 98.00cm * 168.00cm
• Gross weight per unit product：380.000kg

Basic Info.

Model NO. LK-LWF Power Density Deep Fusion Welding Laser Classification Optical Fiber Laser Type Automatic Laser Welding Machine Laser Wavelength 1064um Laser Welding Depth 0.1-0.5mm Adjustment Range of Light Spot 1.8mm Warranty 1 Year Certificate CE, ISO9001, FDA Length of Optical Fiber Wire 5m 10m 15m Selectable Transport Package Wooden Case Specification 850*950*1350mm Trademark LK Origin China HS Code 8515809010 Production Capacity 500sets / Month

Packaging & Delivery

Package size per unit product 165.00cm * 98.00cm * 168.00cm Gross weight per unit product 380.000kg

Product Description

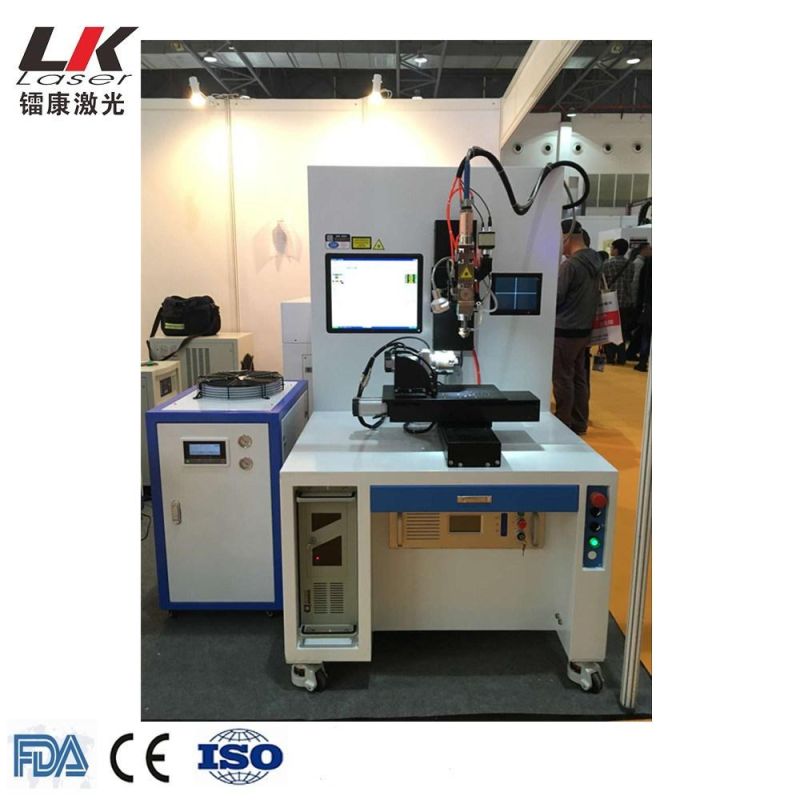

4 axis laser soldering machine price rotary laser welder on metal automatic portable laser welding machine

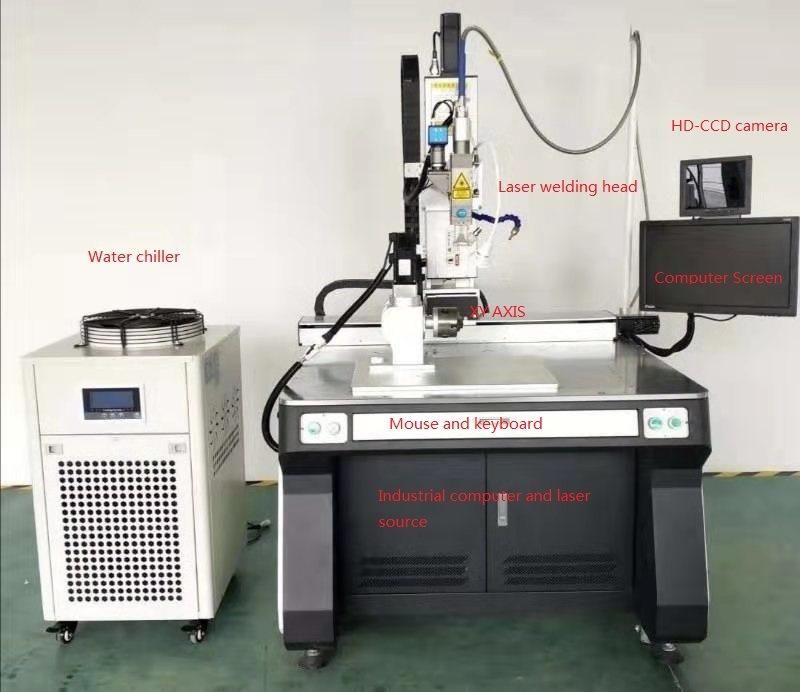

Laser continuous welding machine is including power system, laser system, operation system ,and cooling system, the welding speed is faster than traditional optical fiber laser welding machine,absolutely satisfy every clients requirements

Specfication
Good laser beam ,high speed welding ,nice welding result , bring high output and perfect working plan to the user,The proportion of welding width and welding deep is 10:1, having smooth welidng spor and nice welding seam, without any air hole ,It is stronger and mmore toughness than original metal materil,
High conversion between  electrical power and laser , low consumption ,save cost
Stable system , 24 housr continuous working
The machine is fit for customization, which can customize by client's require



Technical Parameters

Model	LK-LWF500	LK-LWF1000
Max.Laser Power	500W	1000W
Laser type	Optica fiber laser	Optical fiber laser
Laser Wavelength	1070um	1070um
Working style	continuous	continuous
Average consumption power	2000w	4000w
Diameter of optical fiber wire	50um	50um
Size of welding spot	0.2mm	0.2mm
Length of optical fiber wire	5m 10m 15m selectable	5m 10m 15m selectable
Cooling System	Water cooling	Water cooling
Power Supply	AC220VAC/380VAC+-15%/50HZ/25A	AC220VAC/380VAC+-15%/50HZ/25A

Feature
Greater flexibility the system can install 1-4 fiber optical laser head
High-energy laser beam with power energy feedback
Flexible welding for difficult welding parts
Stable laser welding system with long working hours

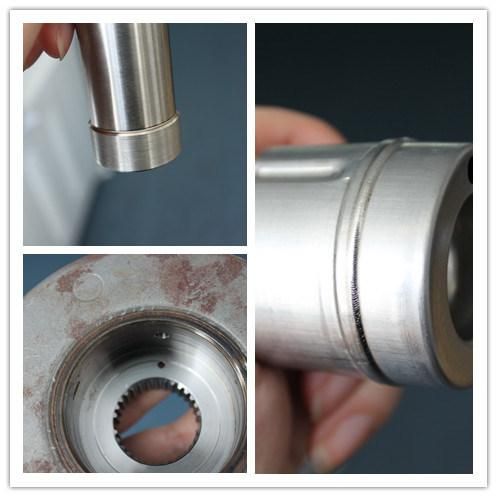

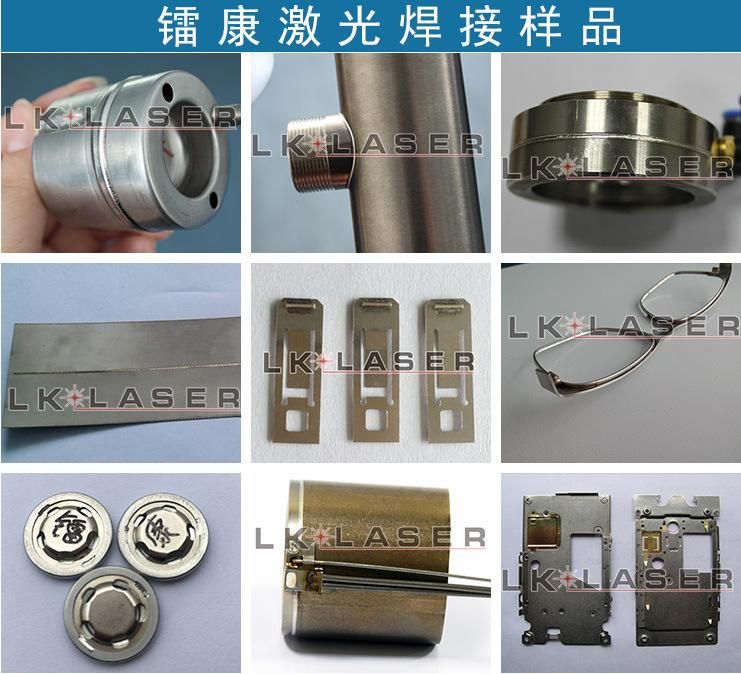

Application & Material
This machine is fit for golden ,silver,titanium ,nickel ,tin,aluminum,stainless steel, copper wihch is widely use in Aerospace industry ,Marine manufactur industry., Instrumentation manufactur industry, electromechaincal equipment, vehicle manufacturing etc.


Packing &Shipping

1.Standard plywood case, its compressive strength and bearing quality is better.
2.the board area is bit, the soil structure is good,  it is better in leakproofness and waterproof.
3.when importing, the plywood case is with fumigation-free, the procedure is simple.
4.Delivery Detail: within 3-5 days after received your payment

Our Service

1.One year quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery
