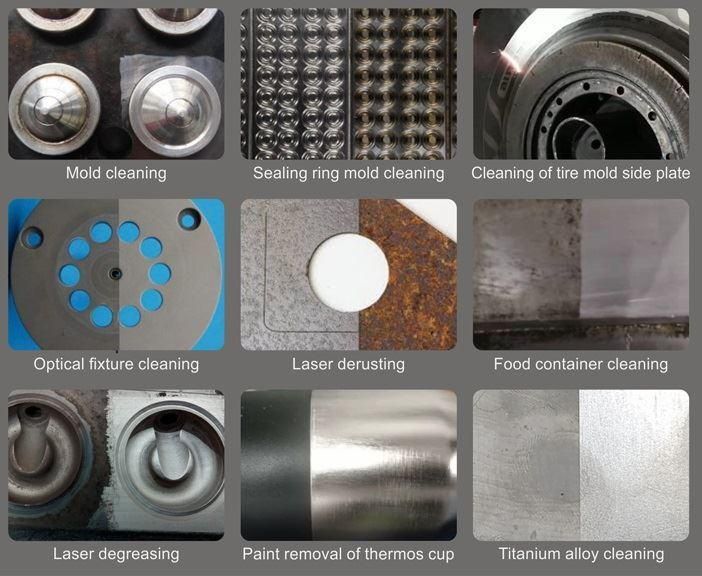

Affordable Automatic Portable Handheld Laser Cleaning Machine for Rust Removal Paint Stripping Coating Removal Oxide Plating Oil Stain Dirt
Fortune Laser Technology Co., Ltd.- Power：100w
- Control Type：Handheld
Base Info
- Model NO.：FL-C100
- Warranty：1 Year
- Laser Power：50W 100W 200W Optional
- Laser Source：Jpt,Max,Raycus Optional
- Fiber Cable Length：1.5m-3m, 2-5m
- Laser Wavelength：1060nm
- Pulse Energy：1mj, 1.5mj
- Pulse Frequency：1-3000kHz
- Cooling：Air Cooling
- Dimension：538mm*411mm*685mm
- Transport Package：Standard Wooden Case
- Specification：538mm*411mm*685mm
- Trademark：FORTUNE LASER
- Origin：China
- HS Code：8456110090
- Package size per unit product：98.00cm * 68.00cm * 64.00cm
- Gross weight per unit product：95.000kg
Description

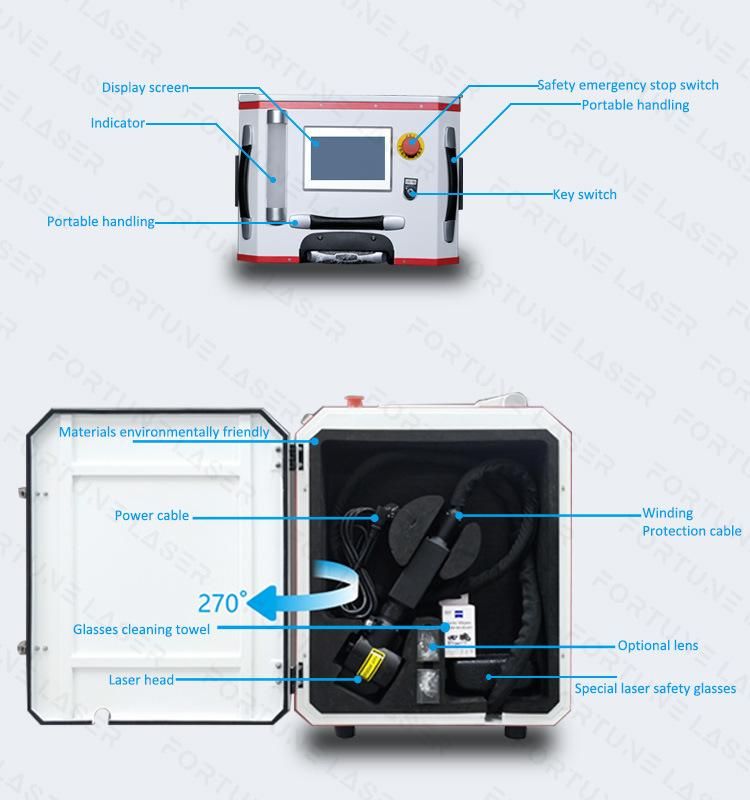

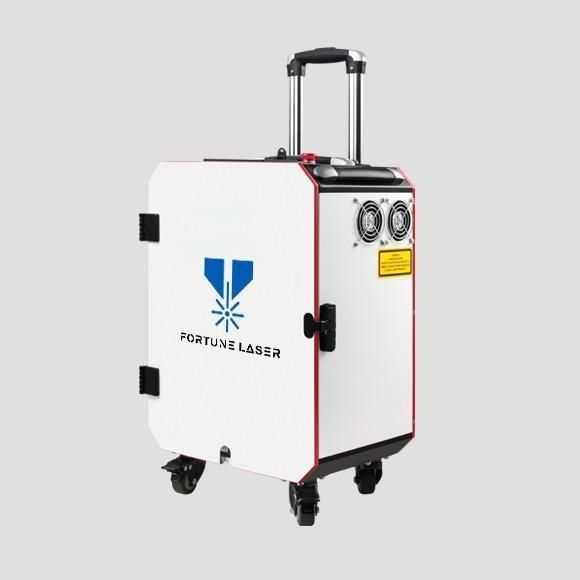

Suitcase type is same as a travel case, very easy to take along and move.

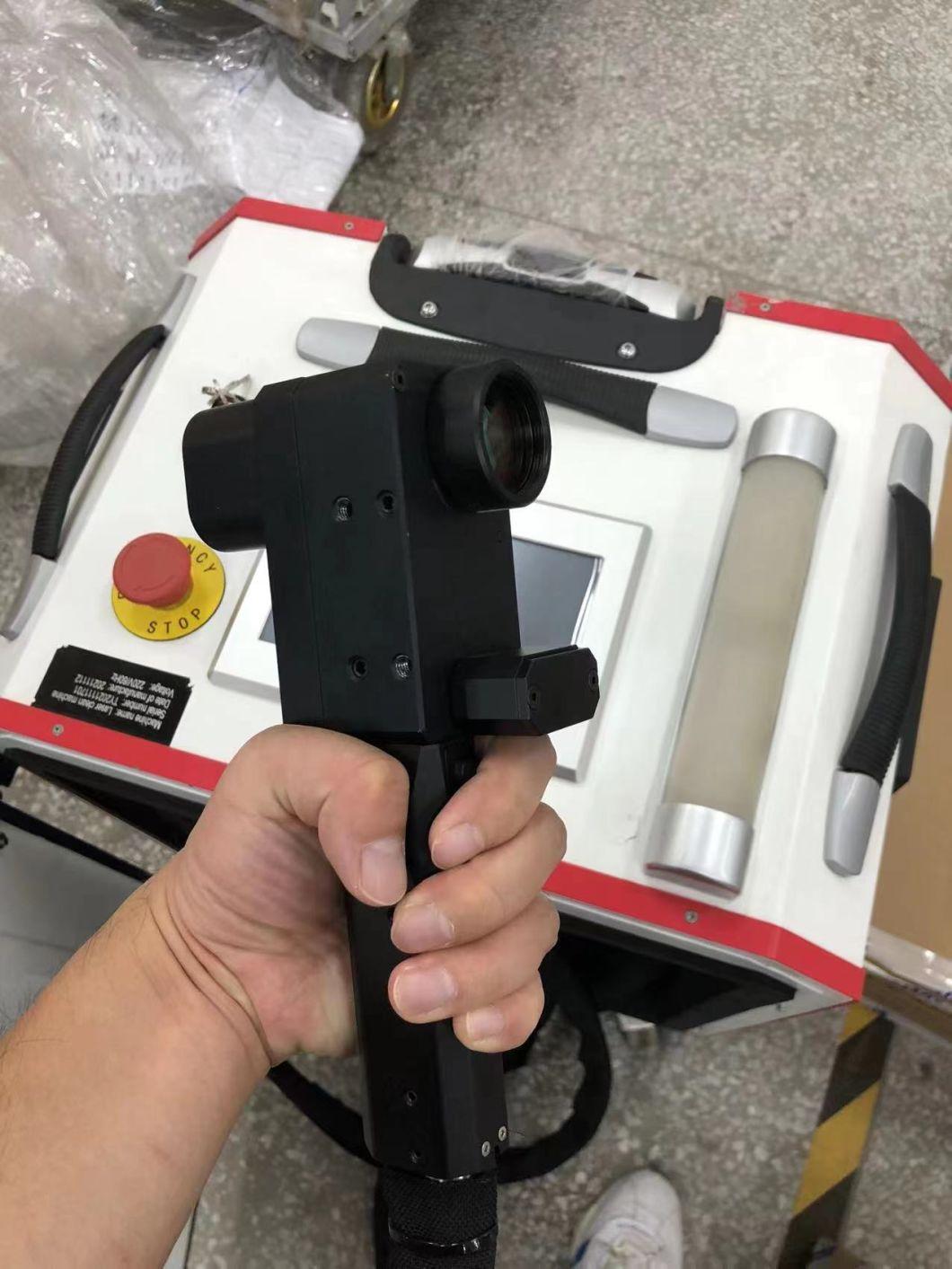

Laser head, lightweight to carry, easy to operate, output different share laser beam, like wave, circle and square.
Machine Parameters
| Model | RL-C200S | RL-C100S | RL-C50S |
| Laser source | Fiber | Fiber | Fiber |
| Laser Power | 200W | 100W | 50W |
| Fiber cable length | 2-5M | 2-5M | 1.5-3M |
| Laser Wavelength | 1064nm | 1064nm | 1064nm |
| Pulse Energy | 1.5 mJ | 1.5 mJ | 1mJ |
| Pulse frequency | 1-4000KHz | 1-4000KHz | 1-1000KHz |
| Scanning speed | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s |
| Cooling | Air cooling | Air cooling | Air cooling |
| Dimension | 600*350*800mm | 408*270*575 mm | 300*160*450mm |
| Net Weight | 60KG | 33KG | 18KG |
| G.W. | 95KG | 95KG | 21KG |
| Beamwidth | 10-170mm | 10-100mm | 10-70mm |
| Optional | Manual/Auto | Manual | Manual |
| Cleaning Head | Dual Axis | Dual / Single Axis | Single Axis |
| Temperature | 5-40 ºC | 5-40 ºC | 5-40 ºC |
| Voltage | Single Phase AC 220V,50/60HZ | Single Phase AC 220V, 50/60HZ | Single Phase AC 220V, 50/60HZ |
