• Model NO.：HJZ-DB01
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Output Power：20W, 30W, 50W
• Engraving Speed：9000mm,S
• Operating Voltage：110-240V
• Graphic Format Supported：Ai, BMP, Dst, Dwg, Dxf, Dxp
• Marking Area：110*110mm, 175*175mm, 220*220mm, 300*300mm
• Certification：Ce.FDA
• Condition：New
• Application Material：0.1-2mm
• Process Material：Metal and Some Non-Metal
• Delivery Time：1-3days
• Laser Source：Raycus
• Lifespan：Over 20, 000hours
• Warranty：3 Years
• Control Software：Ezcad Software
• Name：30W Nonmetal Engraving Machine
• Transport Package：Standard Plywood Packing for Export
• Specification：70*20*50cm
• Trademark：HZJ
• Origin：Wuhan, China
• HS Code：84561000
• Production Capacity：600sets,Month

Not includes PCIncludes PCLaser SourceNominal average output power10W - 30W
10W - 50W Central emission wavelength1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%Emission Bandwidth
(FWHM)<10 nmLong-term average power instability<5%Pulse width, (FWHM)100 nsPulse Repetition Rate* kHz20-80 kHzEnergy per pulse (PRR = 20 kHz)0.95 mJTypical beam quality, M2<1.8Output fiber delivery length3mOperating voltage220VNet Dimensions70*20*50cm58*22*50cm 80*38*72cm 143*62*101cmNet Weight44 kgs53 kgs 130 kgsGross Weight60 kgs70 kgs 200 kgsLaser systemScanning Speed0-7000mm/sMarking Speed0-5000mm/sMarking size110mm×110mm (F-theta 160)Spot size≤ 40 micron (F-theta 160)Cooling unitAir cooledPilot laser650nm diode laser, visible red light for marking guideContinuous working time≥16hHumidity45~85% (no condensation)Operating temperature0~40ºCControl unitsLaser Mark (English Version)

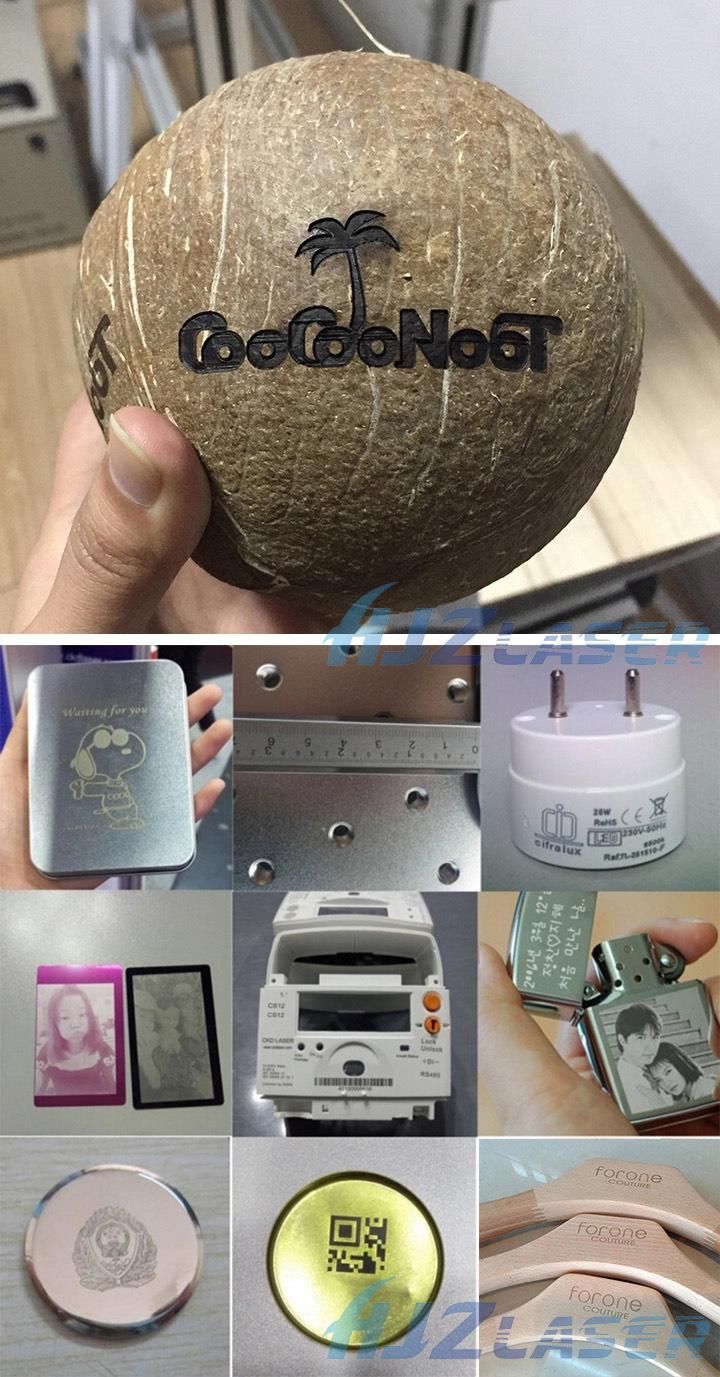

marking samles



marking samles








Wooden packing for export




Pre-sale service:
1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make laser engraving/cutting solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test, etc.

After-sale service:
1) 1 year warranty for laser metal marking machine;
2) Offer lifelong repair;
3) Engineers available to service machinery overseas.
4) Multi language service;
5) Offer 24 - hour technical support.

Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.

Guarantee:
We offer free Two-year warranty and durable maintenance&repair support for the purchased machines. Within the warranty time, we are responsible for the cost-free repair once the equipment fail or the machines break down(except human factor and force majeure causes) and we shall offer the replacement parts for free(except consumed parts). During the non-warranty time, we just charge the flat cost based on actual cost of repair.


FAQ
Q: Are you trading company or manufaurer ?
A: We are factory. And we have been in the laser field for 10 years.

Q: How long is your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
