• Model NO.：MT-DF80
• Laser Classification：CO2 Laser Tube
• Type：CO2 Laser Marking Machine
• Marking Method：Scanning Marking
• Wavelength：10.6um
• Max.Marking Speed：<8000mm,S
• Max.Marking Depth：≤0.5mm
• Repetition Precision：0.01mm
• Response Time：0.8ms
• Gross Power：<1.5kw
• Power Source：AC110V,220V ± 10%, 50,60Hz
• Cooling Mode：Water Cooling
• Humidity：5% to 85%
• Working Conditions：Clean, Less Dust
• Transport Package：Standard Export Wooden Case
• Trademark：Mactron
• Origin：Guangdong, China
• HS Code：8456100090
• Production Capacity：200sets,Month

Basic Info.

Model NO. MT-DF80 Laser Classification CO2 Laser Tube Type CO2 Laser Marking Machine Marking Method Scanning Marking Wavelength 10.6um Max.Marking Speed <8000mm/S Max.Marking Depth ≤0.5mm Repetition Precision 0.01mm Response Time 0.8ms Gross Power <1.5kw Power Source AC110V/220V ± 10%, 50/60Hz Cooling Mode Water Cooling Humidity 5% to 85% Working Conditions Clean, Less Dust Transport Package Standard Export Wooden Case Trademark Mactron Origin Guangdong, China HS Code 8456100090 Production Capacity 200sets/Month

Product Description

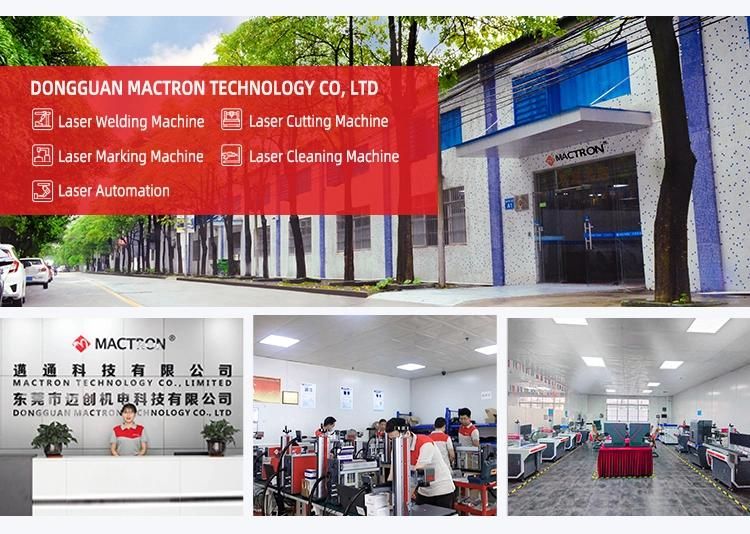

Company Information
Dongguan Mactron Technology Co., Ltd (Mactron Technology Co., Limited) mainly manufactures and sells products like Fiber Laser Marking Machine, UV Laser Marking Machine , Co2 Laser Marking Machine, Laser Printer, Co2 laser cutting and Engraving Machine, Fiber Laser Cutting Machine, Laser Flat Bed, Customized Laser Equipment and a full laser spare parts. The laser equipment system is widely used in many fields, including textiles, leather, clothing, industrial fabrics, advertising, technology products, printing, packaging, electronics, pharmaceuticals, furniture, hardware tools, molds, and other industries.




Mactron Technology's business tenet is "Do Honest Bussiness ".
Mactron Technology's managerial spirit: "Solidarity, Exertion, Truthfulness, Innovation"


Certifications


Product Description

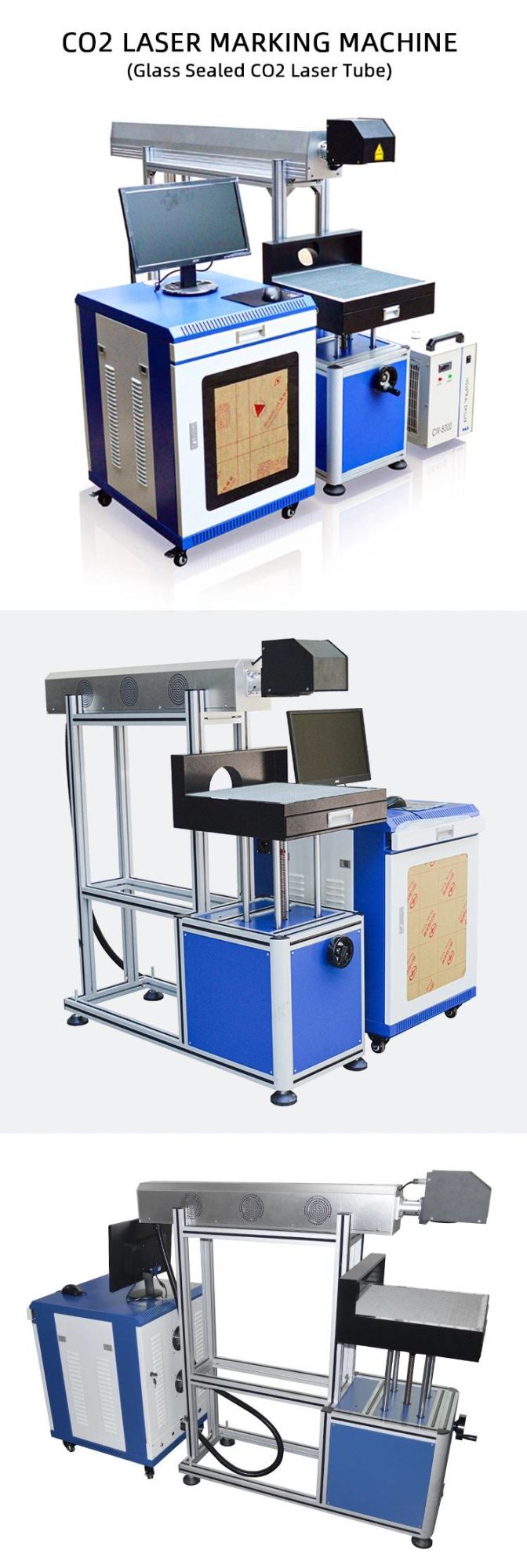

MT-DF Series CO2 Glass Tube Laser Marking Machine is a new generation of laser marking machines. The design is based on traditional laser marking machines, and the performance es more excellent.
The laser system adopts the industrial standardization design and uses a new generation glass CO2 laser tube. In addition, it is also equipped with high-speed galvo scanner and extending focusing system.
The machine also has the high stability and anti-intervention industrial computer system, and high precise lifting platform.  It can work on a continuous 24 working hours in high stability, high precision and high speed.
The co2 glass tube laser marker greatly lowers the processing cost, and it is very cost-effective.




Model	MT-DF80
Laser Power	80W
Laser Type	CO2 Laser
Processing Area	110*110MM/175*175MM,200*200MM,300*300MM, 600*600MM,800*800MM(Optional)
Wavelength	10.6um
Max.Marking Speed	<8000MM/S
Max.Marking Depth	≤0.5MM
Repetition Precision	0.03MM
Response Time	0.8ms
Cooling Mode	Water Cooling
Graphic Formats Supported	PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Power source	AC110V/220V ± 10%, 50/60HZ
Gross Power	<1.5KW
Operating temperature	10ºC-30ºC
Warranty	1 Year
Humidity	5% to 85%
Working Conditions	Clean, Less Dust

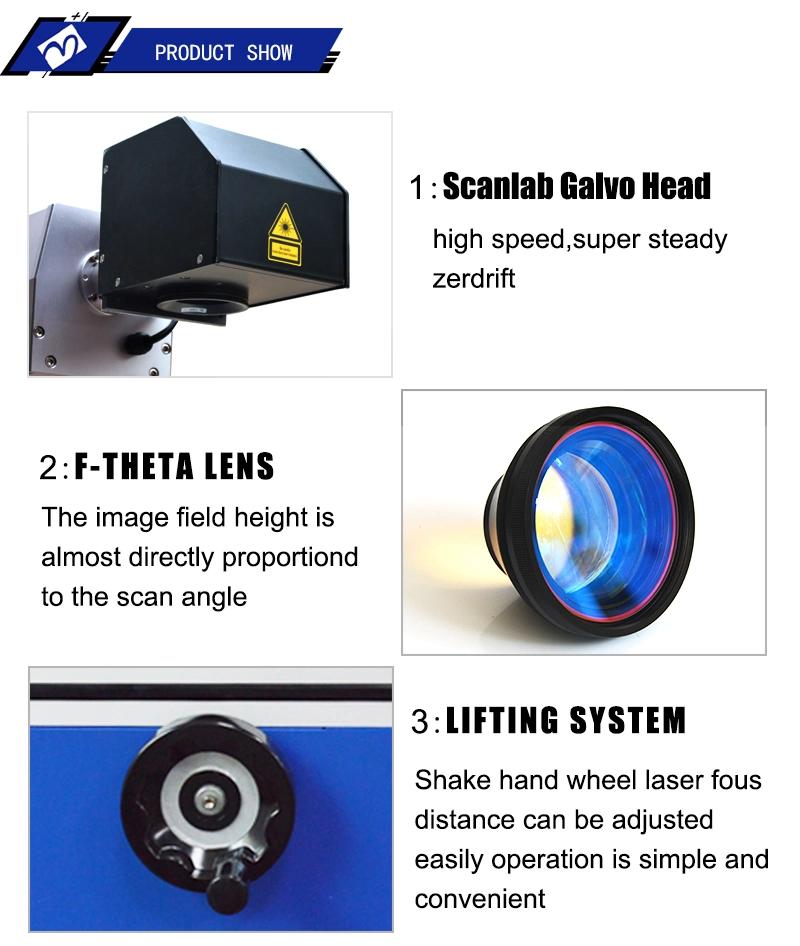

Product Show




Product Samples

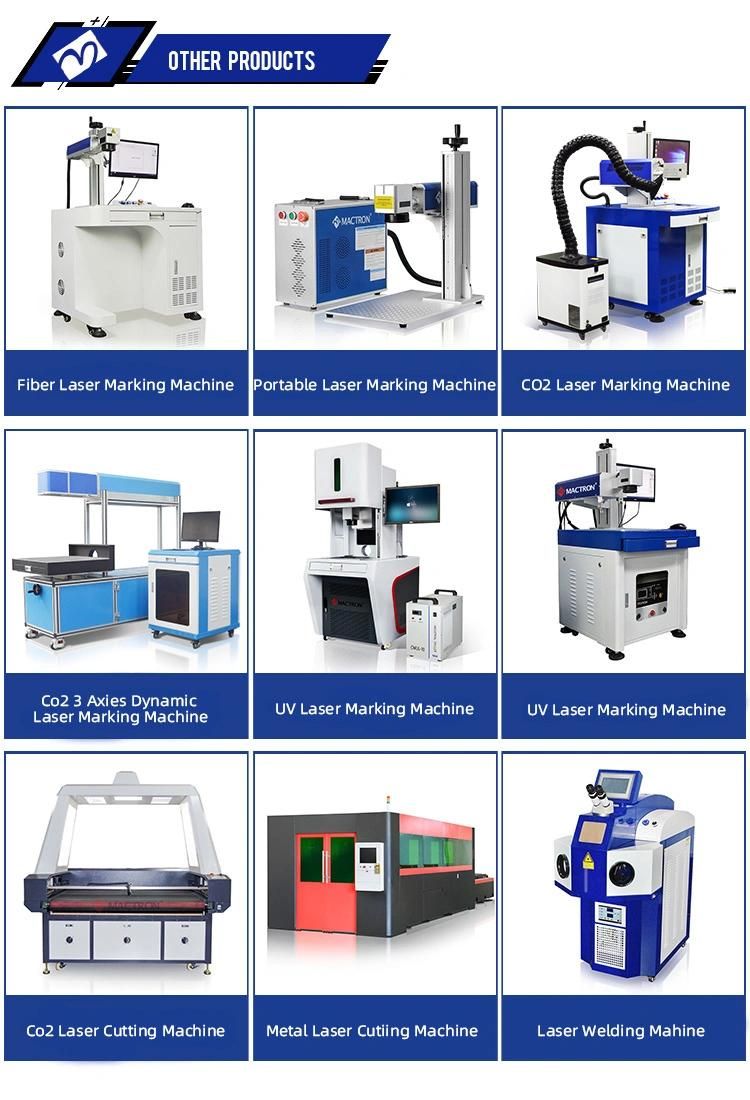

Other Products


Packaging & Shipping


FAQ
Q1: How can I get the best co2 laser marking machine for me?
You can tell us your working material, detailed work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depending on our experience.

Q2: This is the first time I use this kind of co2 laser marking machine, is it easy to operate?
We can teach on the Internet. In addition, We can also arrange our technician to customers' factory for machine training or customers can come to our factory for machine training.

Q3:What's the guarantee, in case the co2 laser marking machine breaks down?
The machine has one year guarantee. During the warranty, any problem occurs during the warranty, you can connect us, we provide 24-hour online service, professional engineers are available at your service. In addition, we will provide the parts required free of charge by express, but as for the parts damaged by artificially, it does not fall within our warranty list. After the warranty, we still provide lifetime service.

Q4:How long is the delivery time of the co2 laser marking machine?
For standard machines, it would be 7-10 working days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 working days.

Q5: How is your packing?
We have 3 layers package. For the outside, we adopt a plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by a waterproof plastic bag.

Q6: Which countries are your laser machinery sold to?
Our laser machines sell all over the world, such as the United States, Mexico, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, UK, Germany, Poland, Spain, Romania and many other countries.
