80W 100W 130W 150W CNC Laser Engraving Machine 1390 CO2 Laser Engraver Cutter with Autofocus System
Redsail Technology Co., Ltd.- After-sales Service：Free 24-Hour Online After-Sales Service.
- Warranty：Full Life Free Service
- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Pulse Laser
- Applicable Material：Nonmetal
Base Info

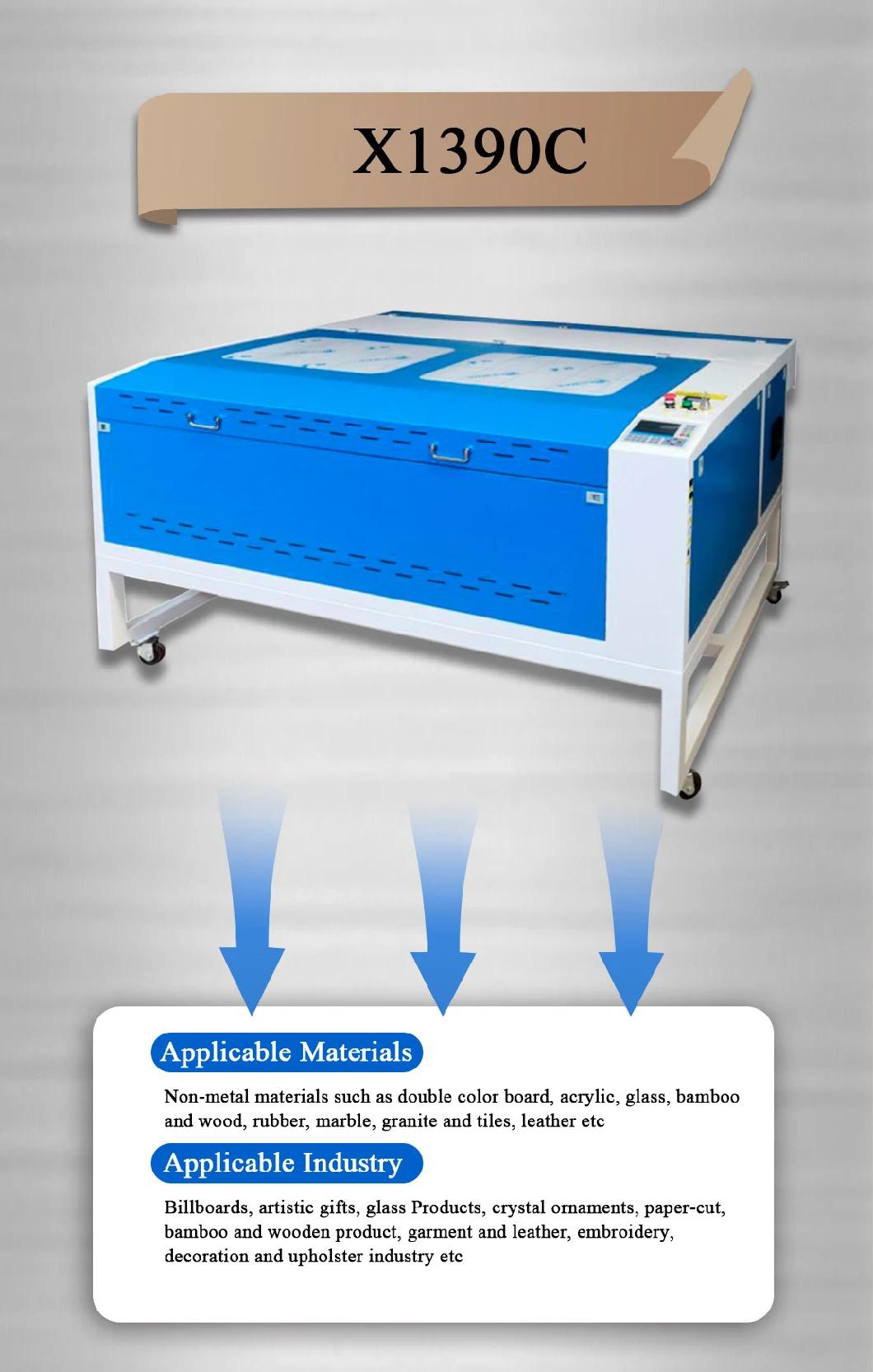

- Model NO.：X1390C
- Structure Type：Gantry Type
- Laser Classification：Free Electron Laser
- Laser Technology：Laser Vapor Cutting
- Working Size：1300mm*900mm
- Laser Power：80W
- Adjust Table：Electric
- Working Table：Blade Platform
- Driver：Stepper Motor
- Engraving Speed：0-1000mm,S
- Max Speed：1000mm,S
- Color：Blue,White
- CNC or Not：Yes
- Graphic Format：Ai, BMP, Dxf, Dxp, Plt
- Controller System：Rdworks
- Control System：DSP

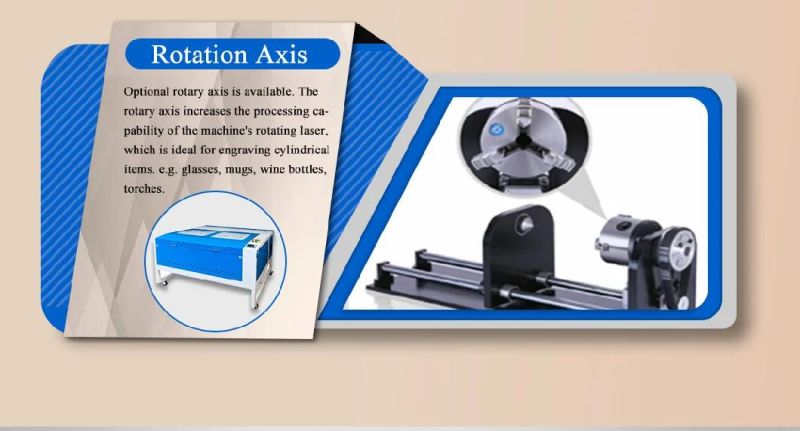

- Rotary：Yes
- Auto Focus：Yes
- Red-DOT：Yes
- Transport Package：1960mm*1400mm*1110mm
- Specification：3.05 Cu. m
- Trademark：REDSAIL
- Origin：China
- HS Code：8456110090
- Production Capacity：2000
Description
Product Description
Detailed Photos
Our Advantages
Company Profile
After Sales Service
- FAQ
Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.
Q: Do the laser machines need to be connected to a laptop or desktop computer to work?
A: Yes, either is ok. It supports Windows 10, Windows 2000, Windows XP, Win 7, and other operating systems
Q: What kind of graphic format does it support?
A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
Q: How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger) 3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 40W, 50W or 60W.
Q: Is it better to increase blow to improve laser processing performance?
A: For some thick materials, it works. But, when carving some other materials, you need to blow less.
Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes.
