Metal Fiber Laser Cutting Machine High Precision for Stainless Steel
Zhejiang Holy Laser Technology Co., Ltd.- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry, Iron, Stainless Steel, Aluminum, Gold, etc.
- Cooling System：Water Cooling
- Technical Class：Pulse Laser
- Applicable Material：Metal
- Structure Type：Gantry Type
- Laser Classification：Semiconductor Laser
Base Info
- Model NO.：GQ-6060
- Laser Technology：Laser Control Fault Cutting
- Laser Power：500W , 800W , 1000W , 2000W
- Laser Wavelength：1080mm
- Lasing Midium：Yvo4
- X Axis Route：600mm
- Y Axis Route：600mm
- Carbon Steel Cutting Thickness：6mm,8mm
- Max Travel Speed：30m,Min
- Machine Packing：Continer
- Transport Package：Continer
- Specification：FCC, SGS, FDA, CE, TUV
- Trademark：Holy Laser
- Origin：Yiwu, Zhejiang, China
- HS Code：8456100090
- Production Capacity：500set,Year
Description
Model
GQ-6060-S
Max. Cutting area
600*600mm
Laser Power
300L/500W/800L/1000W/1200W/1500W
≤0.15mm
Working environment
0-45ºC, humidity≤80%, No condensation
Temperature
15-30ºC
Power supply
3V/50HZ
Cutting thickness
300L
500W
800L
1000W
Stainless steel
0.5-1.5mm
0.5-2.5mm
0.5-3.5mm
0.5-5mm
Carbon steel
0.5-2.5mm
0.5-3.5mm
0.5-4mm
0.5-8mm
other material will have different cutting thickness

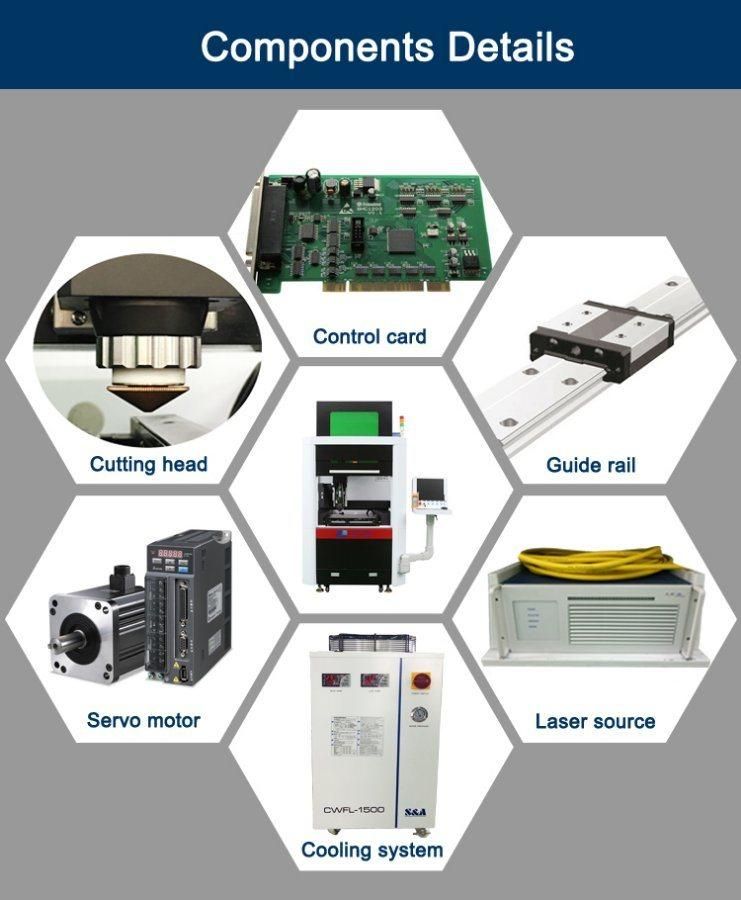

Accessories:
Advantages of Fiber Laser Cutting Machine:
1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2) High cutting speed: Cutting speed is more than 45m/min
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operations: fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements
8)Dual drive:different the traditional one drive machine,dual drive power is more large,speed is more fast and high procession

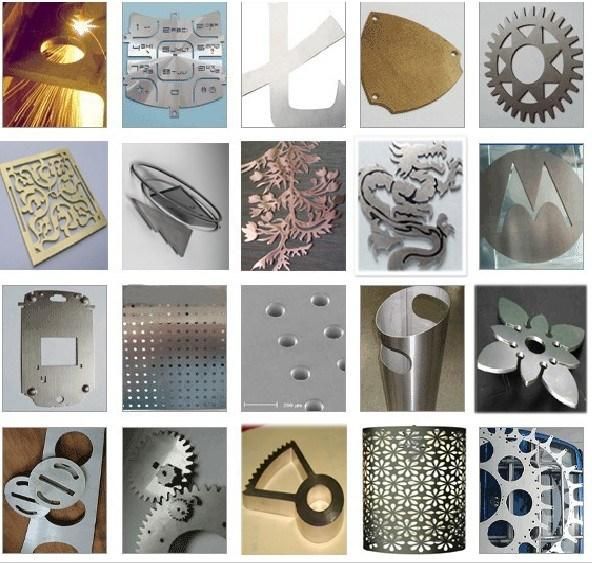

Applied materials of Fiber Laser Cutting Machine:
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.
Applied Industries of Fiber Laser Cutting Machine:
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
Our Exhibition
Our laser machine have exported to Germony,USA,Britain,France,Italy, South Korea,Japan, India,and so on more than 70 countries and regions, in the market enjoy a high revalution
Our Certification
we have independent rights to export and import,andpassed the CE,FCC,SGS,TUV and FDA certification

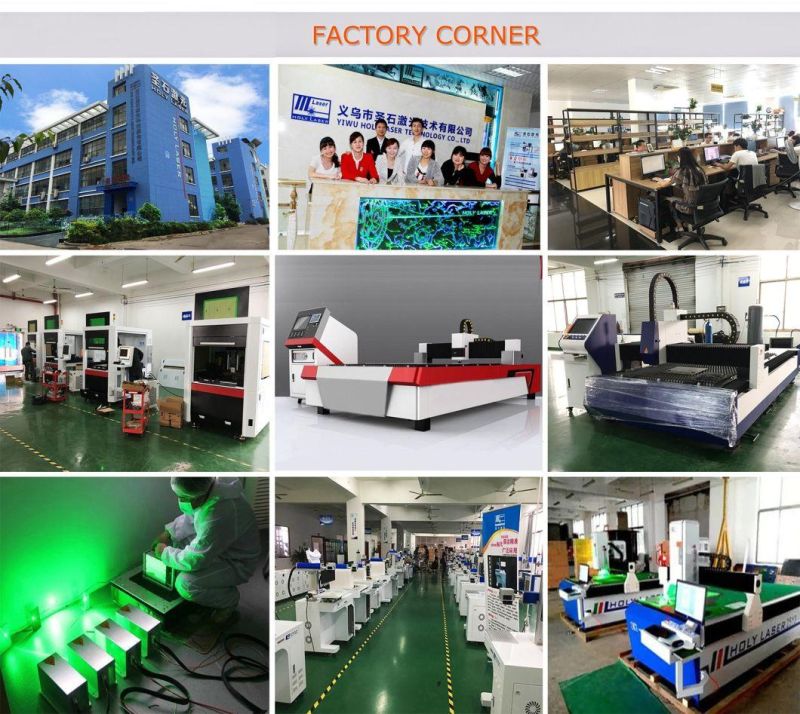

Factory Profile:
1.Supported by the Yiwu City Government
2.Copperate with the Zhejiang University, update for technology
3.We are the manufacturer, our price are more competitive.
4.With 18years history on reseaching and producing all kind of laser machine
5.Our company welcomes AGENTS all over the world
Warmly welcome you visit our factory!!!
Warmly welcome you contact us directly for more information!!!
